DoorProtect Plus User Manual
Updated October 18, 2019
DoorProtect Plus is a wireless security device which detects opening,
shocks, and tilting. It has a socket for connecting an external detector.
DoorProtect Plus is connected to the Ajax security system via the
protected Jeweller protocol, with an effective communication range of up to
1,200 meters without obstacles. Can operate up to 5 years from a pre-
installed battery and is furnished with a sealed contact reed relay
processing more than one million openings. It has a socket for connecting
an external detector.
Sealed contact reed relay is a device which forms a continuous circuit under the effect of a
constant magnet. It consists of ferromagnetic contacts placed in a bulb.
The detector is set up via a mobile application for iOS and Android-based
smartphones. The user is notified of all events through push notifications,
SMS messages and calls (if activated).
Not compatible with the uartBridge or ocBridge Plus
The Ajax security system is self-sustaining, but the user can connect it to
the central monitoring station of a private security company.
Buy opening detector with shock and tilt sensor DoorProtect Plus
Functional Elements

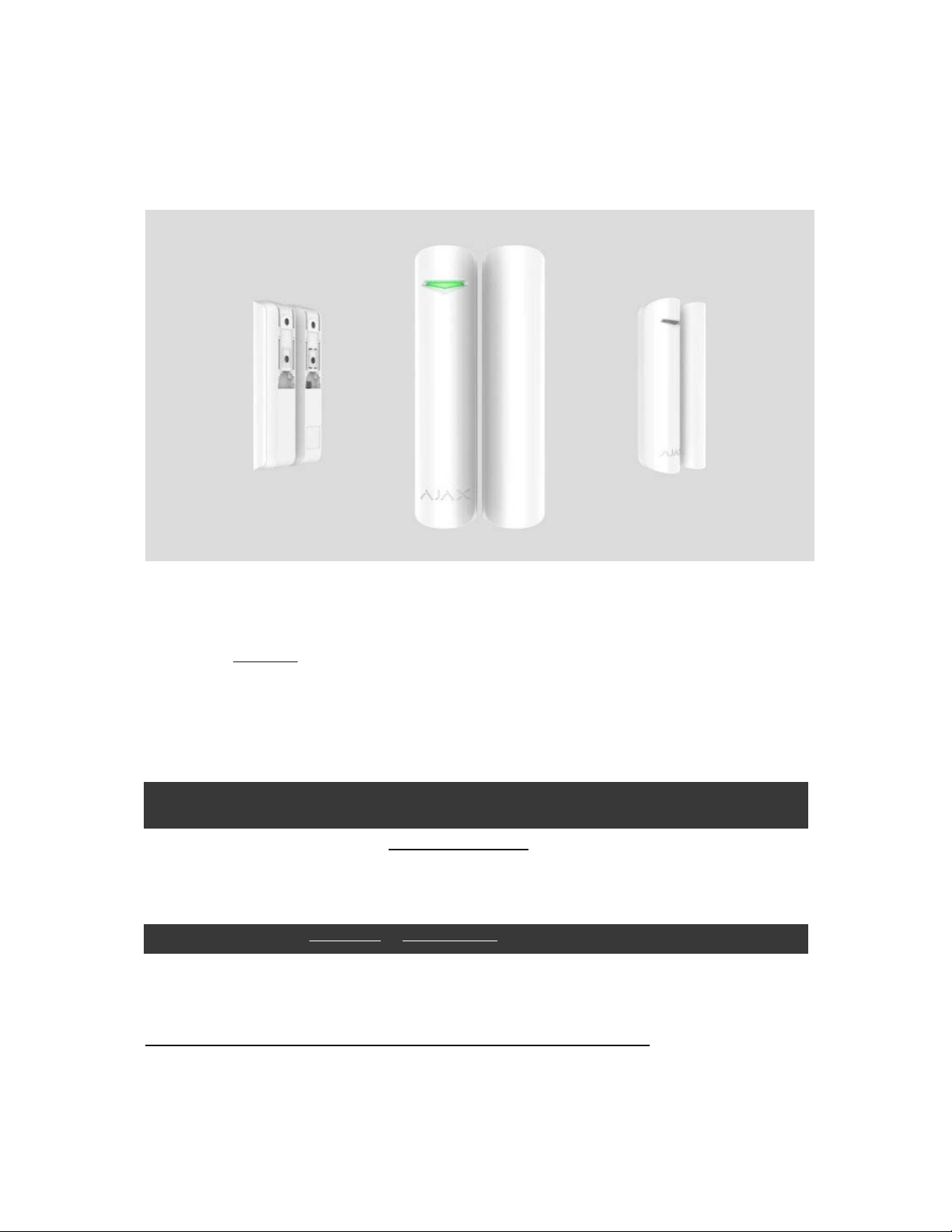

1. DoorProtect Plus
2. Big magnet
3. Small magnet
4. Light indicator
5. SmartBracket attachment panel (perforated part is required for actuating
the tamper in case of any attempt to tear off the detector from the surface)
6. External detector connection socket
7. QR code
8. Device switch
9. Tamper button
DoorProtect Plus Operating Principle
DoorProtect Plus consists of the detector with a sealed contact reed relay,
and a constant magnet. The detector is equipped with two magnets – small
and big, with the magnet operation ranges of 1 and 2 cm accordingly. The
detector is attached to a moving wing or sliding part and the magnet – to a
frame. If the sealed contact reed relay is within the coverage area of the
magnetic field, it closes the circuit – the detector is closed. The opening of
the wing distances the magnet from the sealed contact reed relay, resulting
in the circuit opening, and the detector records opening.
The detector may be positioned horizontally. If there is no need to detect
opening with the sealed contact reed relay, please use only an electronics
unit (without magnets) and disable the magnetic sensor in the settings.
Tilt detector detects the vertical deviation of the device relative to the initial
position of more than 5°. DoorProtect Plus can be installed on windows
including dormer windows, and the system can be armed, when they are in
the airing mode (you should рreviously disable the magnetic sensor in the
settings).
After actuation, the DoorProtect Plus detector set in the intrusion detection
mode immediately transmits an alarm signal to the Ajax hub, activating the
sirens connected to the hub and notifying the user and private security
company.
Detector Connection to hub
Before starting connection
1. Following the hub instruction recommendations, install the Ajax
application on your smartphone. Create an account, add the hub to the
application, and create at least one room.
2. Go to the Ajax application.
3. Switch on the hub and check the internet connection (via Ethernet cable
and/or GSM network).
4. Ensure that the hub is disarmed and does not start updates by checking its
status in the mobile application.
Only users with administrative privileges can add the device to the hub
How to connect the detector to the hub
1. Select the Add Device option in the Ajax application.
2. Name the device, scan/write manually the QR Code (located on the body
and packaging), and select the location room.
3. Select Add — the countdown will begin.
4. Switch on the device.
For the detection and interfacing to occur, the detector should be located
within the coverage area of the wireless network of the hub (at a single
protected object).
Request for connection to the hub is transmitted for a short time at the time
of switching on the device.
If connection to the Ajax hub failed (LED blinks once per second), switch off
the detector for 5 seconds and repeat the attempt.
The detector connected to the hub will appear in the list of devices of the
hub in the application. Update of the detector statuses in the list depends
on the device inquiry time set in the hub settings, with the default value –
36 seconds.
States
1. Devices
2. DoorProtect Plus
Parameter Value
Temperature Temperature of the Detector. This is measured on the processor
and changes gradually
Signal Strength Signal strength between the hub and the detector
Battery Charge Battery level of the detector, displayed in increments of 25%
Lid The tamper mode of the detector, which reacts to the detachment
of or damage to the body
Delay when entering, sec Delay time when entering
Delay when leaving, sec Delay time when exiting
Connection Connection status between the hub and the detector
Primary Detector Primary detector status
Secondary detector Status of the external detector connected to DoorProtect Plus
Always active If active, the detector is always in the armed mode
Shock sensor If active, DoorProtect Plus will detect the shock
Tilt sensor If active, DoorProtect Plus will detect tilt angle changing
Firmware Detector firmware version
Device ID Device identifier
Setting Up the Detector
1. Devices
2. DoorProtect Plus
3. Settings
