CABINET PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

4−09 Litho In U.S.A. (mat)(bay) Part No. W10268067 Rev.A

REFRIGERATOR

CABINET PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Owners Manual

W10184250

Energy Tag

12845601 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310731 Black

4 12249902 Label, Fill Tube

5 Roller Assembly

W10212382

Left

W10212381

Right

7 10351006 Pin, Center Hinge

9 12992602 Screw

10 12477501 Cover, Fill Tube

11 12992201 Screw

12 12990521 Screw (8)

13 A3076901 Plug, Button

14 12992403 Screw (3)

15 Hinge, Center

12607104ED

Black

16 10354002 Foot Brake (2)

17 Cover, Corner

12587703B

Black

12566606ED

Hinge, Top

20 12991302 Screw (8)

21 Cover, Hinge

12477601B

Black

22 Grille Assembly

(Includes Clips)

W10236196

Black

25 12990511 Screw (9)

W10217701

Cover, Water Valve

W10210979

Cover, Unit

29 12820505 Insulation, Sound

W10210988

Tube, Drain

33 B5759655 Gasket

REFRIGERATOR LINER PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

REFRIGERATOR LINER PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Bracket, Control

and Lights

3 12816501 Overlay

4 12806406 Housing,

Electronic Control

5 12868513 Board, Control

C3680310V

Switch, Light

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

16 12002355 Thermistor

17 M0310343 Plug Button

Following Parts Not Illustrated

12868701 Harness, Controls

(Refrigerator)

(Includes # 16)

FREEZER LINER PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

FREEZER LINER PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RH & LH)

4 12804901 Cover, Light

12812902WD

Shaft

12570701V

Socket, Light

8 12990521 Screw (8)

W10194422V

Bulb, Light

12476401V

Housing, Frz. Light

11 12226111 Cover, Evaporator

12 12990101 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 12805001 Housing, Lighting

15 13058002 Clip, Evap. Motor

16 12466105 Switch, Light

18 Bracket, Basket

12812303 Left

12812304 Right

W10120018

Slide, Drawer (2)

20 A3189395 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

22 13024803 Cover, Fan Shroud

23 13057901 Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

12991603V

Screw

Following Parts Not Illustrated

13014801 Harness, Lights

(Freezer)

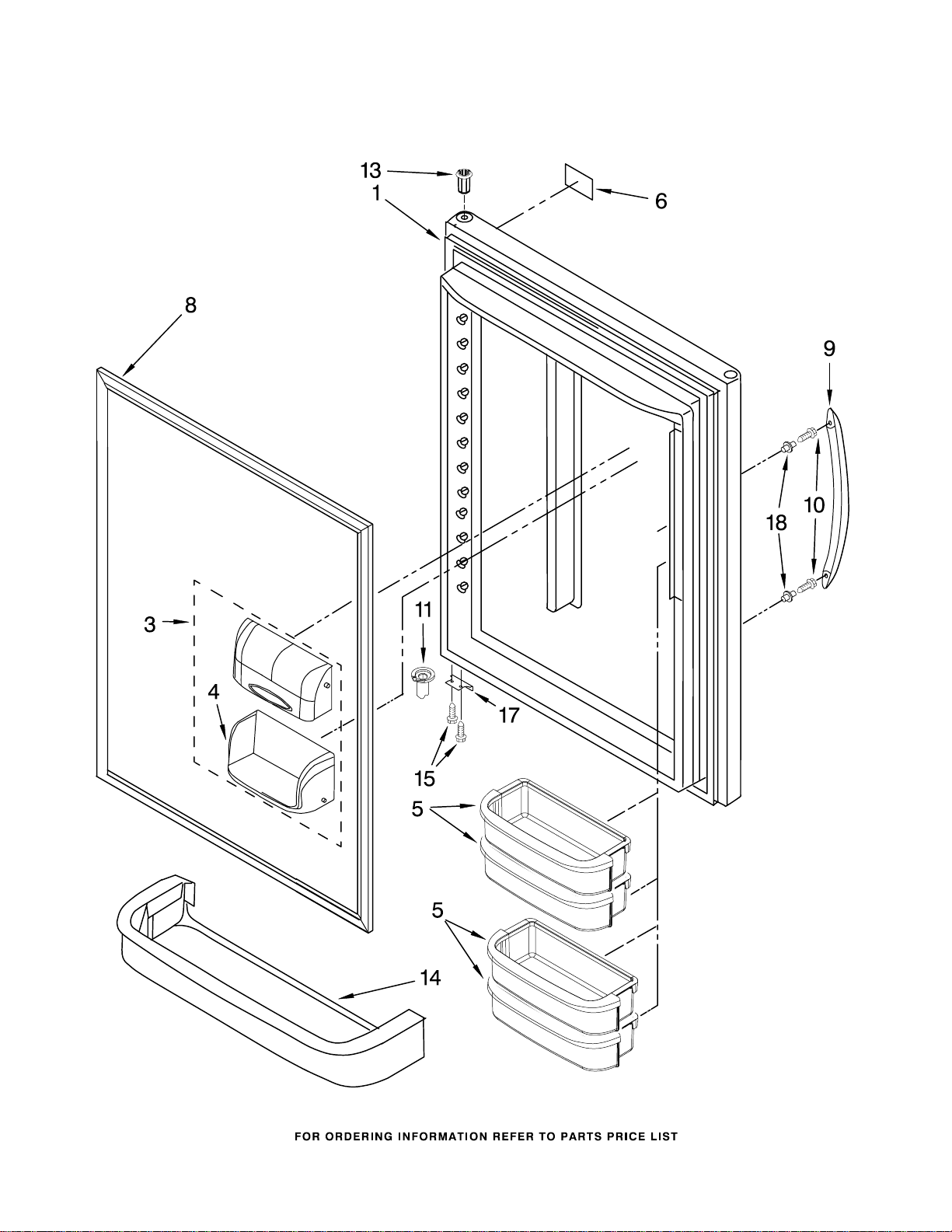

REFRIGERATOR DOOR PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

REFRIGERATOR DOOR PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

Stainless Steel

13023840SQ

Left

13023839SQ

Right

12744905V

Door, Compartment

12369502SP

Tray, Dairy

12557204V

Bucket, Medium

6 12528501 Nameplate

8 Gasket, Door

Magnetic

W10164035

Black

9 Handle, Door

W10197305N

Stainless Steel

10 12991703 Screw

11 Closure, Door

12028505B

Black

13 Bushing

10961006B

Black

14 12557905 Retainer, Door

15 12990504 Screw

17 Stop, Door

10447112 Black

18 13001201 Mount, Handle

FREEZER DOOR PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

FREEZER DOOR PARTS

For Model: ABL2222FES3, ABR2222FES3

(Stainless Steel)(Stainless Steel)

W10268067

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

13092210SQ

Stainless Steel

2 Handle, Door

W10197305N

Stainless Steel

3 13001201 Mount, Handle

4 Gasket, Door

W10164037

Black

5 12991703 Screw
