Ameriwood HOME 1871303COM Bedienungsanleitung

1871303COM

TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B341871303COM

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

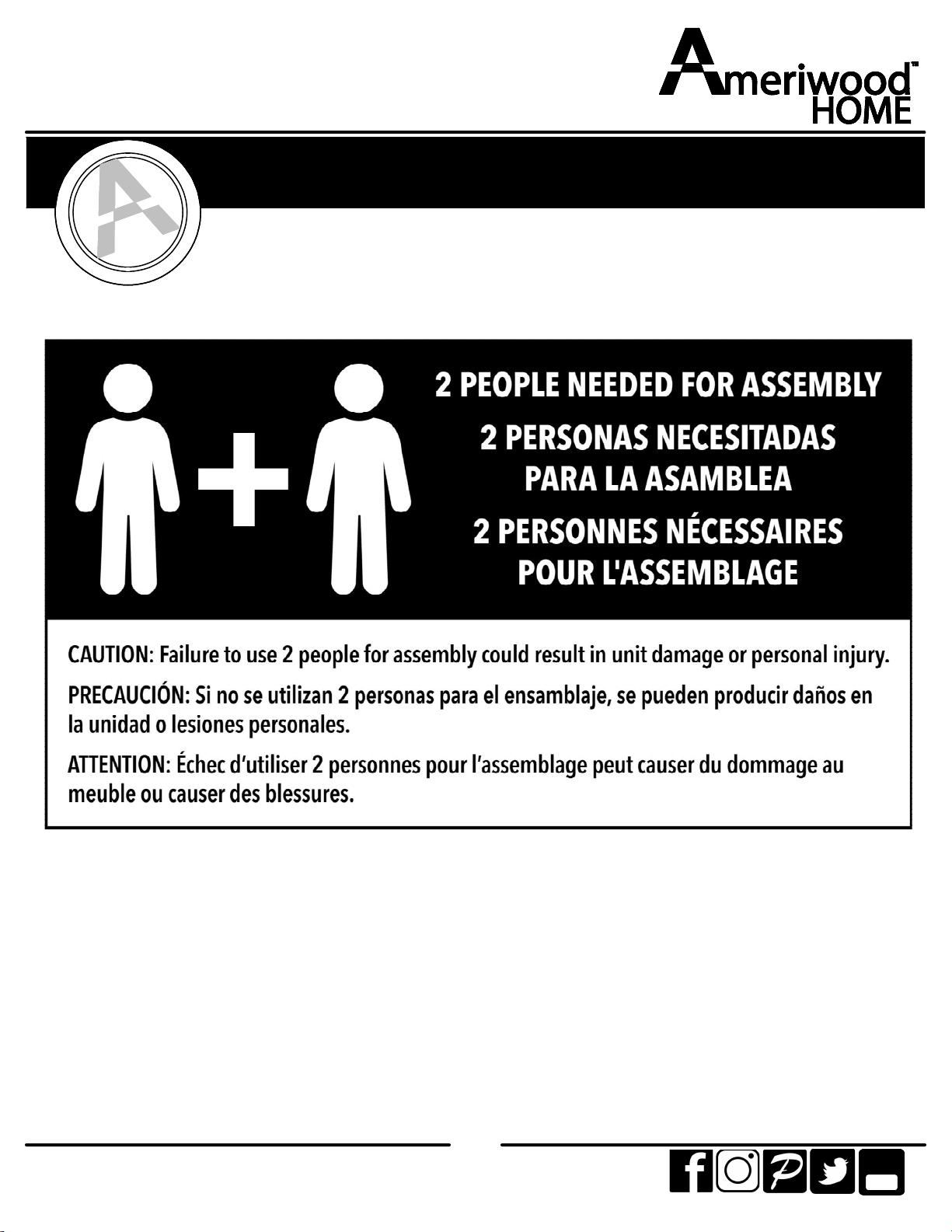

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

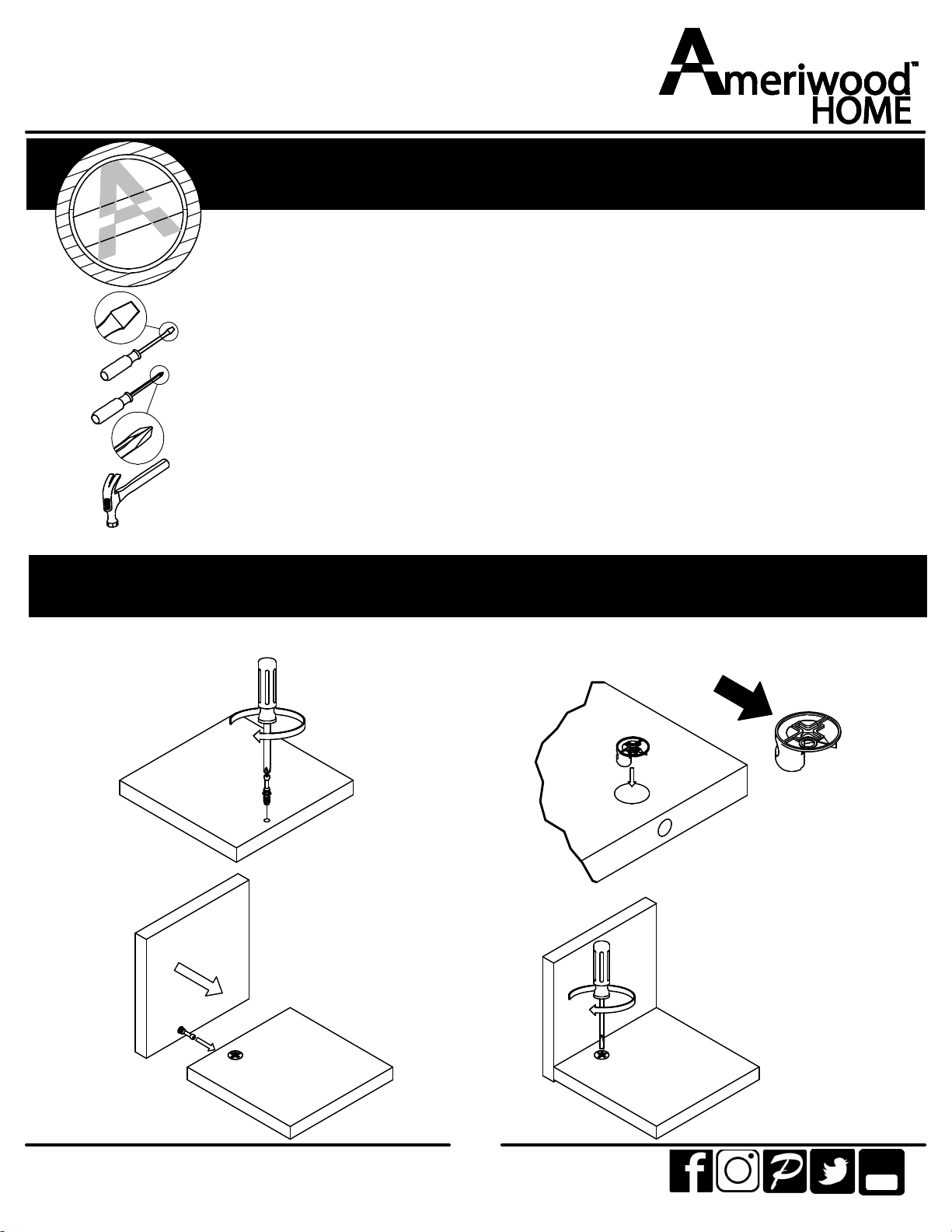

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

ameriwoodhome.com

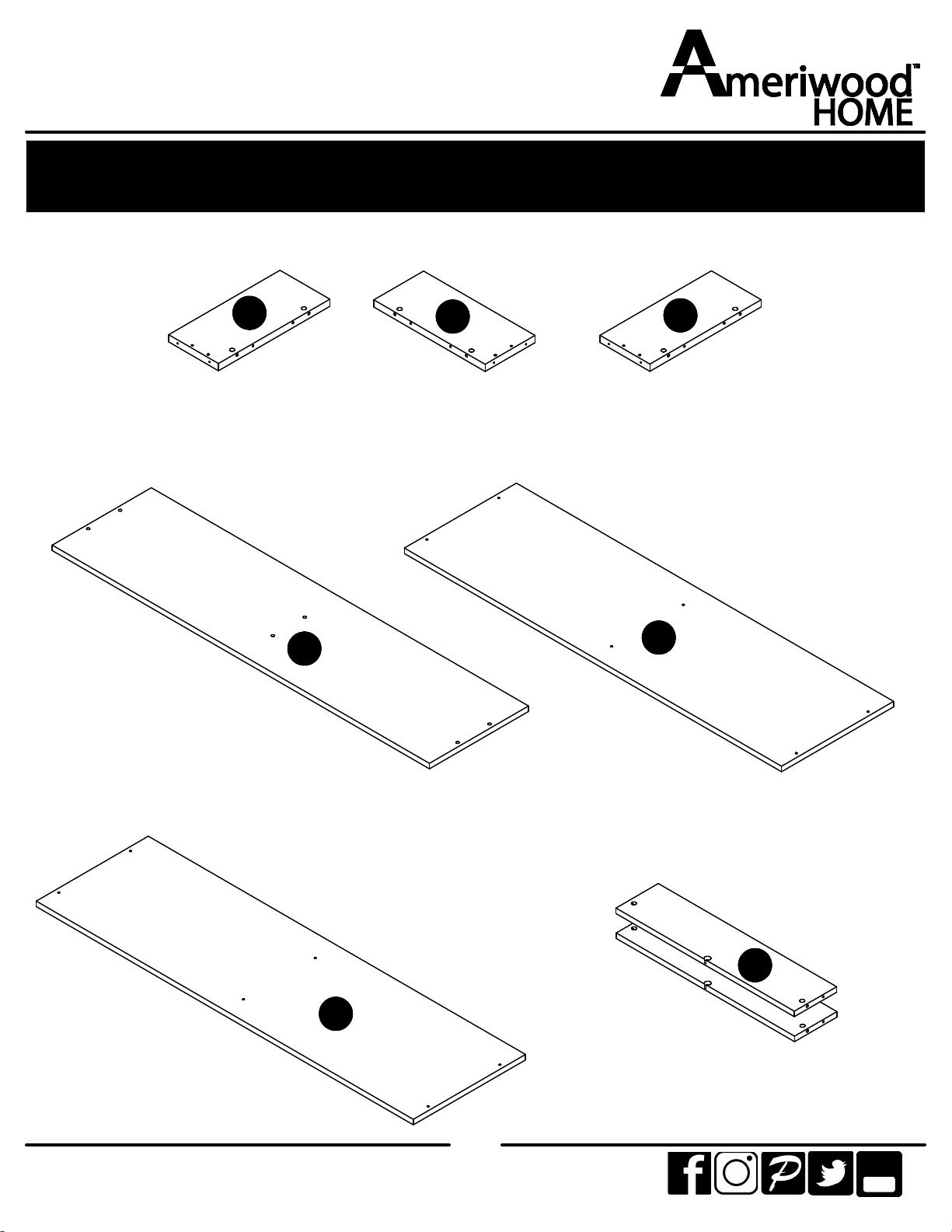

Board Identification

Not actual size

Tube

You

Left Panel

31871303010

Right Panel

31871303020

Partition

31871303030

Top

31871303040

Bottom

31871303050

Shelf

31871303060

ABC

Back (x2)

31871303070

ameriwoodhome.com

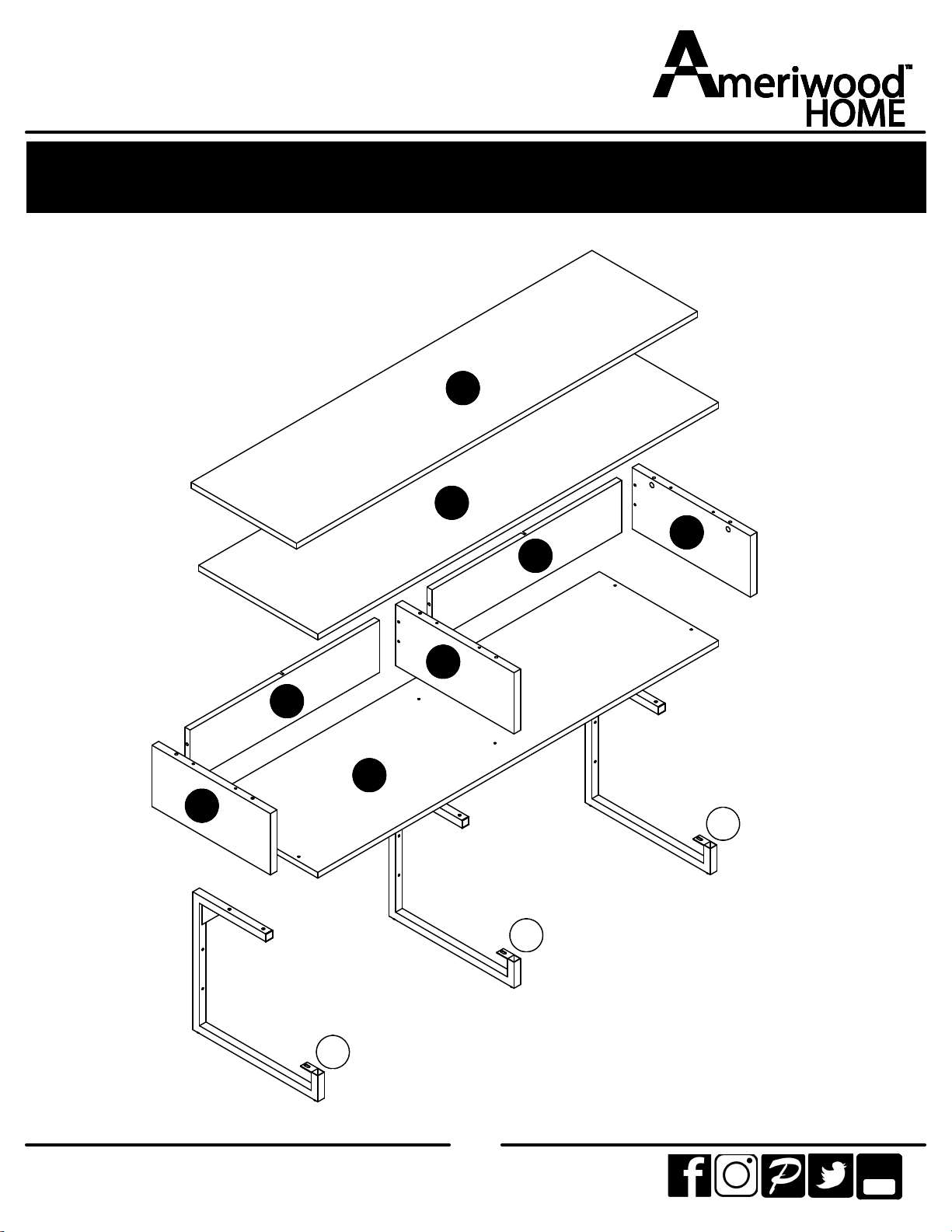

Board Identification

Tube

You

ameriwoodhome.com

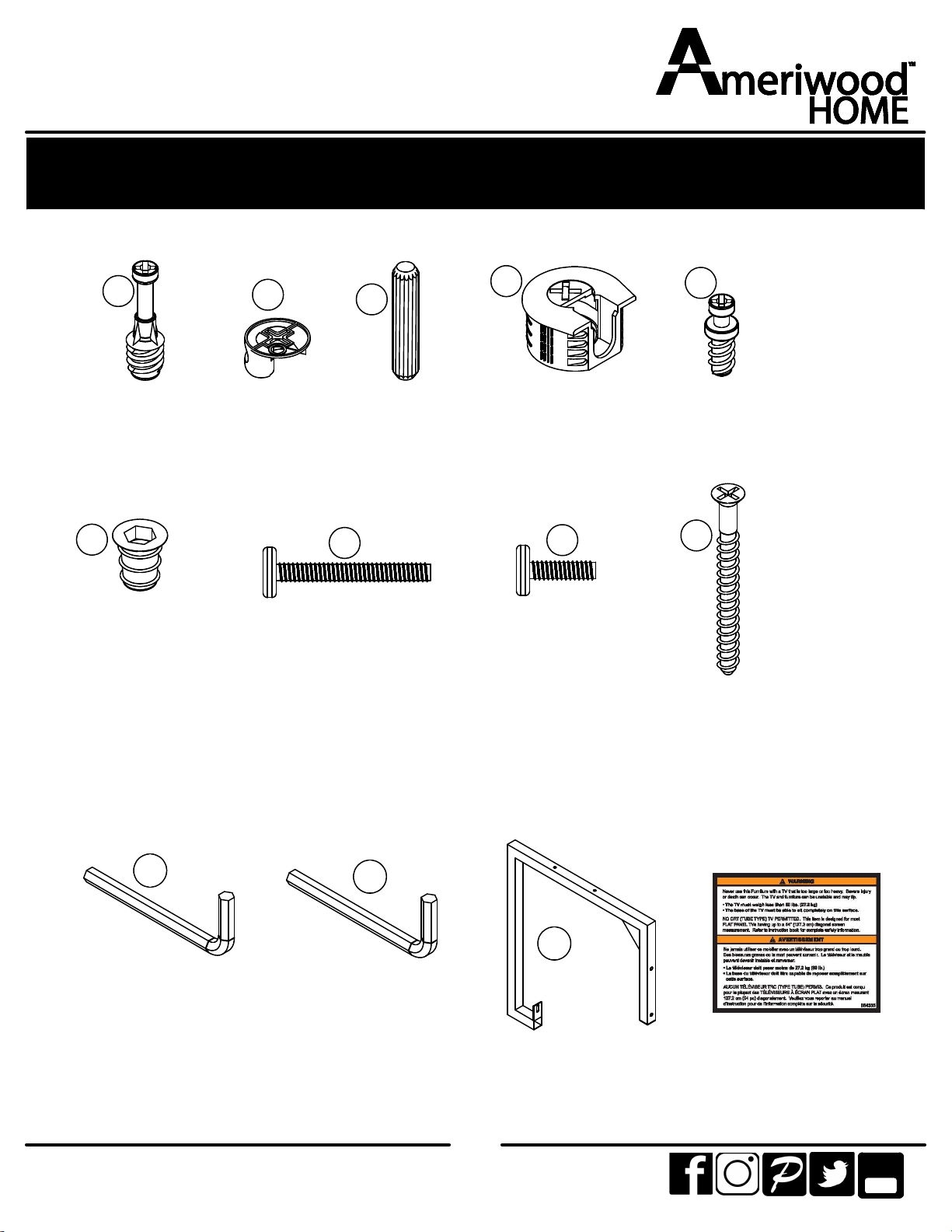

Part List

Actual Size

Tube

You

Not Actual Size

1345

(x10)

#A22610

cam bolt

(x10)

#A22620

cam lock

(x10)

#A21660

wood dowel

(x2)

#A22920

connector

(x2)

#A22910

connector bolt

(x12)

#A23030

confirmat

(x1)

#B64358

TV warning label

(x1)

#A23100

4mm hex key

(x3)

#A95580

leg

(x1)

#A23110

6mm hex key

(x9)

#A20360

threaded insert

(x6)

#A19715

35mm bolt

(x3)

#A19705

15mm bolt

10 11

ameriwoodhome.com

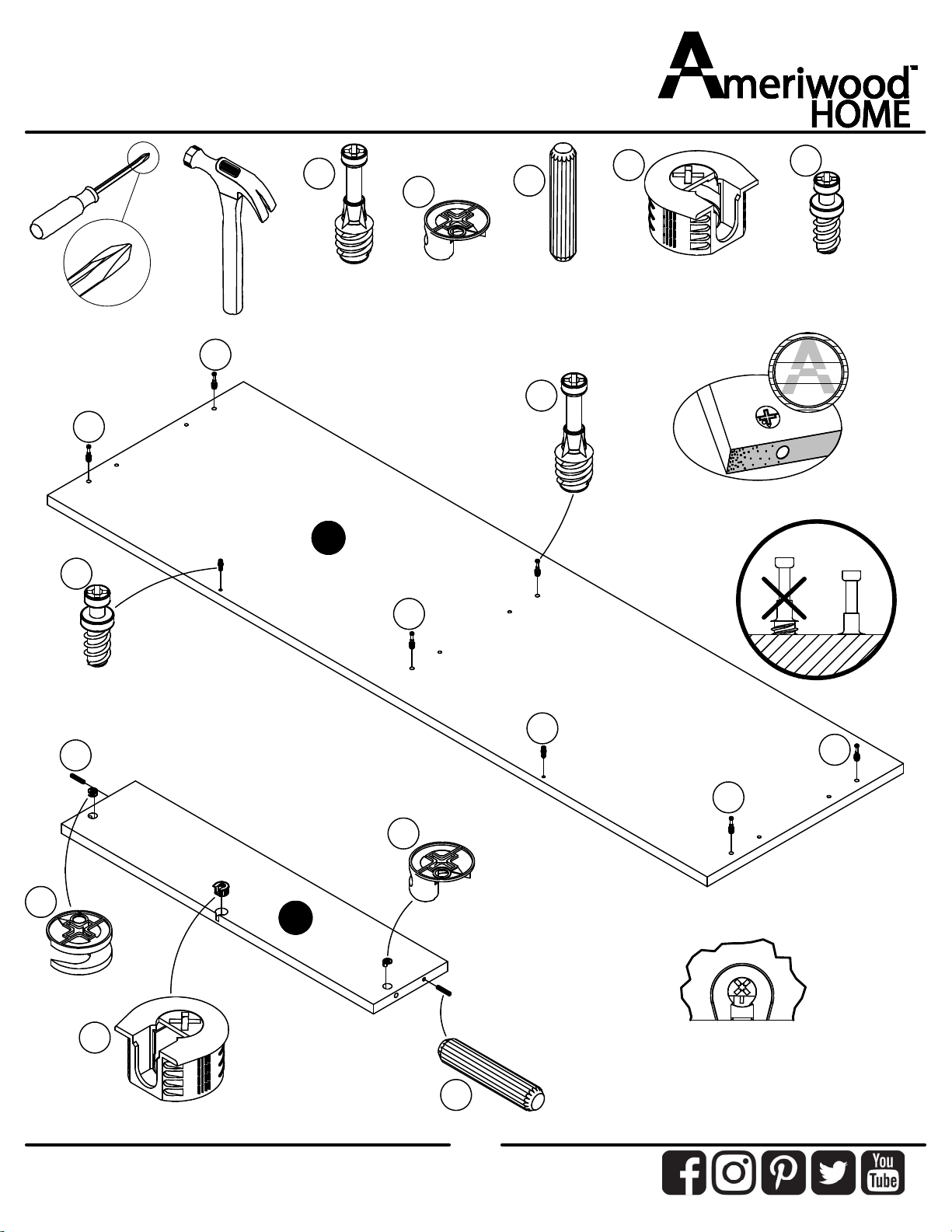

STEP1

(x6)

#A22610

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4)

#A22620

(x2)

#A22910

(x2)

#A22920

(x4)

#A21660

Be sure connector (4) is positioned

as shown before inserting into hole.

You will need a hammer to tap into

hole.

ameriwoodhome.com

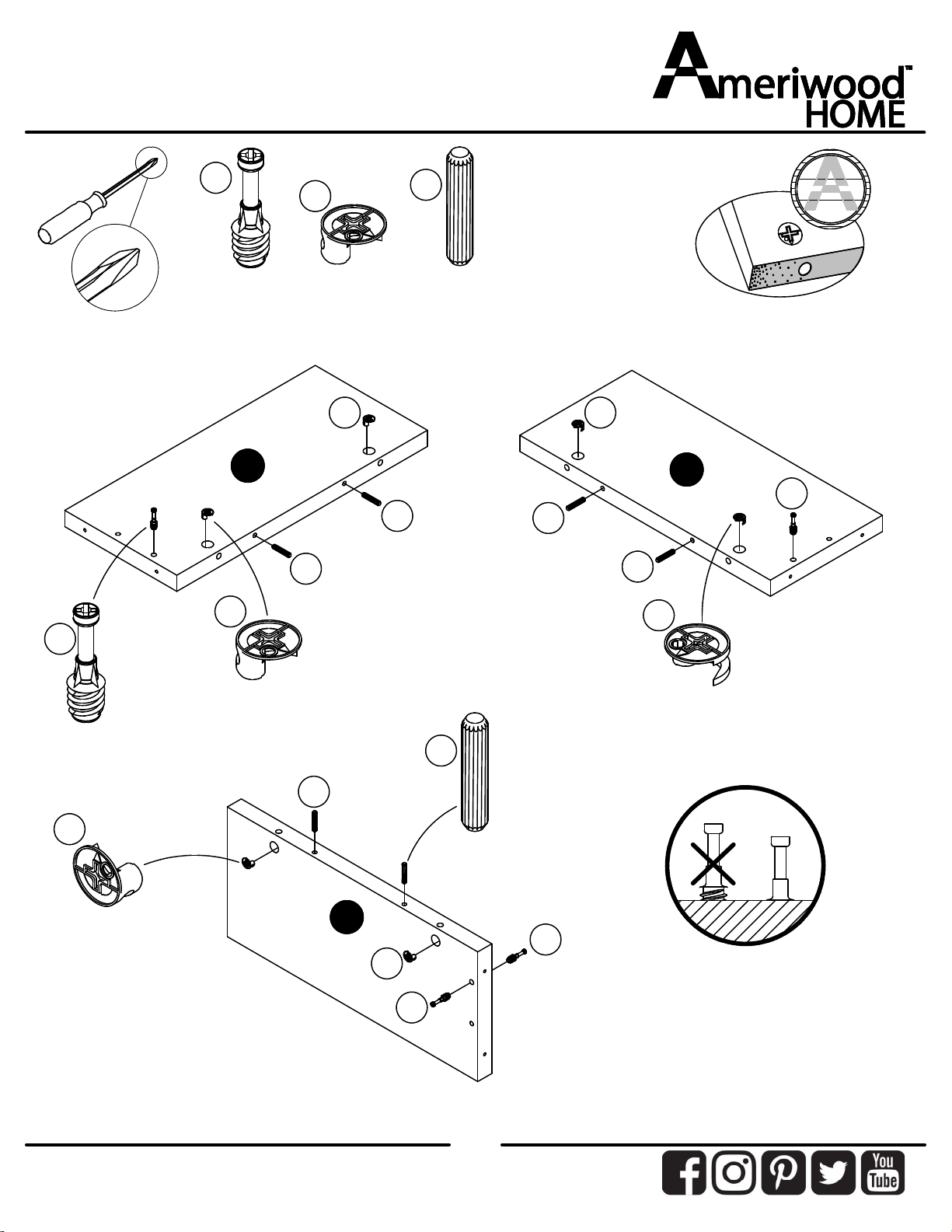

STEP2

123

(x4)

#A22610

(x6)

#A22620

(x6)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

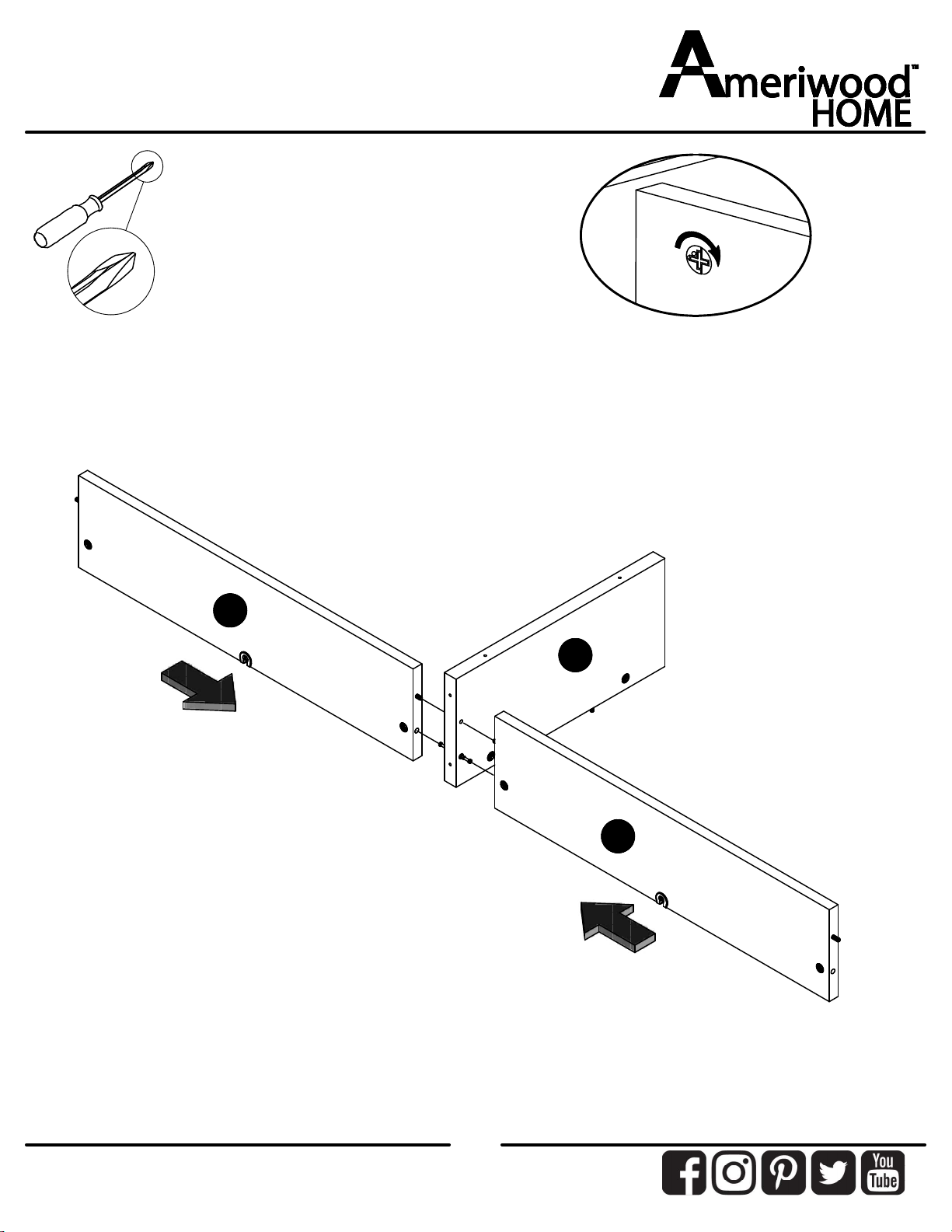

STEP3

UNLOCKLOCK

Inhaltsverzeichnis

Sprachen:

Andere Ameriwood HOME Inneneinrichtung Handbücher

Ameriwood HOME

Ameriwood HOME 9016015COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 9107328PCOM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 1053214COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 9896340COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 8133222COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 9087214COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5391500COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME Farmington 1795096COM00GO Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 2595342COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME systembuild EVOLUTION 2566408COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5580340COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5685213COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5683215PCOM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 2090335COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 8948015COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME Colebrook 5969502COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 3919335COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME MONTANA RANCH TV STAND 6484909COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 9610407COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5774219COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME Ollie & Hutch 4142884COM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5189012YCOM Bedienungsanleitung

Ameriwood HOME

Ameriwood HOME 5741213COM Bedienungsanleitung

Ameriwood HOME

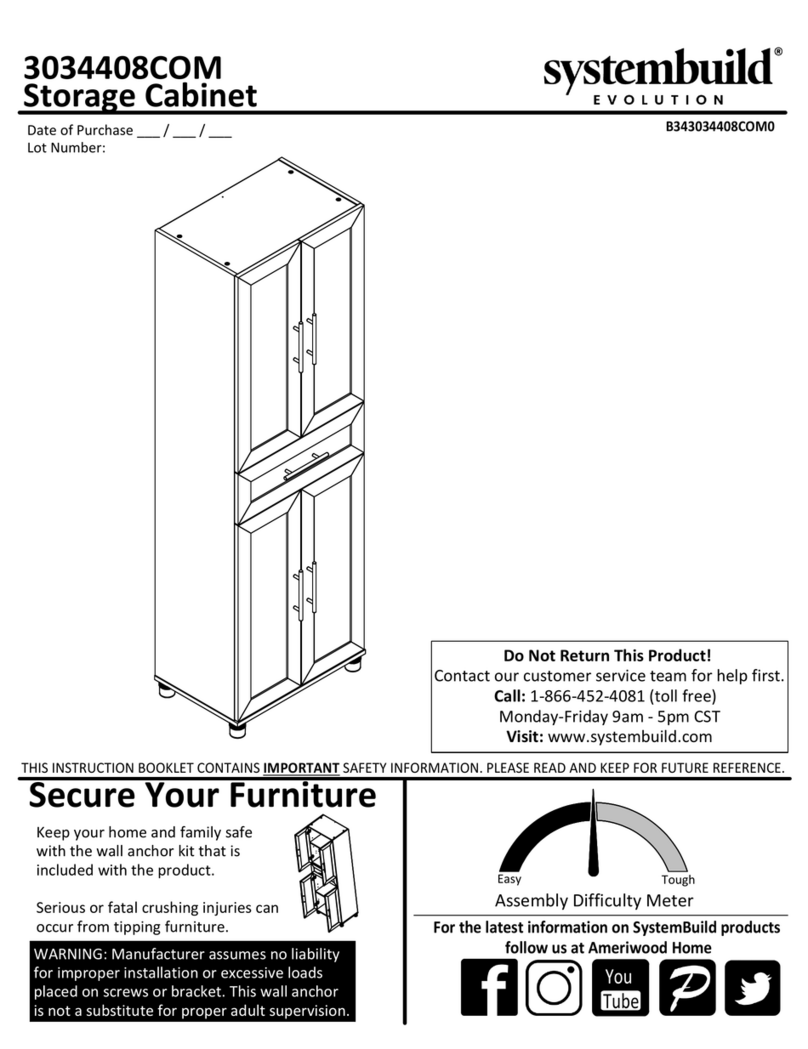

Ameriwood HOME systembuild 3034408COM Bedienungsanleitung
