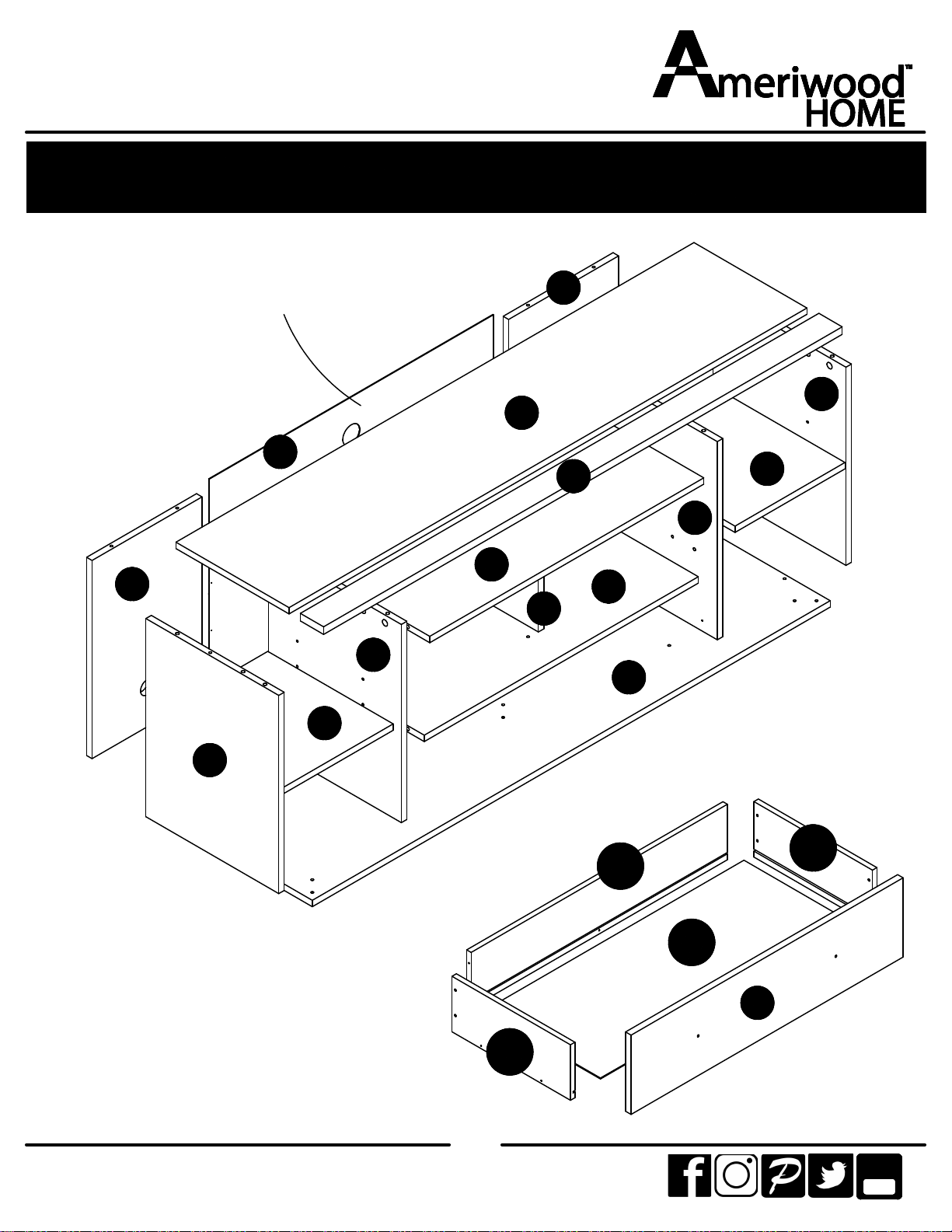

Ameriwood HOME 2166306COM Bedienungsanleitung

2166306COM

TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B342166306COM

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

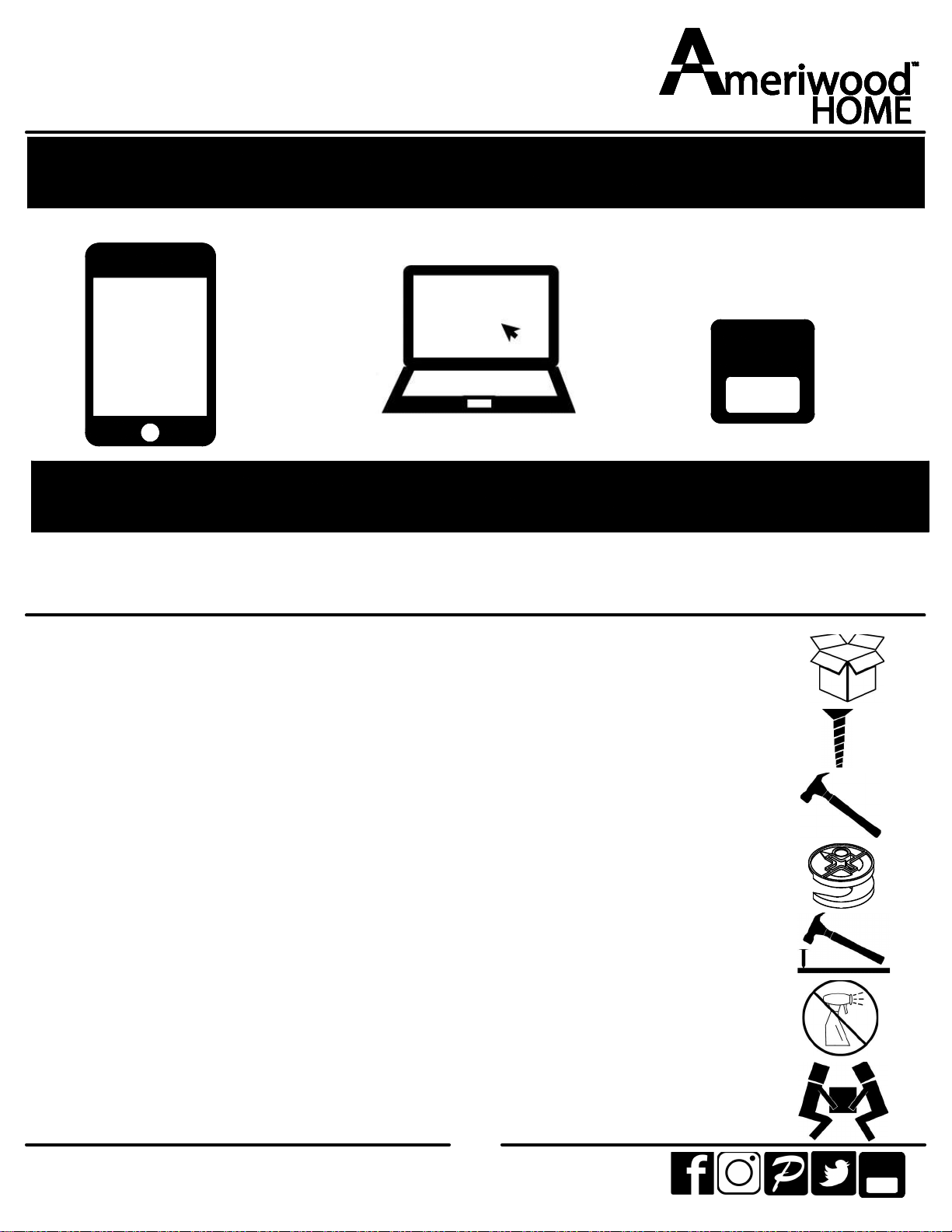

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

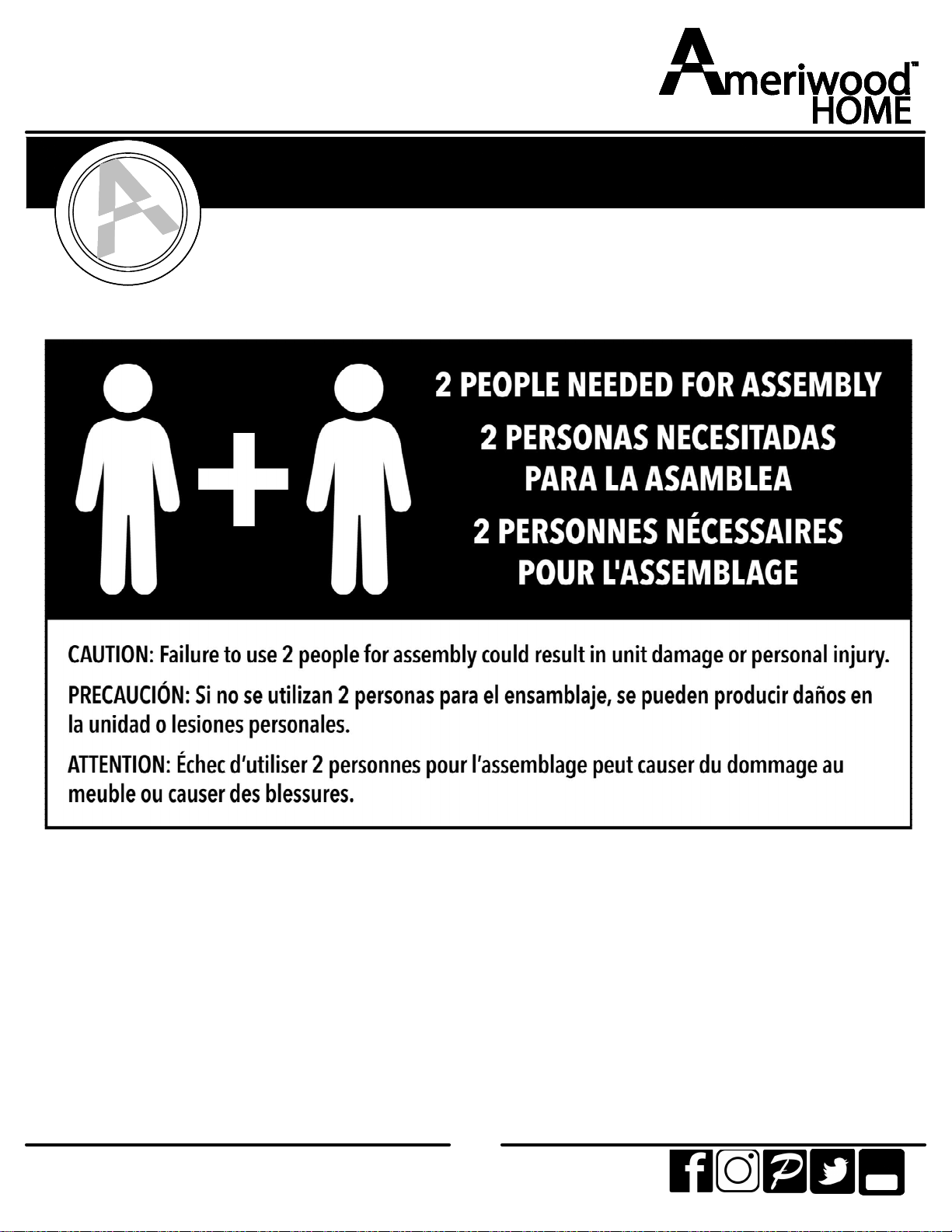

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

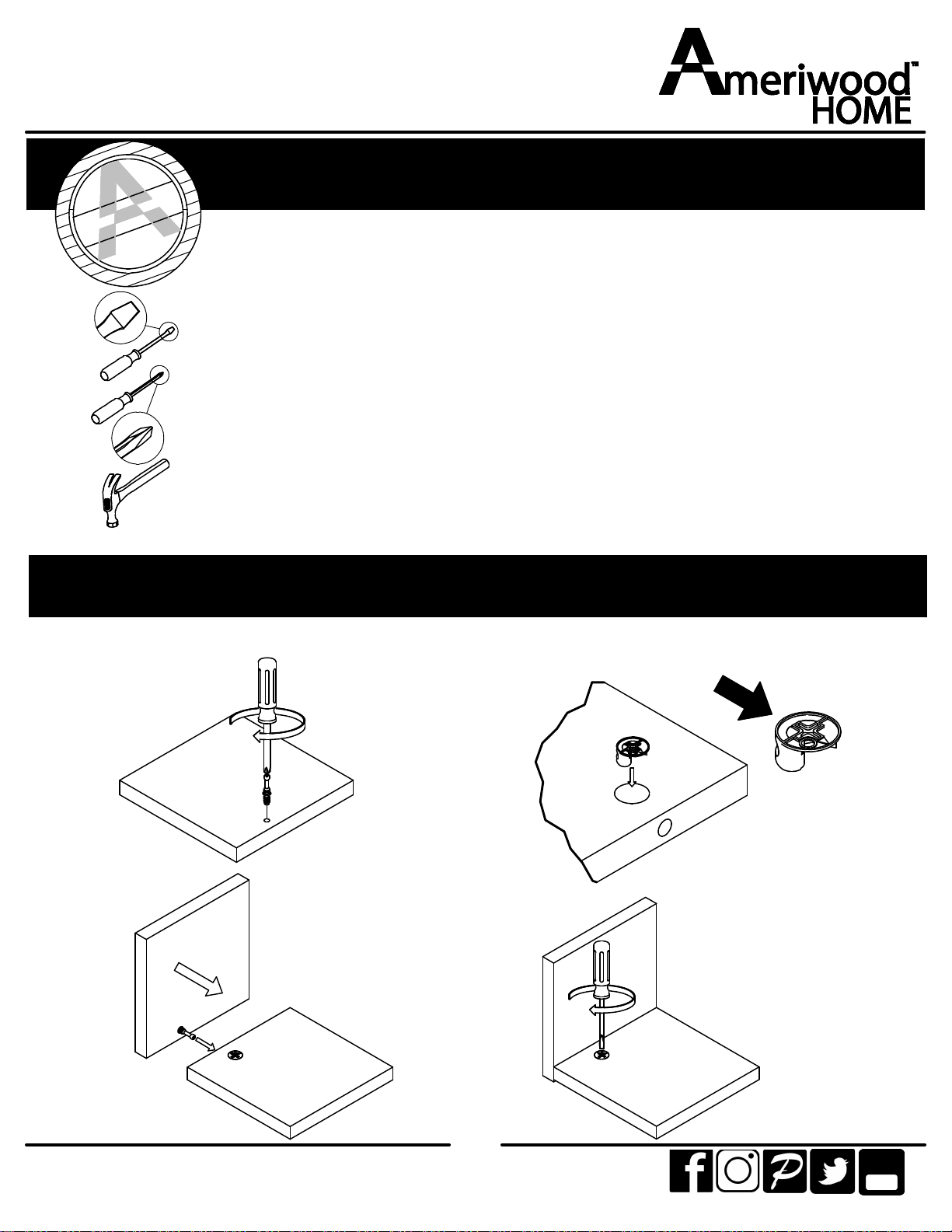

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

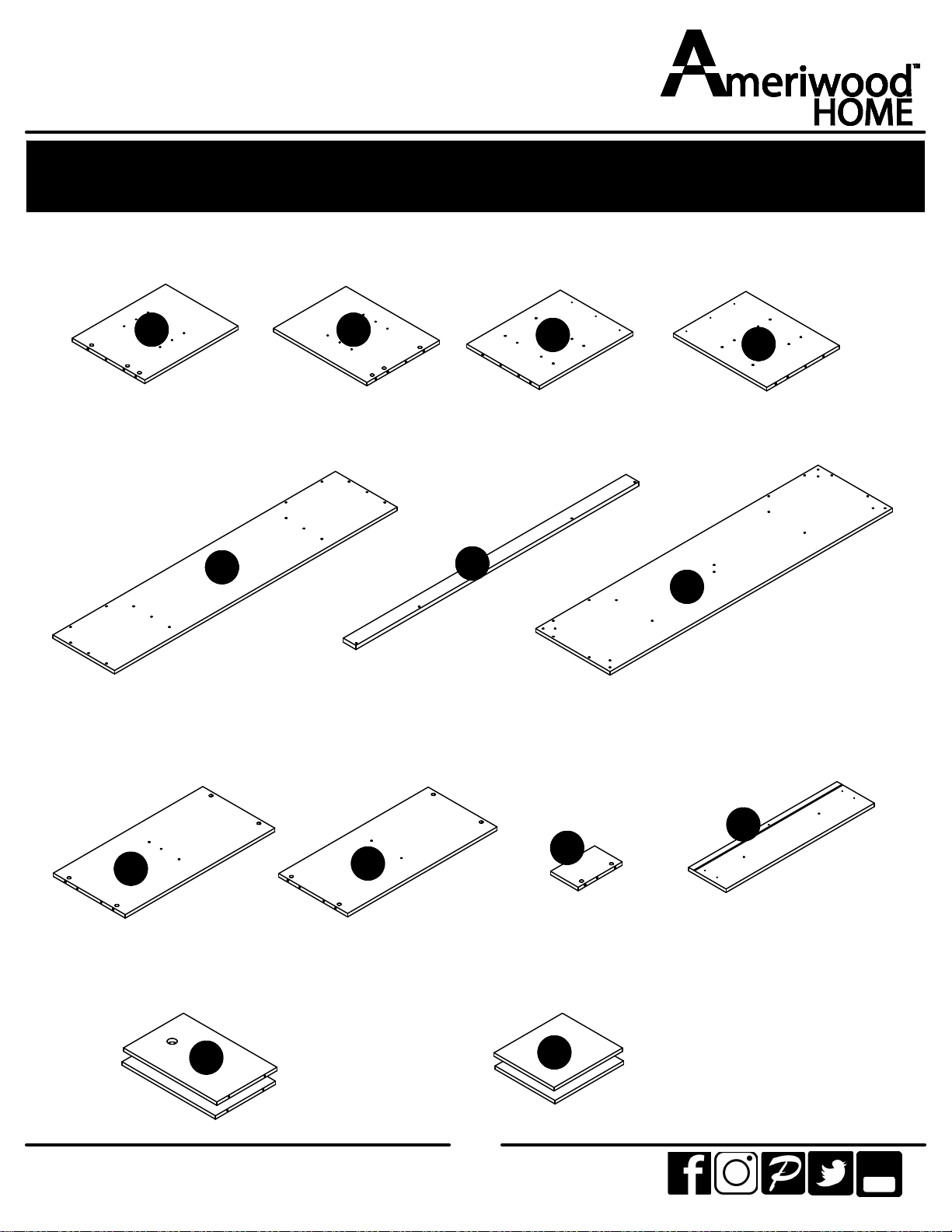

Left Panel

32166306010

Right Panel

32166306020 Left Partition

32166306030 Right Partition

32166306040

Top

32166306050

Upper Shelf

32166306080

TV Rail

32166306060

Bottom

32166306070

Lower Shelf

32166306090

Divider

32166306100 Drawer Front

32166306110

Back (x2)

32166306120

Adjustable Shelf (x2)

32166306130

ameriwoodhome.com

Board Identification

Tube

You

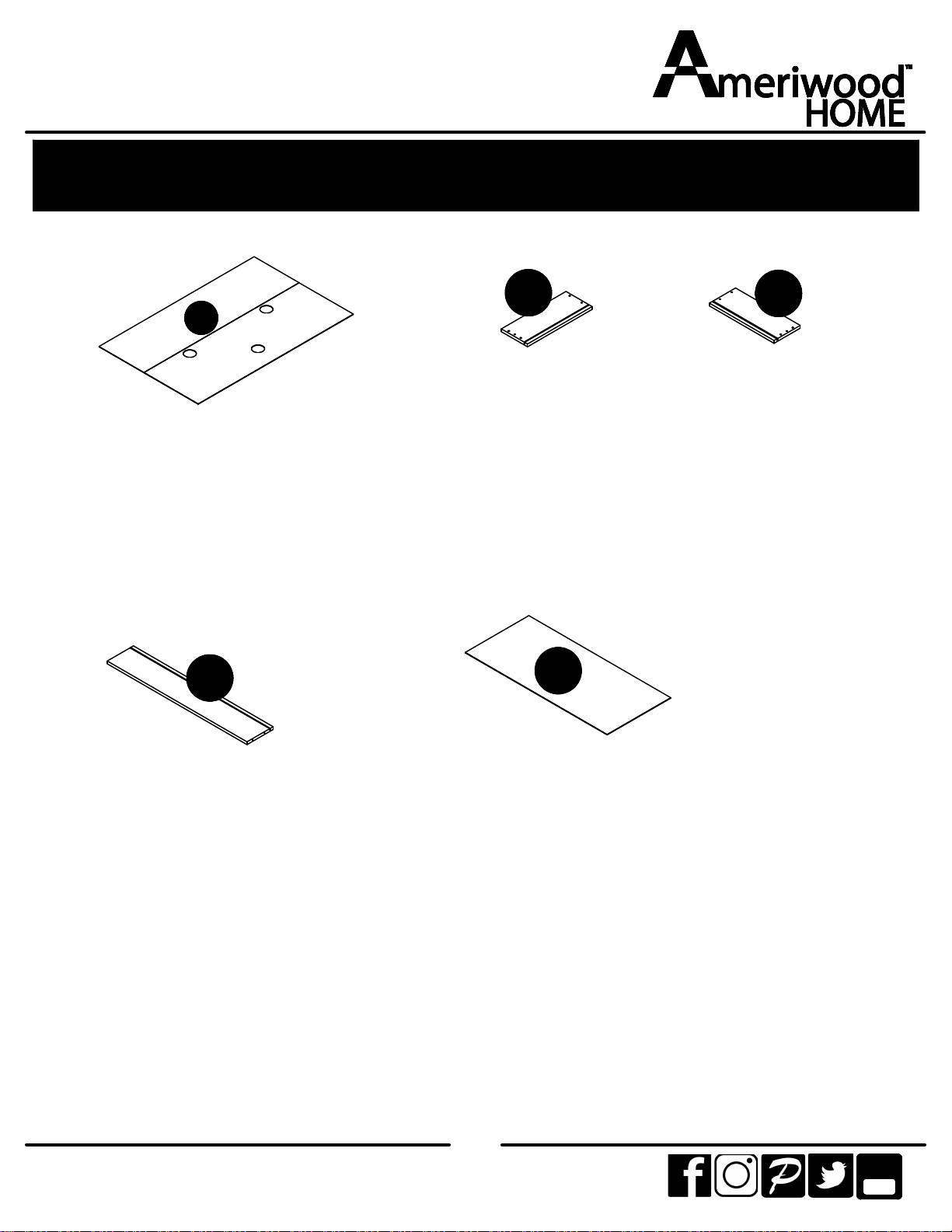

Back Panel

K216630600

Left Drawer Side

39992140346010L Right Drawer Side

39992140346010R

Drawer Back

39992140074800B

Drawer Bottom

39992340075910D

LFT

DRW

SIDE

RGT

DRW

SIDE

DWR

BACK

DWR

BTM

ameriwoodhome.com

Board Identification

Tube

You

This piece is paperboard construction.

It is not made from wood, but is

required for the assembly of your unit.

LFT

DRW

SIDE

RGT

DRW

SIDE

DWR

BACK

DWR

BTM

ameriwoodhome.com

Part List

Actual Size

Tube

You

Not Actual Size

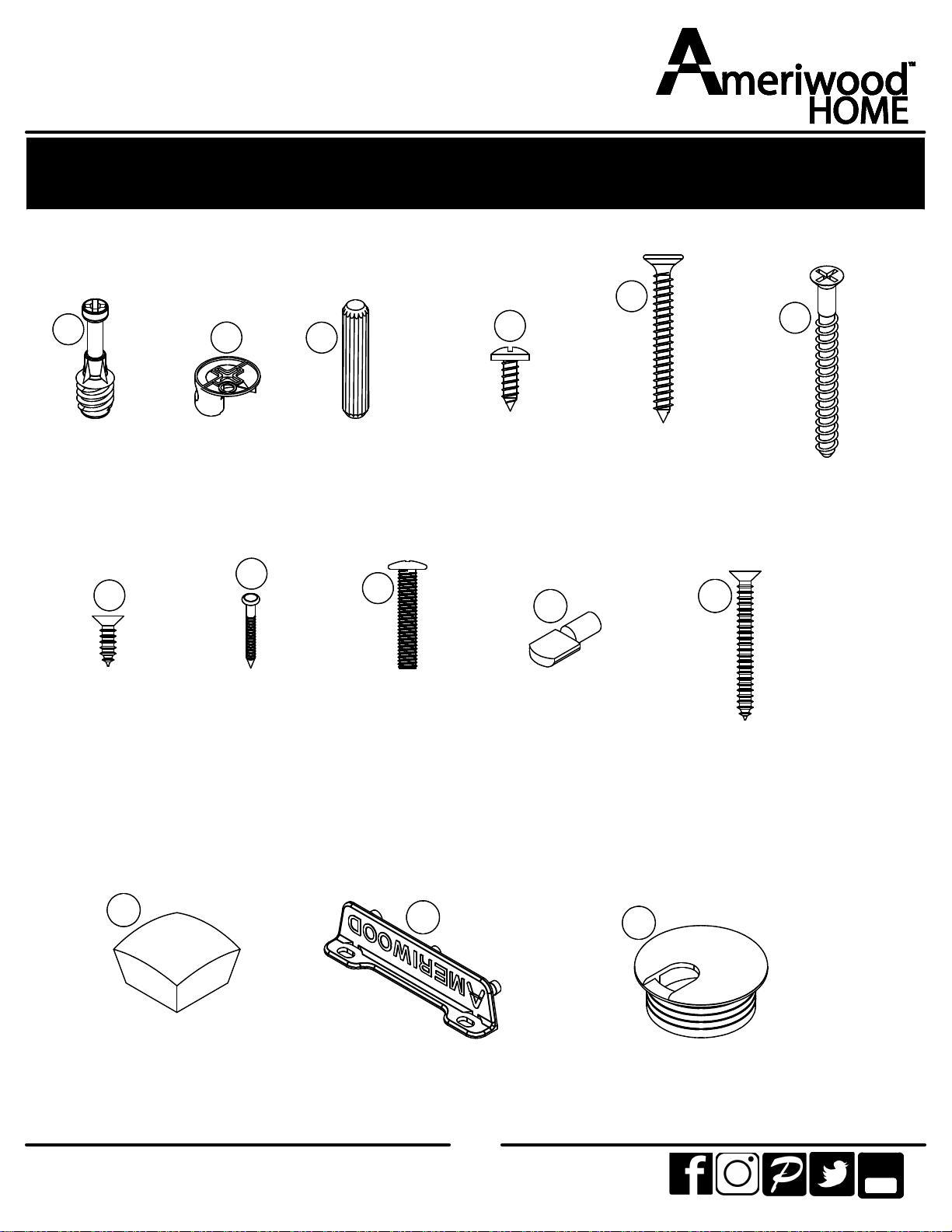

136

(x22)

#A22610

cam bolt

(x22)

#A22620

cam lock

(x17)

#A21660

wood dowel

(x14)

#A23030

confirmat

(x2)

#A17400

7/8" bolt

(x8)

#A80250

shelf support

(x10)

#A11080

7/16" screw

(x26)

#A21110

nail

(x2)

#A51950

knob

(x6)

#A12120

7/16" screw

911

(x10)

#A13210

1-1/2" screw

(x2)

#A54213

drawer bracket

(x2)

#A70310

grommet

(x4)

#A11600

1-1/4" screw

ameriwoodhome.com

Part List

Not Actual Size

Tube

You

(x1)

#A54900

drawer brace

(x5)

#A44160

foot

15a

15b

15c

15d

(x1)

#A56740

drawer slide pkg.

Right Drawer Member

Left Drawer Member

Right Cabinet Member

Left Cabinet Member

ameriwoodhome.com

STEP1

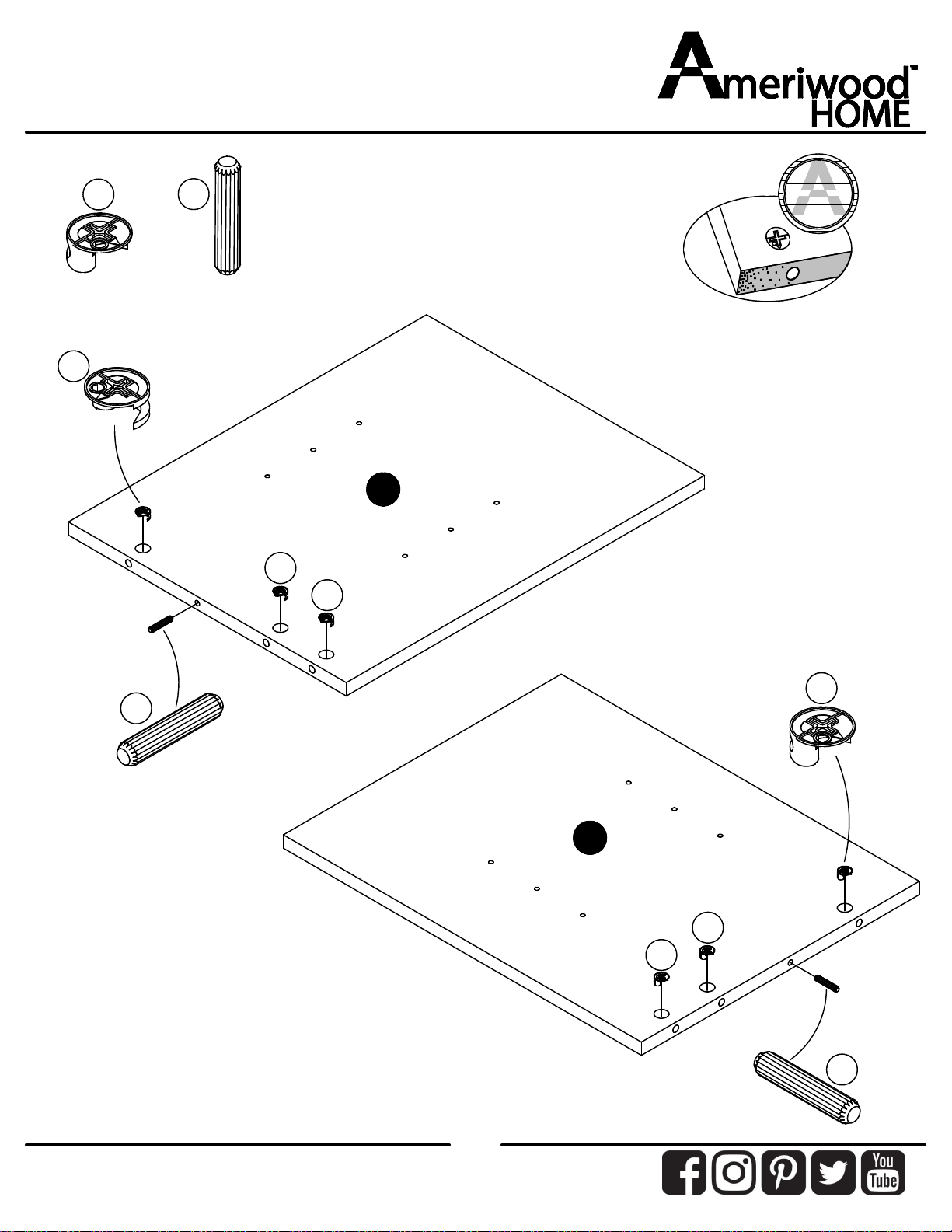

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x6) (x2)
