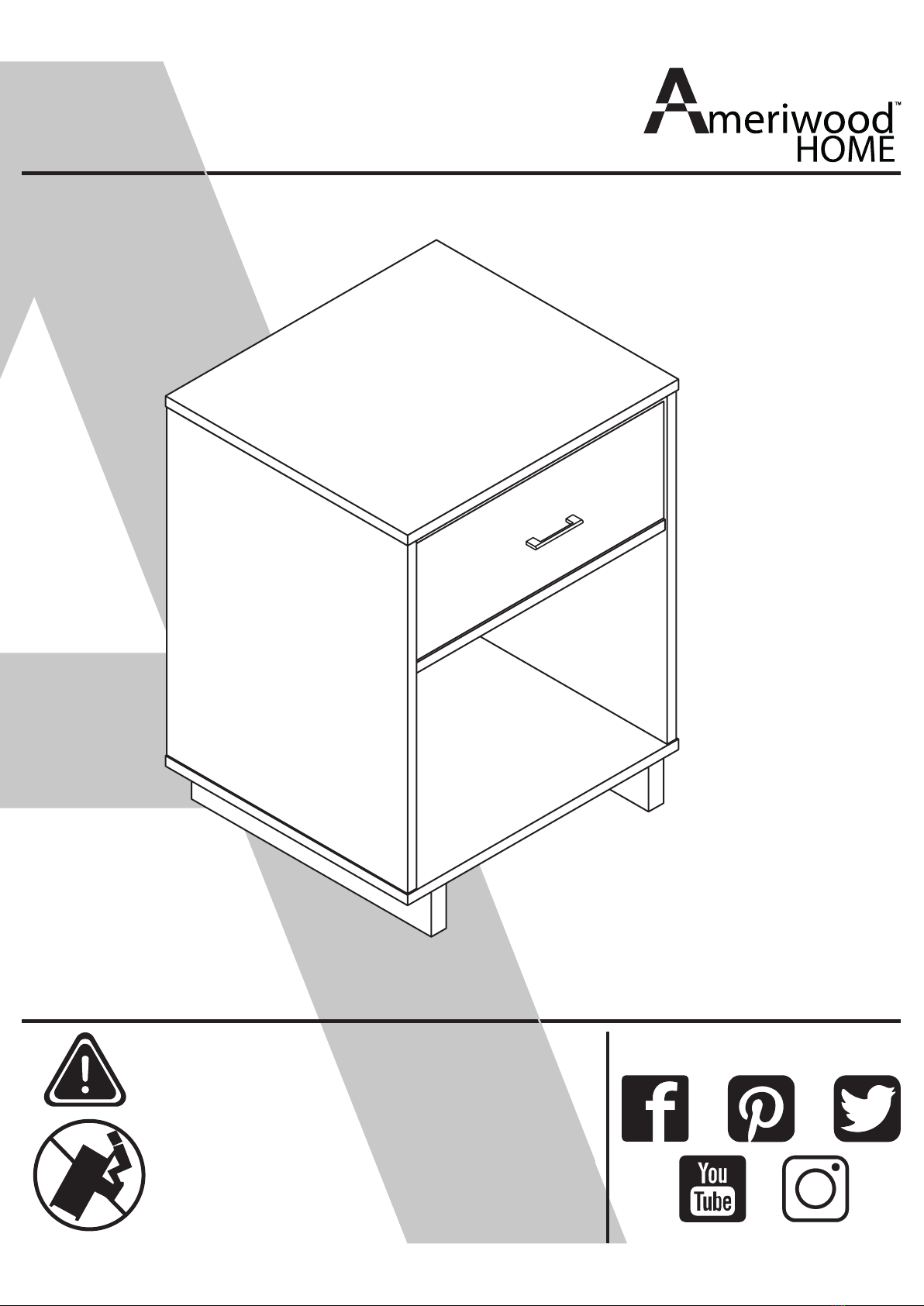

Colebrook Nightstand

5967503COM

Keep this Assembly Manual for future reference

Unit can p over causing severe injury or death.

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Warning

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

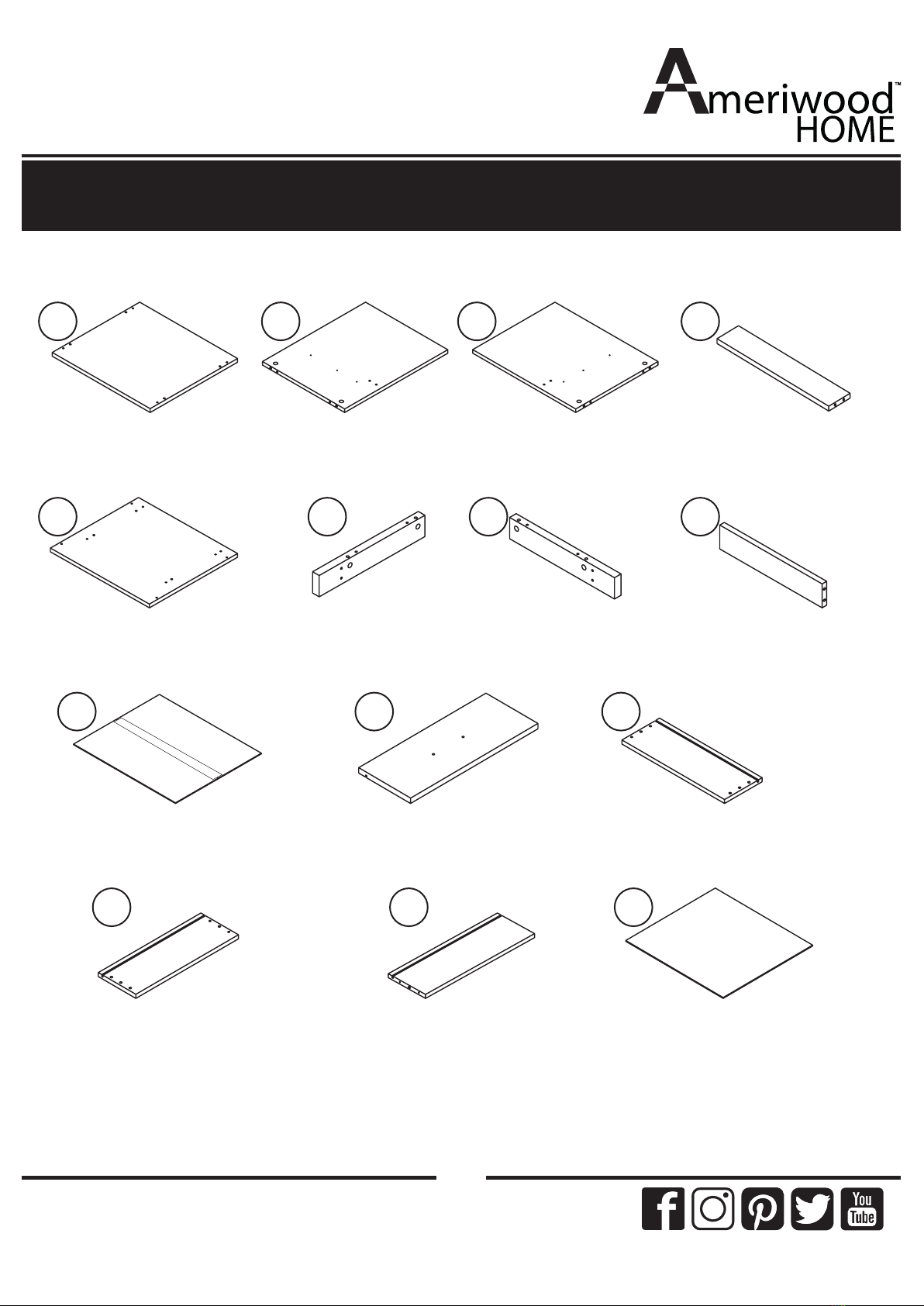

Board Idencaon

Not actual size

5967503COM

Colebrook Nightstand

ameriwoodhome.com

T5967503010

TOP PANEL

T5967503020

SIDE PANEL LEFT

T5967503030

SIDE PANEL RIGHT

T5967503040

BRACE

T5967503050

BOTTOM PANEL

T5967503060

SIDE RAIL LEFT

T5967503070

SIDE RAIL RIGHT

T5967503080

KICK PANEL

T5967503090

BACK PANEL

T5967503100

DRAWER FRONT

T5967503110

DRAWER SIDE RIGHT

T5967503120

DRAWER SIDE LEFT

T5967503130

DRAWER BACK

T5967503140

DRAWER BOTTOM

12 13 14

10 11

6 7 8

2 3 4

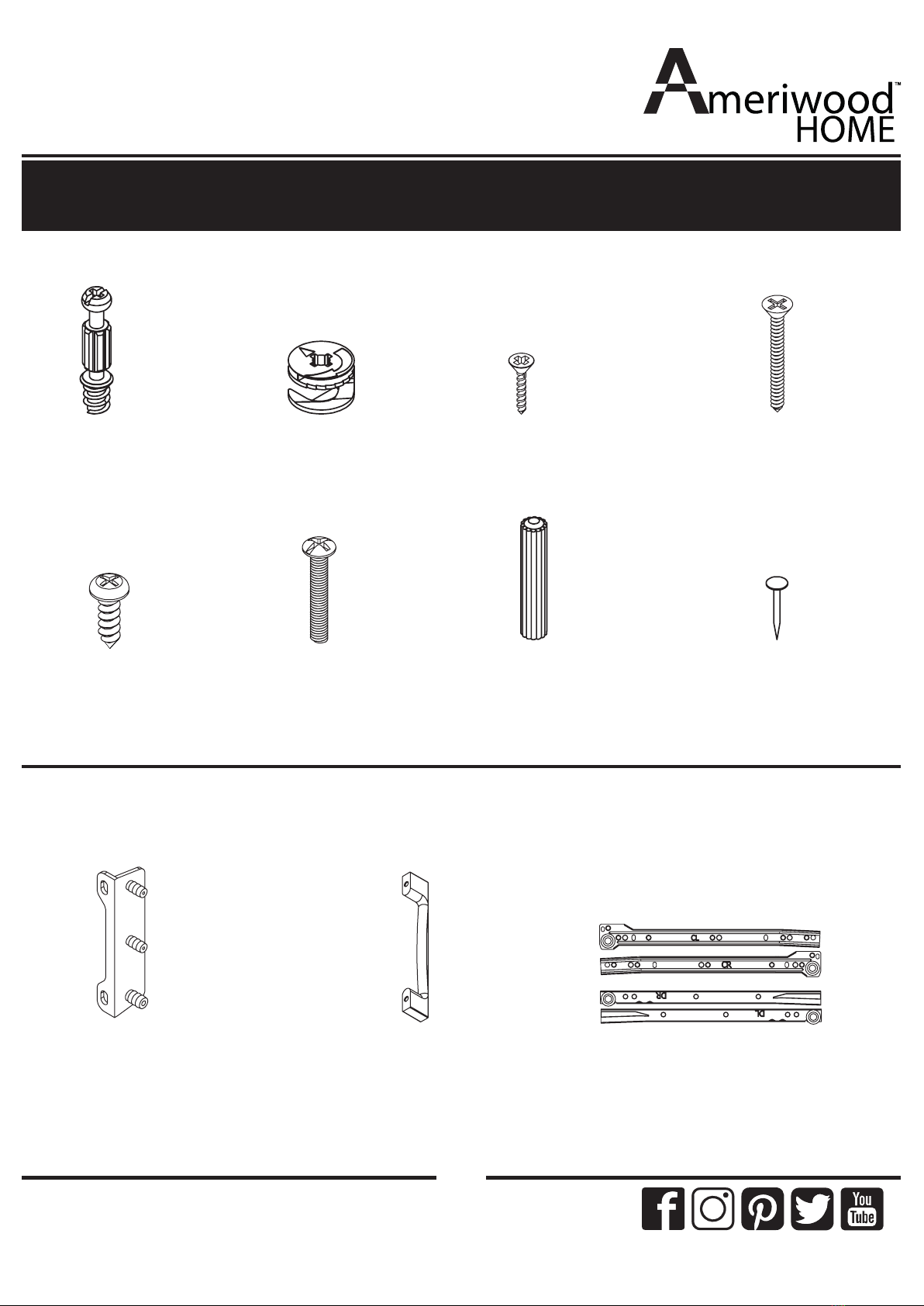

Part List

Actual Size

Not Actual Size

5967503COM

Colebrook Nightstand

ameriwoodhome.com

TTA0001

Cam Bolt

TTA0003

Cam Lock

15-11.5

x14

TTA0005

CBS 3.5 x 12

TTA0010

CSK 4 x 32

TTA0013

PHCB 4 X 12

TTA0014

PH M4 X 20

TTA0028

DRAWER BRACKET

x22

TTA0016

DOWEL 6 X 30

x20

TTA0018

NAIL

TTA0032

PULL HANDLE

96MM

x1 Set

TTA0033

DRAWER SLIDE

300 MML

Before You Start

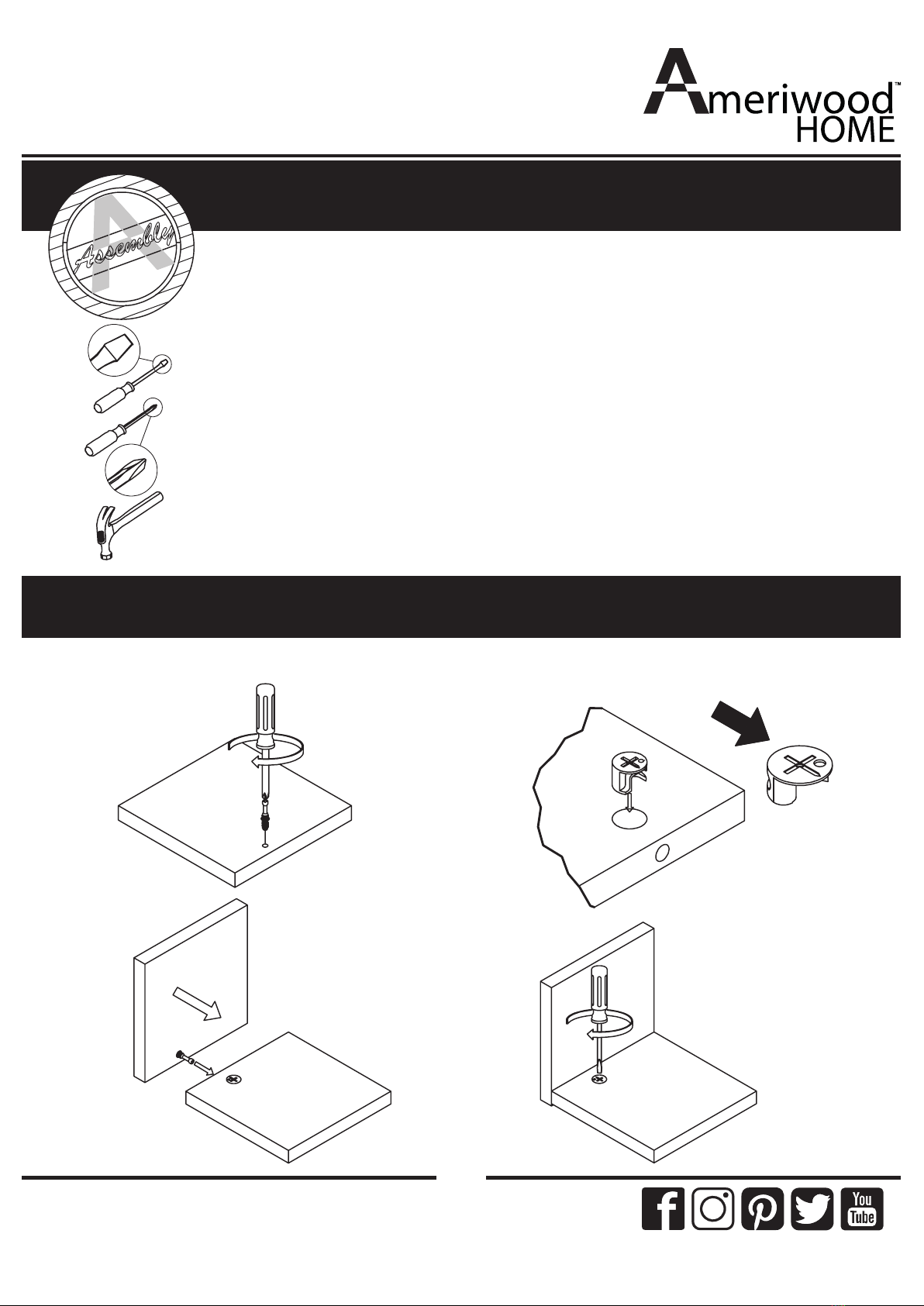

Cam Lock Fastening System

5967503COM

Colebrook Nightstand

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

5967503COM

Colebrook Nightstand

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

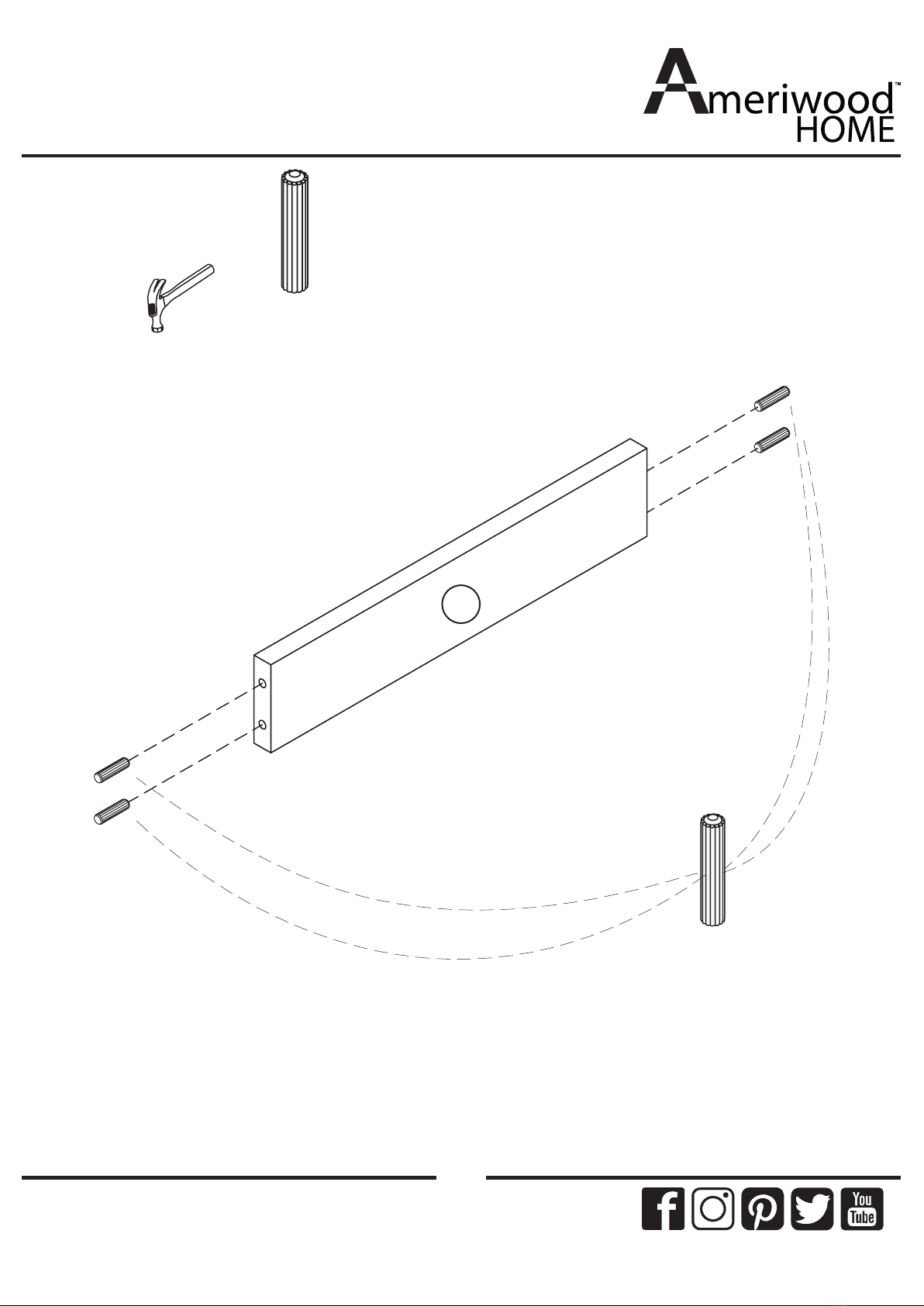

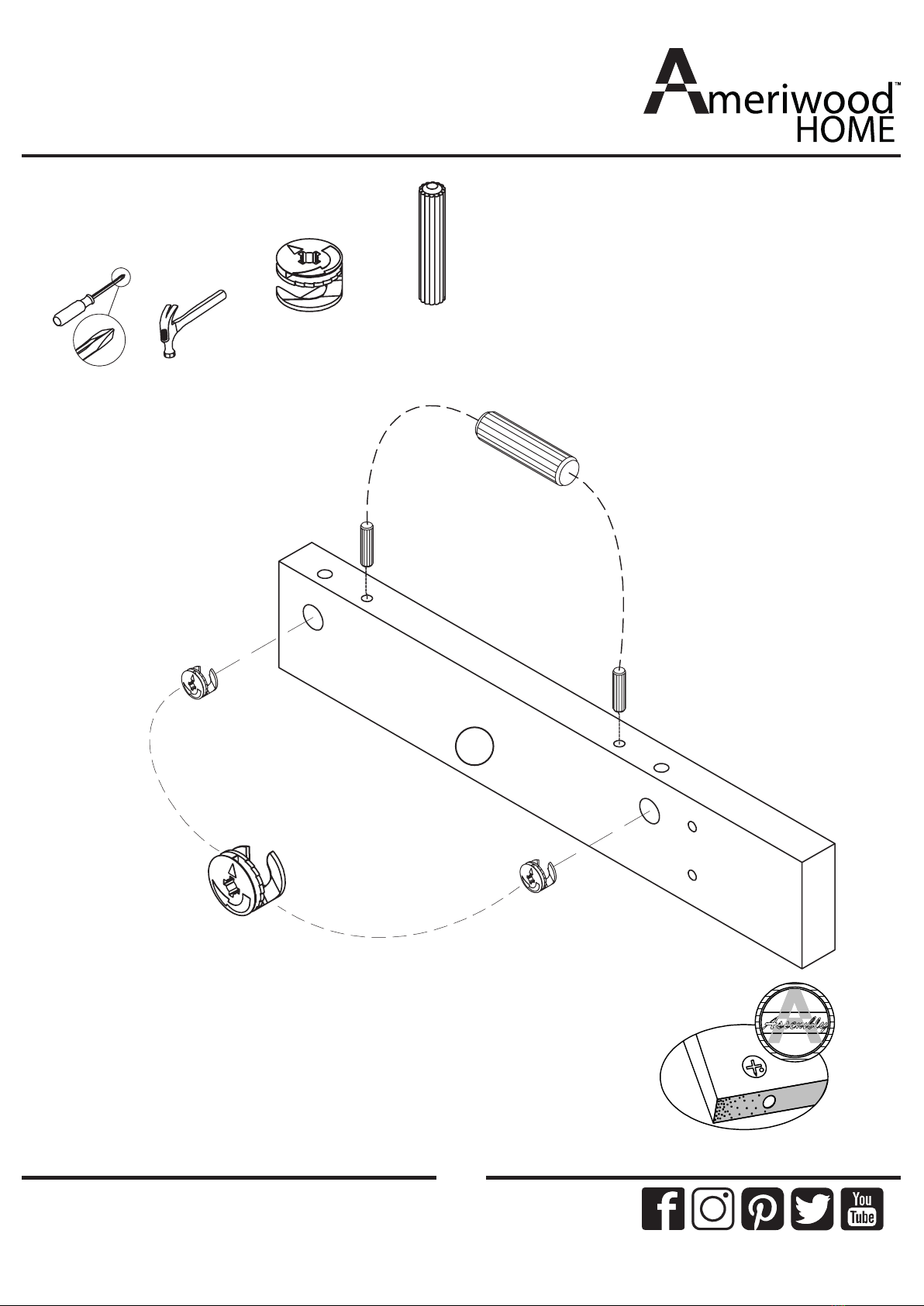

Step 1

TTA0003

TTA0016

5967503COM

Colebrook Nightstand

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

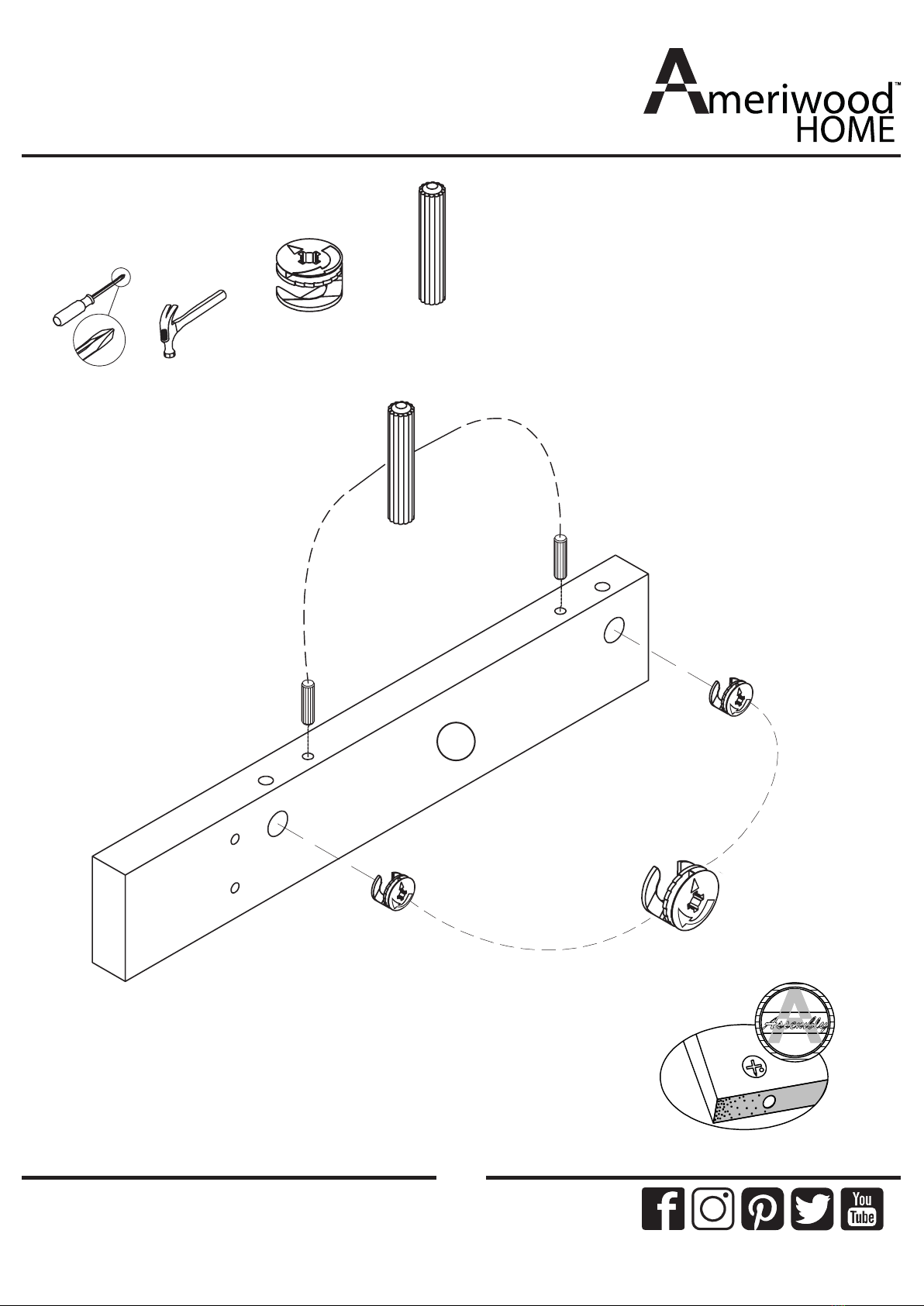

Step 2

TTA0003

TTA0016

5967503COM

Colebrook Nightstand

ameriwoodhome.com

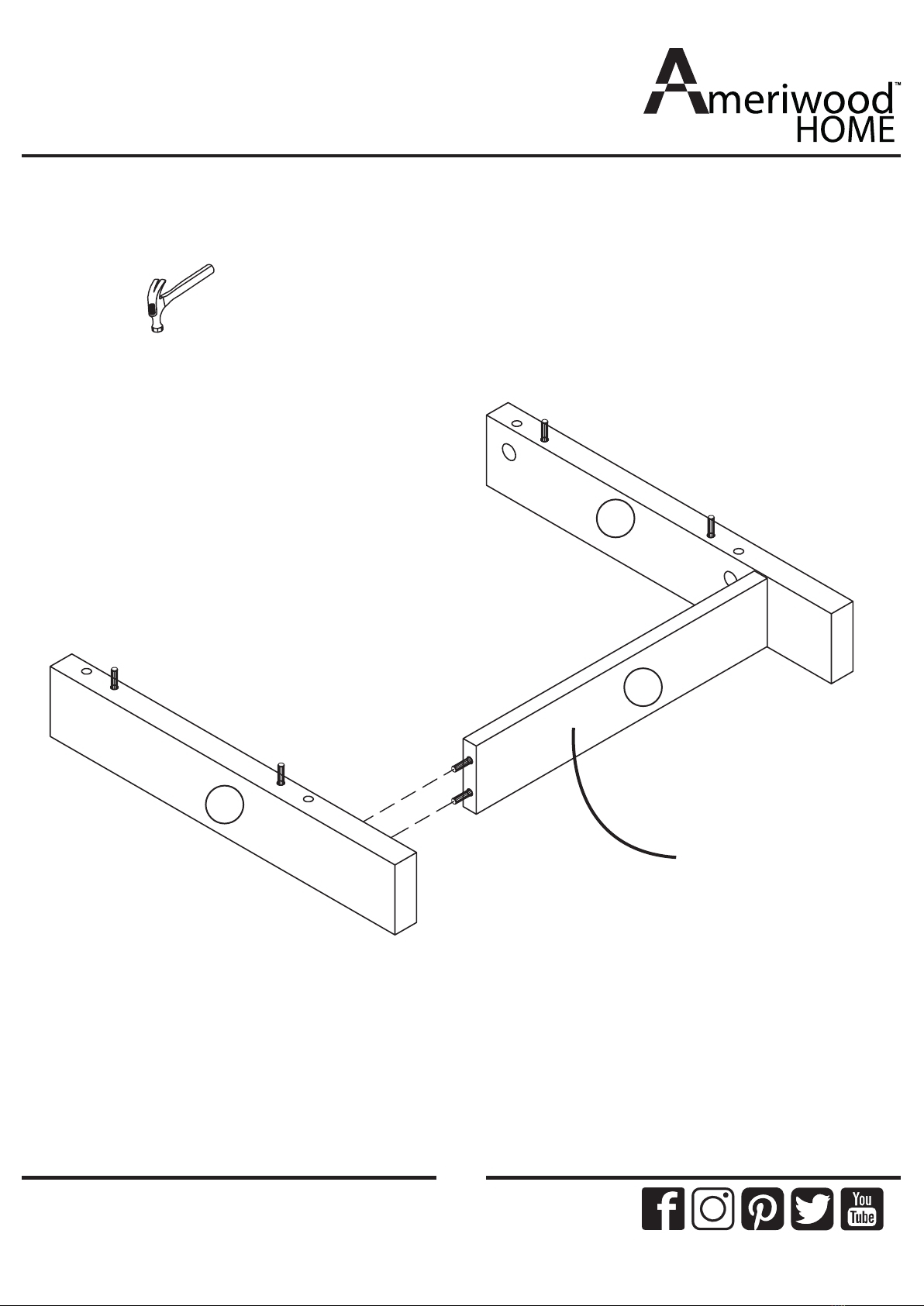

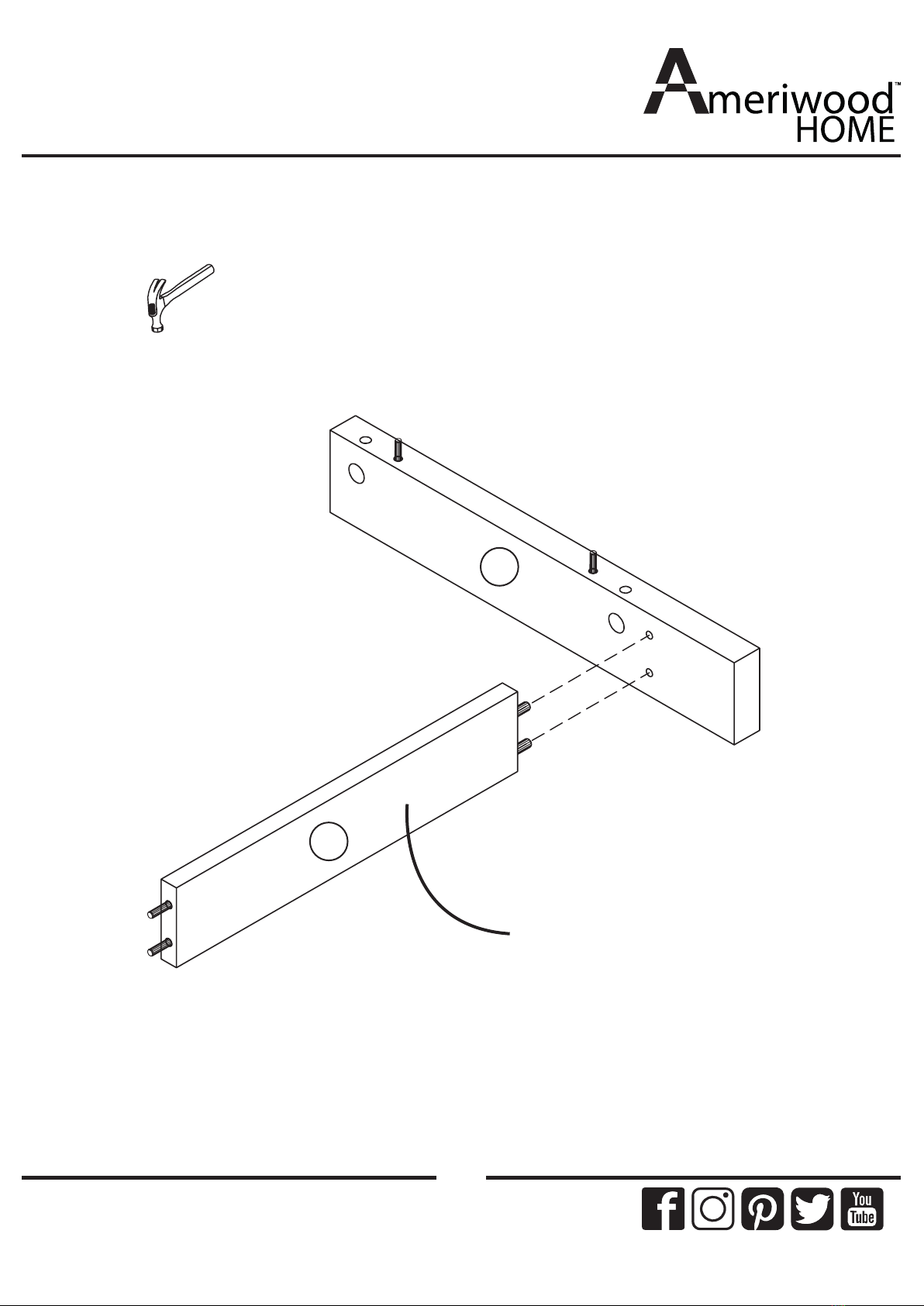

Step 3

TTA0016

5967503COM

Colebrook Nightstand

ameriwoodhome.com

Step 4

Laminated Face

5967503COM

Colebrook Nightstand

ameriwoodhome.com

Step 5

Laminated Face
