Ameriwood HOME 8300305COM Bedienungsanleitung

8300305COM

3Drawer Dresser with Cubbies

B348300305COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Assembly Difficulty Meter

Easy Tough

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

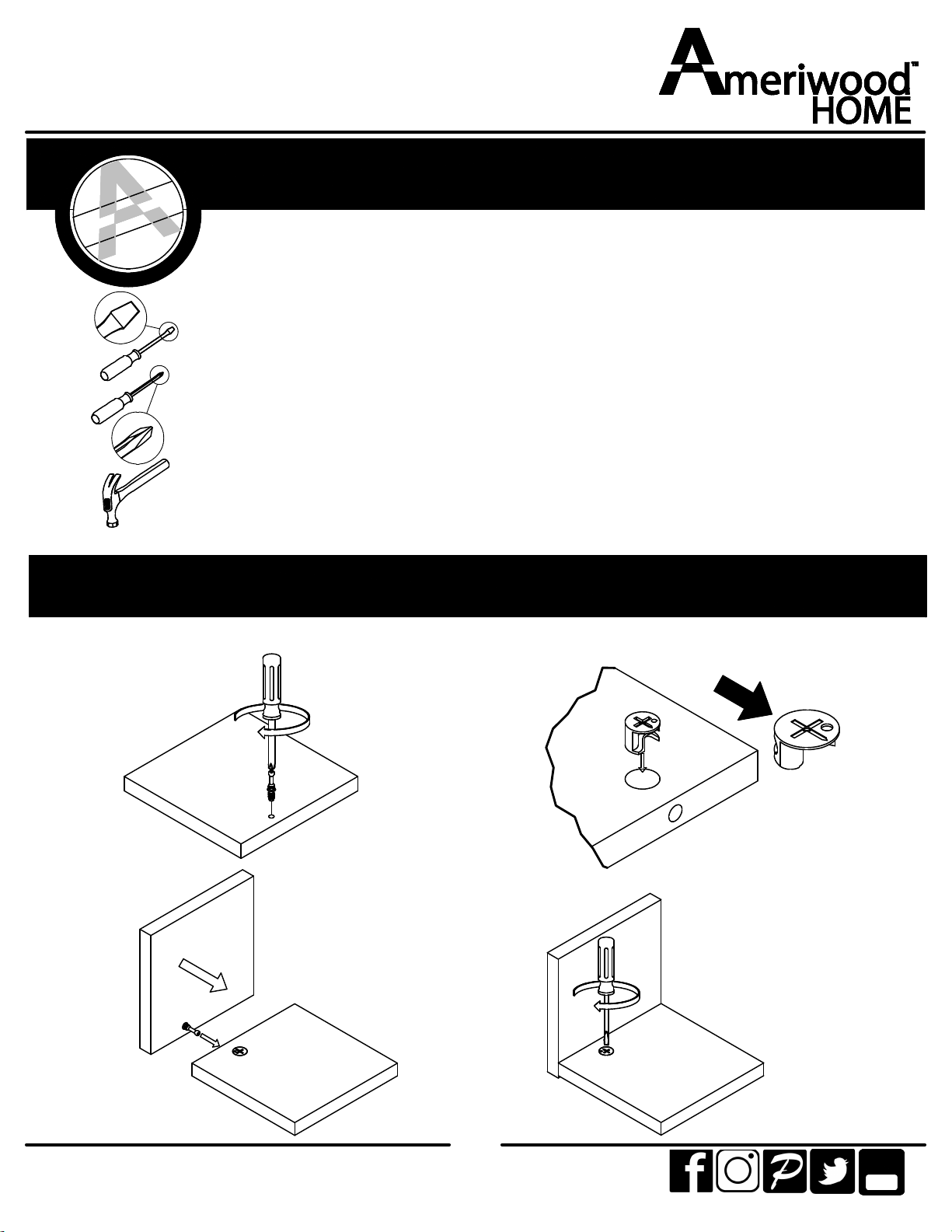

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

35781305010

Right Panel

37482322020

Bottom

35781305050

Right Front Leg

35781305080

Top

35781305040

Partition

35781305030

Adjustable Shelf

35781305060

Left Front Leg

35781305070

Left Rear Leg

35781305090

Right Rear Leg

35781305100

Kick

35781305110

Drawer Brace (x3)

35781000121 Right Back

35781305130

Drawer Front (x3)

35781305141

Drawer Bottom (x3)

35781331160

Drawer Back (3)

35781331150

Back Panel

K578130500

This piece is paperboard construction. It is

not made from wood, but is required for the

assembly of your unit.

Left Drawer Side (3)

35781331250

Right Drawer Side (3)

35781331260

YZAA

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

ameriwoodhome.com

Part List

Actual Size

(x13)

#A22570

cam lock

10 11 12

(x13)

#A22510

cam bolt

(x7)

#A21660

wood dowel

(x30)

#A11080

#6 x 7/16" flat head

(x18)

#A12120

#8 x 7/16" pan head

(x22)

#A21110

nail

(x3)

#A21520

compression dowel

(x16)

#A22900

connector

(x16)

#A22910

connector bolt

(x4)

#A23030

confirmat screw

6789

(x4)

#A80250

shelf support

(x18)

#A11600

#6 x 1-1/4" flat head

ameriwoodhome.com

Part List

Not Actual Size

16d

16c

16b

16a

Left Cabinet Member

Right Cabinet Member

Left Drawer Member

Right Drawer Member

(x3)

#A56770

drawer slide pkg.

(x1)

#A84050

safety bracket kit

(x6)

#A54223

drawer bracket

#A43100

glide

#A43490

glide spacer

13d

13c

13b

13a

ameriwoodhome.com

STEP1

(x12)

#A22910

ameriwoodhome.com

STEP2

(x2)

#A22570

(x2)

#A22510

(x6)

#A22900

(x1)

#A21660

You will need to tap the connector (3)

with a hammer to fully insert. Be sure

the connector is positioned as shown

before pushing into holes.

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

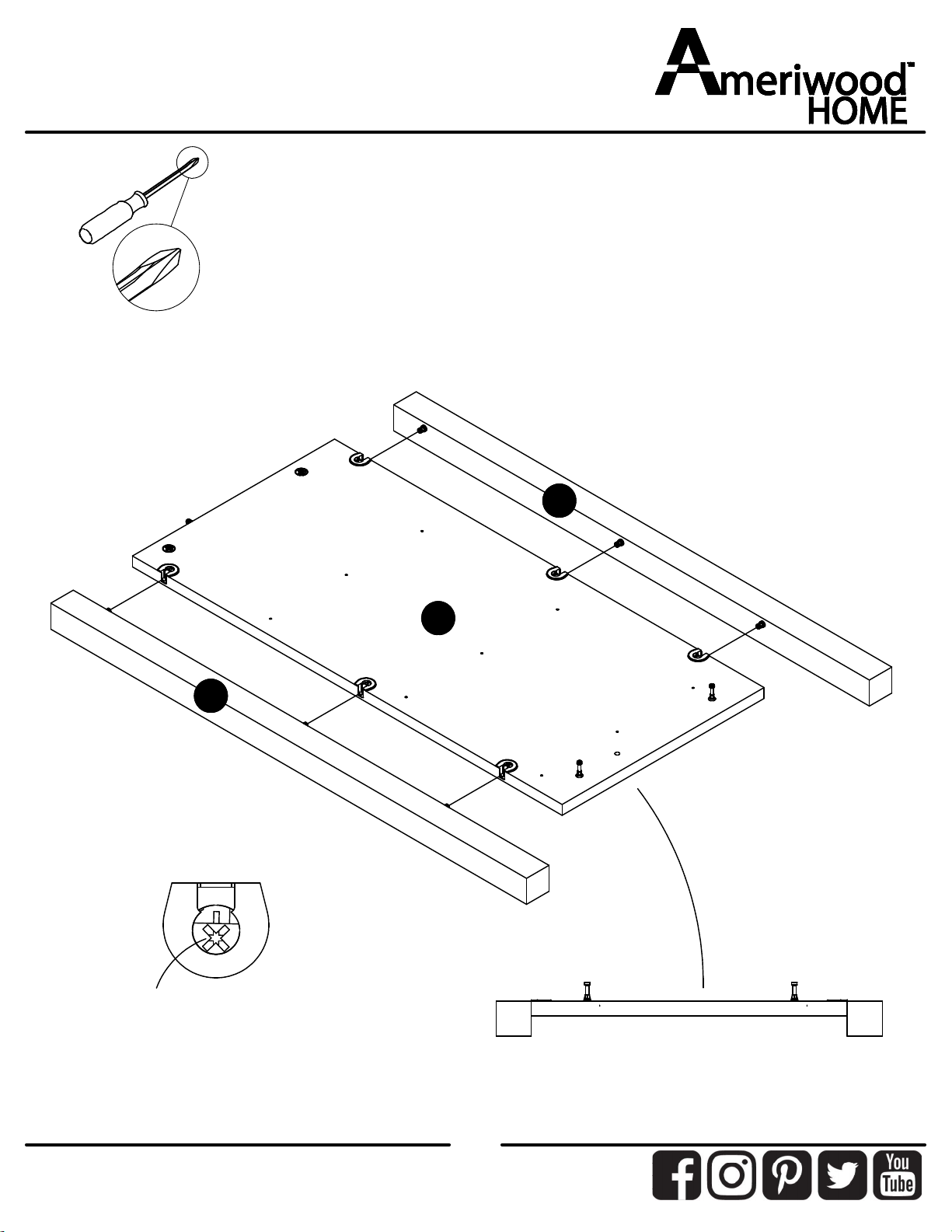

STEP3

Turn screw clockwise to lock in place.

End View
