Aries 3020000 Bedienungsanleitung

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 1

INSTALLATION MANUAL 3020000

Parts List

2T-wiring harness

2Push button extension harness

2Push button switch

4Spade terminals

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

Tools Required

Drill Wire crimper

Drill bit, 7/8"

Level of Difﬁculty

Easy

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

Periodic inspection of all wires and connections should be

performed to ensure there is no visible damage or loose connections.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Product Photo

WARNING

Improper electrical installation may result in personal injury. Unless

you are familiar with the installation and handling of electrical systems,

have this step performed by someone who has that familiarity.

Product Registration

CURT Group stands behind our products with industry leading warranties.

You can help us continue to improve our product line and help us understand

your needs by registering your purchase by visiting:

warranty.curtgroup.com/surveys

At CURT Group, customer is king. We value your feedback and we use that information to make

improvements on our products. Please, take a minute and let us know how we are doing.

Spade terminals

Push button switches

T-wiring

harnesses

Push button

extension harnesses

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 2

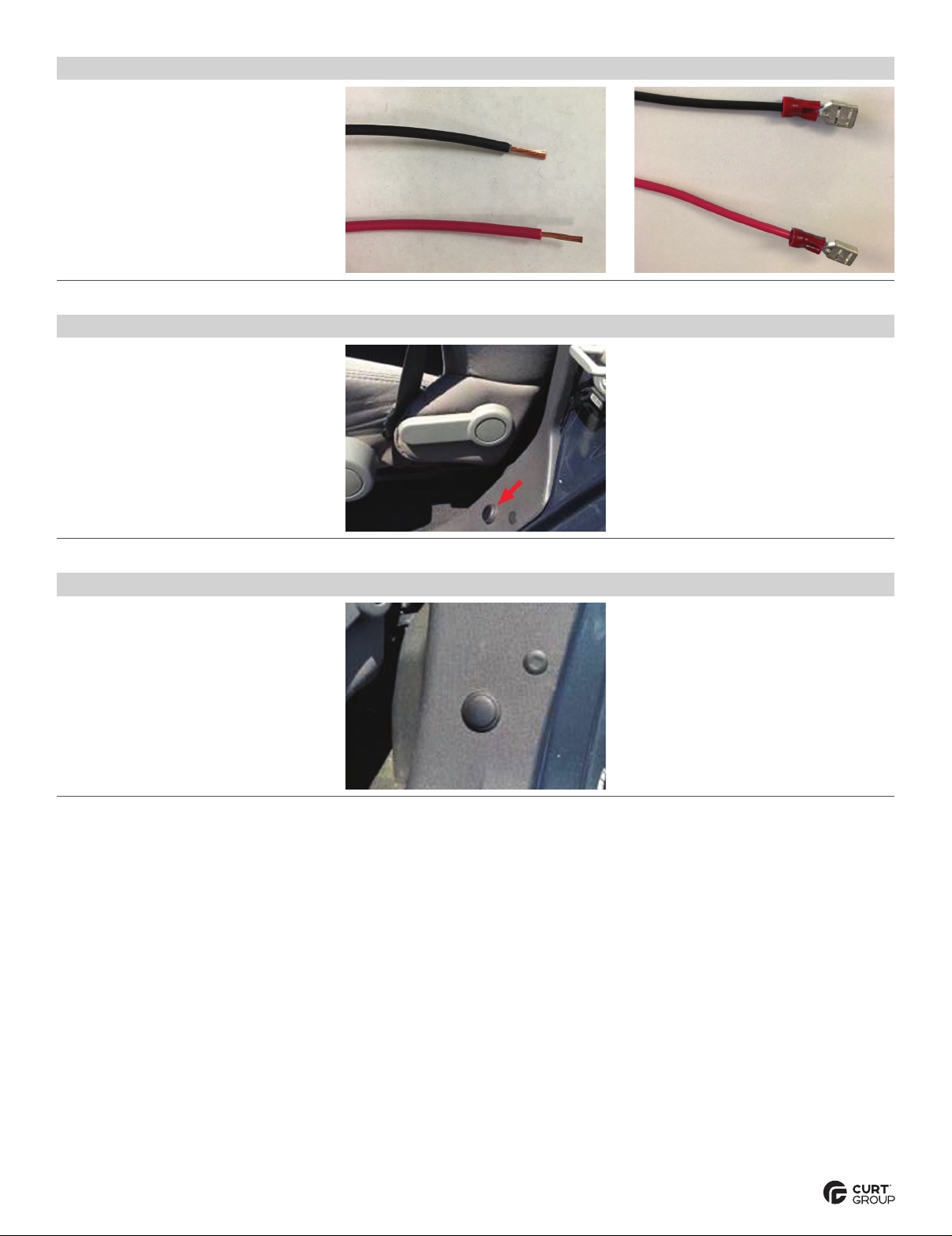

Step 1

Turn power to the running board system off

by turning off the cut-off switch.

Strip the insulation from the ends of both wires

on each push button extension harness. Insert

the bare wires into the spade terminals and

crimp the narrow end over the bare wires.

Step 2

Choose a location for the push button switch.

We recommend the plastic trim piece on the

door pillar.

If this is the location you choose, remove

the plastic trim piece to install the switch.

Step 3

Drill a hole for the switch in the trim piece. We

recommend using a step-up drill bit to get the

tightest fit. If a step-up bit is not available, use

a 7/8" drill bit.

Drill the hole until the switch will push in with

slight resistance. Push the switch into the hole

from the top down. The switch will secure itself.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 3

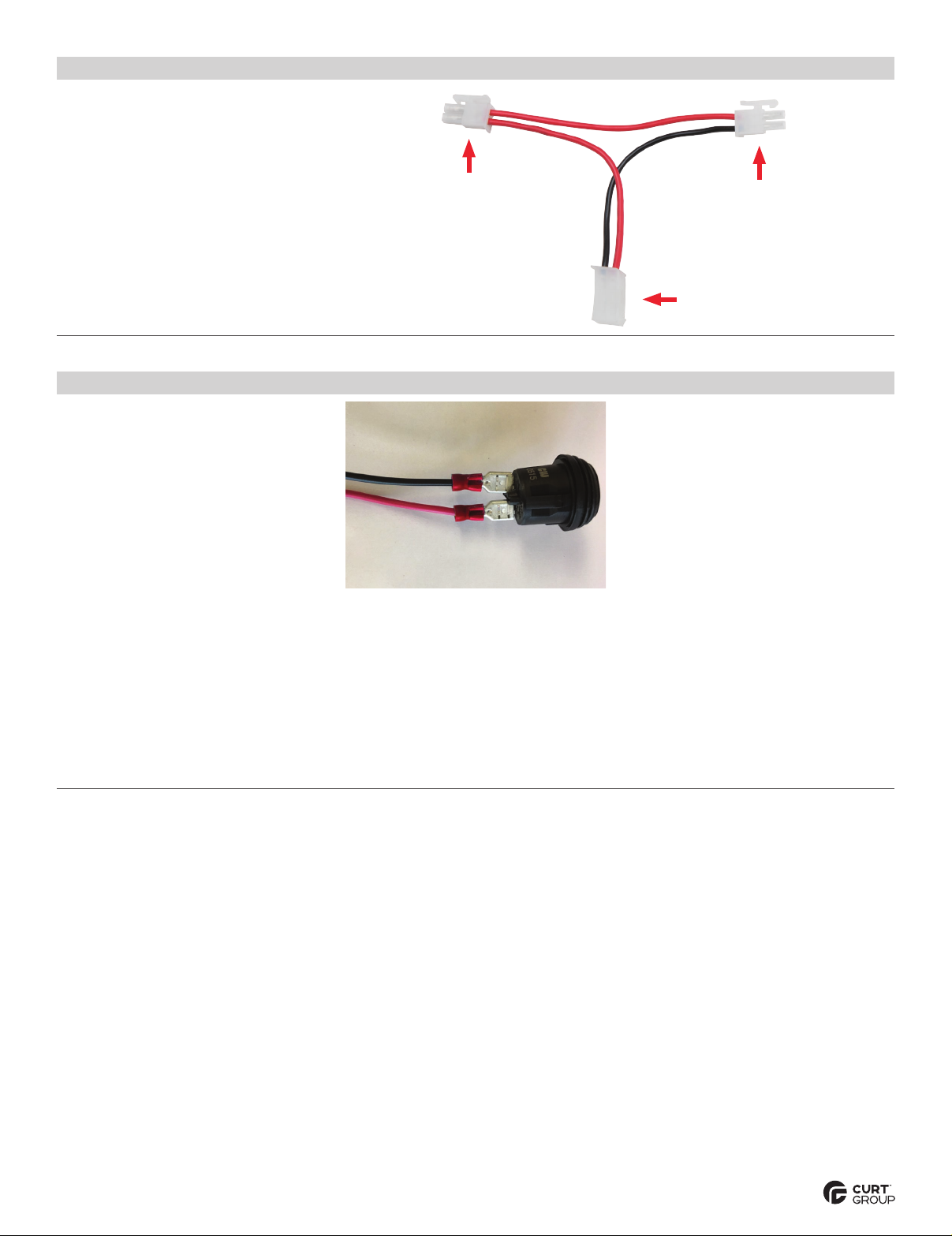

Step 4

Unplug the door sensor from the running board

wiring harness. Install the T-wiring harness

in-line between the door sensor and the

running board wiring harness.

With the T-wiring harness in-line, connect

the push button extension harness.

Step 5

Connect the push button switch from step 3

to the extension harness, as shown.

Note: Polarity is not important. The wire may

be connected to either terminal of the switch.

Reinstall the plastic trim, making sure all

the wires are secured out of the way.

Repeat this entire process for additional doors.

Note: If a manual button is only being installed

for the front doors but the rear doors are

also removed, the rear sensors must be

disconnected for the system to operate.

Turn the running board system back on. With

the doors open, the door delete-switch should

deploy and retract the steps when pushed.

When the doors are back on the vehicle, the

switch must be in the correct position to allow

the door sensors to work. If nothing happens

when you open or close the door, push the

button and try again.

Plug into the main running

board wiring harness Plug into the door delete

switch harness

Plug sensor here
