Assmann Digitus DS-30224 Bedienungsanleitung

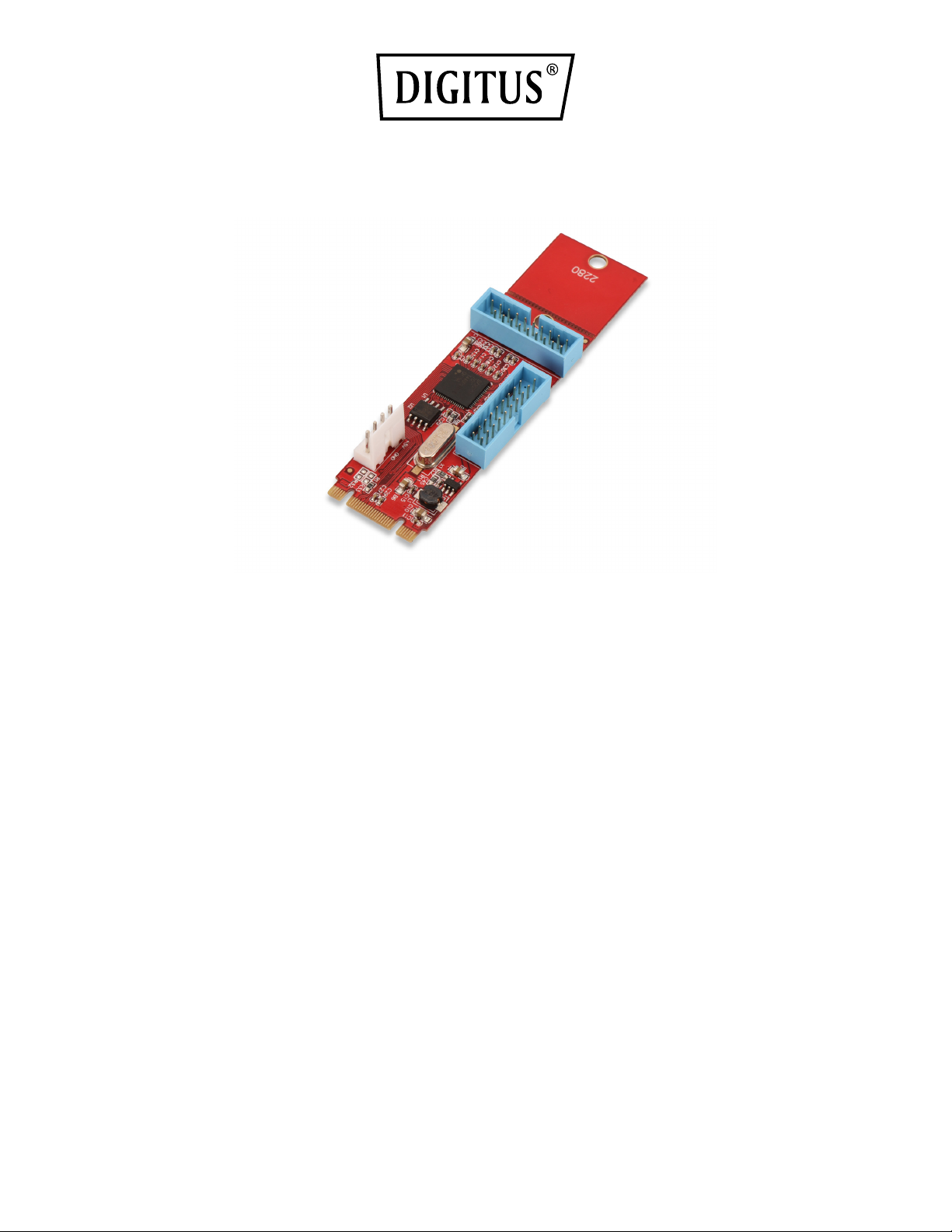

NGFF (M.2) to 2ports 19pin USB3.0 PCIe Card
Manual DS-30224
Key features
1. Connects NGFF B or M Key motherboard to USB device
2. Compliant with PCI Express M.2 specification 1.0.
3. Compliant with USB 3.0 specification.
4. Supports data transfer up to 5.0Gb/s.
5. Supports socket 2 (B Key) & socket 3 (M Key).
6. Two 19Pin USB3.0 Port and one NGFF M.2 Key B+M male connectors available.
7. 2 screw holes 2260/2280 available.
8. Floppy 4 pin power connector available for stable power.
9. Easy installation & no driver required.
10. Supports any OS, like Windows, WinCE & Linux etc.
Quick Install Guide
Step 1: Insert DS-30224 to M.2 (NGFF) slot on Motherboard.
Step 2: screw DS-30224 on Motherboard.
Step 3: Power it by 4pin power cable from power supply
Step 4: Install driver for chipset - D720201
Package Content
1 X NGFF(M.2) Key M + B to 2port 19Pin USB3.0 converter card
1 X Floppy 4 Pin to Molex Power Cable
1 X Screw Driver
1 X Screw
CD Driver
User Manual
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU
and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the
below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living environment. In this case, the user
can be requested to undertake appropriate measures to prevent interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
