Avenview HDM3D-C5IR-SET Bedienungsanleitung

www.avenview.com

HDMI 1.3 Extender over Signal CAT5E/6 Cable

with 3D, IR & RS232 bi-directional Control

Model #: HDM3D-C5IR-SET

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

Section 2: Introduction........................................................................................................................... 4

2.1 Package Contents................................................................................................................... 6

2.2 Before Installation.................................................................................................................. 6

2.3 Panel Description................................................................................................................... 7

2.4 Installation ............................................................................................................................. 9

2.5 Auto EDID Learning.............................................................................................................. 10

Section 3: General Troubleshooting..................................................................................................... 10

3.1 General Troubleshooting ..................................................................................................... 11

Section 4: Specifications....................................................................................................................... 12

4.1 PIN & Wiring Standard Definition ........................................................................................ 14

4.2 PIN & Wiring Standard Definition ........................................................................................ 14

4.3 Accessories........................................................................................................................... 15

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The HDM3D-C5IR-SET, HDMI 1.3a Extender over Signal CAT5 with 3D, IR and RS232 Control has been tested

for conformance to safety regulations and requirements, and has been certified for international use.

However, like all electronic equipment, the HDM3D-C5IR-SET should be used with care. Read the following

safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

Section 2: Introduction

The Avenview HDM3D-C5IR-SET HDMI extender over single CAT5E/6 with 3D, IR and RS232

bi-directional control as well as Auto EDID Learning extends your video/audio transmission distance up to

60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with

36-bit color depth. HDM3D-C5IR-SET also supports the most advanced 3D video format and therefore

guarantees the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable,

users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of

sources compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC

monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD Master Audio

or Dolby TrueHD audio, and HDCP supports and compatibility are all supported. This flexibility makes HDCP

compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance at the

minimal cost, when integrating several components apart.

These bonus features allows users to boost IR control distance up to 100m (330 ft) and makes IR control

possible through only single Cat.5/5e/6 cable including HDMI signals. In addition, serial port offers the

convenient path for interactive application, such as touch panels.

The HDM3D-C5IR-SET includes two units: transmitting unit HDM3D-C5IR-S and receiving unit

HDM3D-C5IR-R. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets

and carry the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the

transmitted HDMI signal and reconstructing IR and serial control signals. The transmission distance between

the sending and receiving units can be up to 60m (200ft) at HD 720p or 1080i; or 40m (130ft) at Full HD 1080p.

With a Min/Max equalization rotary control on the receiving unit, users can adjust the equalization strength to

the received HDMI signals accordingly, and therefore optimize the transmission distance between source and

destination.

www.avenview.com

-Support HDMI Deep Color & full 3D

-Extends the transmission up to 60m (200ft) from the HDMI source at HD 1080i or 720p 24-bit

-Extends the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit

-Extends the transmission up to 20m (65ft) from the HDMI source at Full HD 1080p 36-bit

-HDCP 1.1 compliant

-Auto EDID feature

-Minimizes the cable skew by adjustable Min/Max equalization control

-Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission

-DTS-HD and Dolby TrueHD high bit rate audio support

-Supports full frequency IR signal from 20KHz to 60KHz

-Bi-directional IR path

-Full Duplex RS-232 control up to 115,200 bps through connector

-Allows cascading

-Wall mounting housing design for easy and robust installation

-Perfectly integrated with other HDMI over CAT5 series products

The claimed transmission distance here is subject to the grade of installed cable(s), source device

and display. For over CAT5/6transmission, the cable(s) has to be solid, not stranded. Any

keystone jack along the transmission path will kill the transmission performance significantly!

The IR and RS-232 function can NOT be used at the same time.

www.avenview.com

2.1 Package Contents

Before you start the installation of the converter, please check the package contents.

-HDM3D-C5IR-S x 1

-HDM3D-C5IR-R x 1

-Power Adapter x 2

-User’s Manual x 1

-IR Blaster x 1

-IR Receiver x 1

2.2 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications (DC5V 2A). If inappropriate power supply is

used then it may cause a fire.

Do not twist or pull by force ends of the UTP cable. It can cause malfunction.

www.avenview.com

2.3 Panel Description

FRONT PANEL & REAR PANEL (Transmitter, HDM3D-C5IR-S)

1. MODE: Rotary dial A-H for video transmission (See

Table Below)

5. IR BLASTER: Infrared 3.5mm socket for plugging in

the extension cable of IR blaster

2. DIP SWITCH: Setup the RS-232 mode for serial

communication channel

6. RS-232: Connect to PC Serial Port with a D-SUB-9

male-male cable here

3. HDMI IN: Connects to a HDMI source with a HDMI

male-male cable

7. +5V DC: Connect to 5V DC power supply.

4. IR RECEIVER: Infrared 3.5mm socket for plugging

in the extension cable of IR receiver

8. HDMI SIGANL OUT: Plug in a Cat-5E/6 cable that

needs to be linked to the receiving unit

MODE on Transmitter

VIDEO

EDID Full-HD(1080p@60)

- 24bit 2D video

AUDIO

Supports up to 7.1 Channel

Output

VIDEO

EDID Full-HD(1080p@60)

- 24bit 2D video

AUDIO

Locks to Stereo Audio Output

VIDEO

EDID Full-HD(1080p@60)

- 24bit 3D video

AUDIO

Supports up to 7.1 Channel

Output

VIDEO

EDID Full-HD(1080p@60)

- 24bit 3D video

AUDIO

Locks to Stereo Audio Output

VIDEO

EDID HD(1080p@30)(1080i@60)

(720p@60) - 24bit 2D video

AUDIO

Supports up to 7.1 Channel

Output

VIDEO

EDID HD(1080p@30)(1080i@60)

(720p@60) - 24bit 2D video

AUDIO

Locks to Stereo Audio Output

VIDEO

EDID Full-HD(1080p@60)

- 36bit 2D video

AUDIO

Locks to 7.1 Channel Audio

Output

EDID Learning

Auto EDID learning

www.avenview.com

FRONT PANEL & REAR PANEL (Receiver- HDM3D-C5IR-R)

1. Signal Level: Adjust the Min/Max

equalization control to the received HDMI

signals

5. IR BLASTER: Infrared 3.5mm socket for plugging in

the extension cable of IR blaster

2. DIP SWITCH: Setup the RS-232 mode for serial

communication channel

6. RS-232: Connect to PC Serial Port with a D-SUB-9

male-male cable here

3. HDMI OUT: Connects to a HDMI display with a

HDMI male-male cable

7. +5V DC: Connect to 5V DC power supply.

4. IR RECEIVER: Infrared 3.5mm socket for plugging

in the extension cable of IR receiver

8. HDMI SIGANL IN: Plug in a Cat-5E/6 cable that

needs to be linked to the receiving unit

SIGNAL LEVEL on the HDM3D-C5IR-R (Receiver)

*SIGNAL LEVEL:

Adjust the Min/Max equalization control to the received HDMI signals. The HDMI signal level varies from

MIN (weakest) and Max (strongest) for respective transmission length from longest possible range to

short distance. Please adjust the signal level from MIN to MAX and stop turning the rotary switch

whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering

issue that would shorten the product life significantly!

If a flickering or a blinking image is seen, try to adjust the rotational switch to improve the cable

skew. Max stands for the strongest EQ while MIN stands for the weakest. Try adjusting the EQ from

MIN to MAX

www.avenview.com

DIP SWITCH (Straight or Crossover Mode)

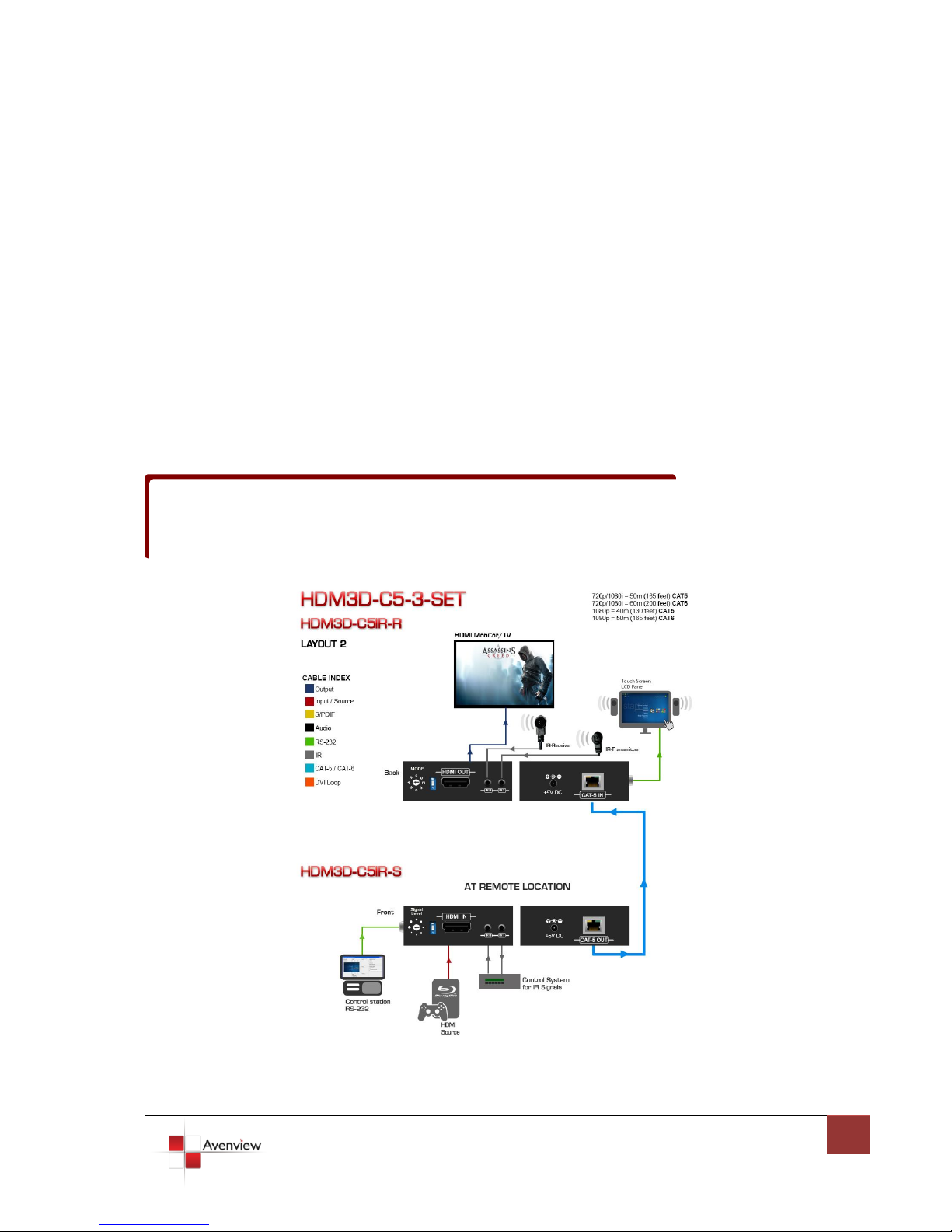

2.4 Installation

To setup Avenview HDM3D-C5IR-SET follow these steps for connecting to a device:

1. Connect your HDMI/DVI source (such as a Blu-ray Disc player) to Transmitter (HDM3D-C5IR-S).

2. Connect your HDMI/DVI display (such as a LCD TV) to the receiving unit HDM3D-C5IR-R.

3. Connect your CAT-5E/6 LAN cable between the transmitting and receiving units.

4. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.

5. Plug in 5V DC power cord to the power jack of the receiving unit HDM3D-C5IR-R.

6. Plug in 5V DC power cord to the power jack of the transmitting unit HDM3D-C5IR-S.

DIP Switch

Position

Description

TX & RX

ON []

TxD: The 2nd pin of RS-232, which is in charge

of (receiving data )

RxD: The 3rd pin of RS-232, which is in charge

of (sending data )

OFF []

TxD: The 3rd pin of RS-232, which is in charge

of (receiving data )

RxD: The 2nd pin of RS-232, which is in charge

of (sending data )

www.avenview.com

2.5 Auto EDID Learning

To learn EDID from the monitor/TV following these steps

1. Connect HDM3D-C5IR-R and the desired display through a HDMI cable and then connect

HDM3D-C5IR-S and the video source through a HDMI cable as well.

2. Turn on both the HDM3D-C5IR-S and the HDM3D-C5IR-R.

3. Set the Mode of HDM3D-C5IR-S to “H,”and wait for 3-5 seconds.

4. The device could learn the EDID of the desired display via HDM3D-C5IR-R after the step “3,”and enjoy

the experience; the users DO NOT need to power cycle again or even twice while plugging on

different displays.

Section 3: General Troubleshooting

Problem

Possible Solution

No Image

Check if connection to the source and the display are correct.

Ensure that display device supports 480p, 720p and 1080p resolution

Screen Defects

Appear

This product supports up to 1080p (1920x1200) resolution.

Check the DVI and HDMI connection

If outputting from a PC. Check the maximum resolution range of the

graphics card.

When adjusting the EQ level on the receiver unit. Please dial the rotary control switch from MIN to

MAX and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate

EQ level setting may cause overpowering issue that would shorten the product life significantly!

Inhaltsverzeichnis

Andere Avenview Extender Handbücher

Avenview

Avenview FO-DVI-DL-330 Series Bedienungsanleitung

Avenview

Avenview C5-USB-200 Bedienungsanleitung

Avenview

Avenview VGA-C5R-SET Bedienungsanleitung

Avenview

Avenview FO-HDM2-T4K-SET Bedienungsanleitung

Avenview

Avenview HBT-C6POE-R Bedienungsanleitung

Avenview

Avenview W-HDM3D-100-SET Bedienungsanleitung

Avenview

Avenview HDSD FO-HDSDI-L-SET Bedienungsanleitung

Avenview

Avenview VGA-C5A-SET Bedienungsanleitung

Avenview

Avenview FO-DVI-1000X-EMIX Bedienungsanleitung

Avenview

Avenview HBT2-C6BPOC-SET Bedienungsanleitung

Avenview

Avenview HDMI-C5SP-8SRSR Bedienungsanleitung

Avenview

Avenview HDM-C5SP-8SRSR Bedienungsanleitung

Avenview

Avenview C-USB-HDM Bedienungsanleitung

Avenview

Avenview VGA-C5ARS-SET Bedienungsanleitung

Avenview

Avenview FO-DP-300-EMI Bedienungsanleitung

Avenview

Avenview DVI-C5-LC-R Bedienungsanleitung

Avenview

Avenview WL-VGA-EXT Bedienungsanleitung

Avenview

Avenview HDM-C6VWIP-SET Bedienungsanleitung

Avenview

Avenview VGA-C5-SP-4 Bedienungsanleitung

Avenview

Avenview FO-DP4K-300-EMIX Bedienungsanleitung

Avenview

Avenview HBT-C6IR-SET Bedienungsanleitung

Avenview

Avenview FO-HDM4K-200-EMIX Bedienungsanleitung

Avenview

Avenview WL-VGA-EXT Bedienungsanleitung

Avenview

Avenview FO-DVI-1080LC-Set Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
