Avenview HDM-C6IP-SET Bedienungsanleitung

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

AV Connectivity, Distribution And Beyond...

HDMI LAN Extender up to 100M

over Single CAT5/6

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims

any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.

Model #: HDM-C6IP-SET

Military Residential

Medical Aviation

Education Industrial

Corporate House Of Worship

www.avenview.com

Product Application & Market Sectors

www.avenview.com Page 3

TABLE OF CONTENTS

1. GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS..............................................................................................................1

1.2 SAFETY INSTRUCTIONS ..................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................4

2.2 BEFORE INSTALLATION...................................................................................................................4

2.3 DEVICE DESCRIPTION & LAYOUT..................................................................................................7

2.3.1 Front Panel & Rear Panel (Transmitter, HDM-C6IP-S)...............................................................7

2.3.2 Front Panel & Rear Panel (Receiver, HDM-C6IP-R) ...................................................................7

3. INSTALLATION..................................................................................................................................8

4. GENERAL TROUBLESHOOTING.....................................................................................................8

5. SPECIFICATIONS ...............................................................................................................................9

6. PIN & WIRING STANDARD DEFINITION......................................................................................10

www.avenview.com Page 1

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

•Any product, on which the serial number has been defaced, modified or removed.

•Damage, deterioration or malfunction resulting from:

•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

•Repair or attempted repair by anyone not authorized by us.

•Any damage of the product due to shipment.

•Removal or installation of the product.

•Causes external to the product, such as electric power fluctuation or failure.

•Use of supplies or parts not meeting our specifications.

•Normal wear and tear.

•Any other causes which does not relate to a product defect.

•Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview HDM-C6IP-SET, HDMI Extender has been tested for conformity to safety regulations and requirements, and has

been certified for international use. However, like all electronic equipment’s, the HDM-C6IP-SET should be used with care.

Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

!Do not dismantle the housing or modify the module.

!Dismantling the housing or modifying the module may result in electrical shock or burn.

!Refer all servicing to qualified service personnel.

!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards

!Keep the module away from liquids.

!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to the housing, unplug the module immediately.

!Have the module checked by a qualified service engineer before using it again.

!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1. GETTING STARTED

www.avenview.com Page 2

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL

VOID THE WARRANTY AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

www.avenview.com Page 3

2. INTRODUCTION

HDM-C6IP-SET, HDMI extender set is designed to extend your HD display with the resolutions of 1080p/60Hz up to 330 feet

(100 meters) away from your HDMI or DVI-D source. Thanks to the use of the TCP/IP protocol, you can transfer your high-

definition video over an existing TCP/IP network. See below three examples:

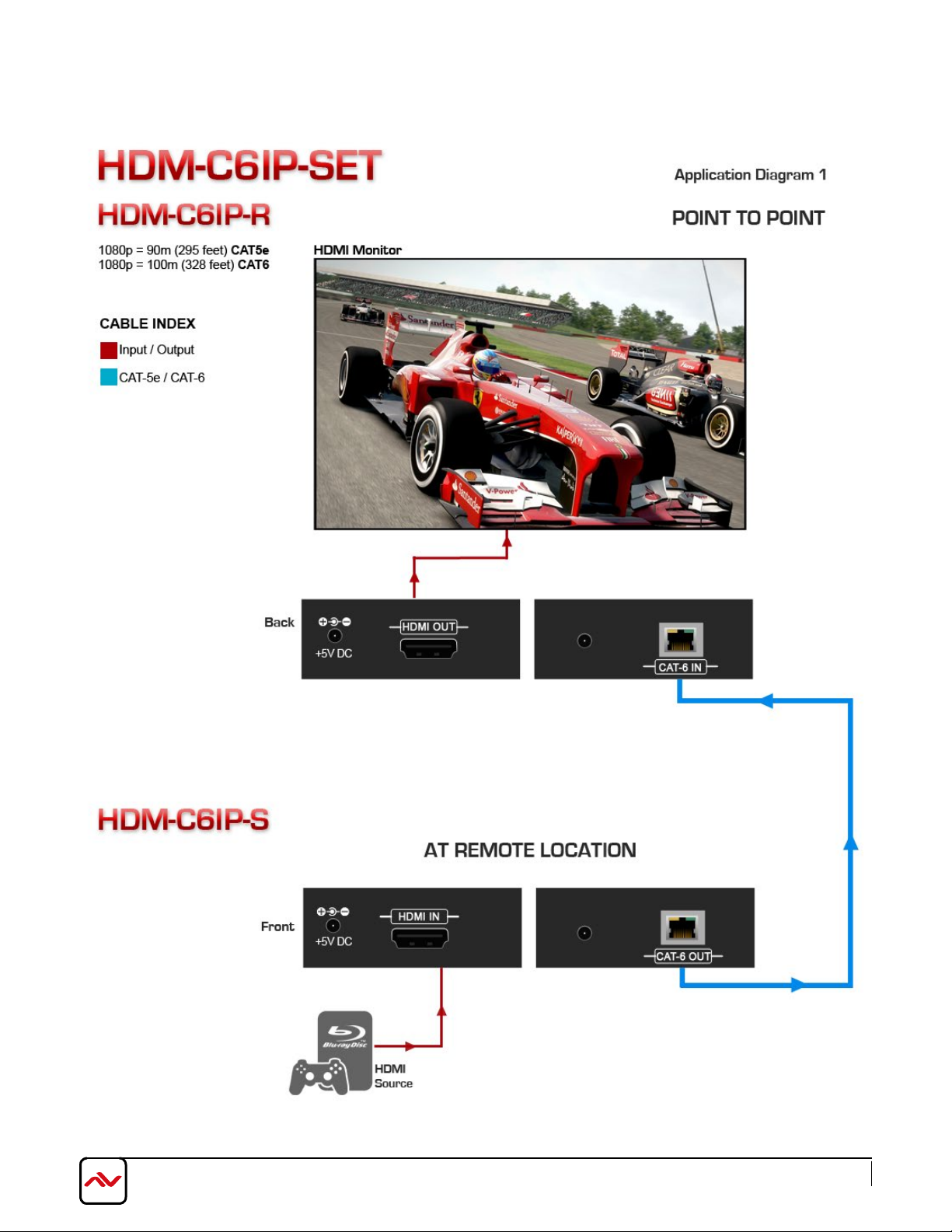

A: The Tx and Rx units can extend 100 meters over a single CAT5/6 cable connection point to point.

B: The Tx can be connected to a Gigabit switch to establish a IP address therefore sending 1080p video signals to multiple

Rx connected to the Gigabit switch and the HDMI displays.

C: Multiple Tx’s can be connected to a Managed Gigabit switch with VLAN/IGMP support therefore sending 1080p video

signals to Rx connected to the Gigabit switch to show different sources on the HDMI displays.

•Extends HDMI up to 95m/100m over single CAT5E/6

•Supports HDMI, EDID, Support HDCP

•Supports resolution HDTV / 1080Pp/60Hz, Vesa (1920 x 1080)

•Supporting the point to point transmission function currently which can be expanded to the multi-point to point

transmission function.

•Requires a managed Gigabit switch with VLAN/IGMP support to have a soultion with multiple sources (Transmitters).

Standard Gigabit switch can only support one transmitter.

•The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and to allow duplicate IP addresses across

the VLAN domains.

•Each VLAN acts as independent HDMI over IP Channel on the network.

•Number of Tx and Rx that can be used is dependent on bandwidth of the switch (Recommended Gigabit switch

10/1000).

•Managed switches can be cascaded up to 3 levels, allowing the farthest display to be located up to 300 meters away

from the source device. Each receiver can be located up to 100 meters away.

•Uses M-JPEG technology to process image compression on a fixed bandwidth.

www.avenview.com Page 4

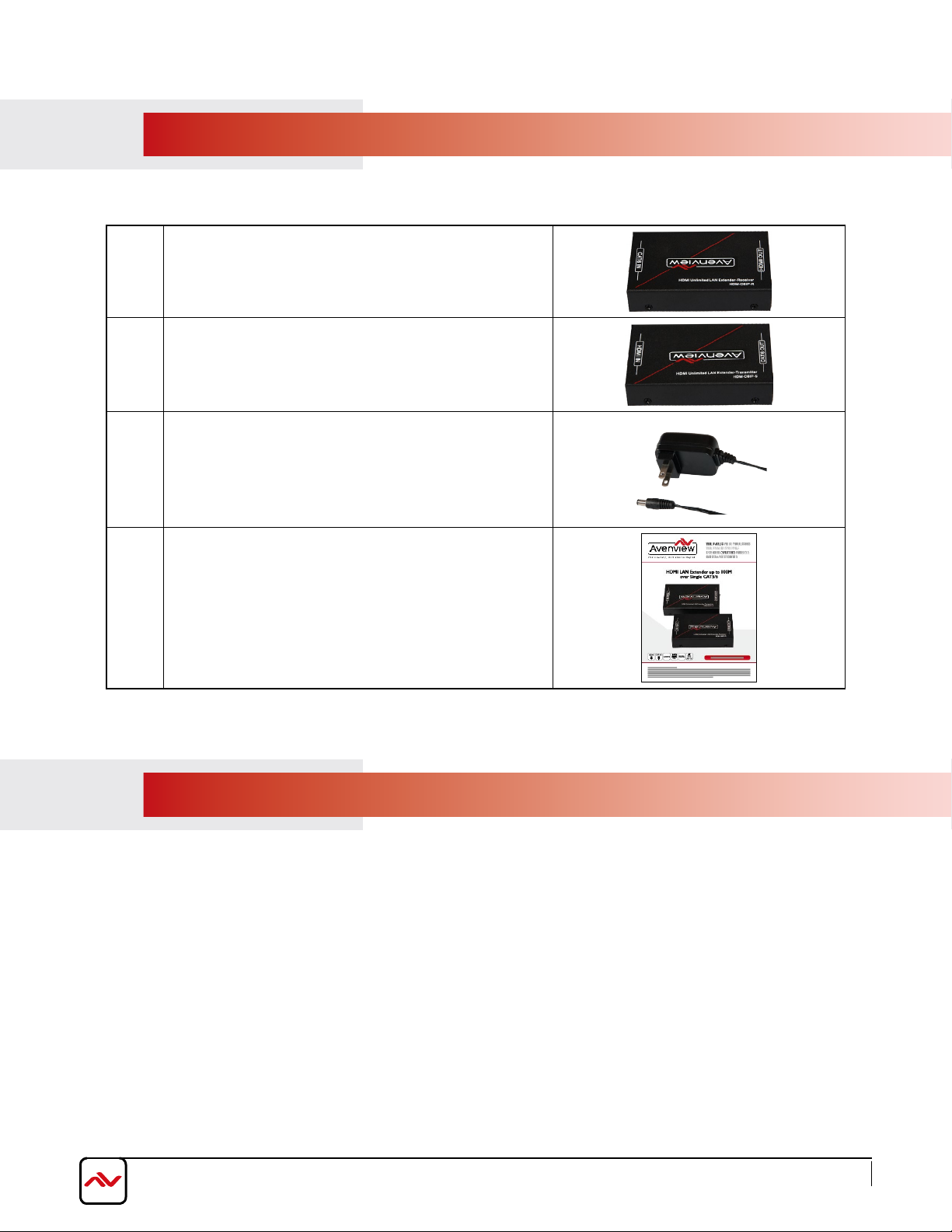

2.1 PACKAGE CONTENTS

Before you start the installation of HDM-C6IP-SET, please check the A. STANDARD package contents.

1HDMI TRANSMITTER X 1

2HDMI RECEIVER X 1

3POWER ADAPTER (5VDC) X 2

4USER’S MANUAL X1

2.2 BEFORE INSTALLATION

•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.

•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.

•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.

www.avenview.com Page 5

www.avenview.com Page 6

www.avenview.com Page 7

2.3 DEVICE DESCRIPTION & LAYOUT

This product is composed of a Transmitter and a Receiver.

2.3.1 Front Panel & Rear Panel (Transmitter, HDM-C6IP-S)

1CAT5E/6: Plug in a Cat-5E/6 cable that needs

to be linked to the receiving unit

3+5V DC: Connect to 5V DC power supply.

2SELECT: To pair with the corresponding

Transmitter unit.

4HDMI IN: Connects to a HDMI source with a HDMI

male-male cable.

2.3.2 Front Panel & Rear Panel (Receiver, HDM-C6IP-R)

1CAT5E/6: Plug in a Cat-5E/6 cable that needs to

be linked to the receiving unit

3+5V DC: Connect to 5V DC power supply.

2SELECT: To pair with the corresponding

Transmitter unit.

4HDMI OUT: Connects to a HDMI source with a

HDMI male-male cable.

•Each Transmitter and Receiver after pairing support only point to point operation. It cannot support signals

broadcasting by HDMI.

•Important Before starting the insulation please ensure that all devices are powered OFF
