SECTION 1: GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
What the warranty does not cover
•Any product, on which the serial number has been defaced, modified or removed.
•Damage, deterioration or malfunction resulting from:
•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to
follow instructions supplied with the product.
•Repair or attempted repair by anyone not authorized by us.
•Any damage of the product due to shipment.
•Removal or installation of the product.
•Causes external to the product, such as electric power fluctuation or failure.
•Use of supplies or parts not meeting our specifications.
•Normal wear and tear.
•Any other causes which does not relate to a product defect.
•Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The HBT-C6BPOC-SET, HDMI HDBaseT Extender SET has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the HBT-C6BPOC-SET
should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the
risk of damage to the unit.
!Do not dismantle the housing or modify the module.
!Dismantling the housing or modifying the module may result in electrical shock or burn.
!Refer all servicing to qualified service personnel.
!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage
or other hazards
!Keep the module away from liquids.
!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on
to the housing, unplug the module immediately.
!Have the module checked by a qualified service engineer before using it again.
!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1. GETTING STARTED
www.avenview.com Page
2
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
Warning symbols Description
ONLY USE THE PROVIDED POWER CABLE OR POWER
ADAPTER SUPPLIED. DO NOT TAMPER WITH THE
ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL
SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO WILL
VOID THE WARRANTY AND CONTINUED USE OF THE
PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.
PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A
SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.
www.avenview.com Page
3
2. INTRODUCTION
The Avenview HBT-C6BPOC-SET HDMI HDBaseT CAT5/6/7 Extender SET extends high definition video, multi-channel
digital audio, data formats IR/RS232 and POC up to 100m (330ft) to any HD Monitor.
Video Signals: 4K2K@30 (Ultra HD), 3D, 8/10/12 Deep Color, and Full HD 1080p@60 Hz/48-bit color depth.
Audio signals: Uncompressed 7.1ch digital
Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz and RS-232 over CAT5/6.
The HBT-C6POE-SET includes two (2) units: Sending unit (TX) HBT-C6BPOC-S and Receiving unit (RX) HBT-C6BPOC-R
with one (1) UTP output port which allows the user to extend video, audio and data signals up to 100m (330ft). The HBT-
C6POE-SET also allows bi- directional IR control and RS-232 connected to the TX unit, allowing the users to use any IR
remote and third party RS-232 control at the monitor side . The HBT-C6POE-SET offers the most convenient solution for
extending an application over long distances with A/V transmission @10G.
- Input: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
- Extend the transmission: Full HD 1080p up to 100m (330ft) from the HDMI source 48-bit and
-Extend the transmission: 4K2K@30 up to 80m (264ft)
- Support PoC (Power over Cable) power either units from the TX or RX side with one power supply
- Supports HDCP & EDID Bypass
- Supports CEC bypass
- Audi Supported: 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio - DTS-
- Support full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR pass-through
- 3D support: Follow by Display / TV’s EDID
- Full Duplex RS-232 control up to 115,200 bps
- Wall mounting bracket included
Features
NOTE
The QUALITY and TRANSMISSION of the video signals depends on the characteristics and
quality of the UTP cables. Higher resolutions and longer transmission distances require
low skew cables (<25ns/100m) for best performance. Unshielded CAT6 with
metal RJ-45 connectors is recommended.
www.avenview.com Page
4
2.1 PACKAGE CONTENTS
Before you start the installation of the Extender/Splitter, please check the package contents.
1
HBT-C6BPOC-SET ICLUDES:
X 1
2POWER BRICK (24V 1.5A DC) X 1
6USER’S MANUAL X 1
2.2 BEFORE INSTALLATION
•Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
•Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
•Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
•Do not twist or pull by force ends of the UTP cable. It can cause malfunction.
HBT-C6BPOC-S (TX)
HBT-C6BPOC-R (RX) X 1
To achieve best results with our HBT-C6BPOC-SET we highly recommend a premium quality 26 or 24
AWG HDMI cable with the below specifications to maintain signal integrity and distances.
Length: 5m (16ft) to 15m (50ft)
Bandwidth: 10.2 Gbps data transfer rate
Supports Resolution: Up to 3840x2160 @ 24Hz and 4096x2160 @ 24Hz, 1080p @ 24Hz / 50/60Hz/3D
Conductor gauge: 26 / 24 AWG
Deep Color
3D Capable
CEC
Ethernet Channel
Audio Return Channel
Connector 1: HDMI (Type A) Male
Connector 2: HDMI (Type A) Male
IR RECEIVER
POWER CORD C7
IR EXTENDER
3
4
5
X 1
X 1
X 1
www.avenview.com Page
5
2.3 APPLICATION DIAGRAM
www.avenview.com Page
6
2.4 PANEL DESCRIPTION
2.4.1 INPUT PANEL (Transmitter, HBT-C6BPOC-S) Front
1. LED LIGHTS:
- POWER LED: Steady LED light ON
- STATUS LED: Blinking LED Light indicates
- LINK LED: Always ON LED light indicates link is established
- HDCP LED: HDCP ON - Always ON LED Light
HDCP OFF - LED light blinking
2.4.2 INPUT PANEL (Transmitter, HBT-C6BPOC-S) Rear
2.POWER JACK: Power supply connection 3.CAT5/6:Connect UTP cable for
transmitting video, audio , data and POC
upto 100m to the Receiver unit.
4.IR EXTENDER: Plug the IR Extender cable for
IR signal being received. Place IR Extender within
direct line of site with the IR Remote.
5.IR BLASTER:Plug the IR Blaster cable for IR
signal being transmitted. Place IR Blaster within
direct site of the device being controlled.
6. RS-232: Connect to a device that has the ability
to send control commands (PC or laptop via D-
Sub 9-pin male cable)
7. HDMI IN:Connect HDMI source Max 35ft
via HDMI Cable Blu-ray player or Digital
player
www.avenview.com Page
7

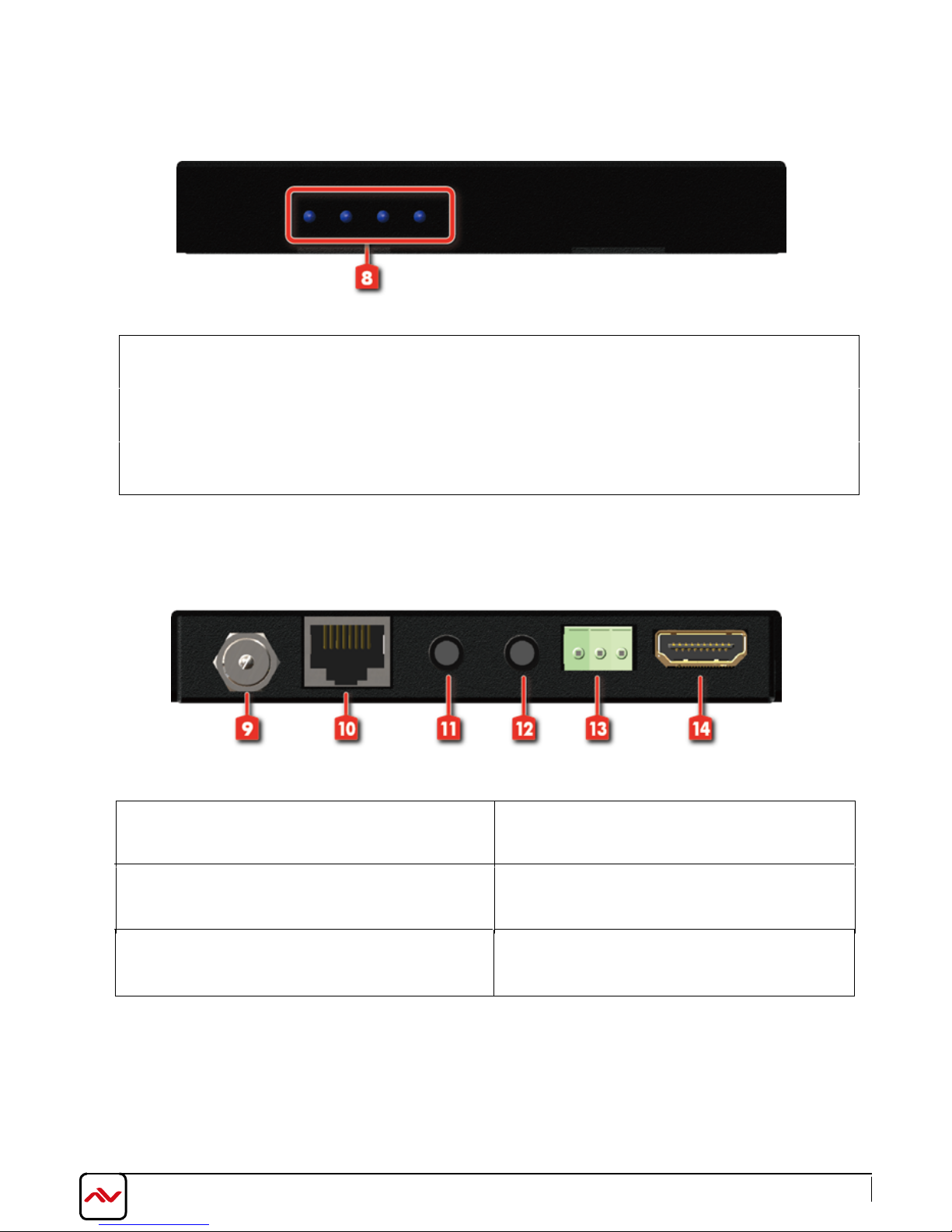

2.4.3 INPUT PANEL (Receiver, HBT-C6BPOC-R) Front
2.4.4 INPUT PANEL (Receiver, HBT-C6BPOC-R) Rear
8.LED LIGHTS:
- POWER LED: Steady LED light ON
- STATUS LED: Blinking LED Light indicates
- LINK LED: Always ON LED light indicates link is established
- HDCP LED: HDCP ON - Always ON LED Light
HDCP OFF - LED light blinking
9.POWER JACK: Power supply connection 10.CAT5/6: Connect UTP cable for receiving
video, audio , data and POC upto 100m
from the Transmitter unit.
11.IR EXTENDER: Plug the IR Extender cable for
IR signal being received. Place IR Extender within
direct line of site with the IR Remote.
12.IR BLASTER:Plug the IR Blaster cable for IR
signal being transmitted. Place IR Blaster within
direct site of the device being controlled.
13.RS-232: Connect to a device that has the ability
to send control commands (PC or laptop via D-
Sub 9-pin male cable)
14.HDMI OUT:Connect to HDMI Display/
Monitor
