Avenview HDM-C5XD-S Bedienungsanleitung

www.avenview.com

HDMI 1.3 Extender / Repeater over Single

CAT5 Cascading Series

Model #: HDM-C5XD-S

Model #: HDM-C5XD-SR

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 6

1.6 Before Installation.................................................................................................................. 6

1.7 Panel Description................................................................................................................... 7

1.7.1 HDM-C5XD-S Rear Panel ....................................................................................................... 7

1.7.2 Dip Switch for EDID & Audio Settings ................................................................................... 7

1.7.3 HDM-C5XD-SR Rear Panel ..................................................................................................... 8

1.7.4 HDMI Output Format Selection............................................................................................. 8

1.8 Installation (HDM-C5XD-S)..................................................................................................... 9

1.9 Installation (HDM-C5XD-SR) .................................................................................................. 9

Section 2: Specifications....................................................................................................................... 10

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview HDM-C5XD-S and HDM-C5XD-SR HDMI 1.3 Transmitter / Repeater over CAT5 / CAT6 has been

tested for conformance to safety regulations and requirements, and has been certified for international use.

However, like all electronic equipment’s, the HDM-C5XD-S, and HDM-C5XD-SR should be used with care. Read

the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to

the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

The Avenview HDMI 1.3 Extender / Repeater Series over Single CAT5 Distribution provides the most flexible

solution by which the high definition video and high quality audio can be transmitted to different locations

over a long distance. The devices are cascadable, allowing you to extend HDMI or DVI compliant displays

almost anywhere.

-Silicon Image chipset embedded for best quality, compatibility and reliability

-HDMI 1.3c compliant

-HDCP compliant

-Regenerates the HDMI signal

-Supports Audio Output

-Supports default HDMI EDID and has the ability to learn the EDID of the displays

-Regenerates the HDMI signal

-Supports default HDMI EDID and has the ability to learn the EDID of displays

-Extends up to 15m (50ft) of input HDMI cable

-Extends up to 15m (50ft) of output HDMI cable

-Extends up to 60m (200ft) (720p / 1080i) of output CAT5/6 cable

-Extends up to 40m (130ft) (1080p) of output CAT5/6 cable

-Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission

-Allows cascading

-1U rack mountable with interlocking power adapter for fixedness

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

HDM-C5XD-S

-HDM-C5XD-S x 1

-Power Adapter (+5VDC, 4A) x 1

-User’s Manual x 1

HDM-C5XD-SR

-HDM-C5XD-SR x 1

-Power Adapter (+5VDC, 4A) x 1

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.7 Panel Description

1.7.1 HDM-C5XD-S Rear Panel

1 2 3 4 5 6 7

1. Input Signal format indicator

(Bright: HDMI Single, Dim: DVI Signal)

2. DIP Switch (details below)

3. HDMI IN: Connect HDMI source

4. Audio Out: Plug in Local Speaker

5. HDMI OUT: HDMI Local Output

6. HDMI Signal Out: RJ45 connection to

connect to HDM-C5XD-SR or

HDM-C5-3-R

7. Power Connector: 5V 4A DC

1.7.2 Dip Switch for EDID & Audio Settings

DIP Switch Position

Video

Audio

Description

PIN # 1

PIN # 2

OFF 

1080p

Stereo1

Default Mode2:Up to 1080p & Stereo output.

OFF 

ON 

720p/1080i

Stereo

Safe Mode3:Forces system to output at 720p/1080i

with Stereo Audio.

ON 

OFF 

Bypass4

Bypass

EDID Learning Mode5:for learning EDID from the

display while playing any received HDMI Audio format.

ON 

Bypass

Stereo

EDID Learning & Stereo Mode: For learning EDID from

the display while enforcing stereo output.

www.avenview.com

1.7.3 HDM-C5XD-SR Rear Panel

1 2 3 4 5 6 7

1. Input Signal format indicator

(Bright: HDMI Single, Dim: DVI Signal)

2. Rotary Switch

3. RJ45 IN: Connect RJ45 Source from

HDM-C5XD-S

4. Audio Out: Plug in Local Speaker

5. HDMI OUT: HDMI Local Output

6. HDMI Signal Out: RJ45 connection to

connect to HDM-C5XD-SR or

HDM-C5-3-R

7. Power Connector: 5V 4A DC

1.7.4 HDMI Output Format Selection

When input signal exists, the output format LED turns on. If the input HDMI source is HDMI 1.3 format, you

can set the output format to HDMI 1.2 mode and Red LED will be on. If the input HDMI source is HDMI 1.2, the

output format is always set to HDMI 1.2.

1 If the HDTV shows video but without audio, please try to set audio mode to stereo

2 Factory default: Pin#1-OFF[



], Pin#2- OFF[



] for 1080p with stereo.

3 If you encounter any unsolved audio/video output problem during system installation, please

turn to Safe Mode (Pin#1- -

output for system check.

4 Bypass means the matrix will maintain playing the original format of HDMI signals in video

and perhaps audio. By setting at this mode, the users may encounter compatibility issue among

different kinds of HDMI sources and displays. If you cannot get the audio and/or video output

normally at the system installation, please change the DIP switch setting to default mode or even

safe mode to verify the functionality of the device.

20 seconds. The EDID learning procedure will be finished. If you want to learn the EDID from

another HDTV, you must set Pin#1 at OFF first and repeat this procedure.

www.avenview.com

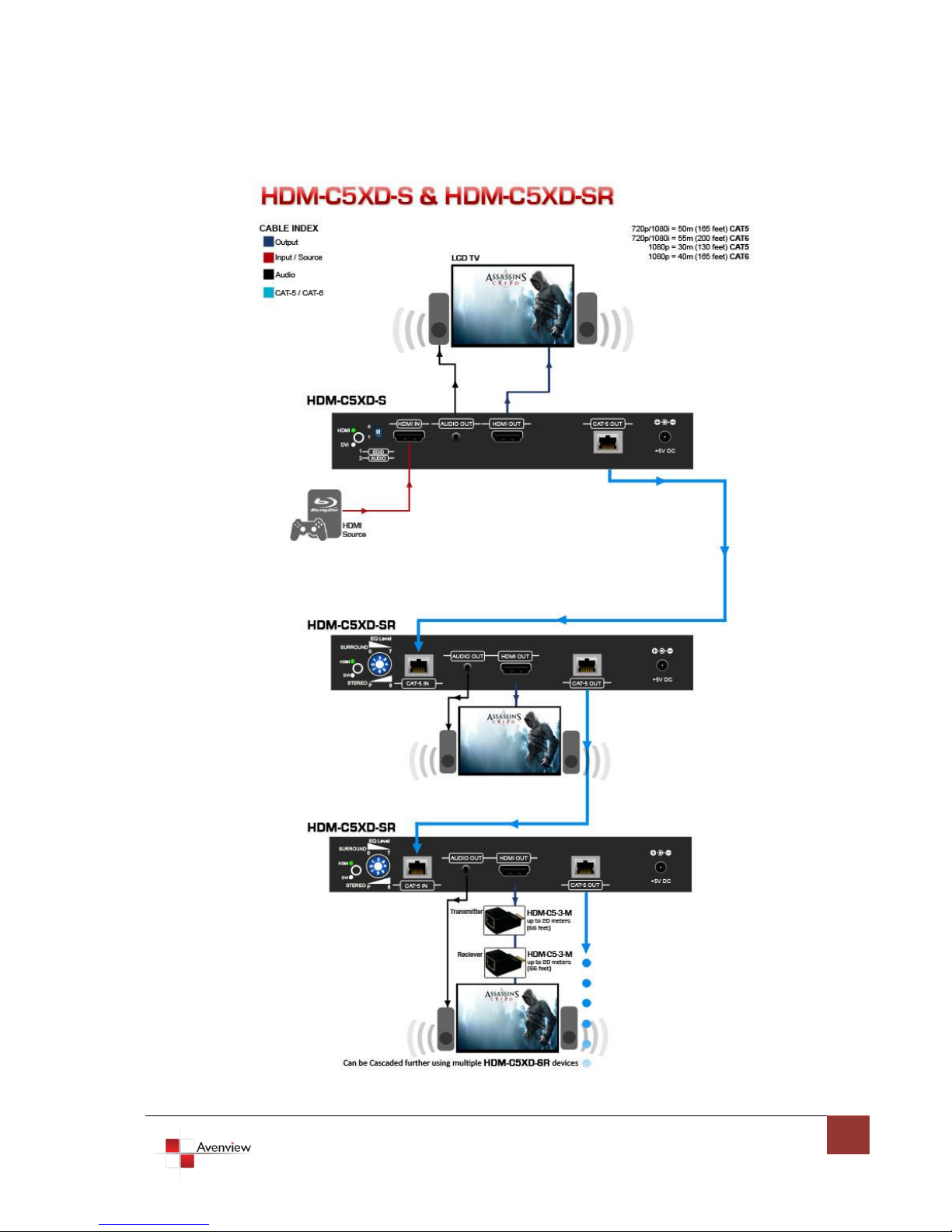

1.8 Installation (HDM-C5XD-S)

To setup Avenview HDM-C5XD-S follow these steps for connecting to a device:

1. Turn off all devices including monitors / TV

2. Connect a Local HDMI display to the HDMI out of the HDM-C5XD-S and then connect a speaker to the

3.5mm audio socket.

3. Connect to a HDMI source (such as a Blu-Ray Disc player)

4. Connect HDM-C5XD-S to HDM-C5XD-SR or HDM-C5-3-R from RJ45 Out with CAT5 / CAT5 cable

5. Plug in 5V 4A DC Power (supplied).

6. Power on the HDMI display

7. Power on HDMI Sources.

1.9 Installation (HDM-C5XD-SR)

To setup Avenview HDM-C5XD-SR follow these steps for connecting to a device:

1. Turn off all devices including monitors / TV

2. Connect a Local HDMI display to the HDMI out of the HDM-C5XD-SR and then connect a speaker to

the 3.5mm audio socket.

3. Connect to RJ45 cable to HDMI Signal IN which is connected to RJ45 OUT on HDM-C5XD-S

4. Connect HDM-C5XD-SR to another HDM-C5XD-SR for cascading or HDM-C5-3-R from RJ45 Out with

CAT5 / CAT5 cable

5. Plug in 5V 4A DC Power (supplied).

6. Power on the HDMI display

7. Power on HDMI Sources.

www.avenview.com

Section 2: Specifications

Item

Description

Units

HDM-C5XD-S

HDM-C5XD-SR

Unit Description

HDMI 1.3 Transmitter with Local

Output

HDMI 1.3 Transceiver with Local

Output

HDMI Compliance

HDMI 1.3c

HDCP Compliance

Yes

Video Bandwidth

Single Link 225 MHz (6.75Gbps)

Supported Resolutions

480i / 480p / 720p / 1080i / 1080p60

Resolution and Distance

Full HD: (1080p) ~ 40meter (130feet) (CAT5e) / 50meter (165feet) (CAT6)

HD: (720p/1080i) ~ 50meter (165feet) (CAT5e) / 60meter (200feet) (CAT6)

Audio Support

Surround Sound (up to 7.1 Ch) or Stereo Digital Audio

Equalization

8 Level Digital Control

Input TMDS Signal

1.2 Volts (peak-to-peak)

Input DDC Signal

5 Volts (peak-to-peak, TTL)

ESD Protection

-Human body model —±15kV (air-gap discharge) & ±8kV (contact discharge)

- Core chipset —±8kV

Input

1 x HDMI

1 x RJ45

Output

1 x HDMI

1 x Rj45

1 x 3.5mm Audio

1 x HDMI

1 x RJ45

1 x 3.5mm Audio

HDMI Connector

Type A (19 pin female)

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Audio Connector

3.5mm

DIP Switch

Yes

Dimensions (L x W x H)

4.3” x 8.3” x 1.1”

Power Supply

5V 4A DC

Power Consumption

3 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Tempearture

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

Andere Handbücher für HDM-C5XD-S

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Avenview Extender Handbücher

Avenview

Avenview HDM3D-C53X-SET Bedienungsanleitung

Avenview

Avenview FO-DVI-1000M-EMI Bedienungsanleitung

Avenview

Avenview FO8K-DP MM Series Bedienungsanleitung

Avenview

Avenview KVM-C5 Series Bedienungsanleitung

Avenview

Avenview DVI-C5-LC-R Bedienungsanleitung

Avenview

Avenview VGA-C5-SP-4 Bedienungsanleitung

Avenview

Avenview HBT2-C6POH-USB-SET Bedienungsanleitung

Avenview

Avenview VGA-C5A-R Bedienungsanleitung

Avenview

Avenview W-HDM3D-100-SET Bedienungsanleitung

Avenview

Avenview FO-DVI-1080X-SET Bedienungsanleitung

Avenview

Avenview FO-HDM2-T4K-SET Bedienungsanleitung

Avenview

Avenview Cat5 Bedienungsanleitung

Avenview

Avenview HDM3D-C5SP-4 Bedienungsanleitung

Avenview

Avenview HDSD FO-HDSDI-L-SET Bedienungsanleitung

Avenview

Avenview HDM-SHAREPRO-IP Bedienungsanleitung

Avenview

Avenview FO-HDM4K-200-EMIX Bedienungsanleitung

Avenview

Avenview HBT-C6PLT-SET Bedienungsanleitung

Avenview

Avenview WL-VGA-EXT Bedienungsanleitung

Avenview

Avenview KVM-C5 Series Bedienungsanleitung

Avenview

Avenview FO-HDMI-SET Bedienungsanleitung

Avenview

Avenview FO-DP-XX-MM Bedienungsanleitung

Avenview

Avenview C5-USB-200 Bedienungsanleitung

Avenview

Avenview HDMI-C5-3-SET Bedienungsanleitung

Avenview

Avenview W-HD3DIR-50M Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
