Avenview VGA-C5-SP-8 Bedienungsanleitung

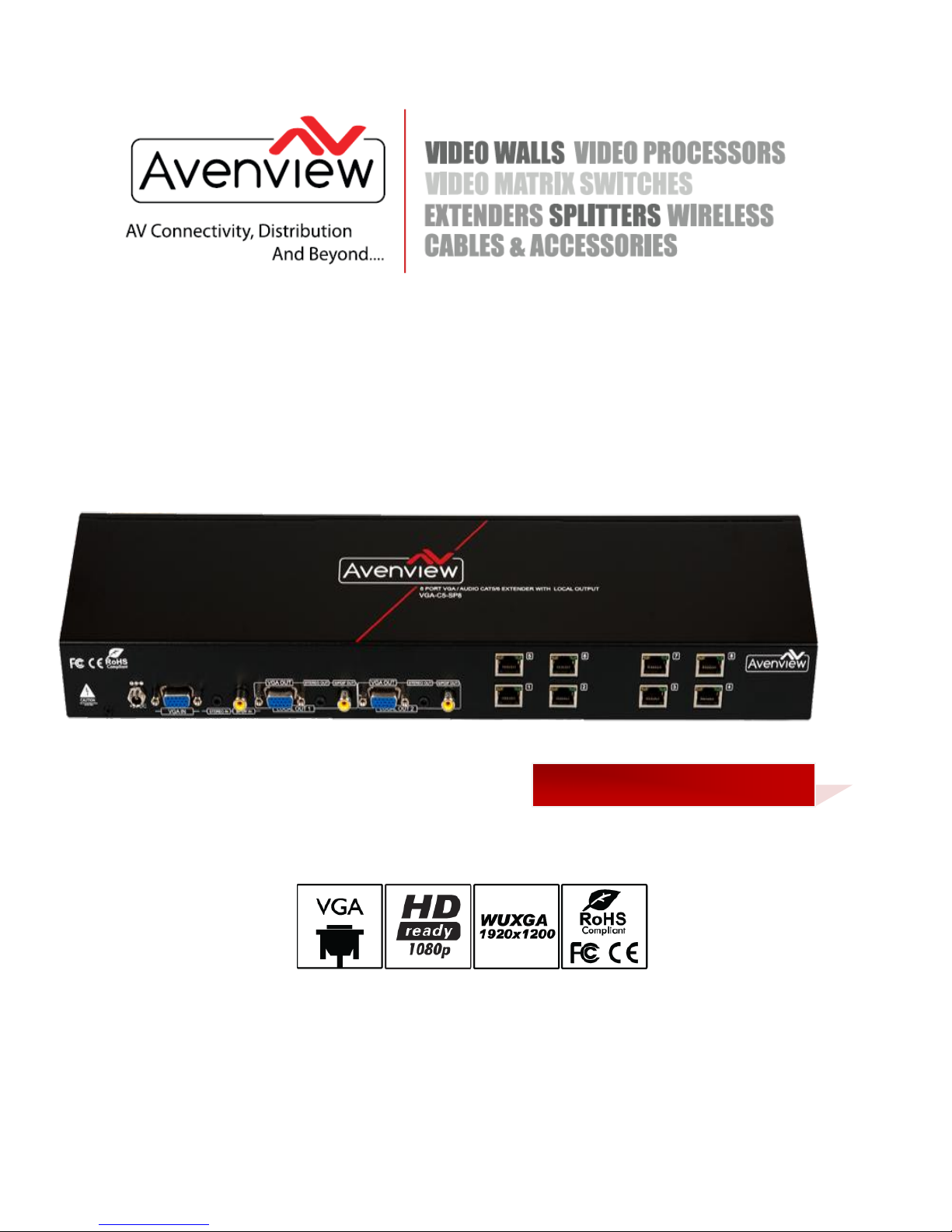

4, 8, 16 Port VGA/ Audio Extender / Splitter

With Local Output with SPDIF

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at

any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth

in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its

products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property

right. Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

Model #: VGA-C5SP-8

Page|2

www.avenview.com

TABLE OF CONTENTS

SECTION 1: GETTING STARTED........................................................................................................ 3

1.1 IMPORTANT SAFEGUARDS ................................................................................................ 3

1.2 SAFETY INSTRUCTIONS..................................................................................................... 3

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) .......... 4

2. INTRODUCTION................................................................................................................. 5

2.1 PACKAGE CONTENTS........................................................................................................ 5

2.2 BEFORE INSTALLATION..................................................................................................... 6

3. PANEL DESCRIPTION ......................................................................................................... 7

4. INSTALLATION .................................................................................................................... 8

5. GENERAL TROUBLESHOOTING ....................................................................................... 8

SECTION 6: SPECIFICATIONS ............................................................................................................ 9

Page|3

www.avenview.com

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification,

or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-16, VGA & Audio Extender/Splitter, Single CAT5 have

been tested for conformance to safety regulations and requirements, and has been certified for international use.

However, like all electronic equipment’s, the VGA-C5-SP-XX should be used with care. Read the following

safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous

voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or

spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

Page|4

www.avenview.com

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols

Description

ONLY USE THE PROVIDED POWER CABLE OR

POWER ADAPTER SUPPLIED. DO NOT TAMPER

WITH THE ELECTRICAL PARTS. THIS MAY

RESULT IN ELECTRICAL SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO

WILL VOID THE WARRANTY AND CONTINUED

USE OF THE PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO

STATIC. PLEASE ENSURE IF RACK MOUNTED OR

INSTALLED ON A SURFACE, IT SHOULD BE IN A

GROUNDED ENVIROMENT.

Page|5

www.avenview.com

2. INTRODUCTION

The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-16, VGA and Audio over CAT5 Transmitter / Splitter

provides the most flexible solution by which the high resolution Video and high quality stereo Audio can be

transmitted to different locations over super long distances. Built with 2 VGA and digital/analog audio loop outs, local

A/V receivers can provide extra video and audio fan-outs through typical VGA, SPDIF, and analog audio cables. The

high bandwidth VGA can be transmitted up to 65 meters (210 feet) on the local ports. The VGA-C5-SP-4,

VGA-C5-SP-8, VGA-C5-SP-16 also extends VGA and stereo audio source up to 330 meters (1000 feet) through cost

effective CAT-5 LAN cables. Accompanying the receivers of VGA-C5A-R VGA CAT5 extender series equipped with

the equalization, gain control and de-skew functions, the video and audio quality can be further assured and make the

quality of overall transmission superior than the other VGA splitters on the market.

-Supports up to WUXGA (1920x1200@60) to 300m (1,000ft)

-Supports Analog Stereo Audio and S/PDIF Digital Audio

-Adjustable equalization and gain control on Receiver unit

-De-skew compensation available for RGB delay control

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

-VGA-C5SP-8 x 1

Power Adapter (+5V 4A DC)

User’s Manual

Rack Mount Kit

Page|6

www.avenview.com

2.2 BEFORE INSTALLATION

Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or

malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may

cause a fire.

Do not twist or pull the ends of the UTP cable. It can cause malfunction.

Page|7

www.avenview.com

3. PANEL DESCRIPTION

INPUT PANEL (Receiver, VGA-C5SP-8)Front Panel

1. Audio Select Button Down SPDIF/ UP Stereo

2. Power LED light

OUTPUT PANEL (Receiver, VGA-C5SP-8)Rear panel

3. Power Connector

4. VGA Input Female Connector

5. Stereo Audio Input (3.5mm jack)

6. S/PDIF Input (RCA jack)

7. Local Video and Audio Output

(Analog Audio Out 3.5mm & Digital Audio Out RCA)

8. Local Video and Audio Output

(Analog Audio Out 3.5mm & Digital Audio Out RCA)

9. 8 Bank of RJ45 Outputs to Rx VGA-C5A-R

Page|8

www.avenview.com

4. INSTALLATION

1. Connect VGA and audio source to Transmitter (VGA-C5-SP8)

2. Connect VGA display and speakers to Receiver (VGA-C5A-R)

3. Connect CAT5/CAT6 cable between Transmitter (VGA-C5-SP8) and Receiver (VGA-C5A-R)

4. Ensure that cables are tightly connected

5. Plug in 5V 2ADC power adapter to the power jack of the Receiver VGA-C5A-R.

6. Plug in 5V 4ADC power adapter to the power jack of the Transmitter VGA-C5-SP8.

5. GENERAL TROUBLESHOOTING

PROBLEM

POSSIBLE SOLUTION

NO IMAGE

Check if connection to the source and the display are

correct.

Ensure that display device supports the resolution that is

being output.

SCREEN DEFECTS APPEAR

This product supports up to WUXGA (1920x1200)

resolution.

Check the VGA and CAT5 connection

If outputting from a PC. Check the maximum resolution

range of the graphics card.

1. If a blurred video is seen or even worse, not displayed at all, try to adjust the EQ and Gain rotary

controls to improve the cable skew. GAIN rotary controls are designed for gain control, and EQ

rotary controls are designed for equalizing the wave form of the receiving video signal. It is

suggested to begin with adjusting the rotary control of EQ to get the input video displayed first,

and then the GAIN according to the video you see on the screen.

2. RGB delay control [De-skew] offers the flexible functionality to allow skew compensation among

VGA R, G, B signals due to long transmission or thru low quality cable. By adjusting the rotary

switch to choose R, G or B color channel at first, then use the push buttons to increase or decrease

the delay in the corresponding color channel. There are totally 31 steps, each step with 2ns

difference, for adjusting the delay between each color individually. Then the graphics quality can

be further assured.

Page|9

www.avenview.com

SECTION 6: SPECIFICATIONS

ITEM

DESCRIPTION

UNITS

VGA-C5-SP-4

VGA-C5-SP-8

VGA-C5-SP-16

UNIT DESCRIPTION

4 Port VGA Extender

Splitter

8 Port VGA Extender

Splitter

16 Port VGA Extender

Splitter

VIDEO BANDWIDTH

350MHz

VIDEO SUPPORT

VESA

SUPPORTED

RESOLUTIONS

Up to WUXGA (1920 x1200)

Up to 1280x1024

RESOLUTION AND

DISTANCE

WUXGA 1920x 1200 at 300 meters

(1000 feet)

1280x1024 at 300 meters (1000 feet)

AUDIO SUPPORT

Stereo

EQUALIZATION

Continuous Analog Control

INPUT VIDEO SIGNAL

1.2 Volts (peak-to-peak)

ESD PROTECTION

-Human body model —±15kV (air-gap discharge) & ±8kV (contact

discharge)

-Core chipset —±8kV

INPUT

1 x VGA

1 x RCA

1 x 3.5mm Audio

OUTPUT

2 x VGA

2 x RCA

2 x 3.5mm

4 x RJ45

2 x VGA

2 x RCA

2 x 3.5mm

8 x RJ45

2 x VGA

2 x RCA

2 x 3.5mm

16 x RJ45

VGA CONNECTOR

HD-15 (15 pin D-sub Female)

RJ45 CONNECTOR

WE/SS 8P8C with 2 LED indicators

3.5MM AUDIO

CONNECTOR

Earphone jack for Analog Stereo Audio

RCA CONNECTOR

S/PDIF Digital Audio

DIMENSIONS (L X W X

16” x 3.8” x 1.7”

16” x 3.8” x 3.5”

POWER SUPPLY

5V 4A DC

POWER CONSUMPTION

10 Watt (max)

15 Watt (max)

25 Watt (max)

ENVIRONMENTAL

OPERATING

TEMPERATURE

32˚~ 104˚F (0˚to 40˚C)

STORAGE TEMPEARTURE

-4˚ ~ 140˚F (-20˚ ~ 60˚C)

RELATIVE HUMIDITY

20~90% RH (no condensation)

Page|10

www.avenview.com

NOTICE

PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION

PERFORMANCE RATING

TYPE OF CATEGORY CABLE

WIRING

SHIELDING

CAT5

CAT5E

CAT6

SOLID

UNSHIELDED (UTP)





SHIELDED (STP)







STRANDED

UNSHIELDED (UTP)





SHIELDED (STP)





TERMINATION

PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME

1. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP

cable and ASTRODESIGN Video Signal Generator VG-859C.

3. The transmission length is largely affected by the type of category cables, the type of HDMI

sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the

form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables

(usually in the form of patch cords). Shielded STP cables are better suit than unshielded UTP cables.

A solid UTP CAT5e cable shows longer transmission length than stranded STP CAT6 cable. For long

extension users, solid cables are your only choice.

4. EIA/TIA-568-B termination (T568B) for category cables is recommended for better performance.

5. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can

use shielded STP cables to improve EMI problems.

6. The quality of UTP/STP cables can affect the transmission distance.

7. The video quality is subject to the resolution of the source, also the connected display should be

compatible with the resolution of the source

Inhaltsverzeichnis

Andere Avenview Extender Handbücher

Avenview

Avenview HDM-C6IPX-SET Bedienungsanleitung

Avenview

Avenview C-USB-HDM Bedienungsanleitung

Avenview

Avenview FO-DVI-1000X-EMIX Bedienungsanleitung

Avenview

Avenview DVI-C5-M-SET Bedienungsanleitung

Avenview

Avenview FO-HDSDI-SET Bedienungsanleitung

Avenview

Avenview VGA-C5-SP-4 Bedienungsanleitung

Avenview

Avenview HDMI-C5SP-4 Bedienungsanleitung

Avenview

Avenview FO-DP4K-300-EMIX Bedienungsanleitung

Avenview

Avenview HBT-C6BPOC-SET Bedienungsanleitung

Avenview

Avenview FO-HDM4K-200-EMIX Bedienungsanleitung

Avenview

Avenview FO-HDMI-SET Bedienungsanleitung

Avenview

Avenview HDM3D-C5SP-8 Bedienungsanleitung

Avenview

Avenview FO-DVI-XX-MM Bedienungsanleitung

Avenview

Avenview HDM-C5SP-8 Bedienungsanleitung

Avenview

Avenview HDM3D-C53X-SET Bedienungsanleitung

Avenview

Avenview DVI-C5-R Bedienungsanleitung

Avenview

Avenview W-HDM3D-100-SET Bedienungsanleitung

Avenview

Avenview KVM-C5 Series Bedienungsanleitung

Avenview

Avenview HBT2-C6POH-USB-SET Bedienungsanleitung

Avenview

Avenview HDM-C5-R-M Bedienungsanleitung

Avenview

Avenview DVI-C5-M-SET Bedienungsanleitung

Avenview

Avenview FO-DVI-1000M-EMI Bedienungsanleitung

Avenview

Avenview HDM-C5XD-S Bedienungsanleitung

Avenview

Avenview FO-HDM-IP4K-SET Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
