Avenview FO-DVI-XX-MM Bedienungsanleitung

www.avenview.com

DVI Extender over Fiber Optic Cable

Model #: FO-DVI-XX-MM

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Model Description ................................................................................................................. 5

1.6 Package Contents................................................................................................................... 5

1.7 Before Installation.................................................................................................................. 5

1.8 Installation ............................................................................................................................. 6

Section 2: Specifications......................................................................................................................... 7

2.1 Part List......................................................................................................................................... 8

2.2 Power Consumption and DDC Power Requirements................................................................... 9

2.3 Signal Pin Assignment .................................................................................................................. 9

2.4 Characteristics of DVI Connector ............................................................................................... 10

2.4.1 Material............................................................................................................................... 10

2.4.2 Electrical .............................................................................................................................. 10

2.4.3 Mechanical .......................................................................................................................... 10

2.5 Characteristics of FO-DVI-XX-MM .............................................................................................. 11

2.5.1 Mechanical .......................................................................................................................... 11

2.6 FO-DVI-XX Cable Construction ................................................................................................... 12

2.7 Physical Interconnect Specification ........................................................................................... 13

2.7.1 Mechanical Characteristics ................................................................................................. 13

2.7.2 Connector Electrical Characteristics.................................................................................... 14

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview FO-DVI-XX-MM, DVI Extender System over Fiber Optic, has been tested for conformance to

safety regulations and requirements, and has been certified for international use. However, like all electronic

equipment’s, the FO-DVI-XX-MM should be used with care. Read the following safety instructions to protect

yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview FO-DVI-XX-MM Series with fiber optic cable system lets you extend digital flat panel signal up to 100

meters (330 feet).

-High Speed and long distance transmission by Optical fiber

-Fully compatible with DVI Standard by DDWG

-Use of standard DVI Plug

-R, G, B, Clock signal is transmitted Optical Fiber

-Supports up to WUXGA (1920 x 1200) resolution

-DDC signal and 5V power line is transmitter by copper line

-Optical Fiber only system without DDC Corresponding to T.M.D.S Signal

-No EMI characteristics for medical instruments and airplane

www.avenview.com

1.5 Model Description

FO-DVI-XX-MM

Model Name Length in Meters (5 = 5 meters, 10 = 10 meters)

1.6 Package Contents

Before you start the installation of the converter, please check the package contents.

-DVI Optical Cable with Transmitter and Receiver x 1

-User’s Manual x 1

1.7 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.8 Installation

Avenview FO-DVI-XX-MM is composed of a Transmitter converting the graphic signal of a computer to optical

and Optical Fiber propagating the optical signal and Receiver supplying electrical signal to monitor converted

from the optical signal to electrical signal. The Transmitter should be connected to computer and the Receiver

should be connected to a monitor.

Avenview FO-DVI-XX-MM is designed to self-detect the resolution of the monitor and change the resolution

accordingly. Follow these steps for connecting to a device:

To setup Avenview FO-DVI-XX-MM follow these steps for connecting to a device:

1. Power on your display

2. Connect Transmitter to the PC and Receiver to the Display.

3. Connect the optical fiber between Transmitter and Receiver.

4. Restart the computer.

Use the DC power adapter (optional) with correct specification. The Transmitter which is connected to a

computer uses power from the computer.

Do not twist or pull by force the both ends of the optical cable. It may cause malfunction

www.avenview.com

Section 2: Specifications

Item

Description

Units

FO-DVI-XX-MM (Transmitter)

FO-DVI-XX-MM (Receiver

Unit Description

DVI Fiber Optic Transmitter

DVI Fiber Optic Receiver

Input Signal

TMDS Signal (DVI 1.0 Standard)

Output Signal

TMDS Signal (DVI 1.0 Standard)

Video Bandwidth

1.65Gbps

Supported Resolution &

Distance

Up to WUXGA 1920 x 1200 @ 100 meters ( 330 feet)

Optical Converter

4 ch 850 nm Multi-Mode VCSEL

4 ch GaAs PIN photo Diode

DVI Connector

24 pin DVI-D Plug

Optical Connector

7 LC Connector

DDC Link Connector

Rj45

Fiber Type

50/125 µm Multi-mode glass fiber

Dimensions (L x W x H)

1.2” x 7.1” x 3.5”

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

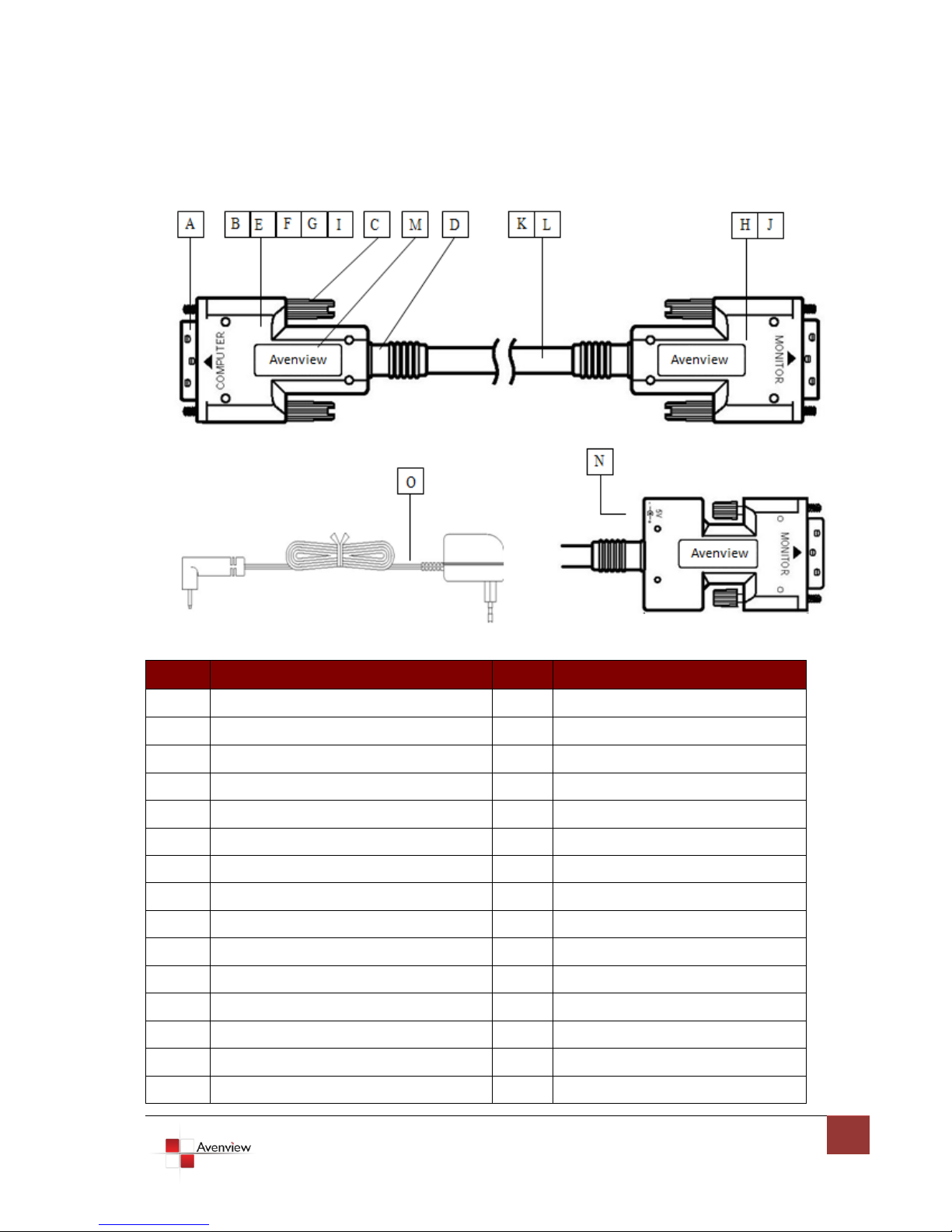

2.1 Part List

Item

Description

Q’ty

Material

DVI-D Single Link 18 Plug

Glass

filled

thermoplastic

UL94V-0

DVI Case-Top, Bottom

Glass

filled

UL94V-0

DVI Thumb Screw

SUM

24L+ABS

Stopper

PVC

55%

Epoxy Printed Circuit Board for Tx

FR-4,

1.5t

UL94V-0

Optical Connector for VCSEL,PD

PA46

UL94V-0

C5210

Optical Connector for fiber

PA46

UL94V-0

Epoxy Printed Circuit Board for Rx

FR-4,

1.5t

UL94V-0

Vertical Surface Emitting Laser Diode

GaAs

Photo Detector

GaAs

4 fiber 5 copper DVI Optic Cable

See

Section

4 fiber DVI Optic Cable

See

Section

Label

Polyester-matte

3.3mil

DC Power Jack

Polyamide

6/6

DC Power Adaptor

E191362

(UL

No)

www.avenview.com

2.2 Power Consumption and DDC Power Requirements

Power consumption of FO-DVI-xx-MM Transmitter and Receiver Module

Item

Typical

maximum

unit

Transmitter

0.53

Watt

Receiver

0.56

Watt

Transmitter module of FO-DVI-XX-MM without external power supply is operated by drawing out power for

DDC from the computer and receiver module of FO-DVI-XX-MM cable also utilize the DDC power delivered via

copper wire.

2.3 Signal Pin Assignment

Signal Assignment

T.M.D.S. Data2-

T.M.D.S. Data1-

T.M.D.S. Data0-

T.M.D.S. Data2+

T.M.D.S. Data1+

T.M.D.S. Data0+

T.M.D.S. Data2 Shield

T.M.D.S. Data1 Shield

T.M.D.S. Data0 Shield

No Connect

DDC Clock

+5V Power

T.M.D.S. Clock Shield

DDC Data

Ground (for +5V)

T.M.D.S. Clock+

No Connect

Hot Plug Detect

T.M.D.S. Clock-

If graphic board of the computer does not supply over 0.6A, 5V, FO-DVI-XX-MM cable may

not operate normally.

www.avenview.com

2.4 Characteristics of DVI Connector

2.4.1 Material

Housing

Glass Filled Thermoplastic, Black UL94V-0

Contact

Brass

Shell

Steel (Nickel Plated)

2.4.2 Electrical

Rated

1.5A, 40V (AC)

Contact Resistance

20 m



Maximum

Insulation Resistance

1000 m



Minimum

Dielectric withstanding Voltage

500VDC

2.4.3 Mechanical

Mating Force

4.5Kg (10lbs) Maximum

Un-mating Force

1Kg (2.2lbs) Minimum

4Kg (8.8lbs) Maximum
