Avermedia AVerDiGi EH5116 Pro Bedienerhandbuch

AVerMedia®

AverDiGi EH5116 PRO

Quick Installation Guide

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT

PRIOR NOTICE

THE INFORMATION CONTAINED HEREIN IS TO BE

CONSIDERED FOR REFERENCE ONLY

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT

MODIFICATION

AVerMedia INFORMATION, Inc

Reproduction without permission is prohibited

Package Contents

(1) (2)

(3)

AVerMedia

AVerDiGiEH5116

QuickInstallationGuide

(4) (5) (6)

(7)

(8)

If there is any damage, shortage or inappropriate item in the package

contents, please contact with local dealer

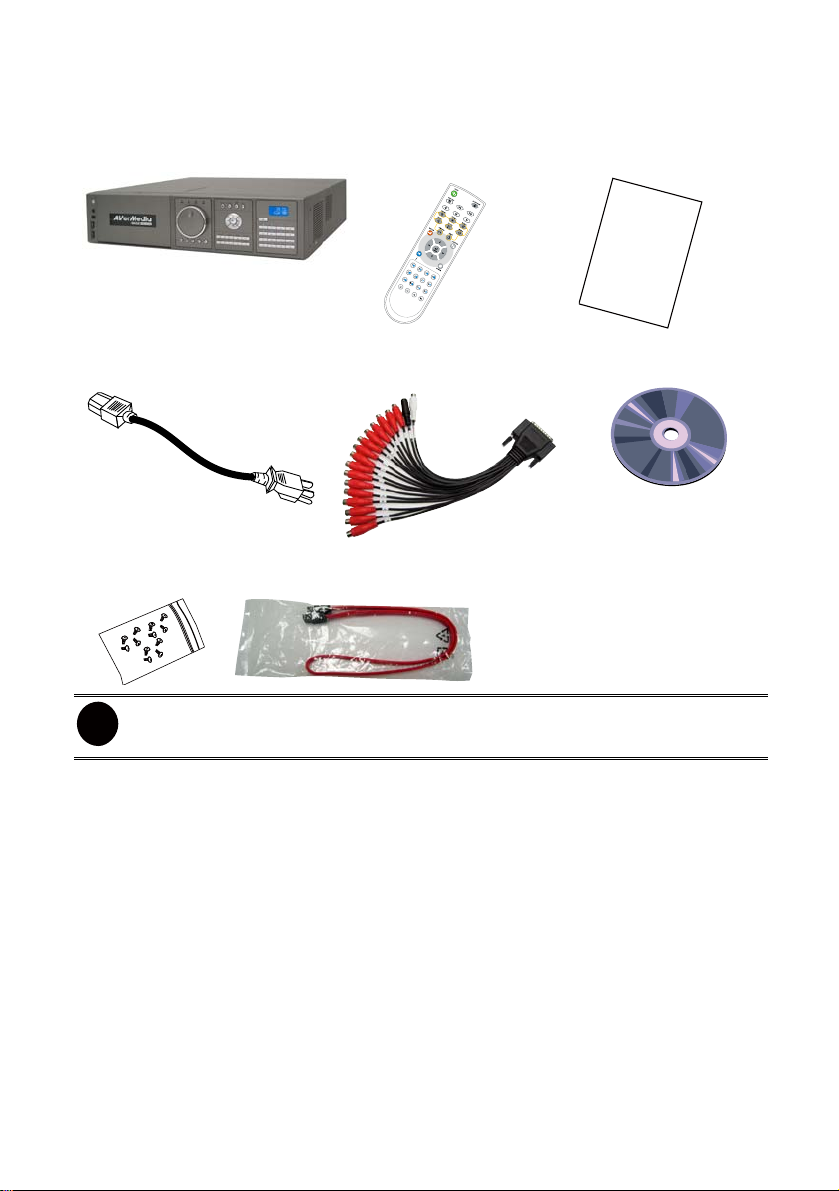

(1) EH5116 PRO unit

(2) Remote Control (Batteries are

included)

(3) Quick Installation Guide

(4) Power Cord (*The power cord may

vary according to the local

electricity system.)

(5) Audio cable (16CH audio out, 1CH

audio in, 1CH microphone in)

(6) Software CD (Manual is included)

(7) 12 * screws for internal HDD

installation

(8) SATA cable

Hardware Installation

A. Install the hard disk

Follow the steps to install the hard disk:

For hard disk spec, please referring to

http://www.avermedia.com/AVerDiGi/Product/ →Embedded Hybrid

DVR/NVR →AVerDiGi EH5116 →Hardware Recommendations

Follow the illustrated instructions below to install the hard disk:

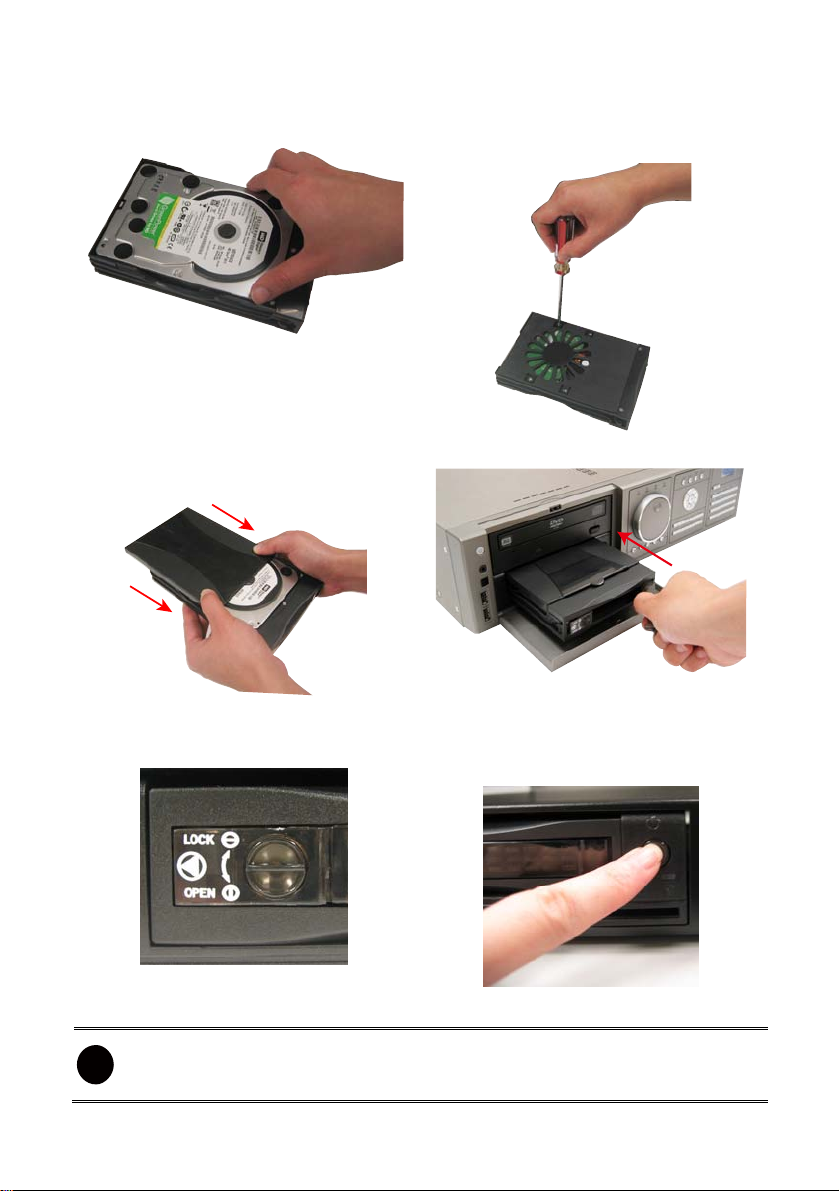

1. Unlock the removable hard disk

drawer

2. Open the removable hard disk

drawer

3. And then, pull out the removable

hard disk drawer 4. Remove the removable hard disk

drawer cover

5. Carefully insert the hard disk in

the removable rack 6. Turn the removable hard disk

drawer over and screw hard disk

with screws

7. And then, close the removable

hard disk drawer cover

8. Slide the drawer back

9. Lock the removable hard disk

drawer keylock

10. Power on the removable hard disk

drawer

11. You may now connect all the cables and power on the DVR unit.

Please make sure the power of removable hard disk is on before starting DVR

unit to avoid hard disk detection error.

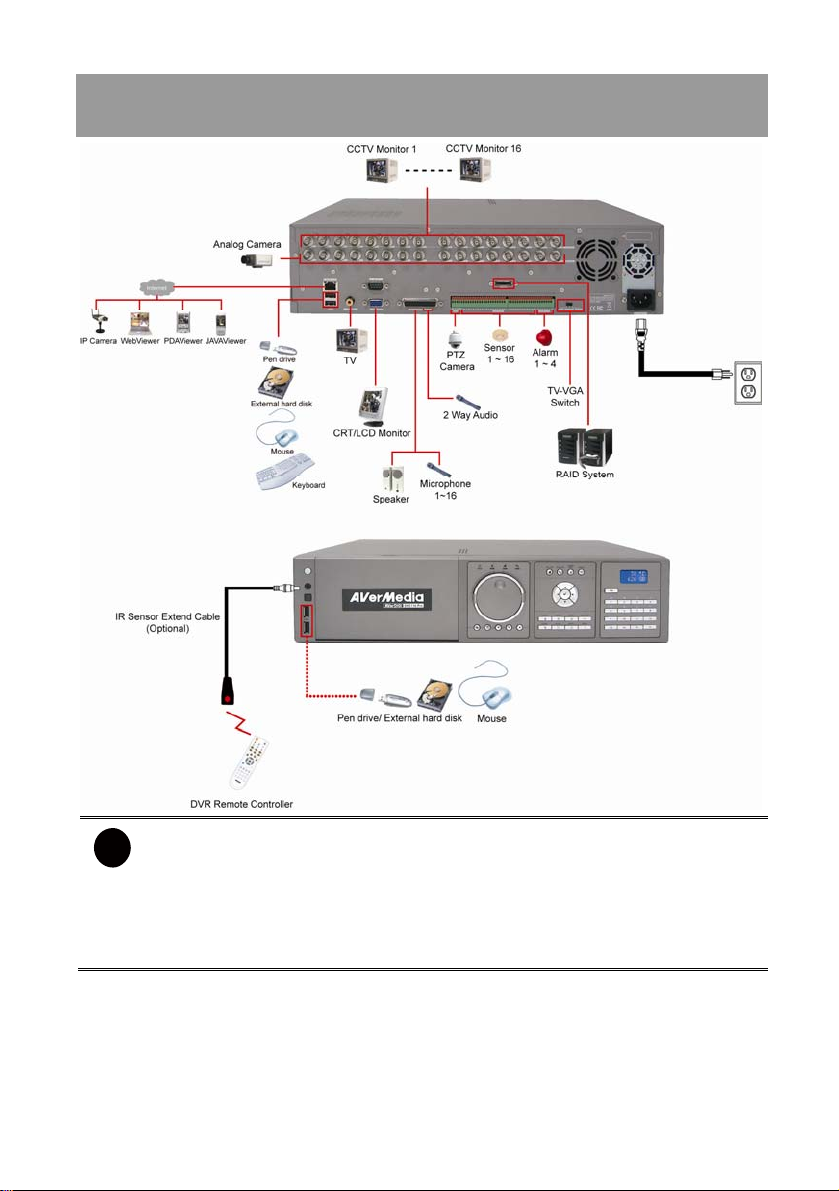

B. After the hard disk installation, please connect the cables and

power as the illustration showed

– DVR unit can connect 16 cameras in analog and IP cameras combo.

– DVR unit doesn’t supply the power to connected external device.

– Each time you change the video display output, the power must be

turned off and switch the video display output, and then turn on the

DVR unit.

– Pen drive and external hard d sk must be FAT32 format.i

Using DVR System

A、Way to Operate DVR

There are three ways can be managed the DVR unit:

1. Using mouse and keyboard

Connecting the mouse and keyboard through USB interface, user can

easily to management the DVR unit. For the first time using DVR unit,

mouse and keyboard is the best way to set up all DVR relevant

configurations.

2. Using Remote Controller

After DVR unit has been setup, user can use remote control to preview,

playback, backup, reset alarm, output video and so on functions.

3. Using Front Panel button

It’s an optional way to operate DVR unit. Front panel button function acts

as same as remote controller.

For the first time using DVR unit, using mouse and keyboard to setup all

configurations.

B、First Time Using DVR Unit

1. Connect the mouse and keyboard to DVR unit(through USB interface)

2. Select the video output – VGA, TV-NTSC, or TV-PAL

VGA: DVR output the video to a LCD monitor or a CRT monitor

TV-NTSC: DVR output the video to a TV and video system is NTSC

TV-PAL: DVR output the video to a TV and video system is PAL

3. Power on the DVR unit.

4. For security purpose, the DVR system would require you to enter User ID

and Password before it can be accessed. When the Authorization dialog

box appears, select the ID (superuser or user) and enter the Password.

(Superuser and user default password both are 111111).

Superuser has full authority to configure and operate DVR system.

After login, the main GUI as following shown:

5. The hard disk must be formatted before user can use it with DVR unit.

Following the below steps to format the hard disk.

a. Click

Setup and enter the password

b. Click

System →Add

c. Select the hard disk from device list and select Format type

d. Click

Format button to start formatting

e. When formatting is done, click OK.

6. Setup the date and time in order to have correct recording time and date.

Following the below steps to setup date and time:

a. Click

Setup and enter the password

b. Click

System

c. In

Time section, click Setting button of System Time.

d. Select the date and adjust the time, and then, click OK.

7. Connecting the camera.

To connect analog camera:

a. Plug the analog camera audio cable into DVR unit.

b. Click

Setup and enter the password

c. Click

Camera

d. Select camera channel and type of camera – Analog Camera

e. And then, enable the camera

f. Give a name of camera and enter shot description.

g. Adjust the bright, contrast, hue, and saturation of camera

h. Click
