Avision AV610 Bedienungsanleitung
AV610 User’s Manual
1
AvisionAV610 Document Scanner
User’s Manual
¦Installing the Machine
¦Completing Your First Scan
¦Editing Your Images
¦Using the Buttons
2
The Federal Communication Commission Statement
NOTE: This equipment has been tested and found to comply with the
limits for a Class Bdigital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate
the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CE Warning!
This is a class Bproduct. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
AV610 User’s Manual
3
Copyright 2002Avision
Trademark
All brands and product names mentioned in this document are trademarks
of their respective holders.
Warranty
Avision makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of fitness for a particular
purpose.
System Requirements
Windows
•IBM compatible PC 586, Pentium III 600 or above
•Microsoft Windows 98, Windows Me, Windows 2000, Windows XP
•A USB (universal serial bus) port
•At least 100M bytes of free hard disk space
•128M bytes of RAM or above
•A CD-ROM drive
4
Table of Contents
CHAPTER 1 INSTALLING THE SCANNER....................................6
1.1 CHECKING THE PACKAGE CONTENTS ...............................6
1.2 UNLOCKING THE SCANNING UNIT ...................................7
1.3 INSTALLING THE ADF PAPER TRAY .................................7
1.4 INSTALLING THE PAPER STOP.......................................8
1.4.1 DOCUMENT TYPES TO BE AVOIDED IN THE ADF .........9
1.5 CONNECTING TO THE ADF AND POWER ............................9
1.6 INSTALLING THE SOFTWARE....................................... 10
CHAPTER 2 COMPLETING YOUR FIRST SCAN...........................13
2.1 PLACING THE ORIGINAL............................................ 13
2.1.1 LOADING YOUR PAPER FROM THE ADF ................ 13
2.1.2 FIXING PAPER ON THE GLASS BOARD .................. 14
2.2 SCANNING WITH IMAGE EDITING SOFTWARE...................... 15
2.2.1 A GLANCE OF THE USER INTERFACE ................... 16
CHAPTER 3 EDITING YOUR IMAGE.........................................17
3.1 USING THE BASIC FEATURES ...................................... 17
3.1.1 CHOOSING YOUR SCAN METHOD ....................... 17
3.1.2 SELECTING A PROPER IMAGE TYPE..................... 18
3.1.3 DETERMINING A PROPER RESOLUTION................. 20
3.1.4 ADJUSTING THE BRIGHTNESS AND CONTRAST ......... 21
3.1.5 ENLARGING PREVIEWED IMAGE......................... 22
3.1.6 INVERTING AND SELECTING YOUR IMAGE............... 23
3.1.7 ENHANCING YOUR IMAGE ............................... 25
3.2 USING THE ADVANCED FEATURES ................................. 27
3.2.1 THE SWITCH BUTTON ................................... 27
3.2.2 ADJUSTING HIGHLIGHT/SHADOW LEVELS .............. 28
3.2.3 ADJUSTING THE BRIGHTNESS CURVE.................. 31
3.2.4 CHANGING COLOR HUE/SATURATION/LIGHTNESS..... 32
3.2.5 USING COLOR BALANCE ................................ 33
3.2.6 COLOR DROP-OUT ...................................... 34
3.3 USING OTHER TOOLS .............................................. 35
AV610 User’s Manual
5
CHAPTER 4 USING THE BUTTONS .........................................36
4.1 CUSTOMIZING YOUR BUTTON SETTINGS................................ 36
4.2 USING THE BUTTONS ................................................. 38
CHAPTER 5 CARE AND MAINTENANCE...................................39
5.1 CLEANING THE ADF................................................ 39
5.2 CLEANING THE GLASS ............................................. 40
5.3 REPLACING THE ADF DETACHABLE PAD MODULE................ 41
APPENDIX ......................................................................42
TROUBLESHOOTING ......................................................... 42
SPECIFICATION.............................................................. 44
INDEX ...................................................................... 45
6
Chapter 1 Installing the Scanner
1.1 Checking the Package Contents
Gently open your box and check the package contents. If there is
anything missing or damaged, please call your dealer.
Avision AV610 USB Scanner USB Cable Power Cable
Paper Guide Paper Guide Extension Power Supply
Paper Stop Quick Guide Replacable ADF Pad/CD
Note:
1. Please keep all the packing material in case you may have to return the
scanner for repair.
2. Only use the AC adapter (868-1030-I24 Rev. A made byYHI) included in the
machine. Using other AC adapters may damage the machine and void the
warranty.
AV610 User’s Manual
7
1.2 Unlocking the Scanning Unit
The scanner is designed with a lock switch to protect the scanning unit from
damage during shipment. Before using the scanner, you must unlock the
scanning unit. To unlock the scanning unit, locate the lock switch at the
bottom of the scanner. Move the lock switch to the “unlocked position” as
shown below.
Warning:
1. Using the scanner without unlocking the scanning unit will cause damage to
the machine and void the warranty.
2. To transport the machine, you must lock the scanning unit before transporting
to other locations.
1.3 Installing the ADF Paper Tray
1. Insert the notched corners of the ADF Paper Support to the clip-joints
on the ADF Paper Tray.
ADF Paper
Support
ADF Paper
Tray
8
2. Insert the notched corners of the ADF Paper Tray into the clip-joints on
the ADF document cover.
1.4 Installing the Paper Stop
Insert the Paper Stop onto the back of the scanner and slide it downward to
“snap”its tabs into place.
Document
Cover Paper Stop
AV610 User’s Manual
9
1.4.1 Document Types to Be Avoided in the ADF
•Paper with clip or staple attached;
•Paper with ink not totally dry;
•Paper with inconsistent thickness, such as envelopes;
•Paper with wrinkles, curls, folds or tears;
•Coated paper;
•Carbonless paper;
•Paper narrower than 4.5" or wider than 8.5"; Shorter than 5” or
longer than 14”
•Paper thinner than 0.07mm; thicker than 0.15mm
•Items other than papers, such as cloth, metal or OHP film;
•Notched paper;
•Paper with an odd (non-rectangular) shape;
Please use the flatbed to copy or scan documents that cannot be fed by the
ADF.
1.5 Connecting to the ADF and Power
1. Plug the ADF connector to the document cover to the ADF port.
2. Plug the small end of the power adaptor into the power jack of your
scanner. Insert the other end to an appropriate power outlet.
Note: The scanner is designed with power saving mode. After stop using the
scanner for 15 minutes, the scanner automatically turns off the scanning lamp.
Power Outlet
Power Cord
ADF Cable
10

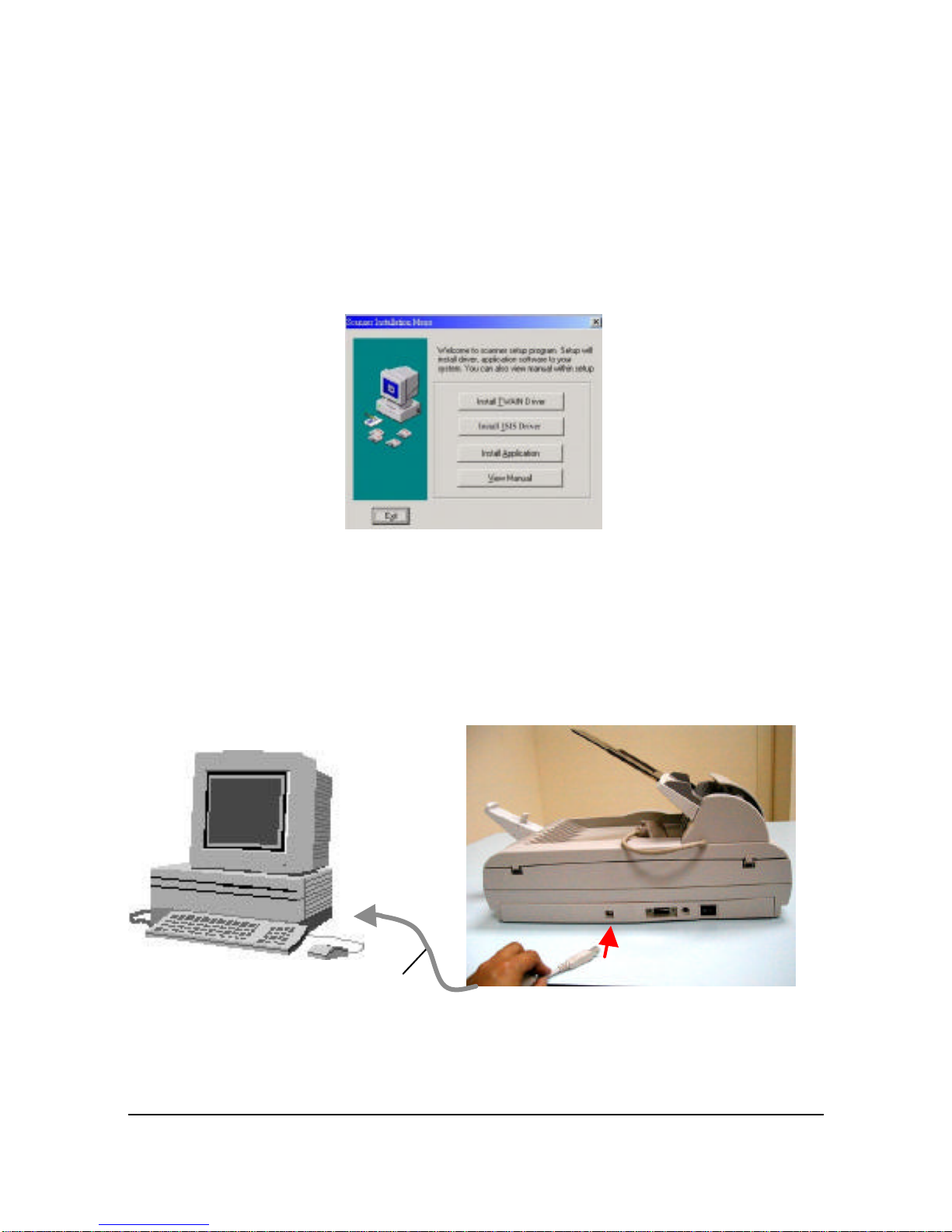

1.6 Installing the Software
Note:
1. The Windows system CD may be required when installing on some PC’s.
2. To ensure your computer can identify the USB scanner, please install
scanner driver first before connecting the scanner to your computer.
1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run “cdsetup.exe”.
3. Choose Install TWAIN Driver and follow the instructions on the
screen to complete the installation.
4. Connecting to Computer
Connect the square end of the USB cable to the USB port of your
scanner. Connect the rectangle end to the USB port of your
computer.
U
SB Cable
