AV260C Plus

Color Image Scanner

User's Manual

(D/N 250-0171-E Rev. A)

 Avision Inc. 1998

Trademarks

Microsoft is a U.S. registered trademark of Microsoft Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, PC, AT, XT are registered trademarks of International

Business Machines Corp.

Other brands and product names herein are trademarks or

registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any

form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual, or otherwise, without the prior written

permission ofAvision.

Material scanned by this product may be protected by

governmental laws and other regulations, such as copyright laws,

the customer is solely responsible for complying with all such

laws and regulations.

iii

Warranty

The information contained in this document is subject to change

without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communication. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the

following measures:

* Reorient or relocate the receiving antenna.

* Increasethe separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for

help.

CAUTION: Any changes or modifications not expressly

approved by the manufacture of this device could void the user's

authority to operate the equipment.

Table of Contents

1. INTRODUCTION.....................................................................................................1-1

2. SCANNER INSTALLATION.................................................................................2-1

2.1 PRECAUTIONS...........................................................................................................2-1

2.2 UNLOCKING THESCANNER.........................................................................................2-2

2.3 CONNECTING THECABLE ...........................................................................................2-3

2.4 DOCUMENTPLACEMENT............................................................................................2-4

3. SCANNER DRIVER INSTALLATION................................................................3-1

3.1 AUTO-INSTALLATIONPROGRAM..................................................................................3-1

3.2 UNINSTALL THESCANNER..........................................................................................3-3

4. SCANNER OPERATION & DOCUMENT PRINTING....................................4-1

4.1 IMAGETYPE.............................................................................................................4-3

4.2 SCANNINGPARAMETERS& IMAGECONTROL...............................................................4-5

4.3 SCANNING................................................................................................................4-9

4.4 PRINTING...............................................................................................................4-10

5. MAINTENANCE......................................................................................................5-1

6. TROUBLESHOOTING...........................................................................................6-1

6.1 QUESTIONS ANDANSWERS.........................................................................................6-1

6.2 TECHNICALSERVICE.................................................................................................6-4

7. SPECIFICATIONS...................................................................................................7-1

7.1 MODEL: AV260C PLUS..........................................................................................7-1

1-1

1. Introduction

Congratulations on your purchase of Avision AV260C Plus color

image scanner. The AV260C Plus is designed in a compact size

and weight to save more space possible and at the same time

maintain the high quality scanning image.

You can scan both normal printing material including

photographs as well as the transparency to store them into your

computer. Then you can modify them for your keen purpose on

your computer and enjoy the wonderful world of image.

The following sections introduce the unpack, hardware and

software installation, the operation, and maintenance information

to you. Please do take a few minutes to read through them to

keep quality scanning result possible.

Figure 1-1 shows how the scanner is packed. Please check all

the items against your checklist contained in the box or against

Figure 1-1. If there is any missing or damaged, please contact

your nearest dealer immediately for the replacement.

1-2

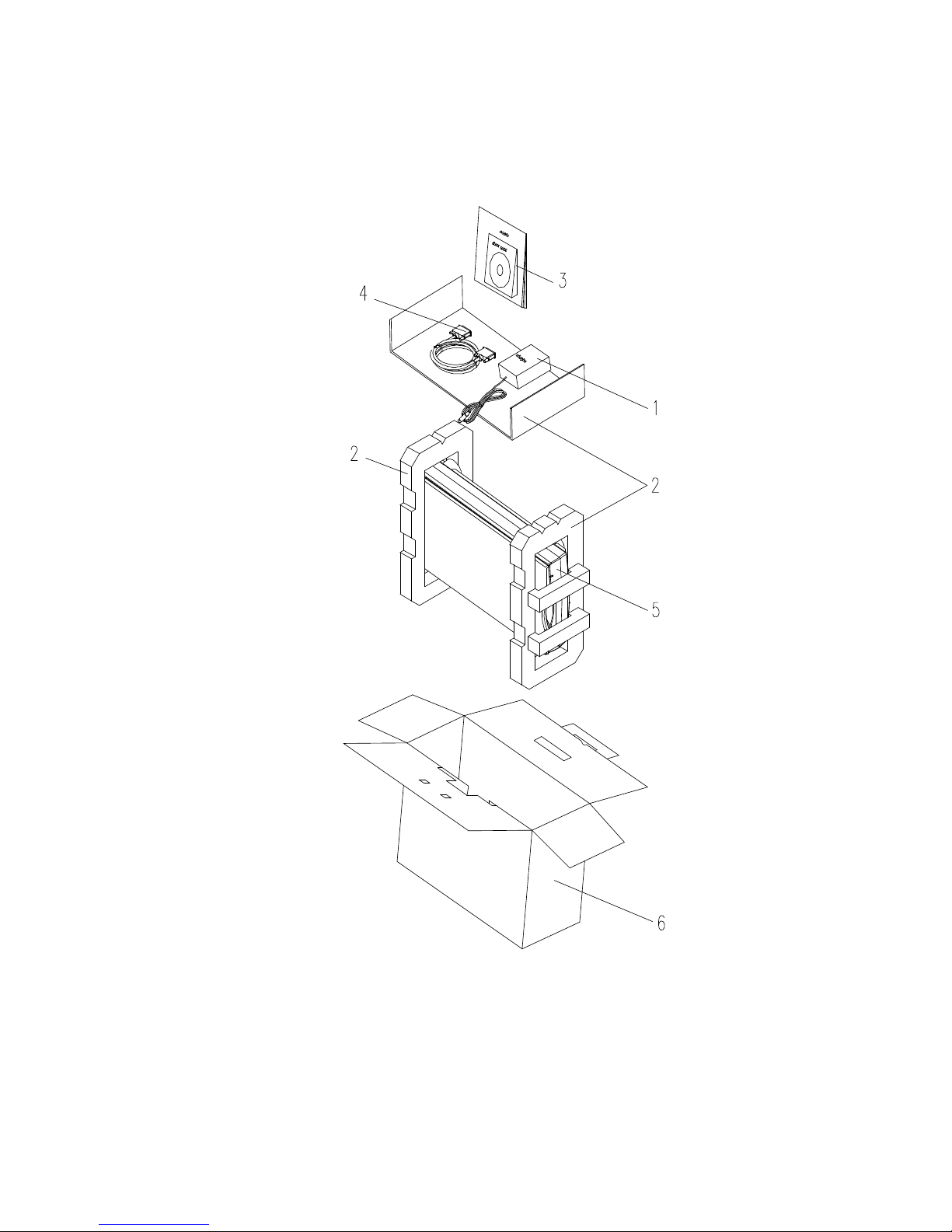

1. Power Adapter, 2. Cushion 3.Manual,Driver Kit CD.

4. D25P Cable,etc 5. Scanner 6. Carton

Figure 1-1 Scanner packing

2-1

2. Scanner Installation

2.1 Precautions

Keep the scanner out of direct sunlight. Direct

exposure to the sun or excessive heat may cause

damage to the unit.

Do not install the scanner in a humid or dusty place.

Be sure to use the proper AC power source.

Place the scanner securely on an even, flat surface.

Tilted or uneven surfaces may cause mechanical or

paper-feeding problems.

Retain the scanner box and packing materials for

shipping purposes.

2-2

2.2 Unlocking the Scanner

As shown below, unlock the scanner by turning the

scanner lock to theUse position.

1. “Shipping” Position 2. “Use” Position

Figure 2-1 Unlocking the Scanner

2-3

2.3 Connecting the Cable

Connect the power cable and signal cable as shown

below.

1. Scanner 2. Power Supply

3. D25P Cable 4. PC Parallel Port

5. Printer Cable

Figure 2-2 AV260C Plusscanner cable connection
