Avision AV8350 Bedienungsanleitung

User’s Manual

Document Imaging Scanner

Avision Inc.

(D/N: 250-0505-E Rev. 1.0)

Trademarks

Microsoft is a U.S. registered trademark of Microsoft Corporation.

Windows and MS-DOS are trademarks of Microsoft Corporation.

IBM, PC, AT, and XT are registered trademarks of International

Business Machines Corp.

Other brands and product names herein are trademarks or registered

trademarks of their respective holders.

transmitted, transcribed, stored in a retrieval system, or translated into

any language or computer language, in any form or by any means,

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise, without the prior written permission of Avision Inc.

Material scanned by this product may be protected by governmental

laws and other regulations, such as copyright laws; the customer is

solely responsible for complying with all such laws and regulations.

iii

Warranty

The information contained in this document is subject to change

without notice.

Avision makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of fitness for a

particular purpose.

Avision shall not be liable for errors contained herein or for incidental

or consequential damages in connection with the furnishing,

performance, or use of this material.

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits

for a class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may

cause harmful interference to radio communication. However, there

is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

−Reorient or relocate the receiving antenna.

−Increase the separation between the equipment and receiver.

−Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

−Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, (example - use

only shield interface cables when connecting to computer or

peripheral devices). Any changes or modifications not expressly

approved by the manufacture of this device could void the user's

authority to operate the equipment. This device complies with Part

15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible

Party: Avision Labs, Inc.

Telephone No.: +1 (510) 739-2369

Table of Contents

1. INTRODUCTION...........................................................................1-1

2. SOFTWARE INSTALLATION.....................................................2-1

2.1 INSTALLING THE CD SOFTWARE..................................................2-2

3. SCANNER INSTALLATION........................................................3-1

3.1 PRECAUTIONS ............................................................................3-1

3.2 SCANNER UNPACKING ...............................................................3-1

3.3 LOADING THE PAPER WITH ADF................................................3-3

3.4 FIXING PAPER ON THE GLASS BOARD .........................................3-4

3.5 CNNECTING THE CABLES............................................................3-5

4. IDENTIFY THE USB DEVICE.....................................................4-1

5. SCANNER OPERATION...............................................................5-1

5.1 USER INTERFACE OPERATION......................................................5-1

6. USER INTERFACE........................................................................6-1

6.1 SCAN METHOD ...........................................................................6-1

6.2 DETERMINING YOUR RESOLUTION ..............................................6-2

6.3 SELECTING A PROPER IMAGE TYPE..............................................6-5

6.4 ENHANCING YOUR IMAGE.........................................................6-11

6.5 CONTRAST ...............................................................................6-12

6.6 INVERT IMAGE .........................................................................6-13

6.7 MIRROR....................................................................................6-14

6.8 PREVIEW AUTO-AREA: ............................................................6-15

6.9 PAPER SIZE: .............................................................................6-15

6.10 UNITS.......................................................................................6-15

6.11 DESCREEN................................................................................6-16

6.12 SHARPEN..................................................................................6-17

6.13 COLOR ADJUSTMENT ...............................................................6-17

6.14 AUTO LEVEL............................................................................6-18

6.15 ADVANCED SETTINGS ..............................................................6-18

6.16 CURVES......................................................................................6-3

6.17 COLOR BALANCE .......................................................................6-4

6.18 COLOR DROP-OUT......................................................................6-6

6.19 CUSTOM SETTINGS.....................................................................6-7

6.20 MISCELLANEOUS........................................................................6-9

7. ISIS INTERFACE OPERATION..................................................7-1

8. CARE AND MAINTENANCE ......................................................8-1

8.1 CLEANING THE ADF ..................................................................8-1

8.2 CLEANING THE GLASS................................................................8-2

8.3 REPLACING THE ADF DETACHABLE PAD MODULE .....................8-3

vii

9. TROUBLESHOOTING..................................................................9-1

9.1 FREQUENTLY ASKED QUESTIONS ...............................................9-1

9.2 TECHNICAL SERVICE..................................................................9-4

10. SPECIFICATIONS...................................................................10-1

1-1

1. INTRODUCTION

Congratulations on your purchase of the product. Avision is one of the

leading companies, which make high quality document scanner.

To ensure the optimum performance of the scanner, please take a

few minutes to read through this manual before you install and

operate the new scanner. The manual contains important

information on how to unpack, install, operate, and maintain the

scanner properly. Figure 2-1 in the next page shows how the

scanner is packed. Please check if all items are included.

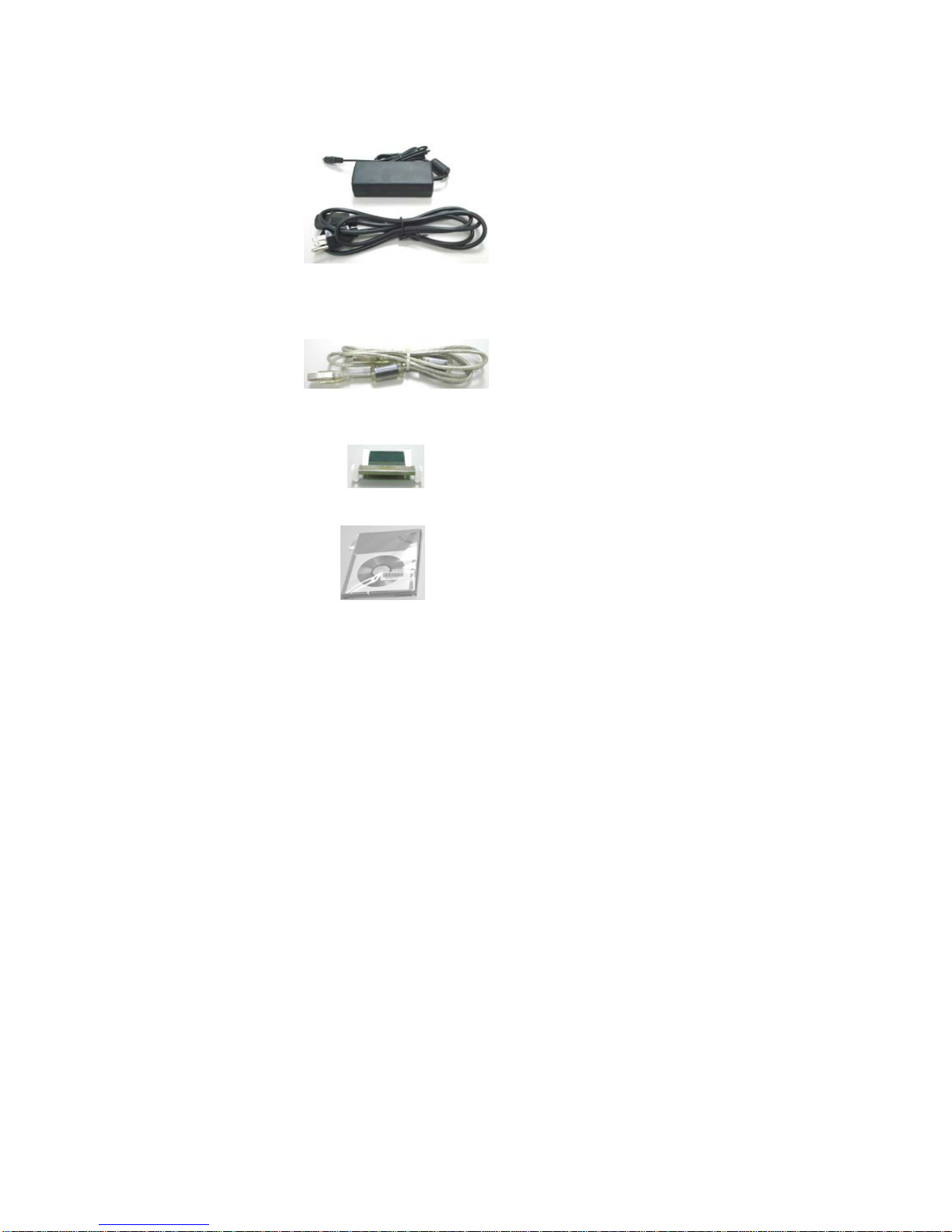

Scanner

1-2

Pad

Quick Guide

/CD

Power cable/Power adapter

USB cable

2-1

2. SOFTWARE INSTALLATION

To run the scanner at rated speed as recommended, you must have

the following minimum requirements:

IBM compatible PC 586, Pentium or higher

Microsoft Windows 98 / 98SE / Me / 2000 / XP

USB port (USB 2.0 card recommended)

At least 100 MB of free hard disk space

At least 128 MB of system memory

A CD-ROM drive
