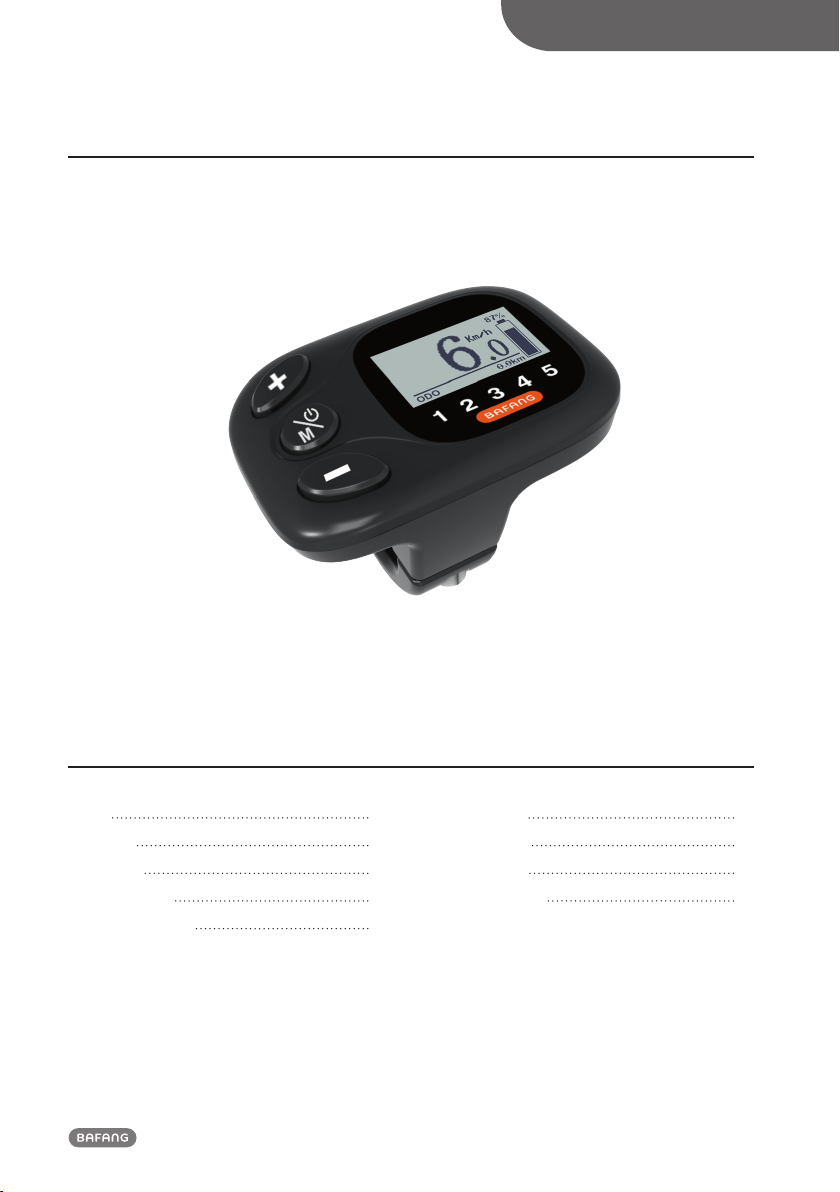

DISPLAY MANUAL DP C15.UART
CONTENT
Content 1
Introduction 2
Specifications 3
Functions overview 4
Normal indication area 5
Button definition 6
Normal operation 7
Functions setting 8
Error code definition 11
DP C15.UART
CONTENT
2DISPLAY MANUAL DP C15.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP C15.UART
• Scope: EN15194 electrically power assisted
cycles
• Appearance: (as figure)
• Numbering on the back of display
Number in the middle of display back,
number is divided into two lines (as shown
in the figure):
A. First line (as below)
DP C15.U 1.1
①DP C15.U : BAFANG display model
② 1.1: Hardware version number
B. Second line (as below)
602P1R3230002
① 602: Wire length and connector type
850 M5.2
② P1: Internal identify number
③ R3230002: Production date is 23th
Mar. 2017, the series number is 0002.
• Label number rule:
Number in the middle of P type cable label,
number is divided into two lines and QR
code is at right side (as figure):
① First line:
DPC15P10102.1 - Software version
② Second line:
PD2528051105 - Parameter code
③ Content of QR code:
DPC15P10102.1
PD2528051105
DPC15.U 1.1
602P1R3230002
3
DISPLAY MANUAL DP C15.UART
SPECIFICATIONS
SPECIFICATIONS
• Rated voltage: 36V /43V /48DC
• Rated current: 10mA
• Maximum operating current: 30mA
• Power-off leakage current: ≤1uA
• Operating current which supplied to control-
ler: 50mA
• Operation temperature: -20℃~45℃
• Storage temperature: -30℃~70℃
• IP level: IP65
• Storage ambient humidity: 30%-70%
4DISPLAY MANUAL DP C15.UART
FUNCTIONS OVERVIEW
• Intelligent battery capacity indication.
• Indication of power assistance level.
• Speed indication (including maximum speed
and average speed, unit switching between
km and mile).
• Motor output power indication.
• Time indication for single riding.
• Trip indication (including single-trip distance,
total distance and remaining distance).
• Control and indication for push assistance.
• Control and indication for the headlight.
• Check the battery’s information.
• Record and indication for the error informa-
tion.
• Indication for consumption of energy CALO-
RIES. (Note: If the display has this function)
• Indication for the remaining distance. (Note:
it needs the display supports this function)
5
DISPLAY MANUAL DP C15.UART

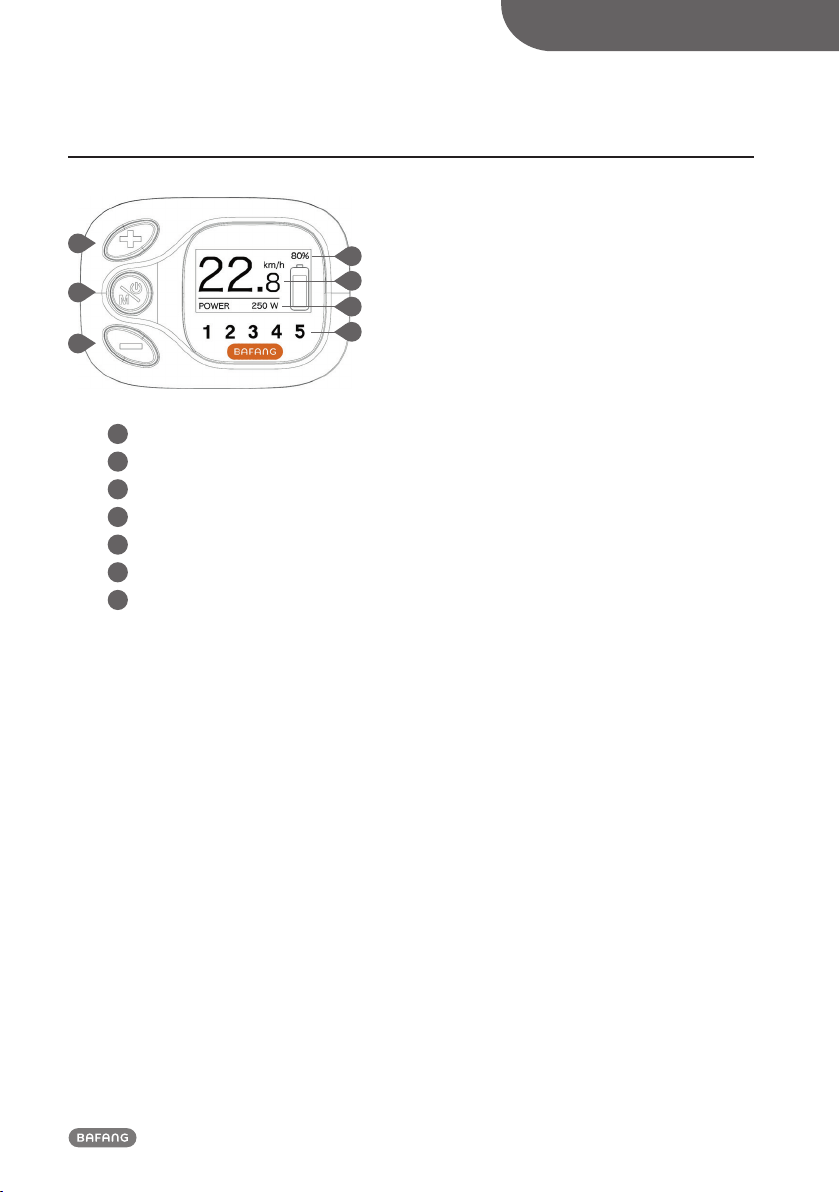

NORMAL INDICATION AREA
1
2
3
4
5
6
7
1Up
2ON/OFF/Mode
3Down
4Intelligent battery capacity indication
5Real-time speed indication
6Multiple function indication area
7Power assistance level indication
• Real-time speed indication: Indicate real-
time speed unit km/h or MPH.
• Intelligent battery capacity indication: Show
the percentage of remaining battery capacity
which accounts for total battery capacity.
• Multiply function indication: It consists of
single-trip distance TRIP, total distance ODO,
remaining distance RANGE, output power
POWER, energy consumption Cal, riding
time TIME. (Note: Within ten seconds, the
display will detect the pedal sensor type, if
torque sensor, then the display will show
the interface of the calorie, if display get
remaining range data, the display will show
the interface of the remaining distance,
otherwise the display will not show the two
interface)
• Assistance level indication: Indicate the cur-
rent level from level 1~ level 5, If no number
is displayed, it means no power assistance.
NORMAL INDICATION AREA
6DISPLAY MANUAL DP C15.UART
BUTTON DEFINITION
There are three buttons for C15, including
ON-OFF/Mode, Up and Down .
NORMAL OPERATION
“press and hold” means press and hold
for more than two seconds, briefly press
means press for less than 0.5 second.
• ON/OFF
Press and hold power button, the display
starts working. Press and the power button
again, then it turns off. When it is off, the
display doesn’t consume the power, the
leakage current is less than 1uA.
• Turn on the headlight /turn off the
headlight
Turn on the light: When the headlight is
off and press and hold the button “+”,
the luminance of the display backlight will
decrease and the icon of the headlight will
be showed.
Turn off the light: When the headlight is on
and press and hold the button “+”, the lumi-
nance of the display backlight will increase
and the icon of headlight will disappear.

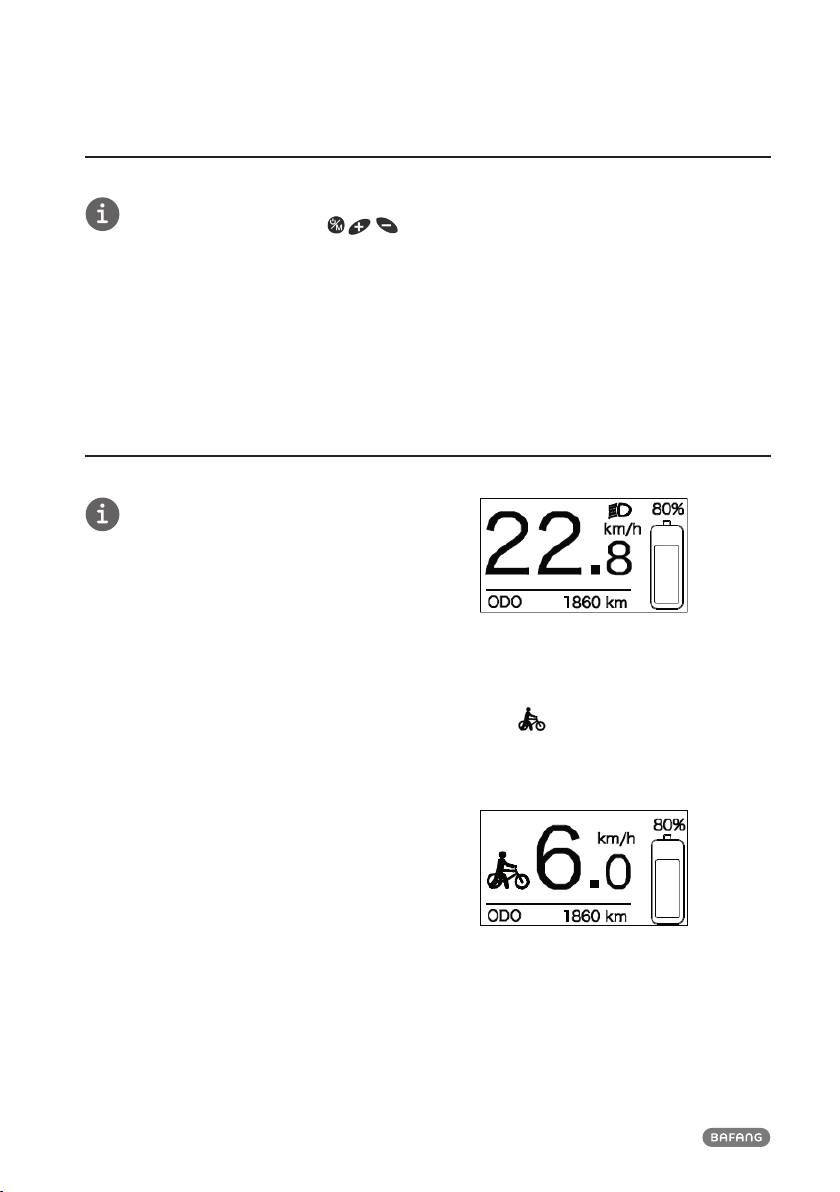

(The interface: headlight has been turned on)
• 6KM/H push assistance
Press and hold the “-” , display will show the
icon “ ” and the E-bike enter into the
mode of push assistance, release the “-” but-
ton, the icon disappear from the display and
the E-bike exit the mode of push assistance.
(The interface: mode of push assistance)
7
DISPLAY MANUAL DP C15.UART
• Multiple functions interface
After starting up, the default interface is
“TRIP” (single trip distance). Press "Mode"
briefly circularly, it can circularly switch as
“TRIP” (single trip distance) →“ODO”(total
distance) →“MAX”(maximum riding
speed) →“AVG”(average riding speed) →
“RANGE”(remaining distance) →“CALO-
RIES/CAL”(KCal) →“TIME”(riding time) →
“POWER”(output power) →“TRIP”(single trip
distance).
• Error code indication
When the failure occurs, the display will
show the error code and the display will
flicker at the same time. See the detailed
definition shown in the table of the Annex1.
Only when the failure is solved, it can exit
the error code interface. When failure hap-
pens, the rider shall stop riding immediately.
(The interface: error code)
BUTTON DEFINITION
8DISPLAY MANUAL DP C15.UART
FUNCTIONS SETTING
Press and hold “+”button &“-”button at
the same time to enter into the menu list
(“Display Setting”, “Information”, “EXIT”).
Briefly press “+”button or “-”button to
select “Display Setting”, “Information” or
“EXIT”, and then briefly press the “ON/
OFF” to select it.

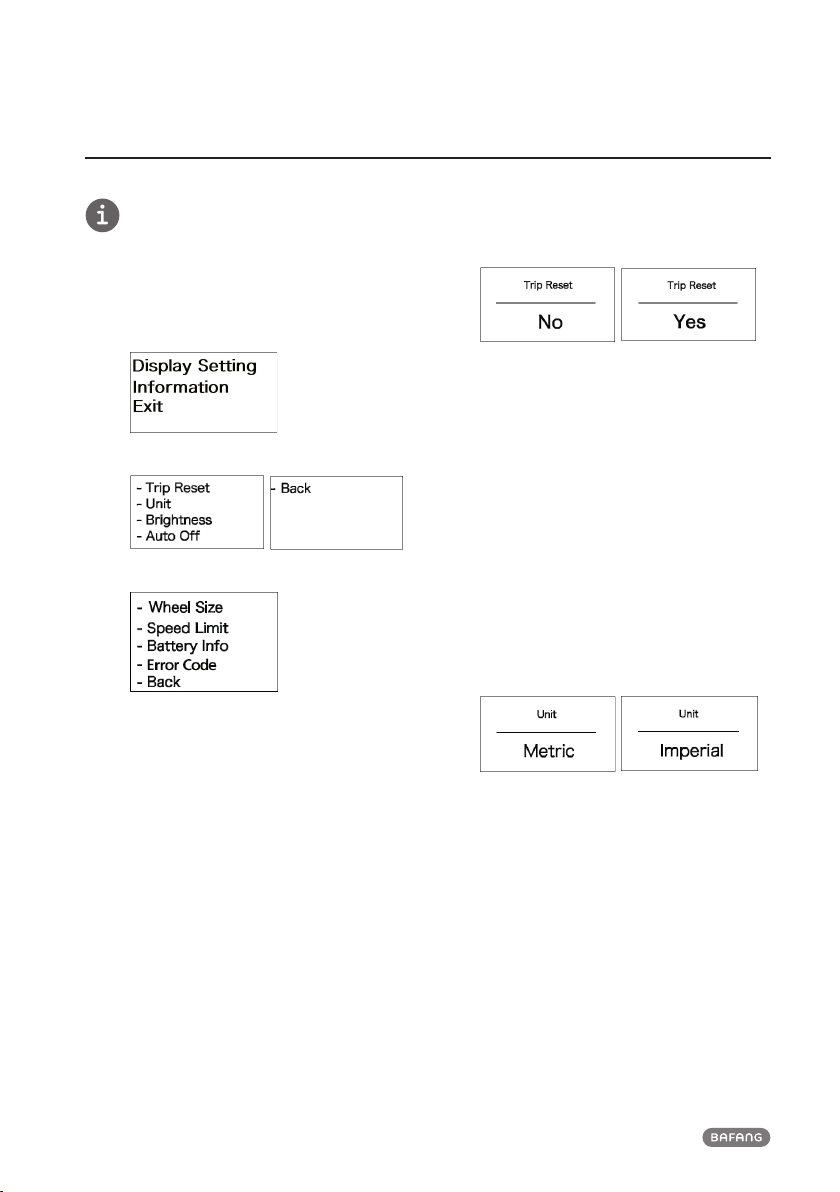

(Interface for the functions selection)
(Interfaces for “Display Setting” selection)
(Interfaces for “Information” selection)
• Reset single-trip distance
Enter into “Display Setting” menu and briefly
press “+” or “-” to select “TRIP Reset” and
briefly press “ON/OFF”. And then, briefly
press “+” or “-” to select “NO”/ “YES” (“YES”
means reset, “NO” means no reset). Briefly
press “ON/OFF” to save the setting and exit
back to the “TRIP Reset”. Press and hold
“+”&“-” at the same to save and exit back to
main interface or select “BACK” →“EXIT” to
exit back to main interface. (Note: after set-
ting, pressing and holding “+” and “-” at the
same time means saving setting and exiting
back to main interface). When resetting the
single-trip distance, it resets the riding time,
average speed, maximum speed at the same
time.
(“YES” means resetting,“NO” means no resetting)
• Unit switch between Metric and Impe-
rial
Enter into “Display Setting” menu and briefly
press “+” or “-” to select “Unit”, and then
briefly press “power” to confirm selection.
Briefly press “+” or “-” to select “Metric”/
“Imperial” and then briefly press “power”
to save the setting and exit back to “Unit”.
Press and hold “+” &“-” at the same time to
exit back main interface or select “BACK” →
“EXIT” to exit main interface. (Note: If select-
ing the metric interface, the all information
will be metric; if selecting the imperial, the
all information will be imperial.)
(“Metric”unit / “Imperial”unit)
• Backlight luminance setting
Enter into “Display Setting” interface and
briefly press“+” or “-” to select “Brightness”
and then briefly press “power” to confirm
selection. Briefly press “+” or “-” to select as
“100%”/ “75%”/ “50%”/ “30%”/ “10%”.
After selection, briefly press “power” to save
the setting and exit back to the “Brightness”
interface. Press and hold “+” and “-” at the
same time to exit back to main interface or
select to “BACK” →“EXIT” to exit back to
main interface.
9
DISPLAY MANUAL DP C15.UART
FUNCTIONS SETTING

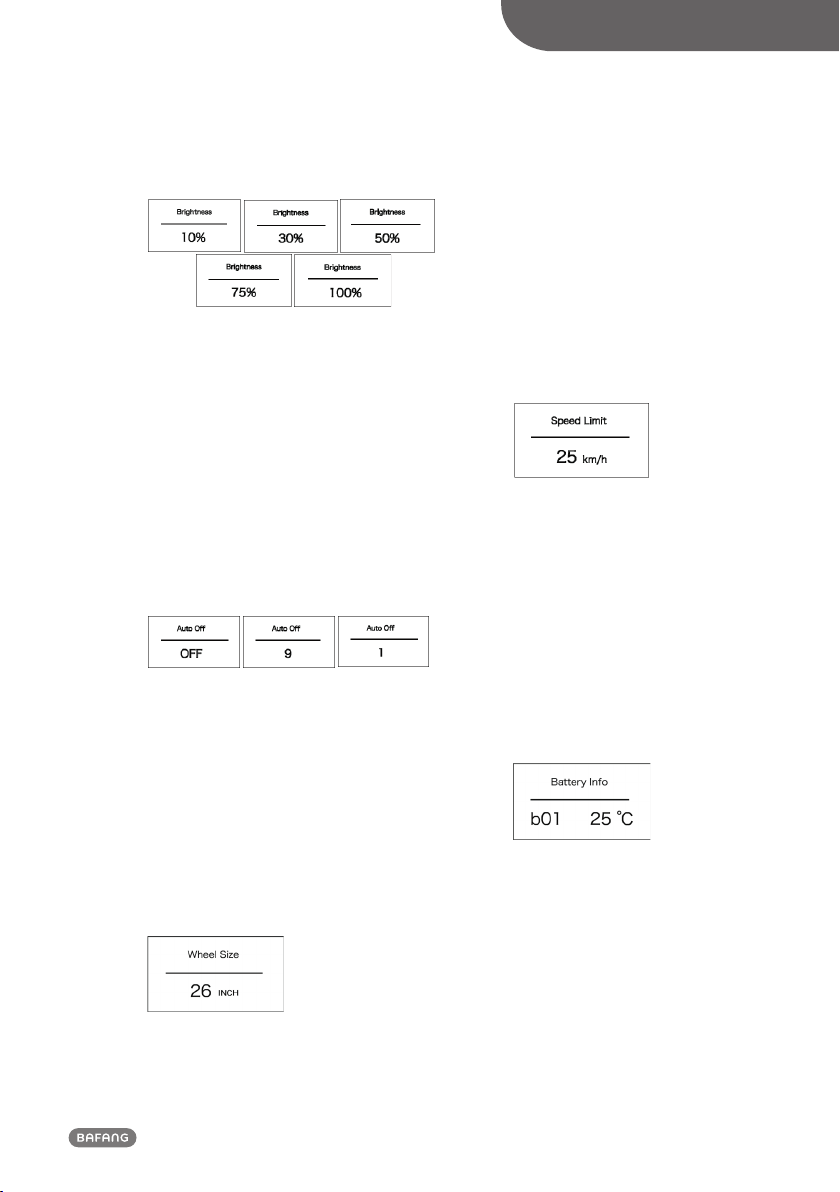

(Backlight luminance level display interface)
• “Auto Off” time setting
Enter into “Display Setting” interface and
briefly press “+” or “-” to select “Auto Off”
and then briefly press “power” to confirm
selection. Briefly press “+” or “-” to select as
“OFF”/“9”/“8”/“7”/“6”/“5”/ “4”/“3”/“2”/“1”.
After selection, briefly press “power” to
save the setting and exit back to “Auto Off”
interface. Press and hold “+” and “-” at the
same time to exit back to main interface or
select “BACK” →“EXIT” to exit back to main
interface.
(“Auto Off” time setting interface)
• Check wheel size
Enter into “Information” interface and briefly
press “+” or “-” to select “Wheel Size” and
then briefly press “power” to check the
wheel size.
Briefly press “power” to exit back to “Infor-
mation” interface. Press and hold “+” and
“-” at the same time to exit back to main
interface or select “BACK” →“EXIT” to exit
back main interface.
(Wheel size indication interface)
• Check speed limit
Enter into “Information” interface and briefly
press “+” or “-” to select “Speed Limit” and
briefly press “power” to check the speed
limit. Briefly press “power” again to exit back
to “Information” interface. Press and hold
“+” and “-” to exit back to main interface
or select “BACK” →“EXIT” to exit back main
interface.
(Speed limit indication interface)
• Check battery information
Enter into “Information” interface and briefly
press “+” or “-” to select “Battery Info.” And
briefly press “power” to confirm selection.
Briefly press “+”, it display in turn b01 →b04
→b06 →b07 →b08 →b09 →b10 →b11 →
b12 →b13 →d00 →d01 →d02 →… →dn.
briefly press “power” to exit back to “Battery
Info.” Press and hold “+” and “-” to exit back
main interface or select“BACK” →“EXIT” to
exit back to main interface.
(Battery information indication interface)
10 DISPLAY MANUAL DP C15.UART
Information
code Definition Unit
b01 Current
temperature ℃
b04 Total voltage mV
b06 Average current mA
b07 Remaining
capacity mAh
b08 Full capacity mAh
b09 Relative state of
charge %
b10 Absolute state
of charge %
b11 Cycle times
b12 Maximum not
charging time h
b13 Recently not
charging time h
d00 Number of bat-
tery cell
d01 Voltage of
cell 1 mV
d02 Voltage of
cell 2 mV
……… ……… mV
dn Voltage of
cell n mV
• Check history of error codes
Enter into “Information” interface and briefly
press “+” or “-” to select “Error Code” and
briefly press “power” to check history. Briefly
press “+” to circularly display history of error
code for latest ten times from “E-Code0”
to “E-Code9”. Briefly press “power” to exit
back to“Information” interface or press
and hold “+” and “-” to exit back to main
interface.
(Display interface for record of error code)
Inhaltsverzeichnis
Andere BAFANG Fahrradzubehör Handbücher
BAFANG
BAFANG CR A101.C 1.0 Bedienungsanleitung
BAFANG
BAFANG BT C01.340.UART Referenzhandbuch
BAFANG
BAFANG DP C18.CAN Bedienungsanleitung
BAFANG
BAFANG DP C10.UART Bedienungsanleitung
BAFANG
BAFANG DP C240.CAN Bedienungsanleitung
BAFANG
BAFANG DP C10.UART Bedienungsanleitung
BAFANG
BAFANG BT C01.340.UART Bedienungsanleitung
BAFANG
BAFANG DP E161.CAN Bedienungsanleitung
BAFANG
BAFANG DP C171.UART Bedienungsanleitung
BAFANG
BAFANG DP E08.CAN Bedienungsanleitung
BAFANG
BAFANG H500F Bedienungsanleitung
BAFANG
BAFANG H400 Bedienungsanleitung
BAFANG
BAFANG DP C10.CAN Bedienungsanleitung
BAFANG
BAFANG DP C18.UART Bedienungsanleitung
BAFANG
BAFANG DP C01.CAN BUS Bedienungsanleitung
BAFANG
BAFANG DP C171.UART Bedienungsanleitung
BAFANG
BAFANG BT C01.340.UART Referenzhandbuch
BAFANG
BAFANG DP C240.CAN Bedienungsanleitung
BAFANG
BAFANG UB40 Bedienungsanleitung
BAFANG
BAFANG DP C230.CAN Bedienungsanleitung
Beliebte Fahrradzubehör Handbücher anderer Marken
Sigma
Sigma BC 16.16 Bedienungsanleitung
Playcore
Playcore Dero Setbacks Bedienungsanleitung
VDO Cyclecomputing
VDO Cyclecomputing x3dw Bedienungsanleitung
Cateye
Cateye RAPID X2 Bedienungsanleitung
buratti meccanica
buratti meccanica Clorofilla Trail Bedienungsanleitung
Shimano
Shimano SG-8R20 Betriebsanleitung
