DEALER MANUAL FOR MOTOR

BF-DM-C-RM G050-D-EN July 2022

6.1 Introduction 2

6.2 Specifications 3

6.2.1 Outline and geometric size 3

6.2.2 Surface 3

6.2.3 Storage Information 3

6.3 Drive Unit Installation 4

6.3.1 List of Tools to be used 4

6.3.2 Motor Installation 4

6.4 Maintenance 5

CONTENT

6 DEALER MANUAL FOR H310

(RM G050.250.D)

2BF-DM-C-RM G050-D-EN July 2022

6.1 INTRODUCTION

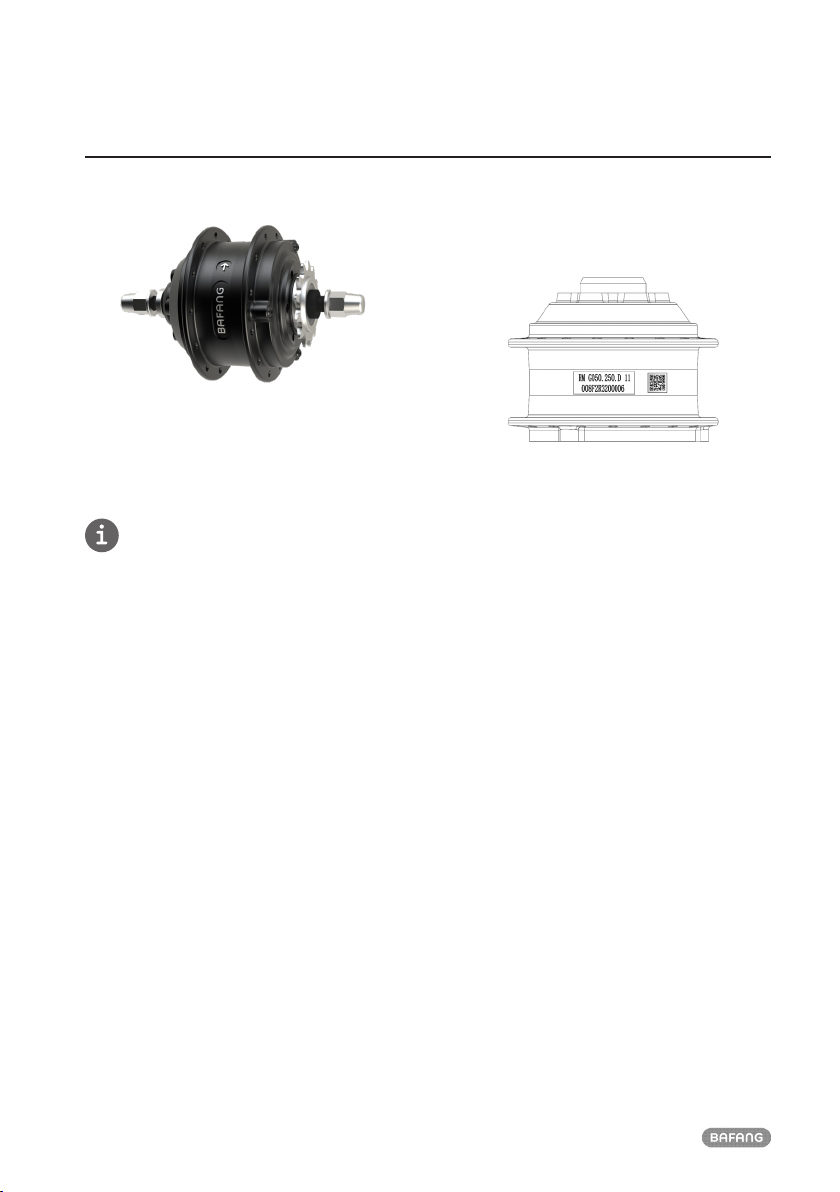

•Appearance

•Product Model

RM G050.250.D

•Scope

Applies only to electrically powered pedelecs

developed or licensed by Bafang. It is suitable

for city and trekking bikes, which have been

developed for road use. The engine is not

suitable for sport competitions.

•Identiﬁcation

The following graphic, is the identification

numbers of the product, which are shown on

the housing:

Note: Content in the label is important informa-

tion about this product. Please do not remove

the information from the motor.

DEALER MANUAL FOR MOTOR

BF-DM-C-RM G050-D-EN July 2022

6.2 SPECIFICATIONS

Motor model: RM G050.250.D

Rated power 250W

Rated voltage 36V

Waterproof IP65

Certiﬁcation CE-EMC

Outdoor Temperatures -20℃~45℃

6.2.1 Outline and geometric size

OLD: 113mm

Shaft length: 158mm

Motor cable length: L=250mm (optional)

6.2.2 Surface

Shockproof black or silver coating

6.2.3 Storage Information

The pedelec should be stored in a ventilated dry room. Avoid storing the pedelec near strong magnetic

objects.

4BF-DM-C-RM G050-D-EN July 2022

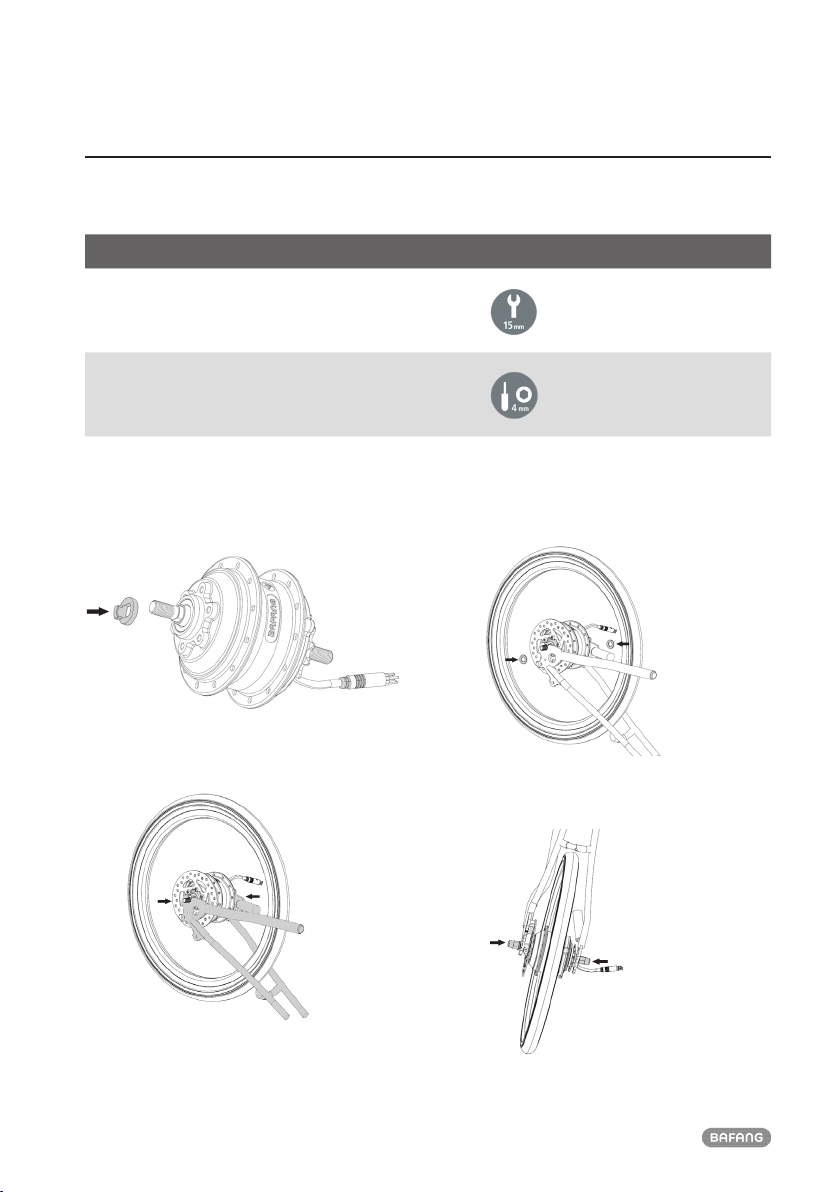

6.3 DRIVE UNIT INSTALLATION

6.3.1 List of Tools to be used

Use of the Tools Tools

To tighten/loosen the BC3/8 cap nut. Open-end wrench

To tighten/loosen the M5*8 hex screws onto the disc brake. Internal hex wrench

6.3.2 Motor Installation

1. Mount the stop pin onto the shaft of

motor's non-wire end.

2. Tighten the disc brake onto the motor with

six M5*8 screws and place the motor onto

the frame.

3. Mount the washers onto the shaft from

both sides.

4. Fasten the BC3/8 cap nuts clockwise onto

the shaft ends with an open-end wrench.

Torque requirement: 30-36 N.m.

DEALER MANUAL FOR MOTOR

BF-DM-C-RM G050-D-EN July 2022

6.4 MAINTENANCE

• Maintenance must be carried out by autho-

rized personnel with the correct equipment.

• Do not disassemble the motor.

• Do not use thinners or other solvents to

clean the components. Such substances can

damage the surfaces.

• Avoid water submerging, to keep the com-

ponents protected.

• Avoid using high-pressure cleaning jets.

• For prolonged storage, turn off the battery

and avoid storing near heat sources.
