USER’S MANUAL
USB 2.0 PCI Card
BF-460
USB 2.0 PCI Card User’s Manual 1
1. Introduction
BF-460 is a PCI card fully functional of USB 2.0 Host, which supports High-Speed,
Full-Speed, & Low-Speed operation and follows the Enhanced Host Controller
Interface (EHCI) specification.
2. Package Content
Hardware: USB 2.0 PCI Card
Software: Driver software in CD-ROM
User’s Manual
3. Product Features
USB specification revision 2.0 compliant
Data transfer rate up to 480Mbps
Support up to 127 USB devices
Fully compatible with USB 1.1 devices
OHCI specification for USB 1.1 compliant
Five downstream ports (4 external ports and one internal port) support High-
speed (480Mbps), Full-speed (12Mbps) or Low-speed (1.5Mbps)
32-bit 33MHz host interface, PCI specification revision 2.2 compliant
PCI-Bus power management interface specification revision 2.1 compliant
Support hot swap and wake-up
4. System Requirements
PC
IBM PC Pentium II 266MHz CPU or higher or compatible system
Available PCI slot
CD-ROM drive
Windows® 98/98SE, Windows®ME, Windows®2000, Windows®XP
USB 2.0 PCI Card User’s Manual 2
5. Hardware Installation
5.1Turn off your computer, unplug the power cord, disconnect all peripheral devices
and remove the PC case.
5.2Locate the PCI slots on the motherboard; remove any add-on card, which blocks
easy access to the PCI slots.
5.3Take the USB 2.0 PCI card out of its anti-static bag and push it into the first empty
PCI slot.
Note: There is only one way that your USB 2.0 PCI card can fit the slot correctly.
5.4Re-install any add-on card that removed, re-connect all peripheral devices,
assembly the PC case and plug the power cord.
USB 2.0 PCI Card User’s Manual 3
6. Software Installation (Windows®98, ME as example)
6.1Windows®98 Driver Installation
6.1.1 Power on the computer, Windows®will detect an unknown device and
run the “Add New Hardware Wizard” to assist you in setting up the
new device.
6.1.2 Insert the driver of USB 2.0 PCI card into CD-ROM drive, click
“Next” to continue.
6.1.3 Select “Search for the best driver for your device” and click
“Next”
6.1.4 When the Windows®appears as below, click “NEXT” to continue.
USB 2.0 PCI Card User’s Manual 4
6.1.5 Select the updated driver (Recommended), and then click “NEXT”
to continue.
6.1.6 Windows® will detect the suitable driver; click “NEXT” to continue.
6.1.7 Windows® will install the driver to your system.
USB 2.0 PCI Card User’s Manual 5
6.1.8 When the Windows®appears as step 6.1, repeat the steps 6.1.1 to
6.1.7.
6.1.9 When the Windows®appears as below, click “NEXT” to continue.
6.1.10Select “Search for the best driver for your device” and click
“Next”
USB 2.0 PCI Card User’s Manual 6
6.1.11Select Specify a Location and browse the driver’s location
“D:\Win98ME” in the dialog (D: represents the CD-ROM Drive),
then click “NEXT” to continue.
6.1.12 When the Windows®appears as below, click “NEXT” to continue.
6.1.13 After installation is complete, you have to check “My Computer”-
“Control Panel”-“ System”-“Device Manager” and you can see a
“NEC PCI to USB Enhanced Controller”, “NEC USB Open Host
Controller” under the Universal Serial Bus Controller.
USB 2.0 PCI Card User’s Manual 7
6.2 Windows®2000 Driver Installation
6.2.1 Power on the computer, Windows®will detect an unknown device and
run the “Add New Hardware Wizard” to assist you in setting up the
new device.
6.2.2 Insert the driver of USB 2.0 PCI card into CD-ROM drive, click
“Next” to continue.
6.2.3 Select Search for a suitable driver for my device (recommended),
and then click “NEXT”.
6.2.4 Select Specify a location and click “NEXT”.
USB 2.0 PCI Card User’s Manual 8
6.2.5 Browse the driver’s location ”d:\win2kxp\nehcd.inf” in the dialog (D:
represents the CD-ROM Drive), and then click “OK”
6.2.6 Click “NEXT” to continue.
6.2.7 Windows®will install the driver to your system.
6.2.8 Click “Finish” to complete the setup procedure.
USB 2.0 PCI Card User’s Manual 9

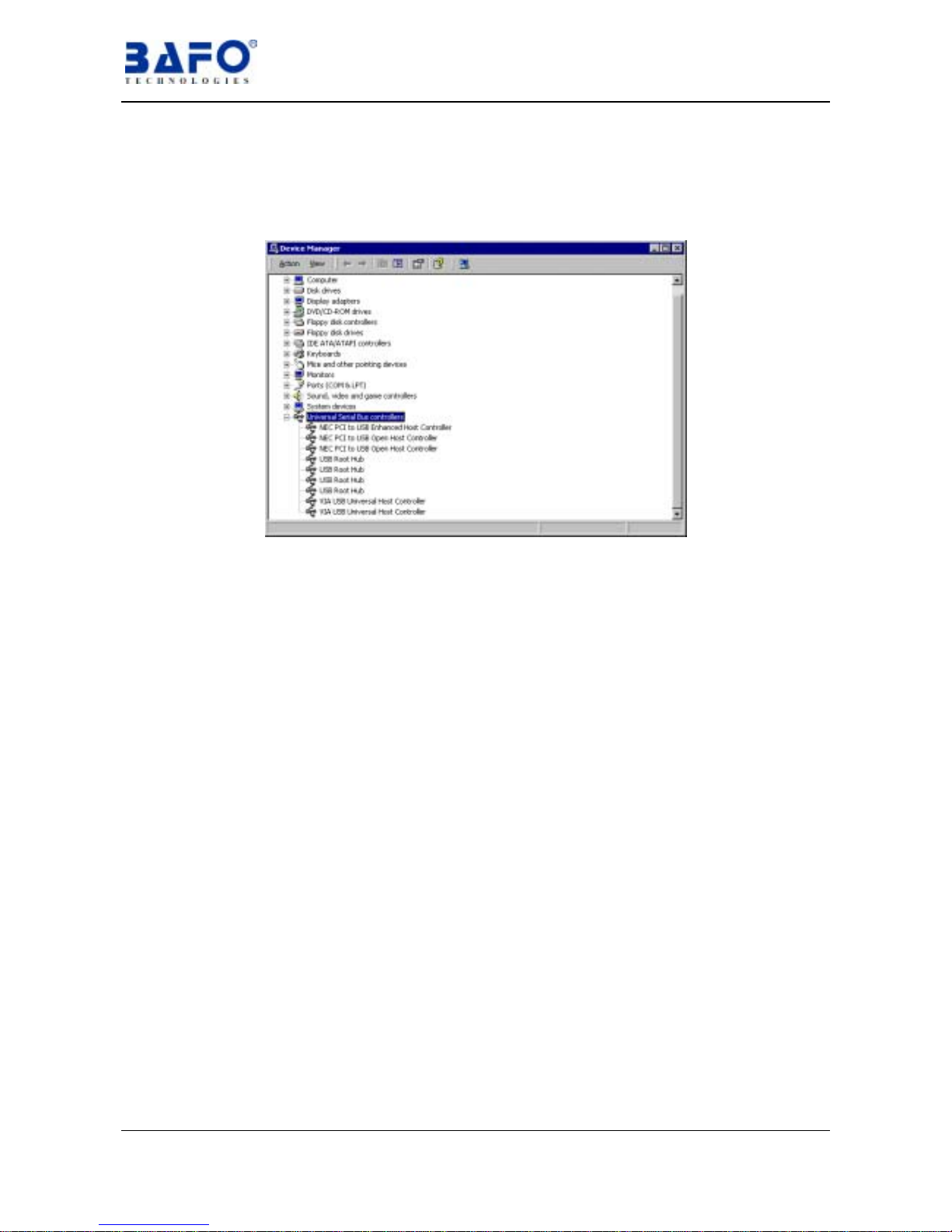

6.2.9 After install the driver, you have to check the “Control Panel”-
“System”-“Hardware”-“Device manager” to make sure that the
driver has already installed properly. In the Universal Serial Bus
controller you can see the NEC PCI to USB Enhanced Controller
and NEC PCI to USB Host Controller
