BasIP AA-07FB Bedienungsanleitung

USER MANUAL

ENTRANCE PANEL

AA-07FB

Stainless Steel

AA-07FB

The multi-apartment entrance panel AA-07FB Stainless is an excellent solution for

The front part of the panel is made of stainless steel (AISI 304) 3 mm thick, which makes

this panel even more vandal resistant.

The AA-07FB Stainless also has a backlit TFT color screen, a high-resolution IP camera

with wide viewing angles, and supports BAS-IP UKEY mobile access.

multi-apartment complexes, oﬃce buildings, and cottage settlements.

Full User Manual

Device description

wiki.bas-ip.com

ENTRANCE PANEL

Appearance

123

456

7 8 9

*#T

Proximity sensors.

Keypad.

Reader.

Backlight.

Loudspeaker.

Camera.

4.3’’ Display.

Main features

• Display: 4.3’’ TFT, color with backlight.

• Camera: 1/3”.

• Resolution: 2 Мp.

• Сamera angle: 110° (horizontal).

• Output video: Full HD (1920 × 1080), H.264 Main Proﬁle.

• Night backlight: 6 LEDs.

• Light sensitivity: 0,01 LuX.

• Protection class: IP65.

• IK-Code: IK08.

• Output for connecting an external induction loop for

the hearing impaired: Low-frequency Audio signal 1.2V; 8.2 kOhm

• Type of output for connecting an external induction loop:

Socket (female) TRS

• Working temperature: -40 — +65 °С.

• Power consumption: 6,5 W, in standby — 3,6 W.

• Power supply: +12 V DC.

• Body: Aluminum.

• Dimensions for installation: 141 × 351 × 60 mm.

• Size of the panel: 155 × 375 × 55 mm.

• Installation: Flush, surface with BR-AA7 bracket.

Completeness check of the product

Before installation of the outdoor panel, it is necessary to check that

it is complete and all components are available.

Outdoor panel kit includes:

Outdoor panel

Manual

Flush mount bracket

Set of wires with connectors for connection of power supply,

lock, and additional modules

A set of cups

Set of screws with a wrench

1 pc

After verifying the device's completeness, you can switch to the outdoor panel

connection.

For connection you will need:

Electrical connection

An Ethernet UTP CAT5 or higher cable connected to a PoE network switch

or regular switch/router.

Cable length recommendations

The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,

according to the IEEE 802.3 standard.

Power supply at +12 V, 2 amps.

Wires must be connected to connect the door sensor, the exit button

and the two locks control module (optional).

EAN: 5060514914519 (STAINLESS)

Connection scheme of electromagnetic lock using

uninterruptible power supply UPS-DP/S

123

+12V GND Lock

Power

+12 V

Opening

lock time

adjustment

Exit

button

Less

N.C.

N.O.

GND

Contact

Fire alarm

input

Switching

contact type:

normally open

or normally closed

1. +12V

2. Ground

3. Lock

4. COM

5. N.C./N.O.

6. Unused

Output to connect

electromechanical lock

LAN

Power

Electromagnetic Lock

SH-45

Door Sensor

SH-42

(optional)

Exit Button

GND

+12V

123

NC COM

Relay outputs to lock

4 5

NC NO

Wiegand output

123

+5V D0

GND D1

RS485

123

+12V 485+

GND 485-

Exit Button/Door Sensor

123

Exit Din

GND DS

RS232 (Option)

Green

Black White

GND TX

COM

123

+12V GND Lock

Power

+12 V

Opening

lock time

adjustment

Exit

button

Less

N.C.

N.O.

GND

Contact

Fire alarm

input

Switching

contact type:

normally open

or normally closed

1. +12V

2. Ground

3. Lock

4. COM

5. N.C./N.O.

6. Unused

Output to connect

electromechanical lock

LAN

Power

SH-45 Door Sensor

SH-42

(optional)

Exit Button GND

+12V

123

NC COM

Relay outputs to lock

4 5

NC NO

Wiegand output

123

+5V D0

GND D1

RS485

123

+12V 485+

GND 485-

Exit Button/Door Sensor

123

Exit Din

GND DS

RS232 (Option)

Green

Black White

GND TX

COM

123

+12V GND Lock

Power

+12 V

Opening

lock time

adjustment

Exit

button

Less

N.C.

N.O.

GND

Contact

Fire alarm

input

Switching

contact type:

normally open

or normally closed

1. +12V

2. Ground

3. Lock

4. COM

5. N.C./N.O.

6. Unused

Output to connect

electromechanical lock

LAN

Power

SH-45 Door Sensor

SH-42

(optional)

Exit Button GND

+12V

123

NC COM

Relay outputs to lock

4 5

NC NO

Wiegand output

123

+5V D0

GND D1

RS485

123

+12V 485+

GND 485-

Exit Button/Door Sensor

123

Exit Din

GND DS

RS232 (Option)

Green

Black White

GND TX

COM

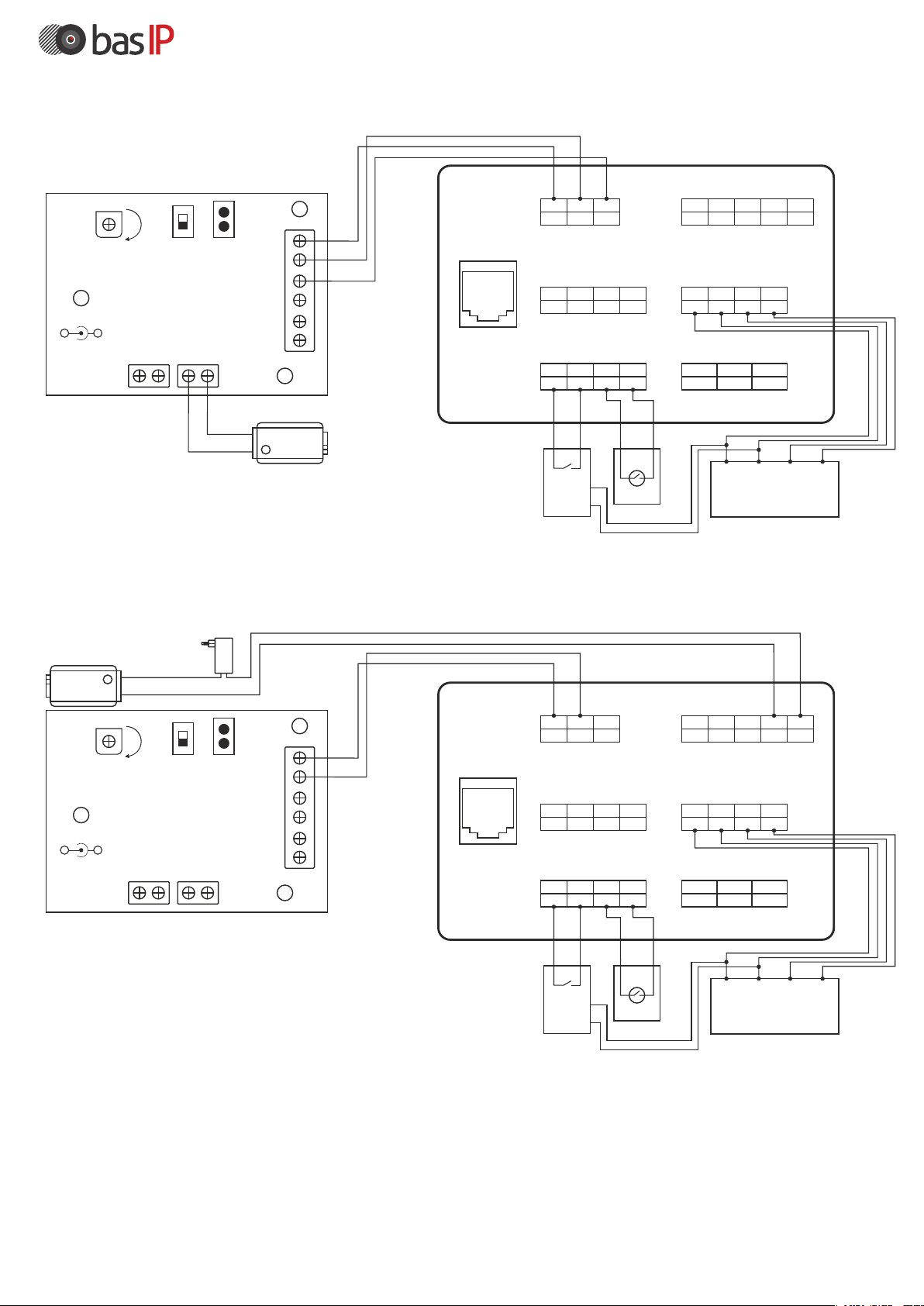

Connection scheme of electromechanical lock using

uninterruptible power supply UPS-DP/S

Connection scheme of electromechanical lock using

third party power supply for the lock

Electromechanical lock

+12V

Mechanical mounting

Before installation of the outdoor panel it is necessary to provide a hole

or a recess into a wall with dimensions 143×353x61 mm (for ﬂush mount)

dimensions of the bracket (mounting box) = 141×351×60 mm.

and the local network.

at the bottom of the niche which will serve to divert water out.

Attention: the hole at the bottom is designed to drain the water.

Do not intentionally close it. Also it is necessary to make a drain for water

It is also necessary to provide supply of a power cable, additional modules

141 mm

351 mm

239 mm

Outdoor Panel Flush Bracket

Niche ScrewsOutdoorPanel

143 mm

353 mm

109-130 cm

155 mm

375 mm

55 mm

123

456

7 8 9

*#T

123

456

789

*#T

Flush Bracket

EAN: 5060514914519 (STAINLESS)

Warranty

The warranty card number

Model name

Serial number

Seller name

With following stated terms of warranty is familiar, functional test was

performed in my presence:

Customer signature

Warranty conditions

The warranty period of the product — 36 (thirty-six) months from

the date of sale.

Transportation of product must be in its original packaging or supplied one

by the seller.

The product is accepted in warranty repair only with a properly ﬁlled warranty

card and the presence of intact stickers or labels.

The product is accepted for examination in accordance with the cases

provided by law, only in the original packaging, in a full complete set,

appearance corresponding to the new equipment and presence of all relevant

properly ﬁlled documents.

This warranty is in addition to the constitutional and other consumer rights

and in no way restrict them.

Terms of warranty

The warranty card must indicate the name of the model, serial number,

purchase date, name of the seller, seller company stamp and

the customer’s signature.

Delivery to the warranty repair is carried out by the buyer himself.

Warranty repairs carried out only during the warranty period speciﬁed

in the warranty card.

The service center is committed to do everything possible to carry out

the repair warranty products, up to 24 working days. The period spent

on the restoration of product functionality is added to the warranty period.

Notes

EAN: 5060514914519 (STAINLESS)

www.bas-ip.com
