USER MANUAL
IP INDOOR VIDEO ENTRY PHONE
AQ-07LL
AQ-07LL
IP INDOOR VIDEO ENTRY PHONE
The BAS-IP AQ-07LL IP video intercom indoor monitor is designed with
The intercom can be powered from 12V or PoE, and the classic black and white
body color will suit any interior style.
a 7-inch stylish TFT touch-screen colour display and plastic case.
Main features
Display: 7” TFT LCD, capacitive
touchscreen.
Screen resolution: 800 x 480.
Built-in camera: No.
Power: PoE and + 12 V DC.
Power consumption: 6 W,
standby 2.5 W.
Dimensions: 235 x 145 x 18 mm.
Colors: Black, White.
Body: Plastic.
Installation Type: Wall mount.
Full User Manual
Device description
wiki.bas-ip.com
MicroSD slot.
MicroUSB port.
Screen.
Loudspeaker.
Microphone.
1
2
3
4
5
-
-
-
-
-
1
3
2
4
5
Appearance
Completness check of the product
Before installing the monitor, be sure to check that it is complete and all
components are available.
The monitor kit includes:
Monitor
Manual
Wall mounting bracket
Set of wires with connectors for connection of alarm loops, doorbell
and home automation
Resistors for alarm loops
Installation screws
1 pc
1 pc
1 pc
1 pc
8 pcs
2 pcs
After verifying the device's completeness, you can switch to the monitor
connection.
To connect monitor you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a PoE switch or
to a normal switch/router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment shouldnot exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 Volts DC if there isn't PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
SH-46T / SH-47T
The connection scheme of all components
12
Power
+12VGND
LAN (PoE)
RS485
1234
+12VGND 485+ 485-
123456 7 8 9 10
GND
+Us AL1 AL2 AL3 AL4 AL5 AL6 AL7 AL8
+12VGND COM NO
Siren/Alarm Loops
Doorbell
EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)

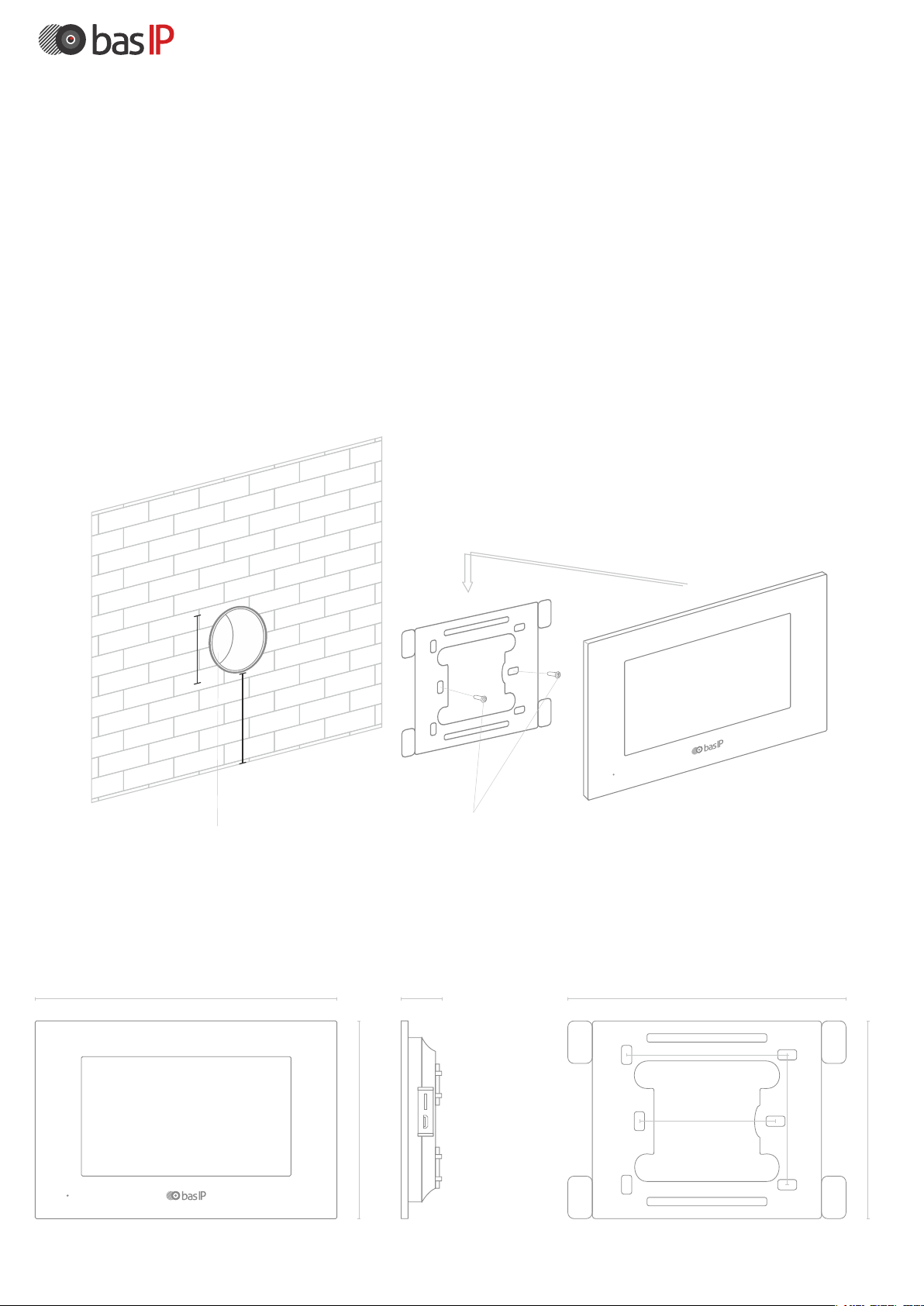

Mechanical mounting
Before installation of a monitor, it is necessary to drill a hole or a recess into
a wall with a 68 mm (2.68in) diameter under the standard mounting box for
a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and
installation of the monitor.
Attach the bracket in the outlet box using set screws and a phillips head
screwdriver.
Installation of the monitor on the bracket is done from top to bottom.
Mounting box Screws Monitor
235 mm
145 mm
18 mm
Monitor Bracket
60 mm
59 mm
117 mm
86 mm
80 mm
150-160 cm
68 mm
EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)
Warranty
The warranty card number
Model name
Serial number
Seller name
With following stated terms of warranty is familiar, functional test was
performed in my presence:
Customer signature
Warranty conditions
The warranty period of the product — 36 (thirty-six) months from
the date of sale.
Transportation of product must be in its original packaging or supplied one
by the seller.
The product is accepted in warranty repair only with a properly filled warranty
card and the presence of intact stickers or labels.
The product is accepted for examination in accordance with the cases
provided by law, only in the original packaging, in a full complete set,
appearance corresponding to the new equipment and presence of all relevant
properly filled documents.
This warranty is in addition to the constitutional and other consumer rights
and in no way restrict them.
Terms of warranty
The warranty card must indicate the name of the model, serial number,
purchase date, name of the seller, seller company stamp and
the customer’s signature.
Delivery to the warranty repair is carried out by the buyer himself.
Warranty repairs carried out only during the warranty period specified
in the warranty card.
The service center is committed to do everything possible to carry out
the repair warranty products, up to 24 working days. The period spent
on the restoration of product functionality is added to the warranty period.

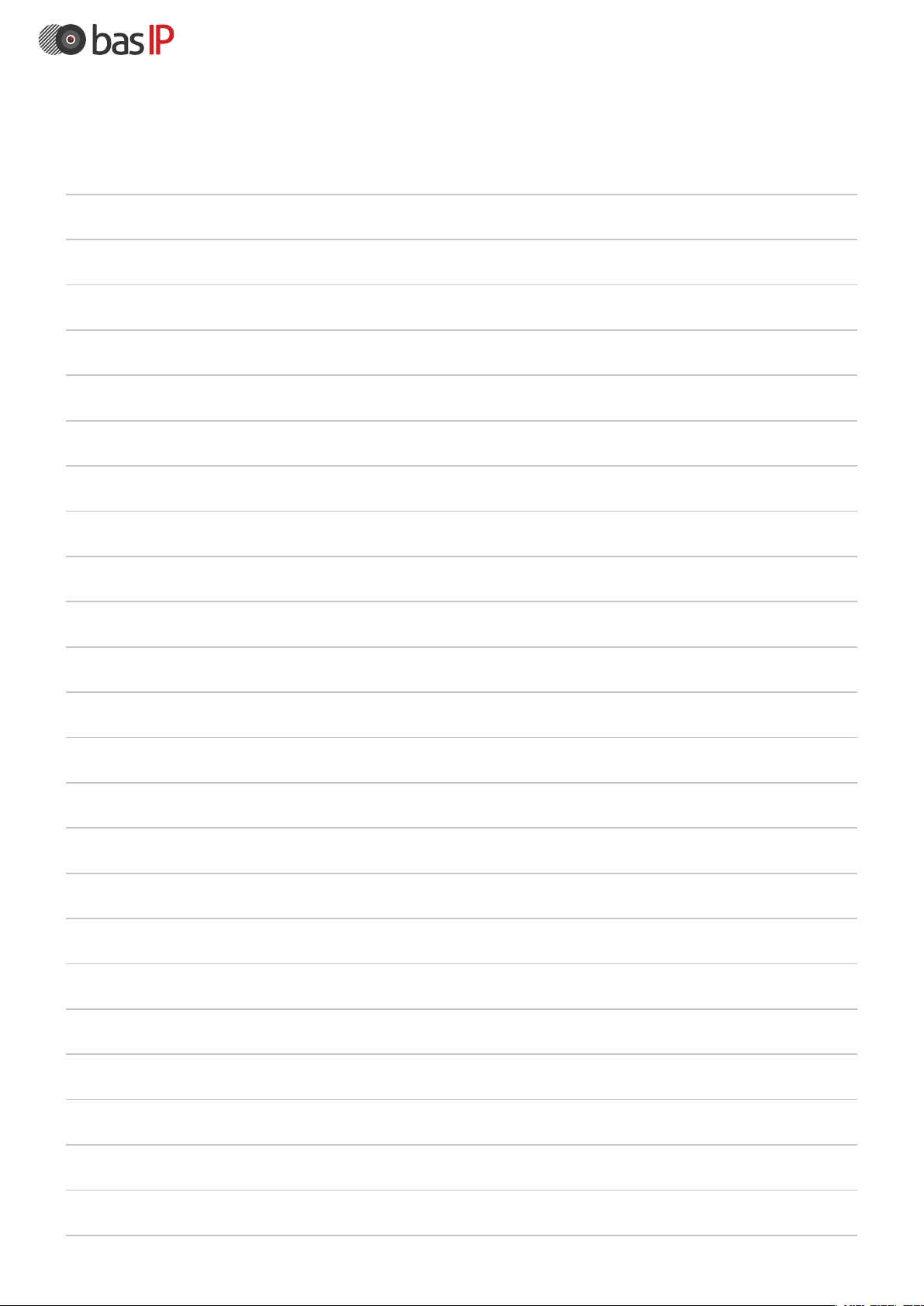

Notes
Notes
EAN: 5060514913994 (WHITE)EAN: 5060514914007 (BLACK)
www.bas-ip.com
