USER MANUALINDIVIDUAL ENTRANCE PANELAV-04FD

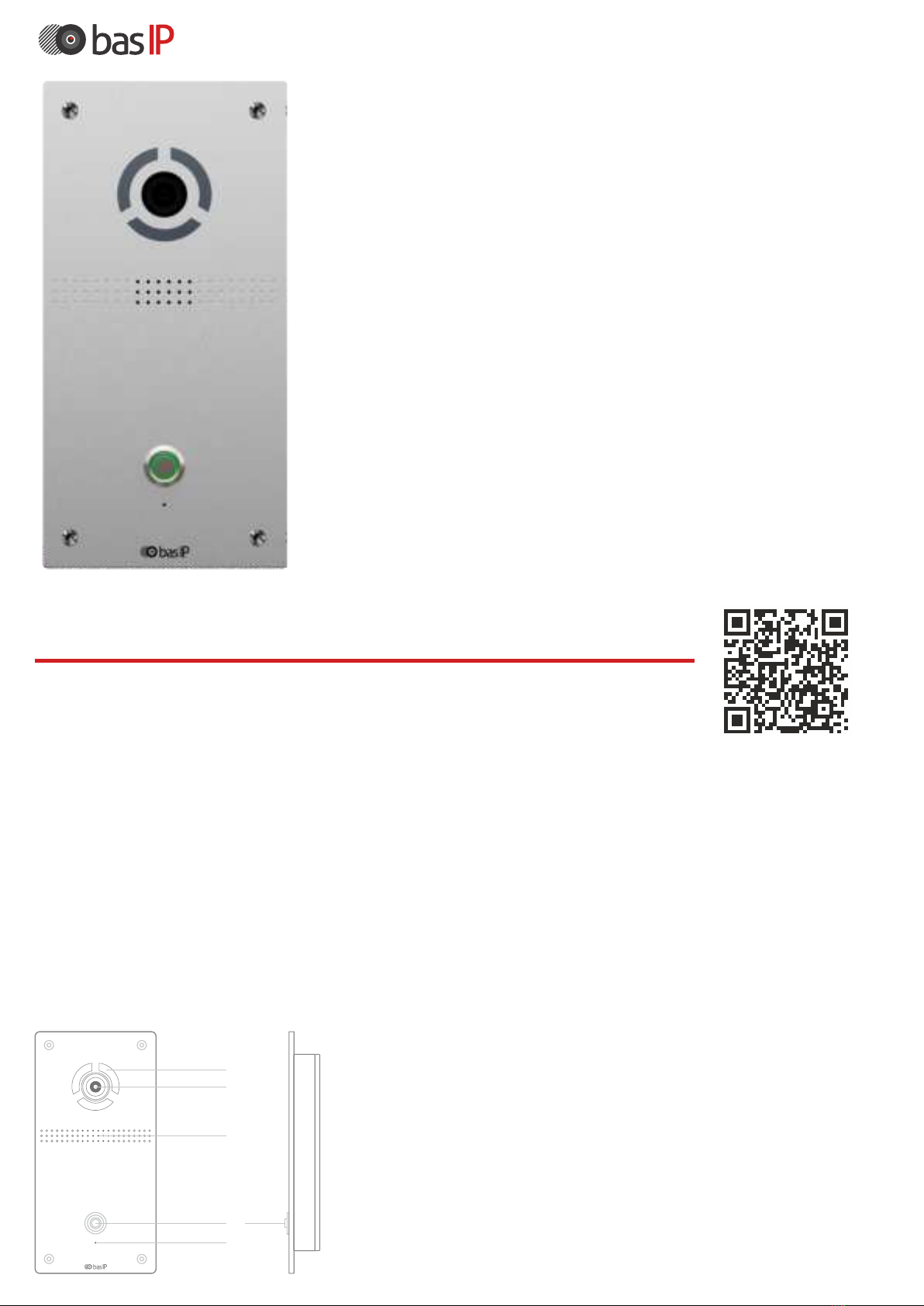

AV-04FDThere is also the possibility of individual text or logo appliance on the panel (through in the service center).BAS-IP AV-04FD — stylish vandal-proof panels with installation by the ﬂush mount method.Full User ManualAppearanceDevice descriptionwiki.bas-ip.comMechanical call button.Microphone.Backlight.Camera.Loudspeaker.12345-----INDIVIDUAL ENTRANCE PANEL12453Main features• Panel type: Individual.• Camera: 1/4”.• Resolution: 2 Мp.• Сamera angle: 100° (horizontal).• Output video: HD (1280 × 720), H.264 Main Proﬁle.• Night backlight: 6 LEDs.• Light sensitivity: 0,01 LuX.• Protection class: IP65.• IK-Code: IK09.• Working temperature: -40 — +65 °С.• Power consumption: 6,5 W, in standby — 3,6 W.• Power supply: PoE, +12 V DC.• Body: Aluminum.• Colors: Silver.• Dimensions for installation: 85 × 180 × 45 mm.• Size of the panel: 95 x 190 x 27 mm.• Installation: Flush mount.

EAN: 5060514913529 (SILVER)Completness check of the productBefore installation of the outdoor panel, it is necessary to check thatit is complete and all components are available.Outdoor panel kit includes: 1 pc1 pc1 pc1 pc1 pcAfter verifying the device's completeness, you can switch to the outdoor panelconnection.For connection you will need: Electrical connectionAn Ethernet UTP CAT5 or higher cable connected to a networkswitch / router. Cable length recommendationsThe maximum length of the UTP CAT5 cable segment should not exceed 100 meters,according to the IEEE 802.3 standard. Outdoor panel Manual Flush mounting bracketSet of wires with connectors for connection of power supply,lock, and additional modules Wrench set screws PowerPeripheral InterfaceLAN (PoE)RJ45DC12V+12VGND485+485-NCCOMNOEXITDSDINSH-45Door SensorExit ButtonGND+12VSH-42(optional)Power supply at +12 V, 2 amps, if there is no PoE.Connection scheme of electromechanical lockusing external power supply for panel and the lock.You can connect any type of electromechanical or electromagnetic lock for which the switched currentdoes not exceed 1 Amp.+12VDC+-+12VDC+- Connection scheme of electromagnetic lockusing external power supply for panel and the lock.+12VDC+-+12VDC+-Power supplyfor the panelPower supplyfor the lockPower supplyfor the lockPower supplyfor the panelElectromechanicallockElectromagneticLockPowerPeripheral InterfaceLAN (PoE)RJ45DC12V+12VGND485+485-NCCOMNOEXITDSDINSH-45Door SensorExit ButtonGND+12VSH-42(optional)

Mechanical mountingIt is also necessary to provide supply of a power cable, additional modules and the local network.Before mounting the door panel, a hole or recess in the wall with dimensions of 87 × 182 × 46 mm must be provided.NicheScrewsOutdoor PanelBracketOutdoor Panel95 mm27 mm

190 mm

87 mm

182 mm120-140 cm

Flush Bracket85 mm

180 mm
