Bazooka ELW1014.2 Bedienungsanleitung
1
Dear customer,
Congratulations on your purchase of a Bazooka EL high-performance
subwoofer. At Bazooka we are fanatics about accurate music
reproduction. Your selection of our products for your sound system
indicates that quality sound is also important to you too. At SAS, we
take great pride in manufacturing revolutionary audio products, and
through the years of engineering expertise, hand craftsmanship and
critical testing procedures, we have created the EL high-performance
series of subwoofers. We hope that you will take as much pride in
owning and using one of these high-quality audio products as we do
designing and manufacturing them.
When properly installed and operated, your Bazooka EL subwoofer will
give you years of clean uninterrupted sound reproduction. Therefore,
we urge you to take a few minutes to carefully read through this
manual. It will explain how to properly build an enclosure to optimize
performance and longevity of the subwoofer.
Sound can be deceiving. Over time your hearing comfort level adapts
to higher volumes of sound. What may have sounded normal can
actually be too loud and harmful to your hearing. Guard against this by
setting your equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear
comfortably, clearly and without distortion.
Once you have established a comfortable “sound level”, make a
note of this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being
damaged and allow you to enjoy listening to music throughout your
lifetime.
2
CALCULATING ENCLOSURE VOLUME
It is difficult to give exact box dimensions that are universal for all cars
and trucks. It is for this reason that you must be able to calculate the
space in which you have available in order to achieve the proper air
volume required. It is recommended to build your enclosure from 3/4”
thick MDF (medium density fiberboard). Make sure the enclosure is
sealed air tight.
Calculating External Volume
1.) To calculate box volume, measure the outside Width x Height x
Depth of the enclosure.
Example 12” x 14” x 9” = 1512”.
2.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”.
Example 1512 1728 = .875 Cubic feet.
Calculating Internal Volume
1.) To calculate the internal (net) volume of the above box you must
first multiply the thickness of the wood you are using by Two (2).
Example 3/4” x 2 = 1.5”.
2.) Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5
3.) Multiply the new totals (H x W x D)
Example: 10.5 x 12.5 x 7.5 = 984.375
4.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”
Example 984.375 1728 = .5696 Cubic feet.
3
ELW8018
Free Air Resonance. (FS) 37
Total Q of driver @ FS including all resistance. (Qts) .61
Q of driver @ FS including non electrical resistance only. (Qms) 10.09
Q of driver @ FS including electrical resistance only. (Qes) .64
The driver's compliance expressed as an equivalent (Vas) .56
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .20
The DC resistance of the driver's voice coil (ohms). (Re) 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/225
Max Power handling (Standard/ With Liquid Cooling) (W) 300/300
The driver's voice coil inductance (millihenries). (Le) 3.04
The drivers sensitivity (dB @ 1W 1M). (Sens) 83
4
PRODUCT SPECIFICATIONS (8” SUBWOOFERS)
ELW8014
Free Air Resonance. (FS) 34
Total Q of driver @ FS including all resistance. (Qts) .45
Q of driver @ FS including non electrical resistance only. (Qms) 9.04
Q of driver @ FS including electrical resistance only. (Qes) .48
The driver's compliance expressed as an equivalent (Vas) .66
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .20
The DC resistance of the driver's voice coil (ohms). (Re) 3.4
RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/225
Max Power handling (Standard/ With Liquid Cooling) (W) 300/300
The driver's voice coil inductance (millihenries). (Le) 1.9
The drivers sensitivity (dB @ 1W 1M). (Sens) 83
ELW1018.2
Free Air Resonance. (FS) 35
Total Q of driver @ FS including all resistance. (Qts) .54
Q of driver @ FS including non electrical resistance only. (Qms) 7.15
Q of driver @ FS including electrical resistance only. (Qes) .64
The driver's compliance expressed as an equivalent (Vas) 1.33
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.14
The DC resistance of the driver's voice coil (ohms). (Re) 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 180/270
Max Power handling (Standard/ With Liquid Cooling) (W) 250/375
The driver's voice coil inductance (millihenries). (Le) 1.82
The drivers sensitivity (dB @ 1W 1M). (Sens) 90
5
PRODUCT SPECIFICATIONS (10” SUBWOOFERS)
ELW1014.2
Free Air Resonance. (FS) 29
Total Q of driver @ FS including all resistance. (Qts) .25
Q of driver @ FS including non electrical resistance only. (Qms) 5.29
Q of driver @ FS including electrical resistance only. (Qes) .27
The driver's compliance expressed as an equivalent (Vas) 2.32
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.14
The DC resistance of the driver's voice coil (ohms). (Re) 3.6
RMS Power Handling (Standard/ With Liquid Cooling) (W) 180/270
Max Power handling (Standard/ With Liquid Cooling) (W) 250/375
The driver's voice coil inductance (millihenries). (Le) 1.4
The drivers sensitivity (dB @ 1W 1M). (Sens) 90
ELW1218.2
Free Air Resonance. (FS) 34
Total Q of driver @ FS including all resistance. (Qts) .58
Q of driver @ FS including non electrical resistance only. (Qms) 6.72
Q of driver @ FS including electrical resistance only. (Qes) .64
The driver's compliance expressed as an equivalent (Vas) 2.59
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.14
The DC resistance of the driver's voice coil (ohms). (Re) 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 200/300
Max Power handling (Standard/ With Liquid Cooling) (W) 300/450
The driver's voice coil inductance (millihenries). (Le) 1.71
The drivers sensitivity (dB @ 1W 1M). (Sens) 90
PRODUCT SPECIFICATIONS (12” SUBWOOFERS)
ELW1214.2
Free Air Resonance. (FS) 30
Total Q of driver @ FS including all resistance. (Qts) .36
Q of driver @ FS including non electrical resistance only. (Qms) 4.98
Q of driver @ FS including electrical resistance only. (Qes) .39
The driver's compliance expressed as an equivalent (Vas) 3.10
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.14
The DC resistance of the driver's voice coil (ohms). (Re) 3.6
RMS Power Handling (Standard/ With Liquid Cooling) (W) 200/300
Max Power handling (Standard/ With Liquid Cooling) (W) 300/450
The driver's voice coil inductance (millihenries). (Le) 1.4
The drivers sensitivity (dB @ 1W 1M). (Sens) 90
6
Ported Enclosure
Box Volume *.57 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 2 Inches
Port Length 9.0 Inches
* Box is given as internal air volume including port and driver displacement.

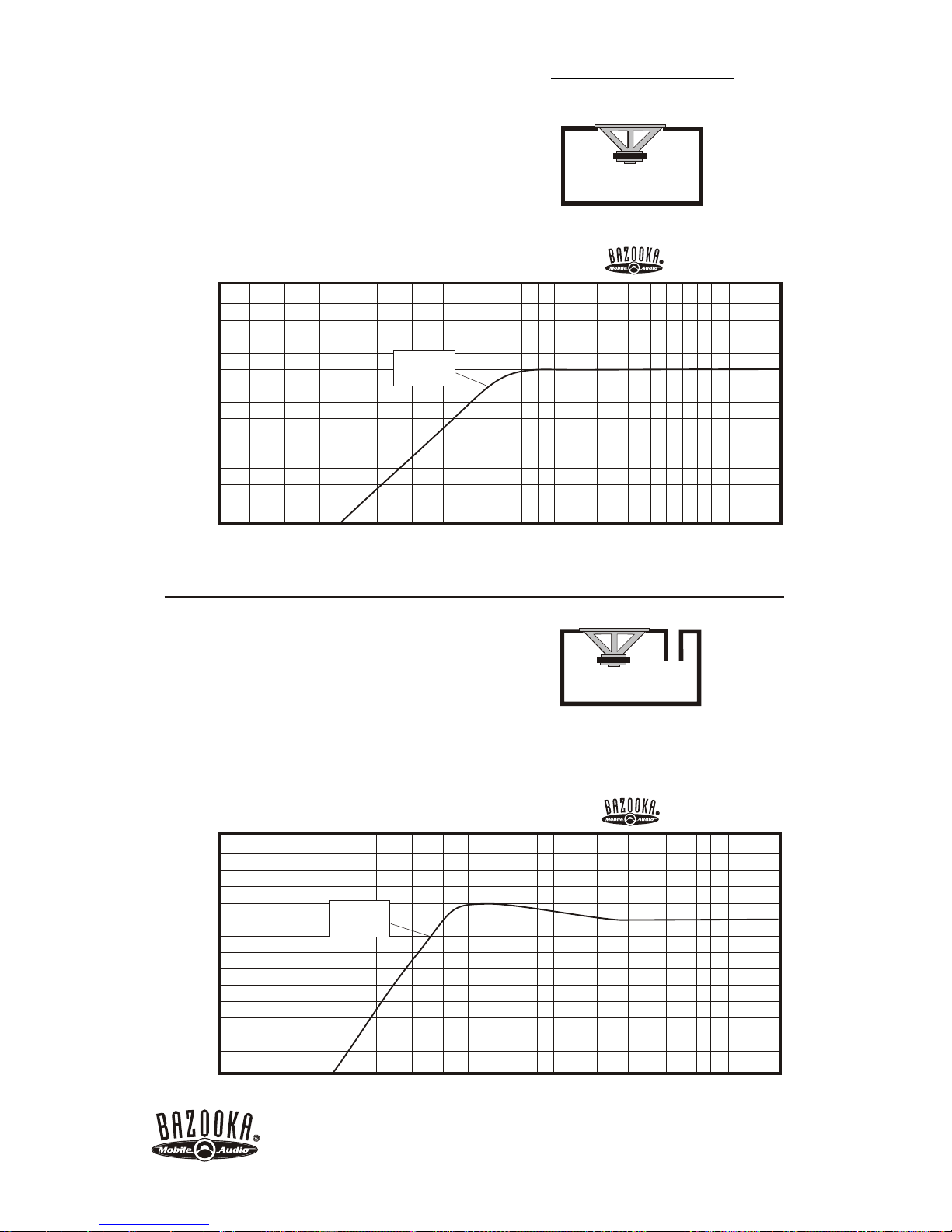

ELW8014 RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.34 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 36F3 = 36
7
Ported EnclosurePorted Enclosure
Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 61F3 = 61
ELW8014 Amplitude Response (dB/Hz)ELW8014 Amplitude Response (dB/Hz)
ELW8014 Amplitude Response (dB/Hz)ELW8014 Amplitude Response (dB/Hz)
Ported Enclosure
Box Volume *1.6 Cu Ft.
Port Frequency (Fb) 42Hz
Port Diameter 4 Inches
Port Length 9.5 Inches
* Box is given as internal air volume including port and driver displacement.

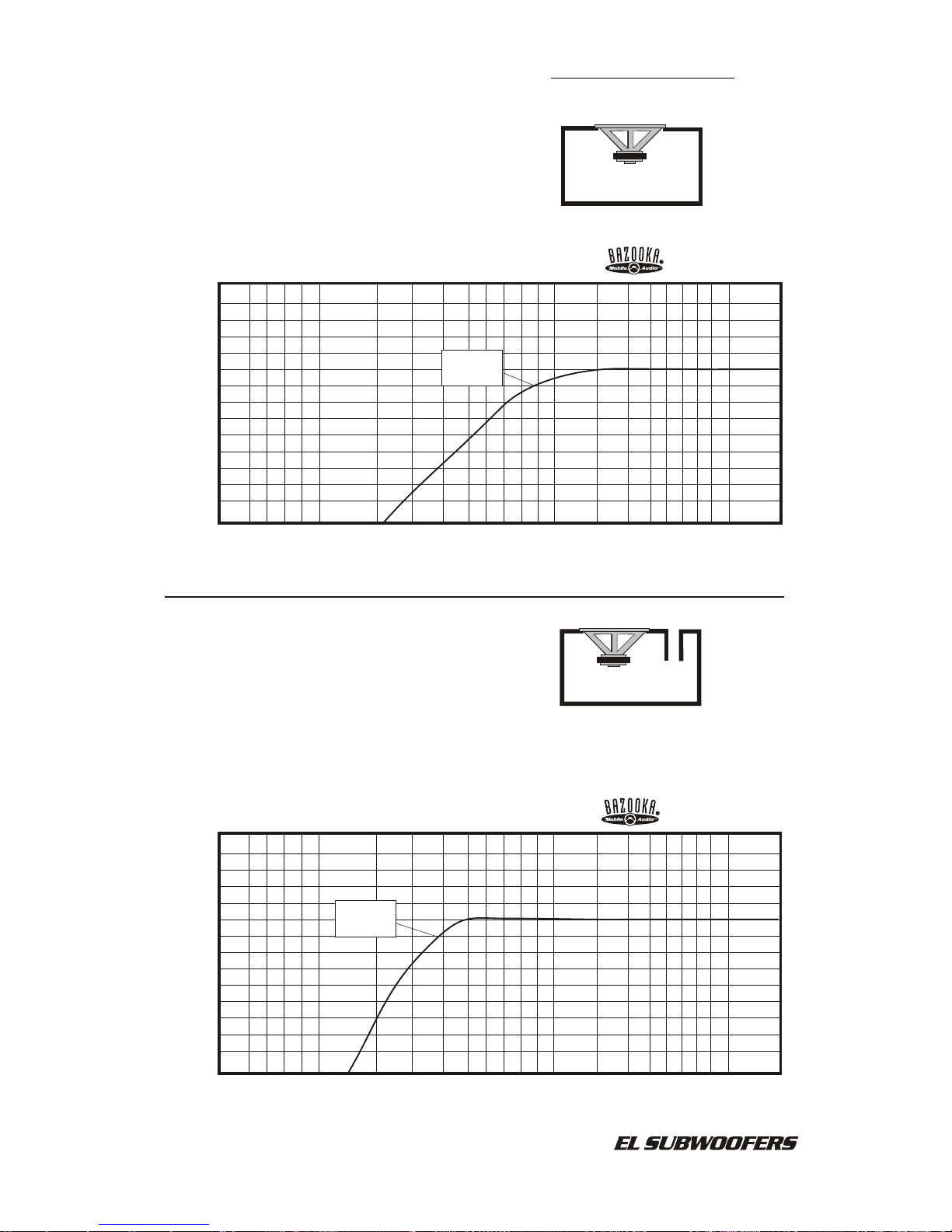

ELW1014.2 RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.66 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 39F3 = 39
8
Ported EnclosurePorted Enclosure
Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 93F3 = 93
ELW1014.2 Amplitude Response (dB/Hz)ELW1014.2 Amplitude Response (dB/Hz)
ELW1014.2 Amplitude Response (dB/Hz)ELW1014.2 Amplitude Response (dB/Hz)
Ported Enclosure
Box Volume *2.0Cu Ft.
Port Frequency (Fb) 31Hz
Port Diameter 4 Inches
Port Length 15.71 Inches
* Box is given as internal air volume including port and driver displacement.

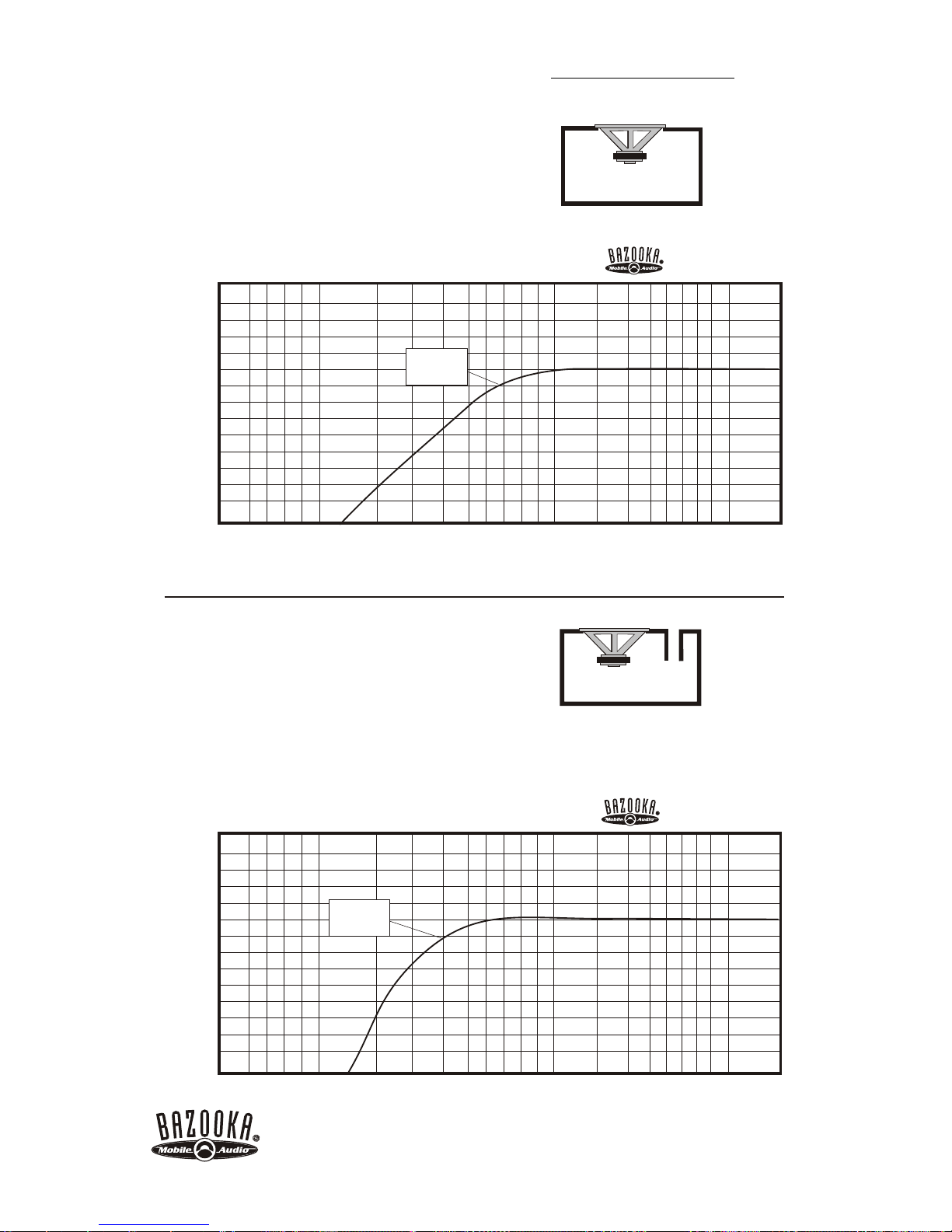

ELW1214.2 RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.93 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
ELW1214.2 Amplitude Response (dB/Hz)ELW1214.2 Amplitude Response (dB/Hz) Sealed EnclosureSealed Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 69F3 = 69
ELW1214.2 Amplitude Response (dB/Hz)ELW1214.2 Amplitude Response (dB/Hz) Ported EnclosurePorted Enclosure
5 Hz5 Hz 1010 5050 100100 500500 10001000
00
dBdB
FrequencyFrequency
66
1212
-6-6
-12-12
-18-18
-24-24
F3 = 39F3 = 39
9
