Belkin F5U197ea Bedienungsanleitung
SATA II RAID 2-Port
PCI Express™ Card
User Manual
F5U251ea
F5U197ea
Add Serial ATA II RAID ports to your computer using PCI Express
technology
FR
DE
NL
ES
IT
EN
P74969ea_F5U521ea.indb 1 14/3/06 4:42:37 pm
1. Introduction ...................................................................... 1
Features ........................................................................ 2
Specifications ................................................................ 2
Environment .................................................................. 2
Minimum System Requirements ................................... 3
Package Contents .........................................................3
2. Software Setup ................................................................. 4
3. Hardware Installation ...................................................... 6
4. Verifying Proper Installation ........................................... 8
5. Value-Added Software ..................................................... 9
6. Information .................................................................... 10
Table of Contents
P74969ea_F5U521ea.indb 2 14/3/06 4:42:37 pm
EN
1
2
3
4
5
6
Introduction to PCI Express
For the last 10 years, PCI has been the mainstream interface
for personal PCs, with nearly every computer using the
same PCI bus specification—32-bit, running at 33MHz, and
yielding a maximum data-transfer rate of only 133.3Mbps.
In today’s information age, with data size growing
exponentially, there is increased demand for faster transfer
rates. This demand led to Intel’s development of the PCI
Express standard, which offers increased speed and stability
for data transfers.
Common PCI Express bus forms include x1, x2, x4, x8,
and x16, with each form being characterized by a unique
slot design. A one-path transmission on a one-lane (x1) PCI
Express bus can reach speeds of up to 250MB—nearly
double the standard PCI transmission speed. A 16-lane (x16)
PCI Express bus can reach speeds of up to 16Gbps.
This SATA II RAID 2-Port PCI Express Card (single-chip,
one-lane, PCI-Express-to-two-internal-Serial-ATA-(SATA)-
II-host-controllers) brings server-class features to your
desktop. It supports all Serial ATA II features, including
3.0Gbps SATA II transfer speeds, Native Command
Queuing (NCQ), port multipliers with FIS-based switching,
programmable output-signal swing strengths for longer
external cables or extended backplanes, hot plugging,
enclosure management, and ATAPI device support.
Introduction
1
2
3
4
5
P74969ea_F5U521ea.indb 1 14/3/06 4:42:38 pm
2
3
Introduction
1
2
3
4
5
6
Features
• Complies with one-lane 2.5Gbps PCI Express
specifications and Serial ATA 1.0 specifications
• Provides Serial ATA II transfer rates of up to 3.0Gbps
• Supports 2 independent Serial ATA II channels
• Offers hot-plug functionality for extended Serial ATA port
• Features RAID 0 (striping) and RAID 1 (mirroring) software
• Supports Serial ATA II port-multiplier specification with
port-multiplier device
Specifications
• Interface: One-lane PCI Express
• Mode: Serial ATA Generation 2
• Controller: Silicon Image SiI 3132
• RAID: RAID 0 (striping) and RAID I (mirroring)
• Channels (F5U251): 2 independent Serial ATA II internal
channels Channels (F5U197): One internal SATA port and
one external e-SATA port
• Support for Legacy Command Queuing (LCQ)
• Support for Native Command Queuing (NCQ)
• Support for non-zero offsets (NCQ)
• Support for out-of-order data delivery (NCQ)
• Support for FIS-based switching with port multipliers
Environment
• Operation Temperature: 0° C ~ 57° C
• Storage Temperature: -20° C ~ 85° C
• Operation Temperature: 5 ~ 95% RH
P74969ea_F5U521ea.indb 2 14/3/06 4:42:38 pm
EN
2
3
Minimum System Requirements
• Windows®-based computer with available
PCI Express slot*
• Windows 2000, XP, 2003 Server
* Note: Enclosed Card will not fit into a standard
PCI slot.
Package Contents
• SATA II RAID 2-Port PCI Express Card
• Serial ATA Cable
• User Manual
• CD Driver
Introduction
1
2
3
4
5
6

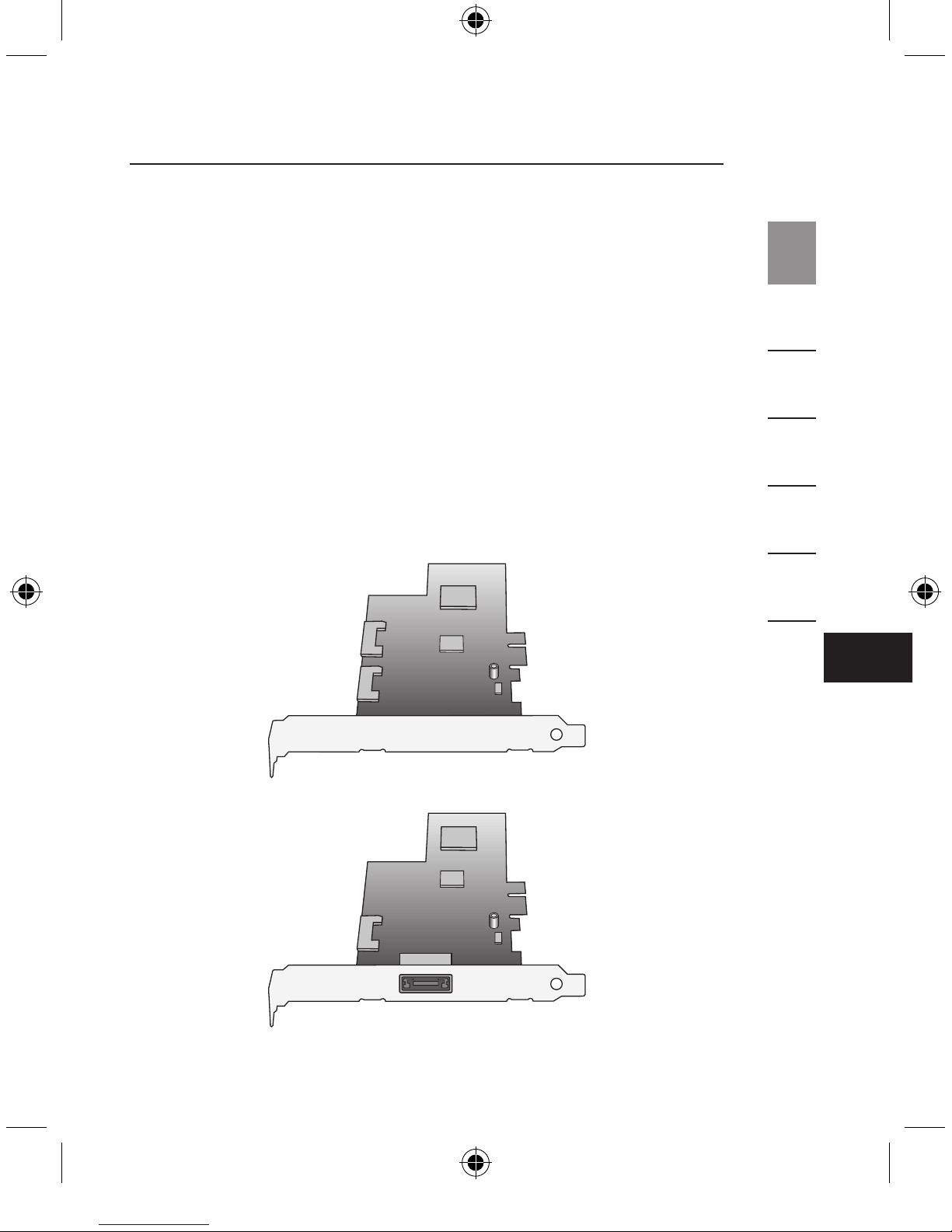

F5U251
F5U197
P74969ea_F5U521ea.indb 3 14/3/06 4:42:39 pm
4
5
1
2
3
4
5
6
IMPORTANT NOTE: You must install the PCI Express
Card drivers prior to installing the hardware in your
computer.
1. Insert the Serial ATA PCIe installation CD into your CD-
ROM drive. After a few moments, the main menu will
automatically start.
NOTE: If the main CD does not auto-start, click the
“Start” button and select “Run”. From the “Run” dialog
box, enter “<driver>:\SiI3132 SATARAID5 v1.2.3.3.exe”
and click “OK” (where “<driver>” represents the letter that
identifies your CD-ROM drive under “My Computer”—e.g.,
if the CD is in drive D, enter “D:\SiI3132 SATARAID5
v1.2.3.3.exe”).
2. Select “Install Driver”. The software installation wizard will
appear. Click “Next” to begin the installation process.
3. The next window will ask you to specify the location
where the software files will be installed on your hard
drive. It is recommended that you install the software in
the default directory “C:\Program Files\Silicon Image\3132
SATARAID5”. Click “Next” to continue.
Software Setup
P74969ea_F5U521ea.indb 4 14/3/06 4:42:39 pm
EN
4
5
Software Setup
4. The next window will ask you to select the components
you wish to install. After you have chosen your selections,
click “Next”.
5. The next window will ask you to verify the file destination
and the components to be added. Click “Next” to begin
installation.
6. After the files have been successfully copied, you will be
asked whether or not you want to create a desktop icon.
Click “Yes” or “No”.
7. Click “Finish”.
1
2
3
4
5
6
P74969ea_F5U521ea.indb 5 14/3/06 4:42:40 pm
6 7
1. After completion of software setup, shut down your
computer and disconnect all connected devices and
peripherals.
2. Remove the cover from your computer. Refer to your
computer manufacturer’s user manual for details on
how to do this. Touch any bare metal portion of your
computer case to discharge yourself of any static
electricity. This prevents damage to your computer and
the PCI Express Card.

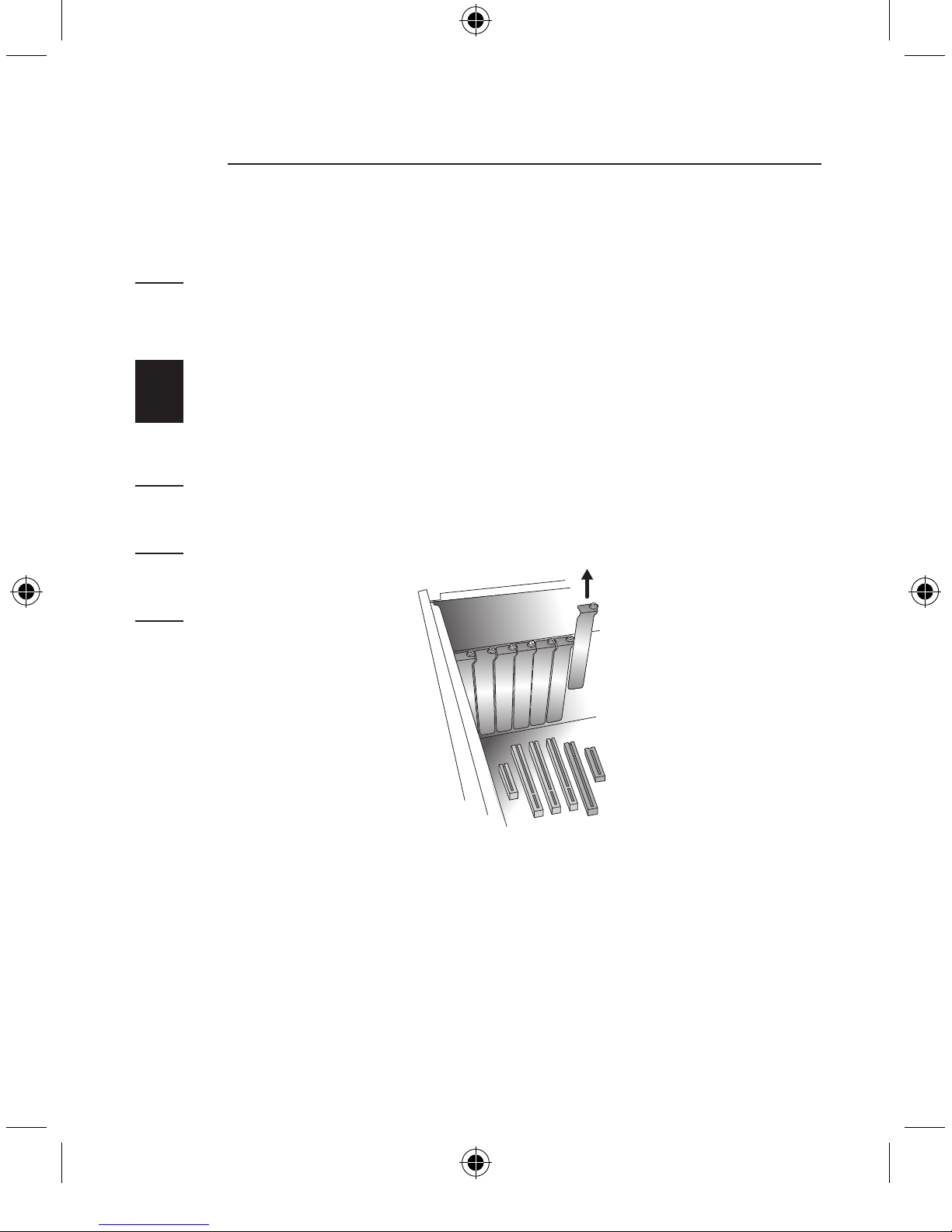

3. Locate the PCI Express slot on your computer’s main
circuit board. Remove the metal plate that covers the
rear slot corresponding to the PCI Express slot you have
selected (see image below).
4. Remove the PCI Express Card from its protective anti-
static packaging. Handle it by the metal bracket; do not
touch the gold-edged connectors. Insert the PCI Express
Card into the PCI Express slot, carefully aligning the rear
bracket to the computer case. Make sure that the edge of
the PCI Express Card is fully inserted into the slot.
Hardware Installation
1
2
3
4
5
6
P74969ea_F5U521ea.indb 6 14/3/06 4:42:41 pm
EN
6 7

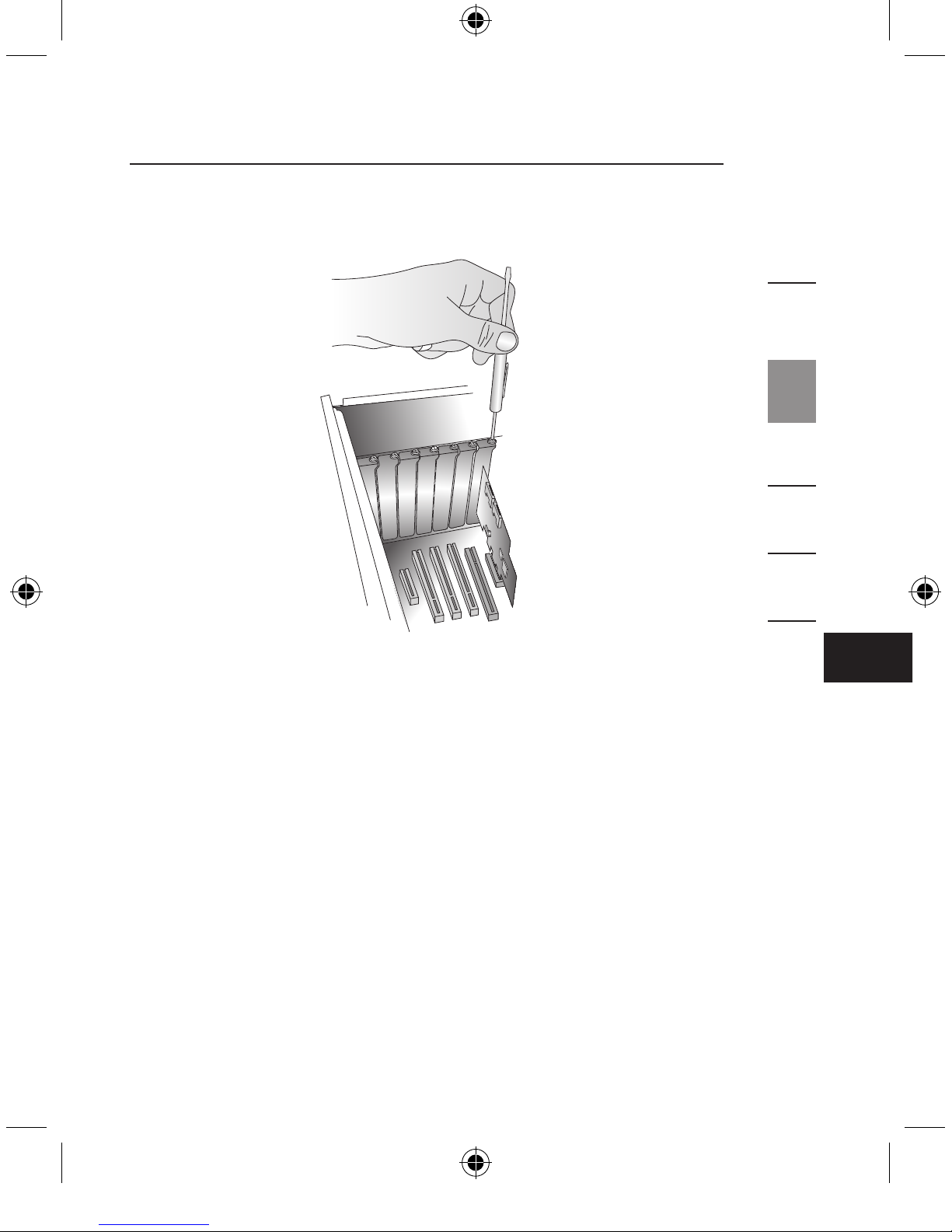

5. Replace the slot-cover screw.
6. After installing the PCI Express Card, replace your
computer’s outer cover and turn on your computer.
NOTE: Do not plug any devices into the PCI Express Card
until driver installation is completely finished.
7. The “New Hardware Wizard” will launch and recognize the
PCI Express Card.
8. Windows will automatically install the correct driver.
Installation is now complete. The PCI Express Card is now
ready to use.
Hardware Installation
1
2
3
4
5
6
P74969ea_F5U521ea.indb 7 14/3/06 4:42:42 pm
8 9

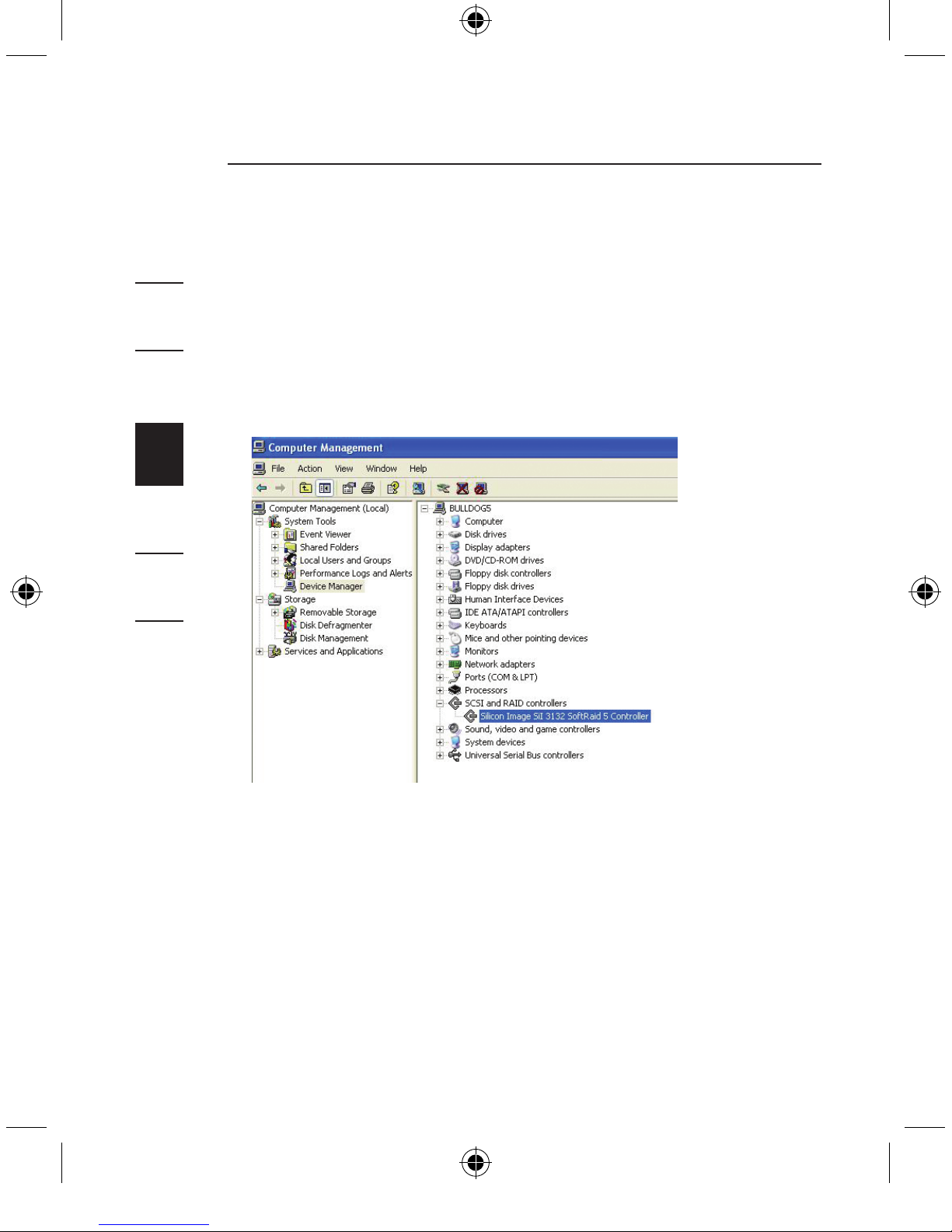

Check the Windows Device Manager to confirm that your
PCI Express Card has been properly installed.
1. Right-click on “My Computer” and select “Manage”.
2. Select the “Device Manager” tab.
3. Click the (+) sign next to “SCSI and RAID controllers”. It
will now include one “Silicon Image SiI 3132 SoftRaid 5
Controller” entry.
Verifying Proper Installation
1
2
3
4
5
6
P74969ea_F5U521ea.indb 8 14/3/06 4:42:43 pm
