BLUPONT XVR Quick Start Guide
Please read the Quick Start Guide carefull before using the product and keep it.
Related tools and documents of products, please download from www.herospeed.net.
1.Statement
This manual is for BLUPONT XVR C/CB/ D/DB/PG/PGH /L housings.
This manual may con ain some con en s ha are echnically inaccura e or inconsis en wi h
produc func ions and opera ions or wrongly prin ed. The con en s of his manual will be upda ed
according o he enhancemen of produc s wi hou prior no ice. If he descrip ion of produc in he
manual does no ma ch wi h he ac ual objec , please prevail in kind.
2.Safety In truction
This equipment should be installed in well-ventilated environment. When installing,
please keep proper space with the ground. It is good for machine heat dissipation
that keeping proper space with the ground when install. Keep the equipment awa
from heat source and high temperature environment.
The device should be installed horizontall , to avoid the installation in a strong
vibration position.
This device is not waterproof. To avoid fire or other hazards caused by short-circuit, shall
prevent the device from getting wet.
Please use the hard disk recommended by the manufacturer (generally recommend
monitor level hard disk of Seagate and estern Digital) to meet the requirements of long
time reading and writing of big data. Please buy from form channels to ensure the quality
of hard disk.
This product can not withstand heav loads. Do not place heav objects or multi-
la er overla s on this product.
BLUPONT XVR installation and construction must meet the specifications, ma refer
to the relevant national or local standards.
3.Hard di k in tallation
NOTE:
1) Please use the BLUPONT XVR dedicated SATA hard disk recommended b the
device manufacturer. Make sure the power is off before installation.
2) The following pictures and installation diagrams for reference only, subject to the available
products.
3.1 Hard di k in tallation guide for BLUPONT XVR PG / PGH erie
1) Unscrew the screws and remove upper cover.
2) Align the hard disk screw holes to the chassis backplane, and then tighten lock the screws.
3) Connect one end of the hard disk power cable and data cable to the motherboard and the
other end to the hard disk.
4）Install the cover and fix it by screws.

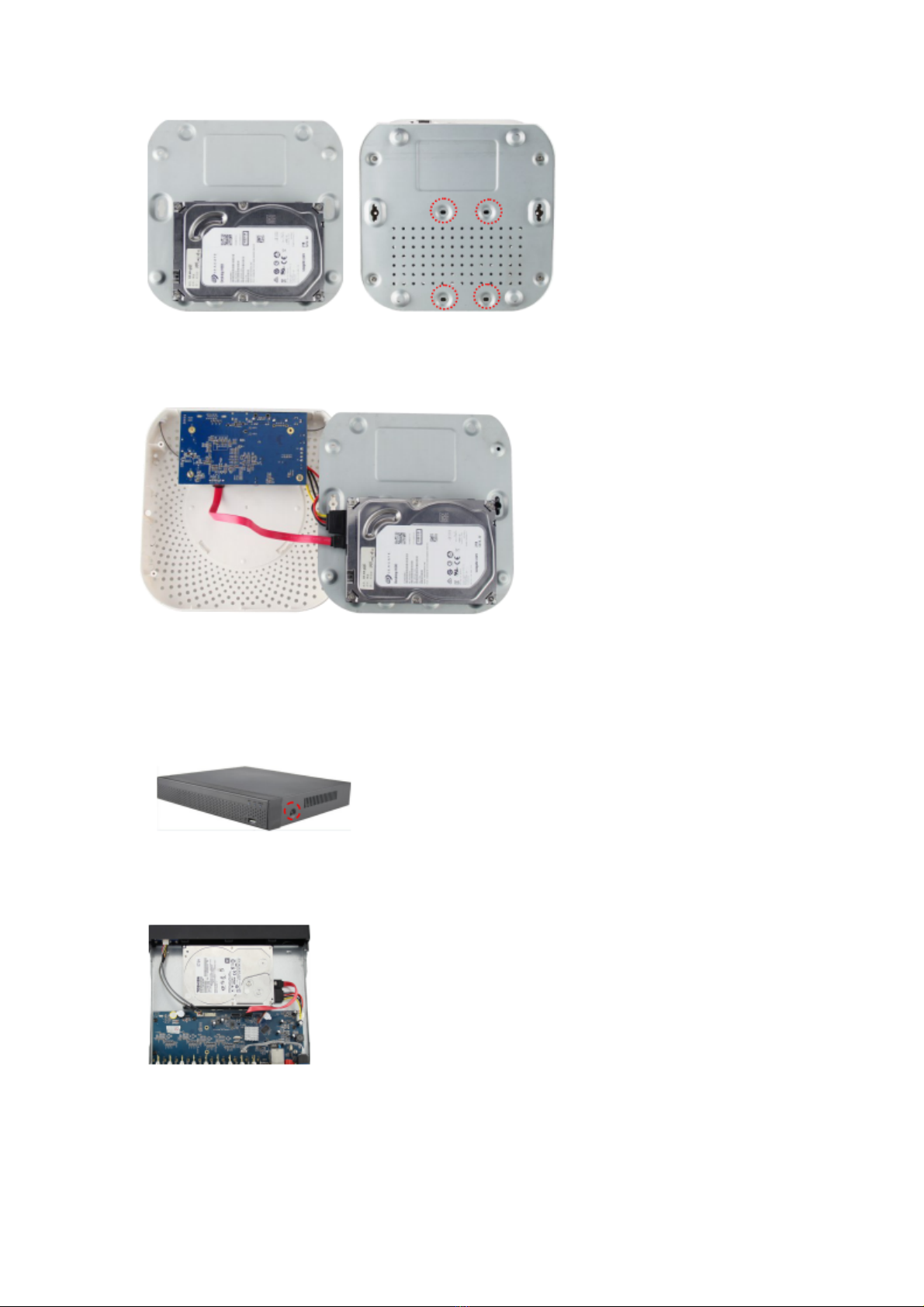

3.2 Hard di k in tallation guide for BLUPONT XVR CB /C / DB / D erie
1) Unscrew the screws on the back and sides of the chassis and remove the cover.
2) Connect one end of the hard disk power cable and data cable to the motherboard and the
other end to the hard disk.
3) Align the hard disk screw holes to the chassis backplane, and then tighten lock the screws.
4) Install the cover and fix it by screws.
3.3 Hard di k in tallation guide for BLUPONT XVR L erie
1) Unscrew the back panel screws and take off the cover.
2) Remove the hard disk rack.
3) Install the hard disk to the rack from top to bottom.
4) Fix the hard disk by screws.
5) Install the rack and fix it.
6) Connect the hard disk power cable and data cable.
7) Install the cover and fix it by screws.
4.Rear panel interface de cription
4.1 BLUPONT XVR rear panel interface de cription
4.2 8 Channel D erie BLUPONT XVR rear panel interface de cription
4.3 32 Channel L erie BLUPONT XVR rear panel interface de cription
NOTE:
BLUPONT XVR rear panel interface is similar with above picture, but the product
appearance, including interfaces and la out, for reference onl , please prevail in kind.
5.Local Ba ic Operation
5.1 Boot up
NOTE:
1. It is recommended that ou refer to international standards for power suppl input with
stable voltage values and low ripple interference.
2. Some devices do not have power button and will boot up directl when plug into an
electric power suppl .
Make sure the input voltage matches the BLUPONT XVR consumption. Connect the
device to the monitor and to the power adapter (if available). Plug in the power, switch on
the power button (if available), then the device boot up.
5.2 Boot Wizard
You can perform ba ic configuration on the device through the Power-on Wizard.
Step 1: The device automaticall enters the Boot Wizard page after it is powered on.
Click "Next", enter the administrator password, select the language, click "Login",
"Modif ", modif the login password, and click "Save" to enter the boot wizard "General"
page.
Step 2: After configuring the basic settings such as language, record mode, video
standard, and device time, click “Next” to set related parameters for other interfaces.
NOTE:
1. If ou do not need to set the device, ou can click "Cancel" to exit the boot wizard
interface. You can also turn off the boot wizard in " Menu > Configuration> General ".
2. You should rese he device adminis ra or password ( he sys em defaul username is "admin" and he
password is "12345") when boo ing for he firs ime. To ensure the securit of the device,
please save the admin login password and modif it regularl .
5.3 Network Setting
Network parameters must be properl configured before operating the device over the
network.

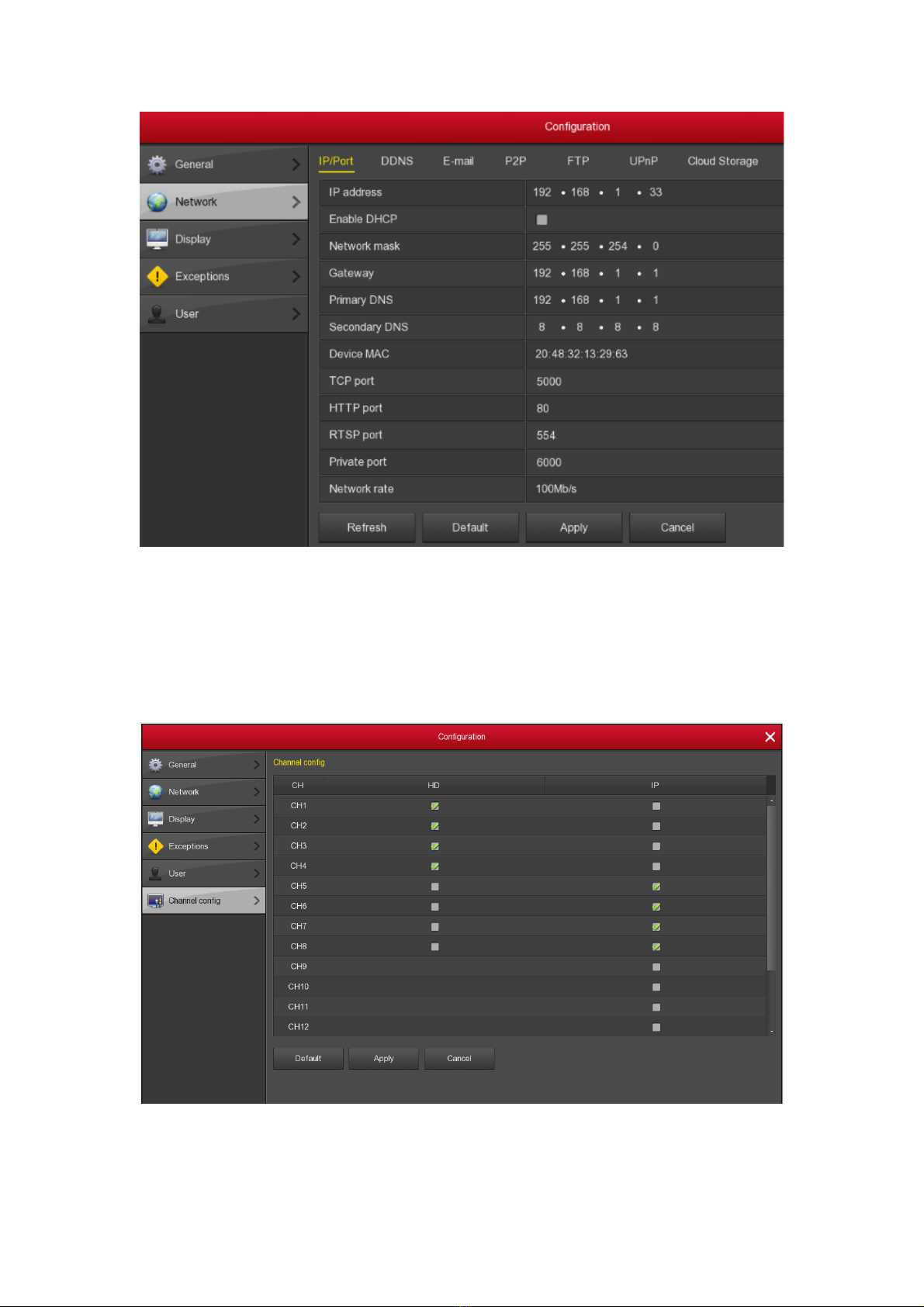

Procedure: Choose “Menu > Configuration > Network”. The s stem displa s the IP/Port
interface. Modif the IP address of the device according to the actual network plan. (The
default IP address of the BLUPONT XVR is 192.168.1.88.).
5.4 Channel Configuration
Step 1: Choose “Menu> Configuration> Channel Config”.
Step 2: Select the signal access t pe of each channel as required.
Step 3: Click “Appl >Confirm”, the device restarts and the modified Channel configuration
takes effect.
NOTE:
1. Single channel select signal access mode to follow certain rules, the interface will be
