Brickcom BRC-64 Bedienungsanleitung
PC Based Network Video Recorder
BRC-64
User Manual
Quality Service Group
Product name:
PC Based Network Video Recorder (BRC-64)
Release Date:
2011/11
Manual Revision:
V4.0
Web site:
www.brickcom.com
Email:
technical@brickcom.com
info@brickcom.com
©2011 Brickcom Corporation. All Rights Reserved
0000154
0 0
Table of Contents
Package Contents .............................................................................................. 1
Overview.......................................................................................................... 2
System Requirements.......................................................................................... 4
Software Installation ............................................................................................ 6
PC-NVR Installation....................................................................................... 6
EasyConfig Installation ................................................................................... 9
Launch EasyConfig ........................................................................................... 13
Start with PC-NVR ............................................................................................ 21
Authentication............................................................................................ 29
Configure the PC-NVR....................................................................................... 32
Live View.................................................................................................. 33
Setting..................................................................................................... 35
Add/Remove a Site ................................................................................ 35
Camera .............................................................................................. 37
Sequence ........................................................................................... 44
Storage .............................................................................................. 45
Video Wall........................................................................................... 46
NVS Setting......................................................................................... 48
System............................................................................................... 51
Alarm ...................................................................................................... 53
How to configure & trigger alarm notification .................................................. 53
Schedule Record ........................................................................................ 62
Playback .................................................................................................. 69
Event ...................................................................................................... 80
Snapshot.................................................................................................. 81
E-Map ..................................................................................................... 83
ACCOUNT MANAGE ................................................................................... 87
Lock........................................................................................................ 93
Hot-Key.................................................................................................... 94
Watch dog ................................................................................................ 95
1 1
Package Contents
a. Brickcom Software Kit CD
b. Easy Installation Guide
2 2
Overview
The Brickcom BRC64 is an advanced PC-based NVR that allows users to manage up to
64 Brickcom IP cameras for live viewing and video recording. With the support of
Mega-pixel resolution and H.264 compression, it uses less bandwidth while offering
optimal image viewing and recording quality.
Designed for flexibility and user-friendliness, the BRC64 has many features which enable
easy setup and management of the entire IP surveillance system. The E-MAP gives
users a full outline of the monitored areas and the ‘Smart Camera Search’feature makes
it possible to gain instant access to any Brickcom IP camera on the specific site. ‘Smart
Motion Detection’and extensive event configuration work together to make an effective
IP system. Support for viewing and recording at different frame rates is available for
efficient use of disk space. Flexible recording options include manual, event-triggered,
scheduled and continuous.
With the help of the Brickcom BRC64 and its IP cameras, users can quickly build a secure
IP surveillance system.
3 3
4 4
System Requirements
Operating System:
Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Computer:
IBM PC/AT Compatible.
CPU:
Pentium 3GHz or faster.
Memory:
1024 MB or more.
Monitor:
1024 x 768 pixels or more, 24-bit True color or better.
HDD
2048 MB or more.
Network Interface:
10/100Mbps Network interface card must be installed.
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher.
5 5
Adobe Reader:
Adobe Reader 8.0 or higher.
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio may
be interrupted depending on network traffic.
6 6
Software Installation
PC-NVR Installation

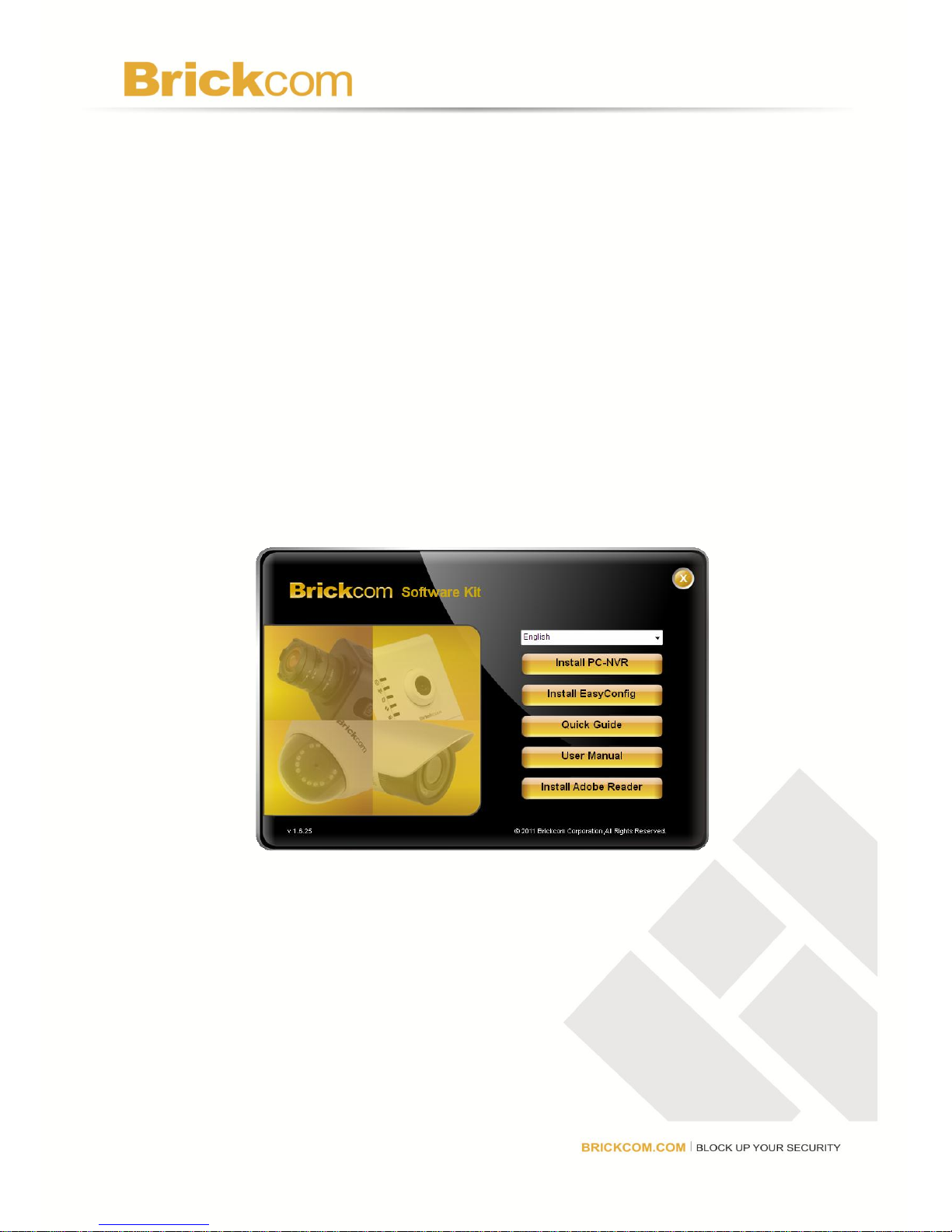

1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly
from the CD-ROM to start the installation. While installing the Brickcom Software
Kit for the first time, select a desired language for the interface. The available
languages are listed in the scroll box. Click <Install PC-NVR> and follow the steps
to install on the desired computer.
2. In the Install Shield Wizard dialog box, click <Next>to continue.
