Brickcom FB-H200Np-S-WDRPro Datenblatt

Easy Installation Guide

Megapixel Network Camera

FB-H200Np-S-WDRPro

Please install an easy-to-use breaker during installation and wiring in case it is necessary to make an

emergency break.

Please prevent the power cord from being trampled or pressed especially the plug, socket and the connecting

part led out from the device.

Please use power supply in the safe voltage range of our product. Make sure if the power supply is correct

before running the device.

During installing and using the device, please follow local electrical safety regulations strictly.

Please connect cables of power, alarm, audio and RS-485 with the power off. Hot-line wiring is not allowed.

When shipping, storing and installing the device, try to prevent it from damages caused by pressure, violent

While shipping the camera, pack it in the factory packing or use materials with equivalent quality.

This product is not water-proof and cannot be used outdoor alone.

vibration and soaking.

Please transport, use and store the device within defined humidity and temperature ranges.

Do not focus the camera lens on strong light such as the sun or incandescent lamp; otherwise the strong light

will cause overexposure or light leak (not camera malfunction), which may shorten camera lifetime.

Do not expose it in damp, dusty, extremely hot or cold places or places with intense electromagnetic radiation

or with unstable lighting.

Keep the camera away from water or any liquid to avoid damage to internal components.

To avoid heat accumulation, please do not block the ventilation around the device.

1. Power Supply

2.Working Environment

I. Preface

II. Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or

property loss. Please read this Guide carefully before using the product, and keep it properly for future

reference. If the product cannot work normally or is damaged because the user does not follow the safety

instructions, we shall not assume any responsibility. Thanks for your cooperation.

Thank you for purchasing our product. If there is any question, please do not hesitate to contact us.

Working Environment

DC1 2V/AC24V/POE

10%~95% (non-condensing)

Voltage

Temp.

Humidity

Altitude

Pressure

-60m~3000m

86kPa~106kPa

-40℃ ~ +70℃

Other: -20℃ ~ +60℃

Power 6W

3. Daily Maintenance

4. Special Statement

Do not disassemble or repair the device in any way by yourself. We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.

If the product does not work properly, please contact your dealer or the nearest service center.

When the lens is contaminated by dust or grease, use cotton cloth or lens clean cloth to wipe it off. When it is

hard to clean, dip some lens cleanser and wipe gently and rotate outward from the middle until it is clean.

Never apply any organic solvent with ethanol or benzene to clean the lens and housing.

Do not touch the heat component of the device directly to avoid empyrosis.

Accessing this device to the internet is at user's own risk, including but not limited to the possible network

attack, hacker attack, virus infection and etc. This company will not assume any responsibility for problems of

product abnormality and information disclosure caused thereof. We shall provide technical support relating to

the products in time.

Every effort has been made to ensure the accuracy and validity of this Guide. Any update of this Guide caused

by version upgrade is subject to change without notice.

To ensure the safety of device on internet, it is strongly recommended that you set a strong password which is

composed of at least 2 kinds of the following, digits, case-sensitive letters or specific symbols, and whose

length ranges from 8 to 16 bits. Please modify the password periodically and once every 3 months is

recommended. If the device is used in highly risky environment, suggest modifying the password monthly or

weekly. Please keep your user name and password safe.

This device can be used after being activated through IPCSearch. During activation please fill a valid email

address for finding back the password.

This Guide is made for multiple models but it will not illustrate one by one. Please refer to it according to the

actual products you are using.

The product appearance is subject to the actual device and picture in this Guide is for reference only..

III.Installation Steps

1. Remove the dust cover and mount the lens. CS type lens can be mounted directly, while an adapter ring is

needed before mounting C type lens, as the picture shows.

[Note]: Back focus adjustment is unavailable for this series.

DC IRIS, for Auto IRIS lens

Mount an adapter

ring for C type lens

If the lens does not focus well after

adjustment, try to mount a spacer.

If the lens does not focus well after

adjustment, try to mount a spacer. DC IRIS, for Auto IRIS lens

The connector interface of different models may differ. Please refer to the pictures below according to the

actual cameras.

2. Connect the cable and power on.

OUT

GIN

GO1 O2 I 1 I 2B

RS4 85

LAN

Mic ro SD

DC 12 V

VID EO OU T

RUN

LIN K

ALA RM AU DIO

Audio In/Out

RS485 Port

TF Card Slot

Max Memory 256G

TF Card Slot

Max Memory 256G TF Card Slot

Max Memory 256G

TF Card Slot

Max Memory 256G

Video Out:

-Some models

support HD-SDI

-Other models

support CVBS

Video Out:

-Some models

support HD-SDI

-Other models

support CVBS

Video Out:

-Some models

support HD-SDI

-Other models

support CVBS

Video Out:

-Some models

support HD-SDI

-Other models

support CVBS

Power Port,

DC12V/AC24V

Power Port,

DC12V

Power Port,

DC12V/AC24V

Power Port,

DC12V/AC24V

Audio In/Out

Alarm In/Out

Indicator

Network Port

some models

support PoE

Indicator

Indicator Indicator

Network Port

some models

support PoE

Network Port

some models

support PoE

Network Port

some models

support PoE

Alarm In/Out Alarm In/Out

Alarm In/Out

Audio In/Out

RS485 Port

LINK Lamp: network status indicator, green, ﬂashes (1s on, 1s off) after power on and network connected, and

goes off after power off or network disconnected.

[Note]:

RUN Lamp: operation indicator, green, ﬂashes (1s on, 1s off) after power on, and goes off after power off.

The default packing does not include a power adaptor. Please buy separately from us or otherwise.

IV.Login to Client

1. Minimum environment requirements:

ŸProcessor: 3.3 GHz CORE®i3 series or other equivalent processors

ŸRAM Memory: 4GB or above

ŸOperating System: Windows XP or newer version

ŸBrowser: suggest using IE Kernal browser, other Kernal browsers may affect some functions of the client

ŸDirectX：9.0c

LAN

RS485 Port

Alarm In/Out

Audio In/Out

Video Out

-Some models

support HD-SDI

-Other models

support CVBS

TF Card Slot

Max Memory 256G

Network Port

some models

support PoE

Indicator

Power Port,

DC12V/AC24V

2. Device Activation

When using the device for the first time, run IPCSearch: it will search devices in LAN automatically and display

the list of device IP address, gateway and etc. If the network provides DHCP service, DHCP server will assign

IP for the camera automatically.

Individual: Select the device from IPCSearch and right click to select “Activate”. Fill admin user name and

password and the e-mail address to ﬁnd back the password. Click “Activate” and it will reboot automatically.

Batch: Select the device and click “Batch processing”. In the popup interface, set admin user's password and

the email address to ﬁnd back the password. Click “Activate” and it will reboot automatically.

Web client: The device can also be activated through the web client. Set PC and the device in the same

network segment and login to the web. User can set admin password and password reset email on the

interface and click "Activate".

3. Modify device IP address

4. Login to the device

1“ ”) Double click the device in IPCSearch or click Login . Enter username and password to login the web client.

Click “Modify Params” and set the network parameters. When configuring a static IP for the camera, please

check “Custom device address (Close DHCP)” and fill the Ethernet parameters. During modification, the

username (admin) and the password set during activation should be entered. After configuration, the camera

will reboot automatically.

Adjust lens direction and edit parameters on the web client until the image reaches requirements.

3) Re-login to the web client and view live video directly.

2 successfully video (IE Kernal browser)) After login , download and install the plug-in .

[Note]: Interfaces of different models may differ. Please subject it to the actual products. Please refer to the

Help ﬁle for detailed explanation.

V. Bracket Installation

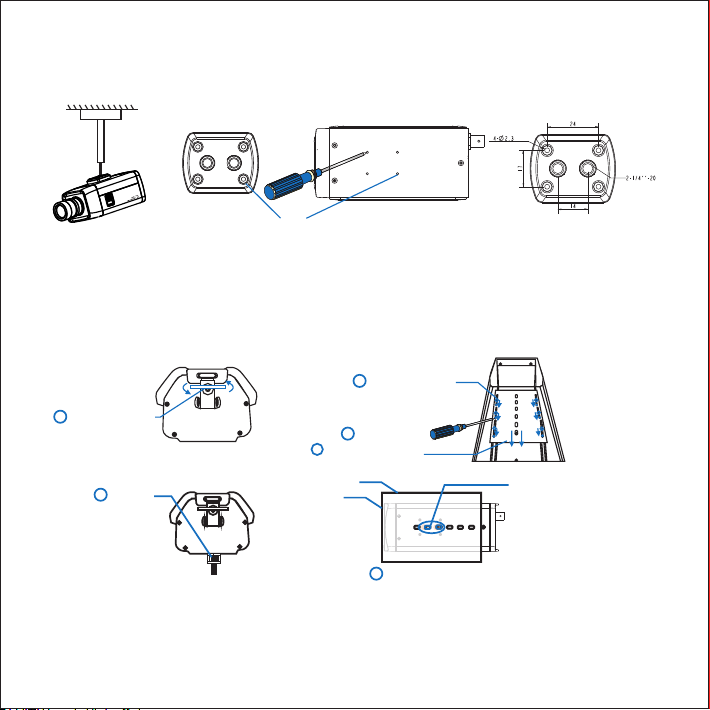

When mount the camera on a ceiling mount bracket, the bracket adapter can be taken apart from the bottom

and be mounted on the top of the camera, as the picture shows.

Screw Hole

Bracket Adapter Camera Top View

VI. Housing Installation

When the camera works outdoor, it should be installed in a water-proof housing, explanation as follows:

1. Unscrew the snap-ﬁt and open the cover of the housing.

2. Use a screwdriver to loosen the screws on the holder, pull the holder backward and take it from the holes.

[Note]: You only have to unscrew the screws on the holder, no need to screw them off.

3. Route the cable and screw up the PG joint. Suggest making the PG joint water-proof and dust-proof.

4. Place the holder at the bottom of the camera.

5. Install the camera and the holder in the housing.

[Attention]: Before ﬁxing, put the camera lens close to the window of the housing without any obvious gap (gap

only enough for focus), to avoid light leak or halo.

6. Wire camera connectors to the connector board of the housing, cover the housing and lock it up.

Size of bracket adapter

PG Joint

Open the snap-ﬁt

Pull the holder backward

Align to the hole,

take off the ﬁxing board

2Loosen screws

Screw Hole

Holder

Camera

6Assemble ﬁxing board

Route cables and tighten PG joint

V3 20 190716
