Brickcom VD-100A Bedienungsanleitung

Megapixel Day & Night

Vandal Dome Network Camera

VD-100A/VD-130A V2 Series

Quick Installation Guide

Quality Service Group

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is exposed to

rain or liquid.

3. Do not set the camera device near any

heat sources. (Ex: television and oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the

specific operating temperature.

6. Do not set the camera device in any wet

and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. Network Camera

(VD-100A/VD-130A)

b. Dry bag, Strap Tie

c. Product CD

d. Location Sticker

e. Warranty Card

f. Screws Bag

g. Terminal Block

h. Allen Key

i. Easy Installation Guide

j. High Power PoE (Optional)

2. Device Description

RJ45 Connector

DIDO, Audio Terminal BlockDIDO, Audio Terminal Block

Power Terminal Block

Conduit Plug and Conduit Hole

LENS

IR LEDs

Video Adjustment Screw

Tilt Screw

Reset Button

SD Card Capacity (*)

The network camera is compatible with SD/SDHC (Maximum 32GB) cards.

NOTE - (*) These are optional features. Please refer to the Product List for

the full list of optional features that are available for this product.

SD/SDHC Card Slot (*)

Focus Control Bar

View Angle Control Bar

3. Hardware Installation

Remove the vandal dome cover:

3.1 Use the Allen Key to unscrew the four screws and remove the dome

cover from the camera device.

For SD/SDHC card (*) installation:

3.2 Insert the SD/SDHC card into the SD/SDHC card slot.

NOTE –The SD/SDHC card is not included in the product package

and needs to be purchased separately.

For dry bag installation:

3.3 Place the dry bag on the camera device and secure it using the strap

tier.

Open the conduit hole:

3.4 The conduit hole will allow for air to circulate through the camera

device .Use a screwdriver to unscrew either the conduit plug from the

side of the camera device.

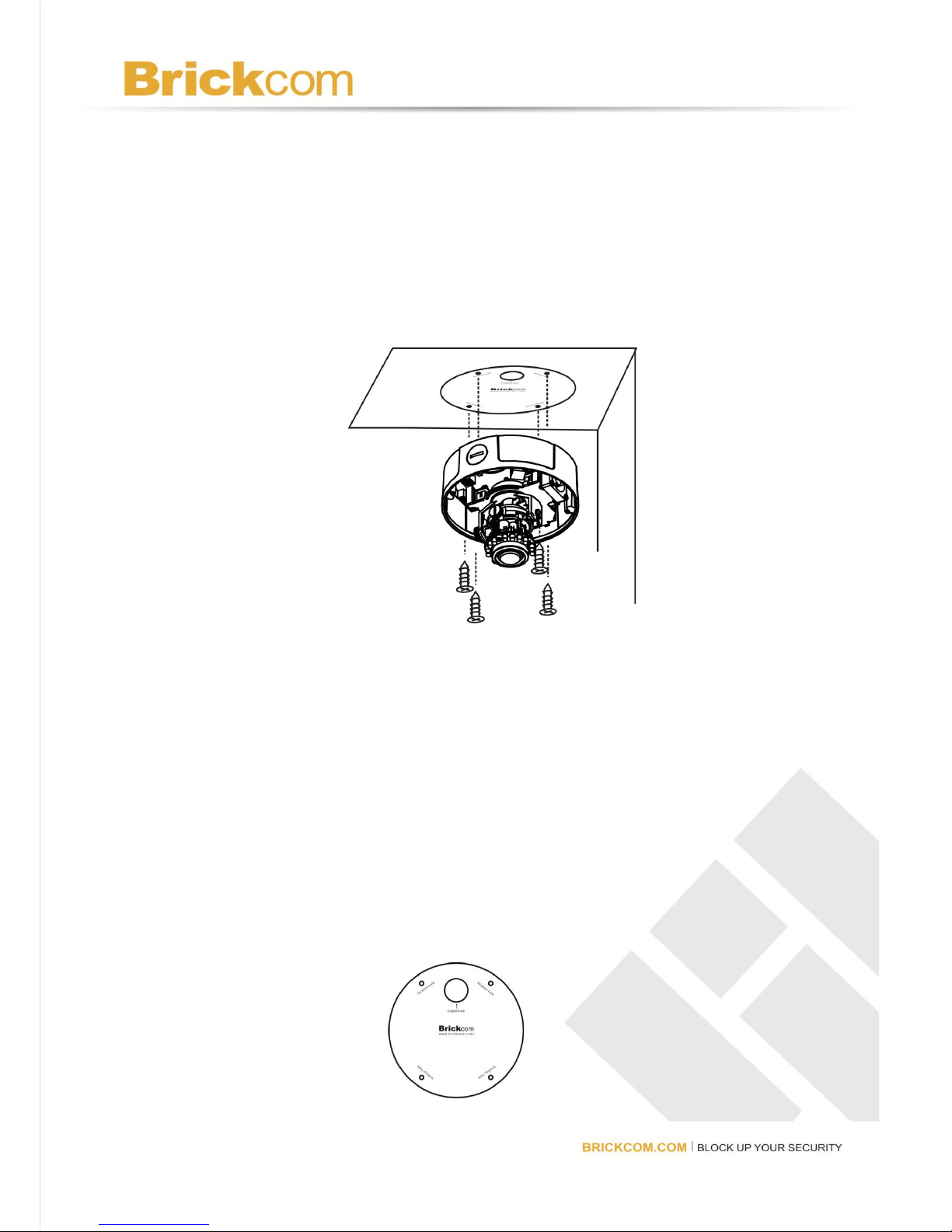

For ceiling installation:

3.5 Mount the camera device on the desired location. Use the

screwdriver from the product package to tighten the four included

screws clockwise through the four holes on each side of the device

as shown below. The best place to mount the camera is into a

ceiling stud.

WARNING: Do not mount the camera on a soft material. The camera may

fall and be damaged.

For wall installation:

3.6 Chose the location on the wall to place the camera. Attach the

location sticker to the desired spot.

3.7 Drill four holes through the center of the four location holes on the

sticker.

3.8 Hammer the four plastic anchors which are provided in the product

package into the four location holes.

3.9 Mount the camera on the wall and position the four screw slots over

the plastic anchors. Insert the screws into the holes and use the

screwdriver to tighten the screws clockwise until they are secure.
