1

Easy Installation Guide

Megapixel Day & Night

Fixed Dome Network Camera

Fixed Dome Series

English

2

Step 1. Check Package Contents

a. Network Camera

(Fixed Dome series)

b. Terminal Block

c. Product CD d. Location Sticker

e. Warranty Card f. Screw bag

g. Easy Installation Guide h. L-WM-01(Optional)

3

Step 2 .Hardware Installation

WARNING - Do not mount the camera on a soft material. The camera may fall

and be damaged.

This document is for easy installation purpose only; please refer to the user

manual for more details.

1. Remove the dome cover from the camera device.

I. PoE, Power, DIDO, Audio Connection

1) Insert the PoE(1) / DC12V(2), DIDO and Audio cable(3) through conduit hole A or B.

4

ll. For SD/SDHC card (*) installation:

2. For wall installation:

1) Chose the location on the wall to place the camera. Attach the location sticker to the desired

spot.

2) Drill four holes through the center of the four location holes on the sticker.

3) Hammer the four plastic anchors which are provided in the product package into the four

location holes.

5

4) Mount the camera on the wall and position to four screw slots over the plastic anchors. Insert

the screws into the holes and use the screwdriver to tighten the screws clockwise until they are

secure.

5) Place the dome cover back on the camera device.

3. For ceiling installation:

The user needs the four screws which are included in the product package and a screwdriver.

Mount the camera on the desired location and use the screwdriver to tighten the screws clockwise

through the four holes on each side of the device as shown below. The best place to mount the

camera is into a ceiling stud.

6

4. Adjust the Lens Focus Range and Zoom Viewing (This Function is only apply for FD-300Ap)

I. How to adjust the Lens angle?

1) Release the pan screw and then rotate the lens to left or right. After completion, tighten the pan

screw.

2) Release the tilt screw on both side of the device and then rotate the lens to up or down. After

completion, tighten the tilt screw.

3) Release the video adjustment screw and then adjust the lens direction. After completion,

tighten the video adjustment screw.

7

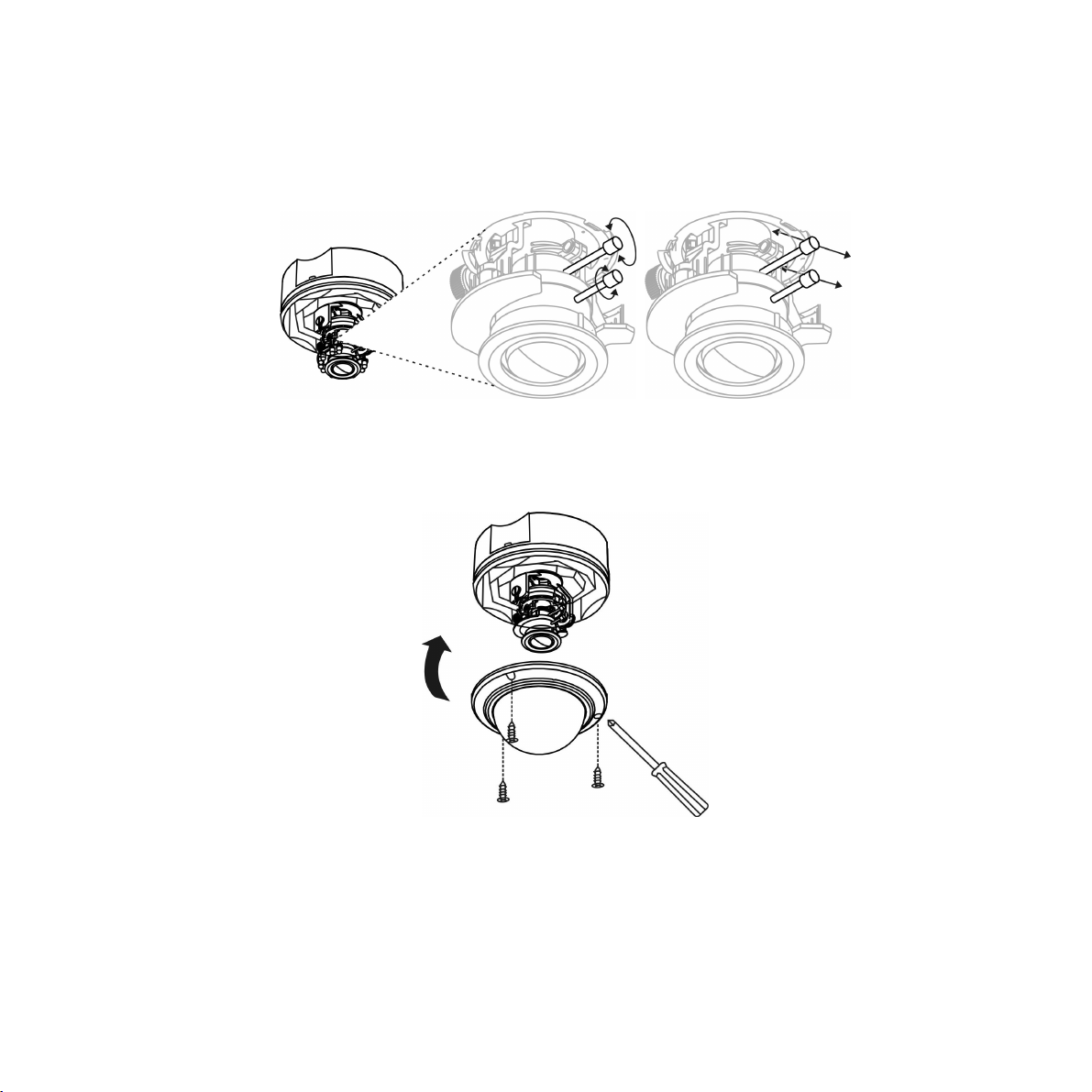

II. How to adjust the view angle and focus range

1) Release the view angle controller and then moving the controller bar left or right to adjust the

view angle. After completion, tighten the view angle controller.

2) Release the focus controller and then moving the controller bar left or right to adjust the focus

range. After completion, tighten the focus controller.

5. Complete the Installation

1) Turn the visible dome cover slowly until it gets the best position.

2) Use the screwdriver and attached four dome screws to secure the dome cover to the camera

device.

8

Step 3.Install Camera and Network Devices

I. Basic Connection (Without PoE)

1) Connect the power adaptor to the camera device.

2) Connect the camera to the Ethernet hub using a RJ45 Ethernet cable.

II. Power over Ethernet (PoE) Connection

1) Connect the camera to a PoE-enabled hub via single Ethernet cable.

2) Connect the camera to a non-PoE hub via PoE Injector.

9

Step 4.Install the EasyConfig Software

Insert the CD into the CD-ROM, and follow the instructions of the InstallShield Wizard to finish

installation.

Step 5.Launch EasyConfig

Launch the EasyConfig software, and click on the camera from the survey list to connect.

Follow the EasyConfig software to configure the camera’s IP address and EasyLinkTM settings.

Step 6.Installation Completed

Click <Live View> to view the live video feed of the network camera.
