- 1 -

Easy Installation Guide

Megapixel Day & Night

Mini Dome Network Camera

MD-500Ap & MD-300N Series

- 2 -

Package Contents

Step 1.Please check to make sure that the product package contains all the accessories listed

below.

a. MD-500ASeries/ MD-300Np Series

b. Product CD

c. Adjusting Lens Tool

d. Allen Key

e. Warranty Card

f. Screw Bags(2pcs)

g. Dry Bag / Double-Sided Tape

h. Alignment Sticker

i. Easy Installation Guide

j. Mounting Adapter

k. TV out Connector Cable (Optional)

l. M12* / RJ-45** Connector (Optional)

- 3 -

Step 2. Hardware Installation

WARNING: Do not mount the camera on a soft material. The camera may fall and be

damaged.

Use the enclosed Allen key to detach the dome cover from the camera device.

As remove the cover, please be aware of the Microphone Line.

1. Remove the dry bag from its package. Use the double-sided tape to stick the dry bag

onto the designate position inside of the dome cover.

2. Choose the location on the wall or ceiling to place the camera. Attach the location sticker

to the desired spot. For ceiling installation, the best place to mount the camera is into a

ceiling stud.

- 4 -

3. Drill three holes through the center of the three location holes on the sticker.

4. Hammer the three plastic anchors which are provided in the product package into the

three location holes.

5. Please use the “Waterproof Tape”to wrap around the RJ45 connector, DC12V connector, USB

connector (*), in order to prevent water to seep in to the connectors.

6. The user needs the three screws which are included in the product package and a

screwdriver. Mount the camera on the wall or ceiling and position the three screw slots

over the plastic anchors. Insert the screws into the holes and use the screwdriver to

tighten the screws clockwise until they are secure.

- 5 -

7. If you use the Mounting Adapter, please use the three screws which are included in the

product package and a screwdriver. Mount the camera on the wall or ceiling and

position the three screw slots over the plastic anchors. Insert the screws into the holes

and use the screwdriver to tighten the screws clockwise until they are secure.

Lens Adjustment

1. Please use the”Adjusting Lens tool”to adjust the lens to the desired position.

2. Focus

a. Rotate the lens until the image in the Live View page is focused.

b. Remove the tool directly.

- 6 -

Step 3.Camera Connection

The New Mini Dome Series is DC12V and PoE compliant, so there are two options for

connecting the camera to a power and Ethernet source. The camera can either be

connected to a PoE-enabled switch or a non-PoE switch.

a. If using a PoE-enabled switch:

Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

b. If using a non-PoE switch:

i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.

ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.

iii. Use a standard power cable to connect the PoE Injector to a power outlet.

- 7 -

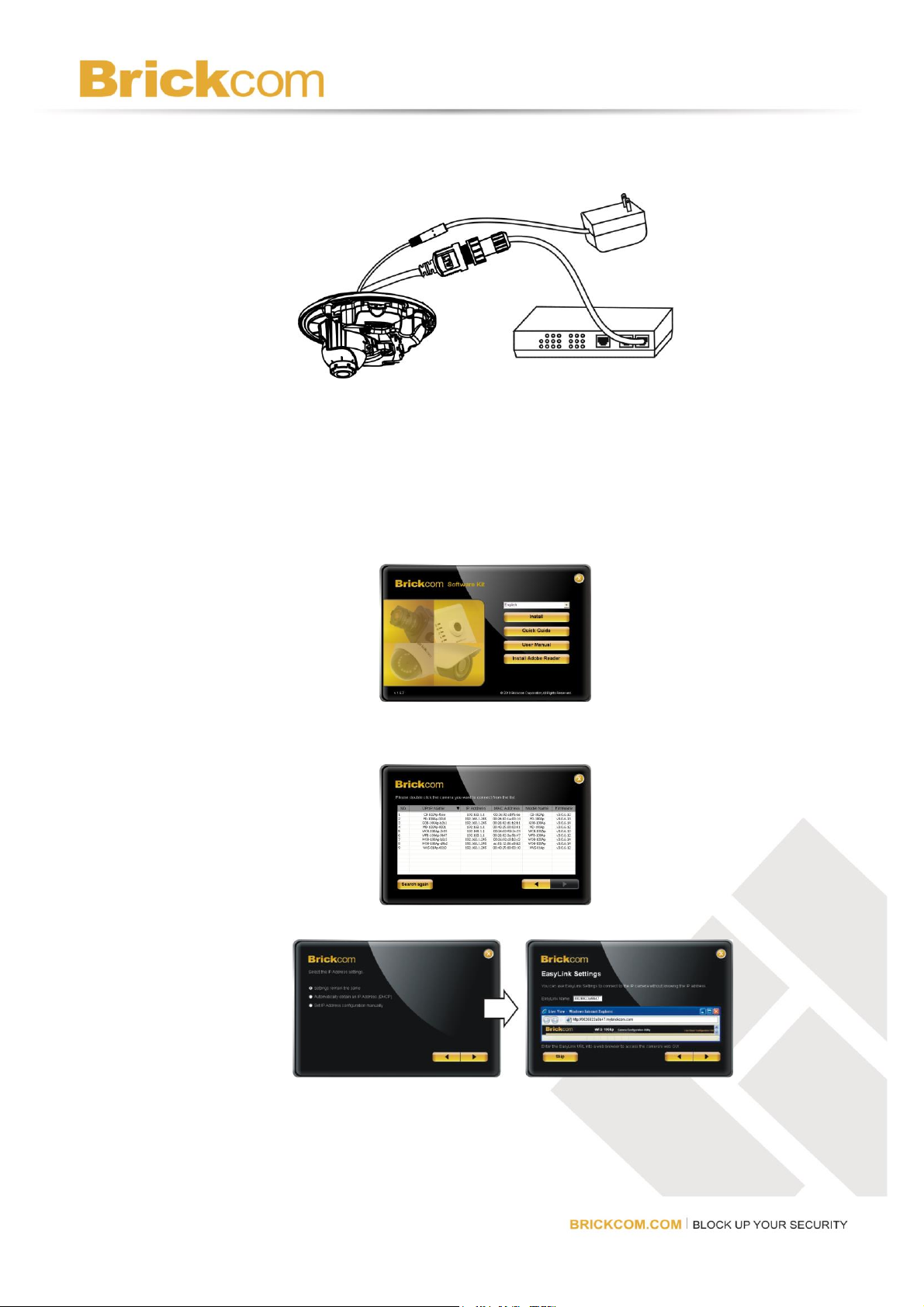

c. If using the DC12V for the power Supply. The RJ45 cable will be data

transmission.

Complete the Installation

Place the dome cover back on the camera device using the Allen Key.

Step 4.Install the EasyConfig Software

Insert the CD into the CD-ROM, and follow the instructions of the InstallShield Wizard to finish

installation.

Step 5.Launch EasyConfig

Launch the EasyConfig software, and click on the camera from the survey list to connect.

Follow the EasyConfig software to configure the camera’s IP address and EasyLinkTM settings.

Step 6.Installation Completed

Click <Live View> to view the live video feed of the network camera.
