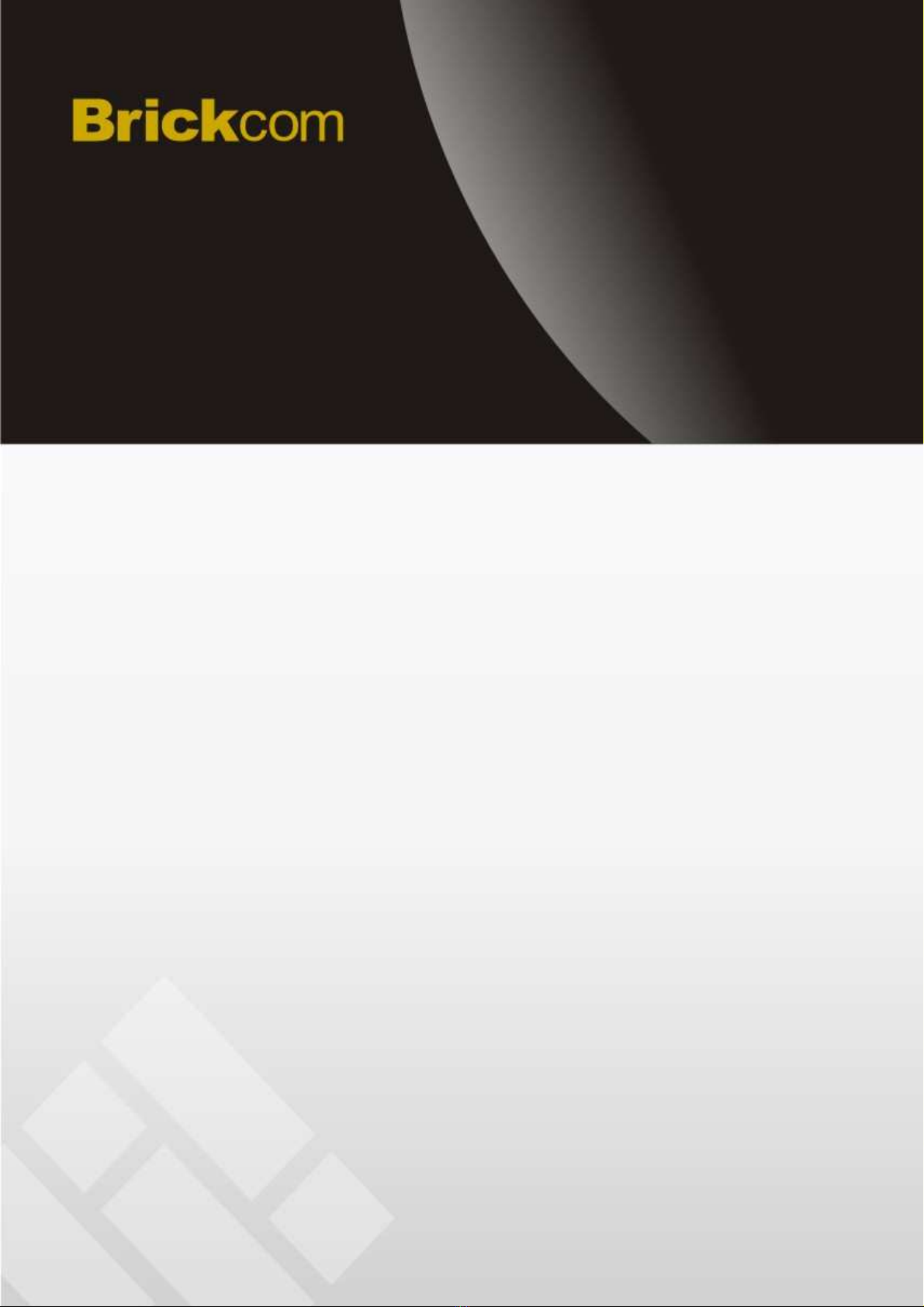

Brickcom OSD-040 36x Series Bedienungsanleitung
36x Outdoor Speed Dome
Network Camera
OSD-040 36x Series
Mounting Accessories
Installation Guide
Quality Service Group
Speed Dome Package Content
a. Speed Dome Camera
b. Mount Kit
c. I/O Cable
d. Waterproof Rubber
e. Warranty Card
f. M5 Screw
g. Dome Cover
h. Lubricant
i. Product CD
j. Screw for Dome Cover
k. Easy Installation Guide
1. Ceiling Mounting with Straight Tube
The Straight Tube is available in different length: 25 cm and 30 cm.
Follow the steps to mount the Speed Dome Camera with the Straight Tube.
1. Ensure that the ceiling can support the weight of the Speed Dome Camera
and Straight Tube.
2. Make a cable entry hole on the ceiling.
3. Attach the Straight Tube to the ceiling with proper screws and screw
anchors.
4. Connect the supplied Waterproof Rubber to the Straight Tube.
5. Run the cable(s) through the Straight Tube with the supplied I/O Cable’s
connector coming out of the outlet.
NOTE: After running the cable(s) through the Straight Tube, please block
the Tube’s outlet with the supplied sponge to avoid insects entering the
tube.
6. Thread the cable(s) through the supplied camera top holder and join the
holder to the Straight Tube with the supplied screws and washers. Then
adjust the Waterproof Rubber over the joint.
7. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
8. Attach the Speed Dome Camera to the top holder with the supplied M5
screw and washers.
Ceiling Mounting
2.
Wall Mounting
2.1 Mini/Standard Pendent Moun
t
Follow the steps below to mount the Speed Dome Camera with the
Mini/Standard Pendent Mount.
1. Make a cable entry hole on the wall to insert the cables through the
bracket or push up the Cable Entry Board on the Mini/Standard Pendent
Mount’s Mounting Plate to place the cables.
2. Attach the Mini/Standard Pendent Mount to the wall with proper screws
and screw anchors.
3. Attach the supplied Waterproof Rubber to the Mini Pendent Mount.
4. Run the cable(s) through the Mini/Standard Pendent Mount with the I/O
Data Cable’s connector coming out of the outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. The sponge can be placed in two
ways as shown in the illustrations below.
Cable Entry Board
Mounting Plate
Sponge
Sponge
5. Thread the cable(s) through the supplied camera top holder and join the
holder to the Mini/Standard Pendent Mount with the supplied screws and
washers. Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Attach the Speed Dome Camera to the top holder with the supplied M5
screw and washers.
Wall Mounting: Mini Pendent Mount
Wall Mounting: Standard Pendent Mount
2.2 Wall Box Mounting
Follow the steps to mount the Dome Camera with the Standard/Mini Pendent
Mount and Wall Box Mount.
1. Make a cable entry hole on the wall to insert the cable(s).
2. Attach the Wall Box Mounting to the wall with proper screws and screw
anchors. Then run the cable(s) through the hole on the Wall Box Mounting
with the I/O Cable’s connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Wall Box Mounting with
the supplied screws and washers. Then thread the cable(s) through the
Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent
Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied
sponge to avoid insects entering the Pendent Mount. See the
illustrations in section2.1 Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Speed Dome Camera to the top holder with the supplied screw
and washers.
Wall Box Mounting: Wall Box Mounting + Standard/Mini Pendent Mount
3. Corner Mount
3.1 Corner Mounting Plate
Follow the steps below to mount the Speed Dome Camera with the Corner
mounting Plate and Standard/Mini Pendent Mount.
1. Make a cable entry hole on the wall to insert the cable(s).
2. Attach the Corner Mounting Plate to the corner of the wall with the proper
screws and screw anchors. Then run the cable(s) through the hole on the
Corner Mounting Plate with the I/O Cable’s connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Corner Mounting Plate
with the supplied screws and washers. Then thread the cable(s) through
the Standard/Mini Pendent Mount with the cable(s) coming out of the
Pendent Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and connect the top holder to
the Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Dome Camera to the top holder with the supplied M5 screw and
washers.
Corner Wall Mounting: Corner Mounting Plate + Standard/Mini Pendent Mount
3.2 Corner Box Mounting
Follow the steps below to mount the Speed Dome Camera with the Corner Box
and Standard/Mini Pendent Mount.
1. Make a cable entry hole on the wall to insert the cable(s).
2. Attach the Corner Box to the corner of the wall with proper screws and
screw anchors. Then run the cable(s) through the hole on the Corner Box
with the I/O Cable’s connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Corner Box with the
supplied screws and washers. Then thread the cable(s) through the
Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent
Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Attach the Dome Camera to the top holder with the supplied M5 screw
and washers.
Corner Box Mounting: Corner Box + Standard/Mini Pendent Mount
4. Pole Mount
4.1 Pole Direct Mounting
Follow the steps below to mount the Speed Dome Camera with the Pole Direct
Mount and Standard/Mini Pendent Mount.
1. Fasten the Pole Direct Mounting onto a pole using the stainless straps.
2. Run the cable(s) through the hole on the Pole Direct Mount with the I/O
Cable’s connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Pole Direct Mounting
with the supplied screws and washers. Then thread the cable(s) through
the Standard/Mini Pendent Mount with the cable(s) coming out of the
Pendent Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Speed Dome Camera to the top holder with the supplied M5
screw and washers.
Pole Direct Mounting: Pole Direct Mounting + Standard/Mini Pendent Mount
4.2 Pole Box Mounting
Follow the steps below to mount the Speed Dome Camera with the Pole Box
Mount and Standard/Mini Pendent Mount.
1. Fasten the Pole Direct Mounting onto a pole using the stainless straps.
2. Run the cable(s) through the hole on the Pole Box Mount with the I/O
Cable’s connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Pole Box Mount with
the supplied screws and washers. Then thread the cable(s) through the
Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent
Mount’s outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Speed Dome Camera to the top holder with the supplied M5
screw and washers.
Pole Box Mounting: Pole Box Mount + Standard/Mini Pendent Mount
