Introduction: Broadcom BCM94321COEX2 PCI-E Mini Card User's Guide

Before you begin

Things you should know

BCM94321COEX2 network

Before you begin

Obtain the following information from your network administrator (if you are a home user, obtain this information from the person that

installed your wireless access point):

●Network names (SSID) of the specific wireless networks that you want to connect to.

●WEP (Wired Equivalent Privacy) key information (if any) for the networks you want to connect to.

●For Microsoft® Windows® networking, your customer name and workgroup name.

●For your network account, your user name and password.

●Your IP address (if not using a DHCP server)

Things you should know

When you start your computer, your Broadcom BCM94321MC PCI-E Mini card detects certain wireless networks that are

within range. Before you can connect to these and other wireless networks, you must configure a profile for each network using the

information you obtained from your network administrator.

WEP is a security protocol for wireless local area networks (defined in the IEEE 802.11gstandard) that encrypts data sent over radio

waves. The use of the WEP key is optional and can be enabled or disabled. If the network you are connecting to has enabled WEP, you

must also enable WEP in the network profile and set the WEP key to match the WEP key used by the network. Otherwise, you cannot

connect to the network.

Broadcom BCM94321COEX2 network

The Broadcom BCM94321MC solution allows you to make a wireless connection to a network, as illustrated below.

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

Back to Contents Page

Using the Broadcom Wireless Utility: Broadcom

AirForce™ 54g™ and Intensi-fi™ Wireless Network

Adapter User Guide

Overview

Utility Components

Overview

The Broadcom Wireless Utility enables you to do the following network tasks:

●Manage your wireless networks and create network connection profiles (Wireless Networks tab)

●Connect to available networks (utility icon in notification area)

●Get information about the network status and signal and noise of your network connection (Link

Status tab)

●View current and accumulated statistics (Statistics tab)

●Find out which broadcasting networks are in range and search for nonbroadcasting networks (Site

Monitor tab)

●Run tests on the wireless network adapter (Diagnostics tab)

●Get date and version information about the utility, and software, hardware, and location details

about your wireless network adapter (Information tab)

●Manually add or delete trusted servers and enable the manual acceptance or rejection of auto-

provisioning and A-ID group changes (Wireless Networks tab)

●Manually import EAP-FAST PACs (Wireless Networks tab)

In the utility, you can open Wireless Network Wizard to connect to a basic network or create an ad hoc

network, or you can open the Wireless Network Connection Settings tool to connect to an advanced

network. To do any of the other tasks, click the tab that is associated with the described task.

To start using the utility, right-click the utility icon in the notification area, and then click Open Utility.

If the icon is not available, open Broadcom Wireless Utility in Control Panel.

NOTE: The utility icon may not appear exactly as shown here. See "Table 1. Signal

Strength Indicated by the Broadcom Wireless Utility Icon."

Utility Components

Utility components include the utility icon in the notification area, the six utility tabs, and Wireless Network

Connection Settings.

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (1 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

Utility Icon

To do any of the following tasks or operations, right-click the utility icon, and then click the appropriate

item.

●Open the on-line Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

(Help Files)

●Open About WLAN Card Utility to view links to Broadcom and Broadcom Customer Support websites

and to view the version and date of the utility (About)

●Hide the utility icon (Hide Tray Icon)

●Disable or enable the radio (Disable/Enable Radio)

●Connect to any of the networks for which you have created a connection profile and are within

range (Connect To)

●Open the utility to the Wireless Networks tab (Open Utility)

●Open the utility to the Link Status tab to view information about the connection (Status)

●Display a log of your wireless network events (Display Log)

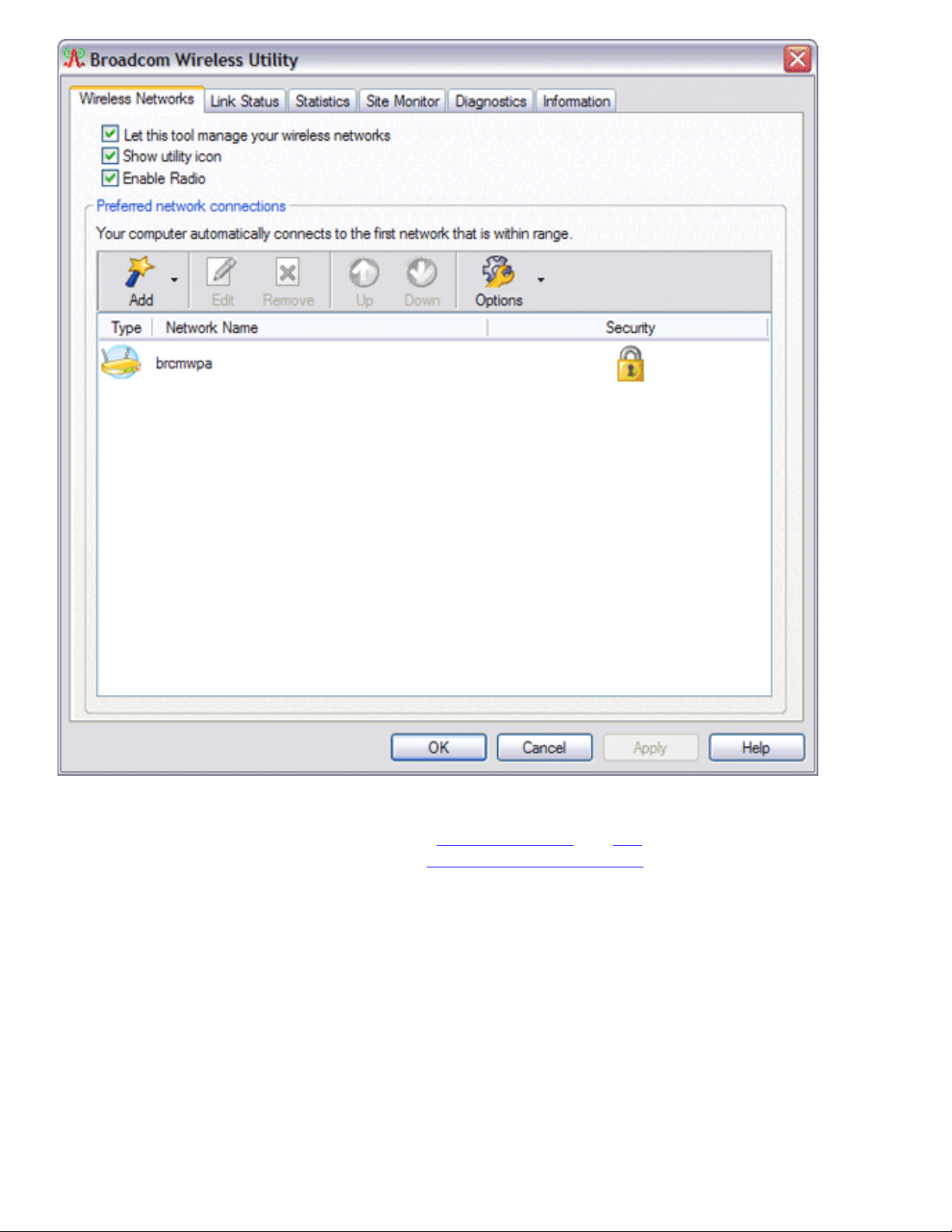

Wireless Networks Tab

The Wireless Networks tab has tools that enable you to do the following:

●Use the utility to manage your wireless networks

●Add a network connection profile

●Edit or remove a network connection profile

●Change the order in which profiles are listed under Preferred network connections

●Connect to any listed network without changing its order in the list

●Disable or enable the radio (Disable/Enable Radio)

●Show or hide the utility icon in the notification area

●Choose which type of network to access

●Lock or unlock a preferred network connection profile

●Save your wireless network connection profiles as a WPN file

●Import a WPN file

●Manually add or delete trusted servers and enable the manual acceptance or rejection of auto-

provisioning and A-ID group changes

●Manually import EAP-FAST PACS

On the Add menu, you can use either the wireless network wizard that is available from Broadcom

Wireless Utility (see Connecting to a Basic Network or Creating an Ad Hoc Network Using the Wireless

Network Wizard") or the utility (see "Connecting to an Advanced Network Using the Broadcom Wireless

Utility") to add a network connection profile.

To use the utility to manage your wireless networks, select the Let this tool manage your wireless

networks check box.

To add a network connection profile, click the Add arrow, and then click either Use Wizard (basic

network) or Use Utility (advanced network).

To edit or remove a network connection profile, right-click the network name, and then click either Edit or

Remove.

To change the order in which profiles are listed under Preferred network connections, click the network

name, and then click either the up arrow or down arrow.

To connect to any listed network without changing its order in the list, right-click the network name, and

then click Connect.

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (2 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

To disable the radio, clear the Enable radio check box. To enable the radio, select the Enable radio

check box.

To hide the utility icon , clear the Show utility icon check box. To show the icon, select the Show

utility icon check box.

To choose the type of network to access, click the Options arrow, and then click Advanced.

To lock or unlock a preferred network connection profile, right-click anywhere in the row that lists the

network name, and then click Lock or Unlock, as appropriate.

NOTE: You must have system or administrator rights to be able to lock or unlock a

profile.

To save your wireless network connection profiles to a WPN file, click the Options arrow, and then click

Export (see "Saving Preferred Network Connection Settings to a File" in "Connecting to an Advanced

Network Using the Broadcom Wireless Utility."

To import a WPN file, click the Options arrow, and then click Import (see "Importing a Preferred Network

Connection Profiles File" in "Connecting to an Advanced Network Using the Broadcom Wireless Utility."

Click Apply or OK after you change any of the settings for the change to take effect.

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (3 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

For networks that use the EAP-FAST authentication method, the Wireless WLAN Card Utility automatically

adds trusted servers to the trust list and accepts auto-provisioning and AID (A-ID) group changes by

default. The utility also enables you to import a Protected Access Credential (PAC). From the utility, you

can also manually add or delete trusted servers, enable the manual acceptance or rejection of auto-

provisioning and A-ID group changes, or import or delete PACS, as described in the following instructions.

In general, you should use the default settings. Therefore, check with the network administrator before you

make any changes.

To manually add a trusted server to the trust list

1. Open Broadcom Wireless Utility.

2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and

then click Administrator Settings.

3. Click Add.

4. Type the A-ID friendly name of the trusted server in the space provided, and then click OK.

To delete a trusted server from the trust list

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (4 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

1. Open Broadcom Wireless Utility.

2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and

then click Administrator Settings.

3. In the Trust list (A-ID), click the name of the trusted server you want to delete, and then click

Delete.

To change the default settings for administering Cisco Compatible Extensions

1. Open Broadcom Wireless Utility.

2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and

then click Administrator Settings.

3. Clear the Disable auto-provision prompt check box to enable manual acceptance or rejection.

4. Clear the Disable A-ID group change prompt check box to enable manual acceptance or

rejection.

5. Select the Auto-provision PAC only once check box to auto-provision a Protected Access

Credential (PAC) only once.

To import or remove an EAP-FAST PAC

1. Open Broadcom Wireless Utility.

2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and

then click Manage PACs.

3. To import a PAC: in Protected Access Credentials, click Add, and then follow the on-screen

instructions.

NOTE: The PAC is password protected, so you must know the password to be able to import the

PAC.

-or-

To remove a PAC: click anywhere in the row that lists the PAC, and then click Remove.

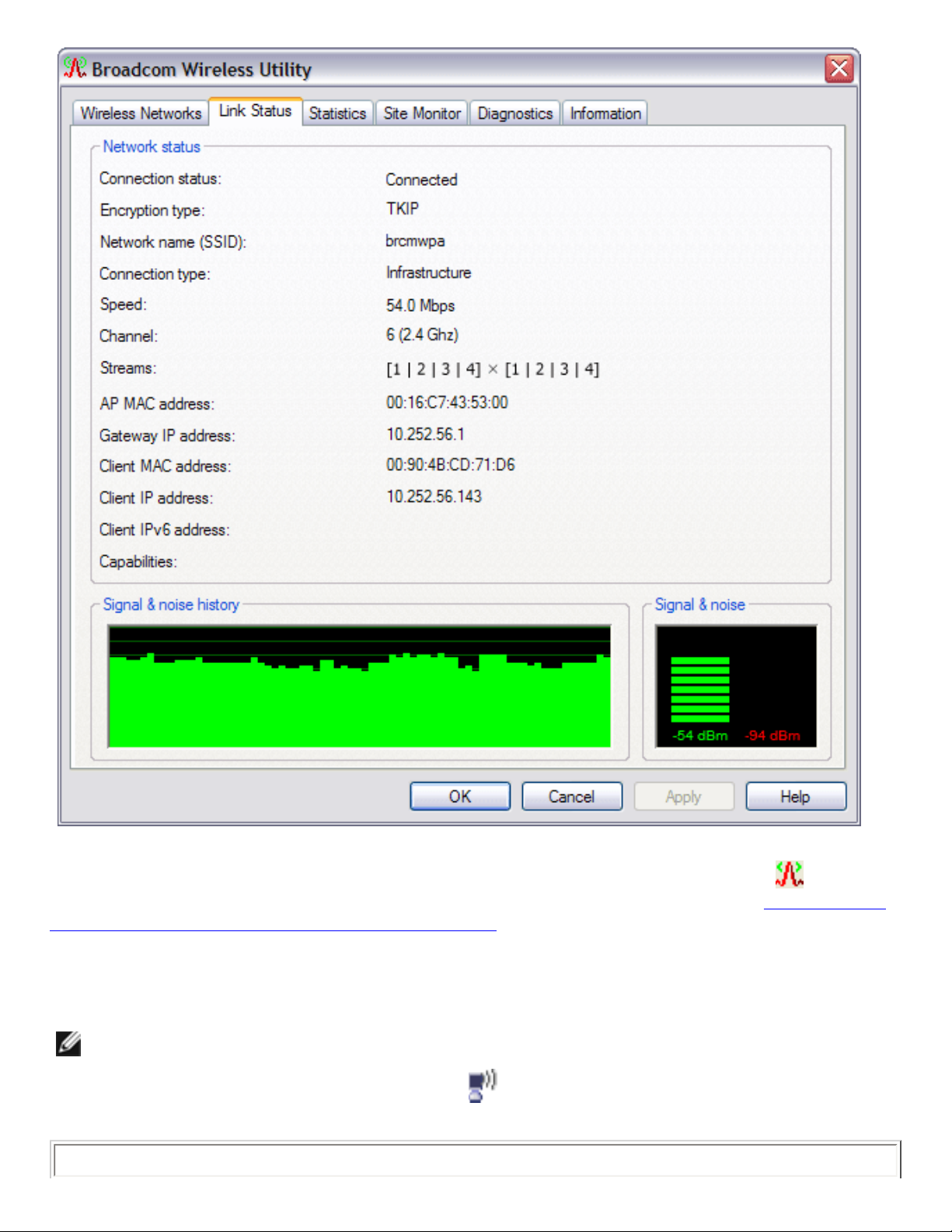

Link Status

Network status and signal and noise information about your network connection is displayed on the Link

Status tab.

NOTES:

●For IEEE 802.11n connections, speed is indicated by an MCS value.

●Radio Stream information is provided only for IEEE 802.11n connections.

●Click anywhere in the Signal & noise history box to change the type of history

being displayed. Successive clicks change the type from both signal and noise,

to noise only, to signal only, and back to both signal and noise.

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (5 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

The status of your network connection is also indicated by the appearance of the utility icon . The

number and color of the radio waves indicates the strength or weakness of the signal (see Table 1. Signal

Strength Indicated by the Broadcom Wireless Utility Icon for details).

To view the network name (SSID), speed, signal strength rating, connection status, and the client IP

address of the network connection, move your mouse pointer over the utility icon.

NOTE: On computers running Windows XP, you also can view the SSID, speed, signal

strength rating, and connection status by moving your mouse pointer over the

Windows Wireless Network Connection icon in the notification area.

Table 1. Signal Strength Indicated by the Broadcom Wireless Utility Icon

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (6 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

Icon

Appearance Indicated Received Signal Strength

The signal strength is very good or excellent.

The signal strength is weak. See Troubleshooting for suggested action.

No signal is being received. See Troubleshooting for probable causes and suggested

action.

The radio is disabled or switched off. See Troubleshooting for suggested action.

Statistics

On the Statistics tab under Current, the following current statistics are shown:

●Network name (SSID)

●Connection time

●Packets sent

●Packets received

●Sent packets lost

●Received packets lost

●Total packets lost (%)

Under Accumulated, the following accumulated statistics are shown:

●Packets sent

●Packets received

●Sent packets lost

●Received packets lost

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (7 of 12)4/25/2006 1:57:41 PM

Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide

Site Monitor

Basic Site Monitor

On the Site Monitor tab, the basic Site Monitor displays information about wireless routers/APs and ad hoc

networks that are within range. To sort the list, click the column heading that shows the characteristic you

want to sort by. For example, to sort by signal strength, click Signal .

To view information about a particular wireless router/AP or ad hoc network, click anywhere in the row that

lists the wireless router/AP or ad hoc network. The network information is shown under Selected Network.

To view or change the network connection settings for a particular wireless router/AP or ad hoc network,

right-click anywhere in the row that lists the wireless router/AP or ad hoc network, and then click Edit—if

you have not yet created a network connection profile for that particular wireless router/AP or ad hoc

network and want to do so, click Add .

To see the information elements for a listed AP or ad hoc network, right-click anywhere in the row that lists

the AP or ad hoc network, and then click Show Information Elements.

file:///P|/User%20Manuals/WLANCard-UM302_LaLa/HTML/utility.htm (8 of 12)4/25/2006 1:57:41 PM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Broadcom PCI-Karte Handbücher

Broadcom

Broadcom BCM943227HMB Bedienungsanleitung

Broadcom

Broadcom BCM94350ZAE Bedienungsanleitung

Broadcom

Broadcom BCM94360CS2 Bedienungsanleitung

Broadcom

Broadcom BCM94356Z Bedienungsanleitung

Broadcom

Broadcom BCM943227HM4L Bedienungsanleitung

Broadcom

Broadcom BCM94318MPG Bedienungsanleitung

Broadcom

Broadcom BCM943162ZP Bedienungsanleitung

Broadcom

Broadcom BCM943142Y Bedienungsanleitung

Broadcom

Broadcom BCM94321MC Bedienungsanleitung

Broadcom

Broadcom BCM943602CDP Bedienungsanleitung

Broadcom

Broadcom BCM94322HM8L Bedienungsanleitung

Broadcom

Broadcom 95 Series Bedienungsanleitung

Broadcom

Broadcom BCM94312HMG Bedienungsanleitung

Broadcom

Broadcom BCM94322USA Bedienungsanleitung

Broadcom

Broadcom 9460-16i Bedienungsanleitung

Broadcom

Broadcom BCM94352HMB Bedienungsanleitung

Broadcom

Broadcom BCM943224HMS Bedienungsanleitung

Broadcom

Broadcom BRCM1020 Bedienungsanleitung

Broadcom

Broadcom BCM94321CB2 Bedienungsanleitung

Broadcom

Broadcom BCM94352Z Bedienungsanleitung

Broadcom

Broadcom AirForce 54g Intensi-fi BCM94313HMG2L Bedienungsanleitung

Broadcom

Broadcom BCM94301MPL Bedienungsanleitung

Broadcom

Broadcom BCM94306MP Bedienungsanleitung

Broadcom

Broadcom BCM943602CS Bedienungsanleitung

Beliebte PCI-Karte Handbücher anderer Marken

ERMA

ERMA SSI 1417 Bedienungsanleitung

SIIG

SIIG CyberSerial Dual PCI Montageanleitung

Moxa Technologies

Moxa Technologies CP-102E Bedienungsanleitung

I-Bus

I-Bus IBC2602 Bedienungsanleitung

Exsys

Exsys EX-60102 Bedienungsanleitung

Chelsio Communications

Chelsio Communications T5 Series Bedienungsanleitung

Conrad Electronic

Conrad Electronic 97 46 71 Bedienungsanleitung

Micro Innovations

Micro Innovations USB650A Bedienungsanleitung

KTI Networks

KTI Networks KF-310 Bedienungsanleitung

Asus

Asus SpaceLink WL230 Bedienungsanleitung

SIIG

SIIG SC2475 Bedienungsanleitung

TRENDnet

TRENDnet TEW-703PI Bedienungsanleitung

Belkin

Belkin F5D7000F Bedienungsanleitung

Pericom

Pericom PI7C7100 Bedienungsanleitung

ADLINK Technology

ADLINK Technology cPCI-3548 Bedienungsanleitung

Digium

Digium TE200 Series Bedienungsanleitung

Allo.com

Allo.com 2nd Gen E1/T1/J1 Bedienungsanleitung

Western Digital

Western Digital FireWire PCI Adapter Bedienungsanleitung
