Typ 2300

1 QUICKSTART

The operating instructions describe the entire life cycle of the device.

Keep these instructions in a location which is easily accessible

to every user and make these instructions available to every new

owner of the device.

Important Safety Information!

Read Quickstart carefully and thoroughly. Study in particular

the chapters entitled “Basic Safety Instructions” and “Intended

use”.

▶Quickstart must be read and understood.

Quickstart explains, for example, how to install and start-up the

device.

A detailed description of the device can be found in the oper-

ating instructions for Type 2300.

The operating instructions can be found on the Internet at:

www.burkert.com

1.1 Denition of term / abbreviation

In these instructions, the term “device” always refers to the

angle-seat control valve type 2300.

The abbreviation “Ex” used in these instructions always stands

for “explosion-protected”.

english

Symbols

Typ 2300

2 SYMBOLS

DANGER!

Warns of an immediate danger!

▶Failure to observe the warning may result in a fatal or serious

injury.

WARNING!

Warns of a potentially dangerous situation!

▶Failure to observe the warning may result in serious injuries or

death.

CAUTION!

Warns of a possible danger!

▶Failure to observe this warning may result in a moderately

severe or minor injury.

NOTE!

Warns of material damage!

Important tips and recommendations.

Refers to information in these operating instructions or in

other documentation.

▶designates instructions for risk prevention.

→designates a procedure which you must carry out.

3 INTENDED USE

Non-authorized use of the globe valve Type 2106 may be a

hazard to people, nearby equipment and the environment.

▶The device is designed for the controlled ow of liquid and

gaseous media.

▶In the potentially explosion-risk area the globe valve type

2106 may be used only according to the specication on

the separate Ex type label. For use observe the additional

information enclosed with the device together with safety

instructions for the explosion-risk area.

▶Devices without a separate Ex type label may not be used in

a potentially explosive area.

▶The admissible data, the operating conditions and condi-

tions of use specied in the contract documents, operating

instructions and on the type label are to be observed during

use. These are described in the chapter entitled “7 Technical

data”.

▶Protect device from damaging environmental inuences (e.g.

radiation, humidity, steam, etc.). If anything is unclear, consult

the relevant sales oce.

▶The device may be used only in conjunction with third-party

devices and components recommended and authorized by

Bürkert.

▶Correct transportation, correct storage and installation and

careful use and maintenance are essential for reliable and

faultless operation.

english

Basic Safety Instructions

Typ 2300

4 BASIC SAFETY INSTRUCTIONS

These safety instructions do not make allowance for any

•contingencies and events which may arise during the installation,

operation and maintenance of the devices.

•local safety regulations; the operator is responsible for observing

these regulations, also with reference to the installation personnel.

DANGER!

Risk of injury from high pressure in the equipment or device!

▶Before working on equipment or device, switch o the pres-

sure and deaerate or drain lines.

Risk of injury from electric shock (when electrical component

installed).

▶Before reaching into the device, switch o the power supply

and secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulati-

ons for electrical equipment!

WARNING!

Risk of injury when opening the actuator!

The actuator contains a tensioned spring. If the actuator is

opened, there is a risk of injury from the spring jumping out!

▶The actuator must not be opened.

Risk of injury from moving parts in the device!

▶Do not reach into openings.

Danger due to loud noises.

▶Depending on the operating conditions, the device may generate

loud noises. More detailed information on the likelihood of loud

noises is available from the relevant sales oce.

▶Wear hearing protection when in the vicinity of the device.

CAUTION!

Risk of burns!

The surface of the device may become hot during long-term

operation.

▶Do not touch the device with bare hands.

Leaking medium when the packing gland is worn.

▶Regularly check relief bore for leaking medium.

▶If the media is hazardous, protect the area surrounding the dis-

charge point against dangers.

General hazardous situations.

To prevent injury, ensure:

▶That the system cannot be activated unintentionally.

▶Installation and repair work may be carried out by authorized

technicians only and with the appropriate tools.

▶After an interruption in the power supply or pneumatic

supply, ensure that the process is restarted in a dened or

controlled manner.

▶The device may be operated only when in perfect condition

and in consideration of the operating instructions.

▶Observe the safety regulations specic to the plant for applica-

tion planning and operation of the device.

english

General Information

Typ 2300

▶The plant operator is responsible for the safe operation and han-

dling of the plant.

▶The general rules of technology apply to application planning

and operation of the device.

To prevent damage to property of the device, ensure:

▶Supply the media connections only with those media which are

specied as ow media in the chapter entitled “7 Technical data”.

▶Do not put any loads on the valve (e.g. by placing objects on

it or standing on it).

▶Do not make any external modications to the valves. Do not

paint the body parts or screws.

▶The exhaust air may be contaminated with lubricants in the

actuator.

▶Do not transport, install or remove heavy devices without the aid

of a second person and using suitable auxiliary equipment.

5 GENERAL INFORMATION

5.1 Contact addresses

Germany

Bürkert Fluid Control Systems

Sales Centre

Christian-Bürkert-Str. 13-17

D-74653 Ingelngen

Tel. + 49 (0) 7940 - 10 91 111

Fax + 49 (0) 7940 - 10 91 448

E-mail: [email protected]

International

Contact addresses are found on the Internet under:

www.burkert.com

5.2 Warranty

The warranty is only valid if the device is used as authorized in

accordance with the specied application conditions.

5.3 Information on the internet

The operating instructions and data sheets for Type 2300 can be

found on the Internet at: www.burkert.com

english

Structure and function

Typ 2300

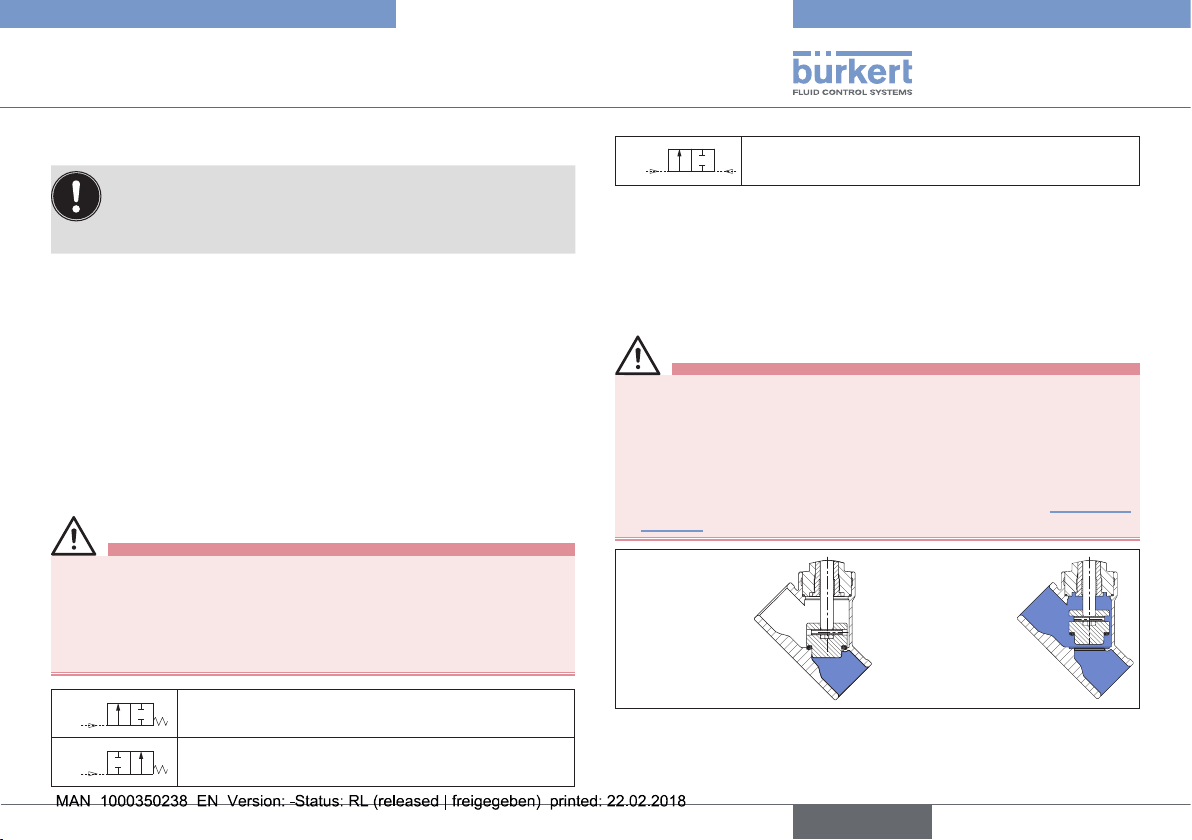

6 STRUCTURE AND FUNCTION

The angle-seat control valve Type 2300 can be operated

only in combination with the following control units:

Positioner Type 8692, 8694, 8696 and 8792;

Process controller Type 8693 and 8793.

6.1 Structure

The valve seats are incorporated directly. Via a dowel pin, the

control cone is modularly coupled to the actuator spindle for quick

changeovers. The ow direction is always below seat.

6.2 Function

The seat of the valve is always closed against the medium ow.

Spring force (CFA) or pneumatic pilot pressure (CFB and CFI) gen-

erates the closing force on the control cone. The force is transferred

via a spindle which is connected to the actuator piston.

6.2.1 Control functions (CF)

WARNING!

For control function I – Danger if pilot pressure fails!

For control function I control and resetting occur pneumatically.

If the pressure fails, no dened position is reached.

▶To ensure a controlled restart, rst pressurize the device with

pilot pressure, then switch on the medium.

Normally closed by spring action

Normally open by spring action

Actuating function via reciprocal pressurization

6.2.2 Flow direction below the seat

Depending on the version, the valve is closed against the

medium ow with spring force (control function A, CFA) or with

pilot pressure (control function B or I, CFB or CFI).

As the medium pressure is under the control cone, this pressure

contributes to the opening of the valve.

WARNING!

Medium may be discharged if minimum pilot pressure is too

low or medium pressure too high!

If the minimum pilot pressure is too low for CFB and CFI or the

permitted medium pressure is exceeded, leaks may occur.

▶Observe minimum pilot pressure.

▶Do not exceed medium pressure (see chapter “Pressure

ranges”).

Rest position

CFA

Rest position

CFB / CFI

Fig. 1: Flow direction below the seat

(Rest open/closed, closing against medium)

english

Technical data

Typ 2300

7 TECHNICAL DATA

7.1 Conformity

Type 2300 conforms with the EU Directives according to the EU

Declaration of Conformity.

7.2 Standards

The applied standards, which verify conformity with the EU Direc-

tives, can be found on the EU Type Examination Certicate and /

or the EU Declaration of Conformity.

According to Pressure Equipment Directive the following operating

conditions must be observed:

Line connection

orice

Maximum pressure for compressible uids

of Group 1 (hazardous gases and vapors

according to Art. 3 No. 1.3 Letter a rst

dash)

DN65 15 bar

7.3 Type label

00285864

2300 A 25M PTFE VA

Tmed -10°C - +130°C

Flow 1 2

Pilot 5,5 - 7bar

Pmed 12bar

W1XMS

G1 Kvs16

CE identication

Permitted pilot pressure

Permitted medium

pressure

Type

Control function (CF)

Orice of the seat /

actuator size

Sealing material Body material

Identication

number

Flow direction

Permitted medium

temperature

Date of

manufacture

Main dimensions

of line connection

Flow capacity in standard

production conditions

english

Technical data

Typ 2300

7.4 Operating conditions

Observe permitted ranges on the type label of the

device!

7.4.1 Temperature ranges

Actuator

size

[mm]

Actuator

material

Medium

Environment1)

Seat seal

steel - steel

Seat seal

PTFE - steel

ø 50

PPS -10 ...

+185 °C

-10 ...

+130 °C

-10 ...

+60 °C 2)

-10 ...

+100 °C 3)

ø 70

ø 90

ø 130

Tab. 1: Temperature ranges

If a pilot valve/control unit is used, the max. ambient

temperature is +55 °C.

The angle-seat control valve is suitable for steam

sterilization.

2) Pilot air ports with push-in connector

3) Pilot air ports with threaded bushing

7.4.2 Control medium

In conjunction with pneumatic control units (positioner and

process controllers), pilot air according to DIN ISO 8573-1 must

be used:

•Class 3 (for water content),

•Class 5 (for dust and oil content).

The specication is described in detail in the operating

instructions of the respective positioner / process con-

troller in the chapter entitled “Technical data”.

7.4.3 Pressure ranges

Maximum pilot pressure for valves without pneumatic control

units

Actuator size [mm] Actuator material Max. permitted

pilot pressure 4)

ø 50, 70, 90 PPS 10 bar

ø 130 7 bar

Tab. 2: Pilot pressure for valves without pneumatic control units

4) 4)

Observe the maximum pressure range according to the

type label!

Minimum control pressure Pmin for control function A

Actuator size

[mm]

50 / 70 / 90 130

(Connection size

DN40 and DN50)

130

(Connection size

DN65)

Pmin [bar] 5.5 5.5 5.6

Tab. 3: Minimum control pressure for CFA

english

Technical data

Typ 2300

Pilot pressure for control function B

Actuator

size

Connection

size [mm]

Pilot pressure [bar] Max. per-

mitted medium

pressure [bar]

for medium pressure

0 bar max

ø 50 mm

15 4.6 6.6 16

20 5.1 7.0 9

25 5.1 7.0 5

ø 70 mm

15 4.4 5.3 16

20 5.2 6.8 16

25 5.2 7.0 12

32 5.2 7.0 6

ø 90 mm

25 2.4 4.2 16

32 2.4 5.3 16

40 2.5 6.5 16

50 2.5 7.0 14

ø 130 mm

40 2.7 4.5 16

50 2.7 5.6 16

65 2.7 7.0 16 (15*)

Tab. 4: Pilot pressure for control function B

* According to Pressure Equipment Directive for compressible uids of Group

1 (hazardous gases and vapors according to Art. 3 No. 1.3 Letter a rst dash)

The required minimum pilot pressure Pmin with control function B

and I (ow below the seat) is dependent on the pressure of the

medium.

The pressure diagrams are in the operating instructions on

the Internet: www.burkert.com

7.5 General technical data

Media

Control medium neutral gases, air

Flow media Water, Alcohol, Fuel, Hydraulic liquids,

Saline solutions, Lyes, Organic solvents

Installation position as required, preferably with actuator in

upright position

Protection class IP67 in accordance with

IEC 529/EN 60529

Control functions (CF) The valve seat is always closed against

the medium ow

Control function A Normally closed by spring action

Control function B Normally open by spring action

Control function I Actuating function via reciprocal pressur-

ization (not for actuator size ø 50 mm in

combination with Type 8696)

8 INSTALLATION

8.1 Safety instructions

DANGER!

Danger – high pressure in the equipment!

▶Before loosening the lines and valves, turn o the pressure

and vent the lines.

english

Andere Handbücher für 2300 Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Burkert Steuereinheit Handbücher

Burkert

Burkert 2100 series Bedienungsanleitung

Burkert

Burkert 0250 Bedienungsanleitung

Burkert

Burkert 2730 Series Bedienungsanleitung

Burkert

Burkert 2103 Series Bedienungsanleitung

Burkert

Burkert 85343 Bedienungsanleitung

Burkert

Burkert 6511 Bedienungsanleitung

Burkert

Burkert 8681 Bedienungsanleitung

Burkert

Burkert 2301 Series Bedienungsanleitung

Burkert

Burkert 2610 Bedienungsanleitung

Burkert

Burkert ELEMENT Bedienungsanleitung

Burkert

Burkert 3270 Bedienungsanleitung

Burkert

Burkert 6104 Bedienungsanleitung

Burkert

Burkert 2301 Series Bedienungsanleitung

Burkert

Burkert 2103 Series Bedienungsanleitung

Burkert

Burkert 5406 Bedienungsanleitung

Burkert

Burkert 2712 Series Bedienungsanleitung

Burkert

Burkert Robolux 2036 Bedienungsanleitung

Burkert

Burkert 2031 INOX Bedienungsanleitung

Burkert

Burkert 6213 Bedienungsanleitung

Burkert

Burkert 3320 Bedienungsanleitung

Burkert

Burkert 5282 Bedienungsanleitung

Burkert

Burkert 2712 Series Bedienungsanleitung

Burkert

Burkert 3281 Bedienungsanleitung

Burkert

Burkert 8835 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
