Cannondale Full-Suspension EBike Bedienungsanleitung

Full-Suspension EBike

Quick Start Guide

Applies to: Habit Neo, Moterra Neo,

Cujo Neo 130

Welcome to the Cannondale family.

WARNING

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK

This is a Quick Start Guide, not an

Owner’s manual.

Bicycling is an active sport with

inherent risk. A wide range of injuries

are possible. Due to the nature of

bicycle riding, the situations you

encounter while riding, you will be

exposed to the risk of serious injury,

paralysis or death. This risk cannot

be eliminated. You can minimize

the risk in many ways. Begin by

reading the complete Charge Bicycle

Owner’s manual accompanying

this bike and available online at

www.chargebikes.com, particularly

section “IMPORTANT SAFETY

INFORMATION”.

First up, thank you for buying a new Cannondale bike – we’re excited to

have you on board and to get you out riding as soon as possible. Our new

assembly process is easy-to-follow – using methods outlined in this guide

to assemble your new Cannondale at home, plus it’s even easier to do so

with a friend. Our guide will take you through the simple steps from start

to nish – you can also follow along with a how-to video, as you build your

bike, just visit: [email protected]

If you still have any questions, then our Cannondale rider support sta are

ready to help you. Feel free to give us a call at

Also, when your new bike is all assembled and ready to ride, we’d love to

check it out – please don’t forget to tag #ridecannondale in your social

media. Enjoy the ride!

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK



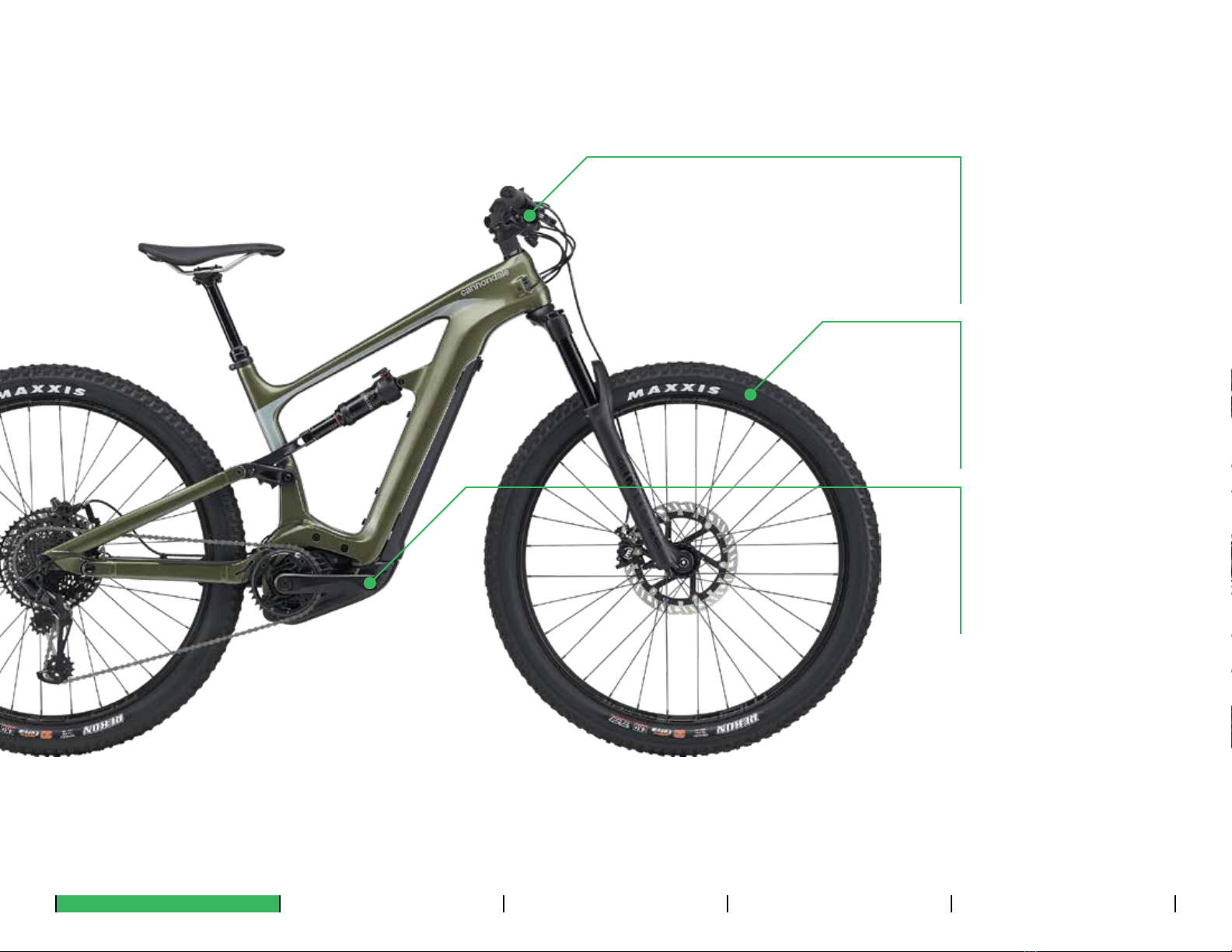

Install your

handlebars



Install your

front wheel



Install your

pedals





This video applies to three Cannondale Platforms:

• Habit Neo, Moterra Neo, Cujo Neo 130

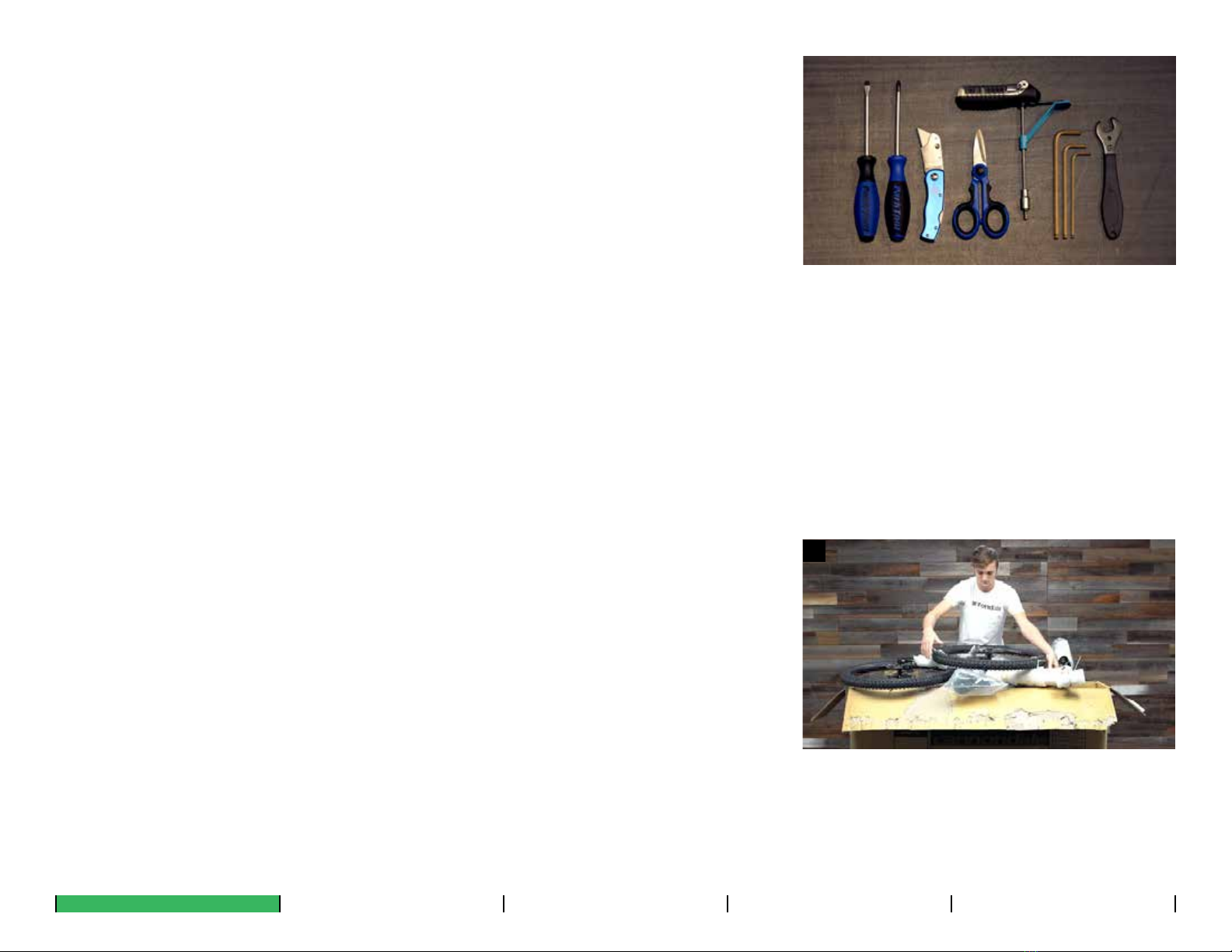

Tools Needed:

• Flat-Head Screwdriver

• Phillips-Head Screwdriver

• Box Cutter

• Scissors

Tools Included:

• Torque Wrench

• Allen Keys

• Pedal Wrench

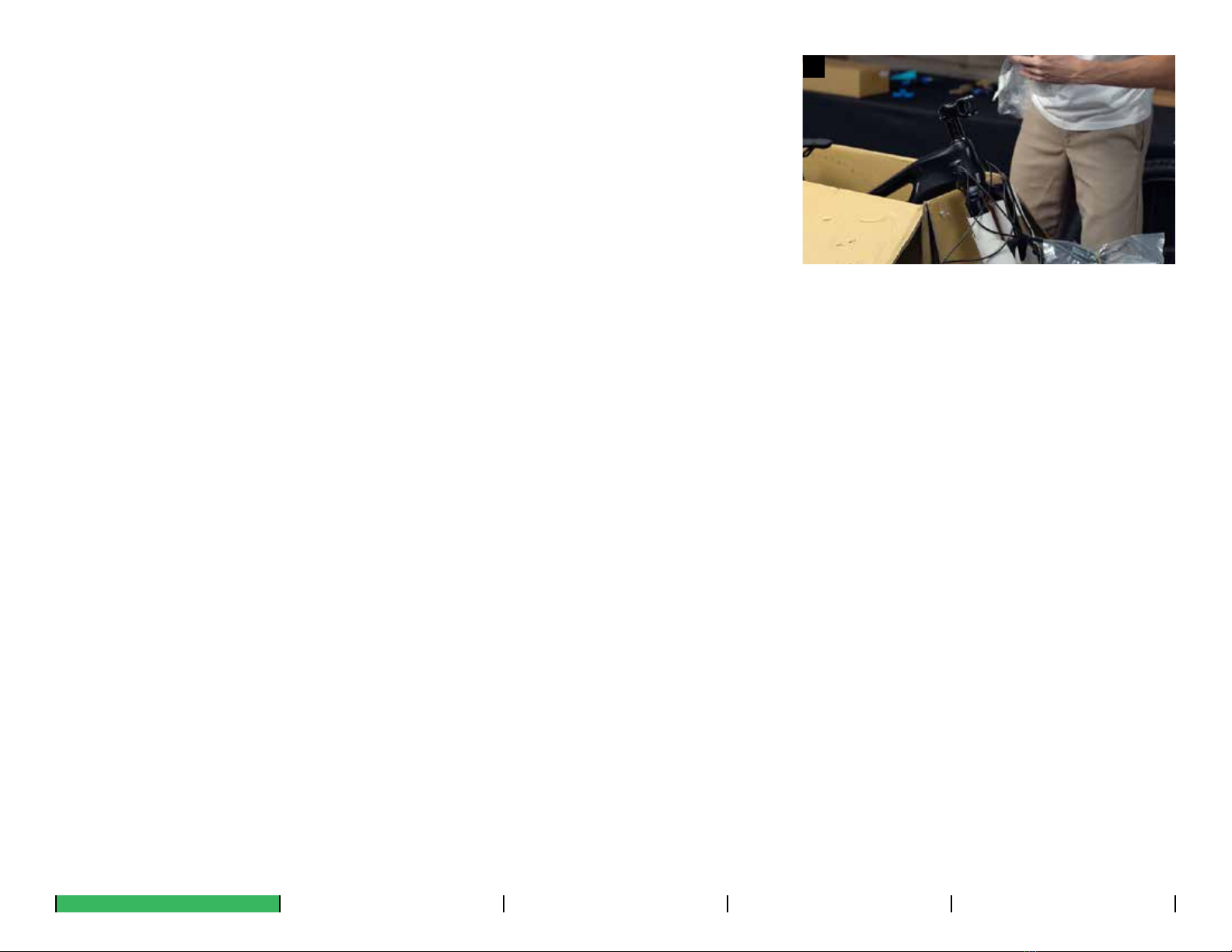

Gently lift your bike out of the box and set

it on top of the box. Make sure the attached

wheel is facing upwards

Use a at head screwdriver to carefully open the upper ap of the

box.

Prior to assembling your bike, review the pre-ride checklist and

Assembly Instruction Guide. Conrm that a builder has completed

the checklist.

Carefully lift the bike out of the box and set it onto the top of the box.

Remove the front wheel from the bike by carefully removing the zip

ties or Velcro, then remove all packaging from the wheel and set it

aside.

Remove all additional packaging from the bike.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK

Lift the entire bike up o the box and set the

rear end into the standing box.

The front fork should rest over the edge of the

box.



Carefully lift and rotate the bike, lowering it gently back into the box

with the fork overhanging the side of the box. Let the handlebar

gently hang from the frame.

Inside the small box, you’ll nd tools necessary for assembly, including

a 15mm pedal wrench, torque wrench and hex wrenches specic to

the bolts on your bike.

Once the bike is assembled, but before you ride, please read the

owner’s manual.

Locate and removethe warrantycard and set it asidewith the owner’s

manual.

         

process.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK

 A

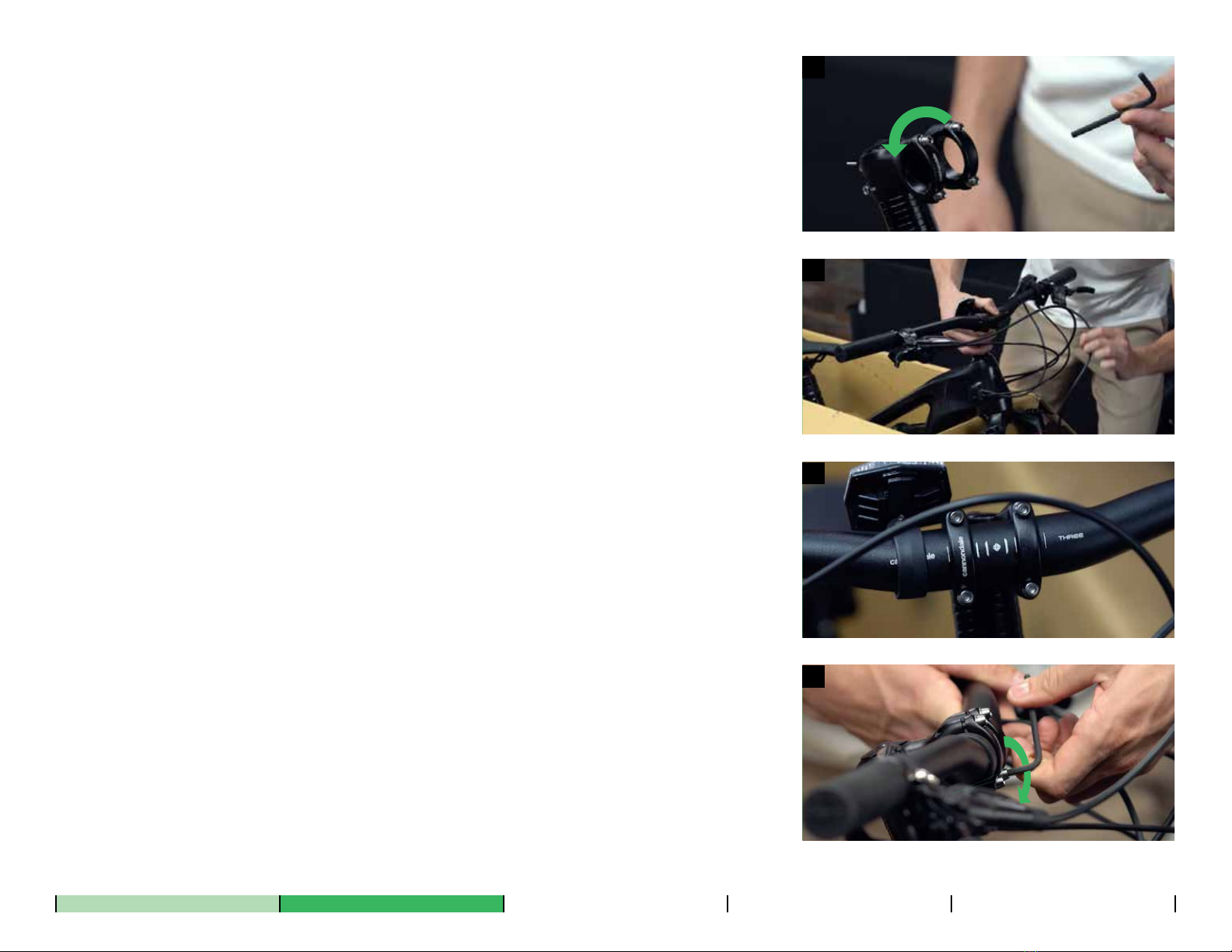

Using the included hex wrench, loosen and remove the bolts and

faceplate from the stem. The stem connects the handlebar to the

fork. Set the bolts and faceplate aside together, so you don’t lose

anything.

Place the handlebar into the stem and verify the brake hoses and

shift cables wrap around the frame cleanly, without visible kinks in

the lines.

Loosely reattach the faceplate to the stem. Take care to not tighten

one bolt more than another. Your goal is a consistent gap between

the stem and faceplate.

Center the handlebar in the stem using the markings on the bar, then

roll it back into a comfortable position.

Hand-tighten the stem bolts using the Allen key, ensuring there’s an

even gap between the stem body and faceplate at both the top and

bottom of the stem. You will fully tighten these later.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK



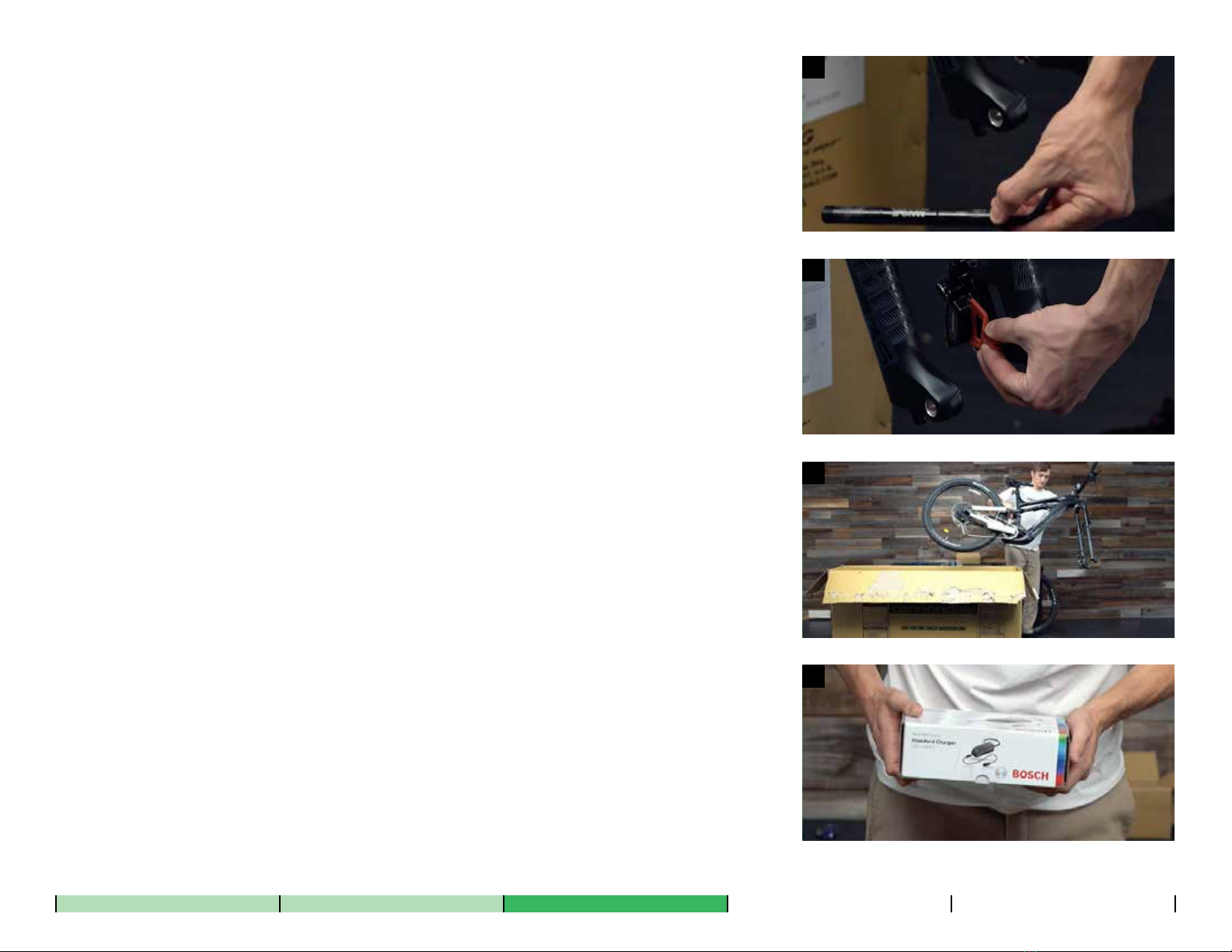

Unthread the thru-axle from the fork and place it on a clean surface.

Remove the front brake pad spacer from the brake caliper. Take care

not to pull the front brake lever when either the pad spacer or a brake

rotor is in-between the brake pads.

Carefully lift the bike out of the box and lower the fork gently onto the

ground.

Remove the e-bike charger from the larger bicycle box and set it

aside. We’ll get back to it later.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK



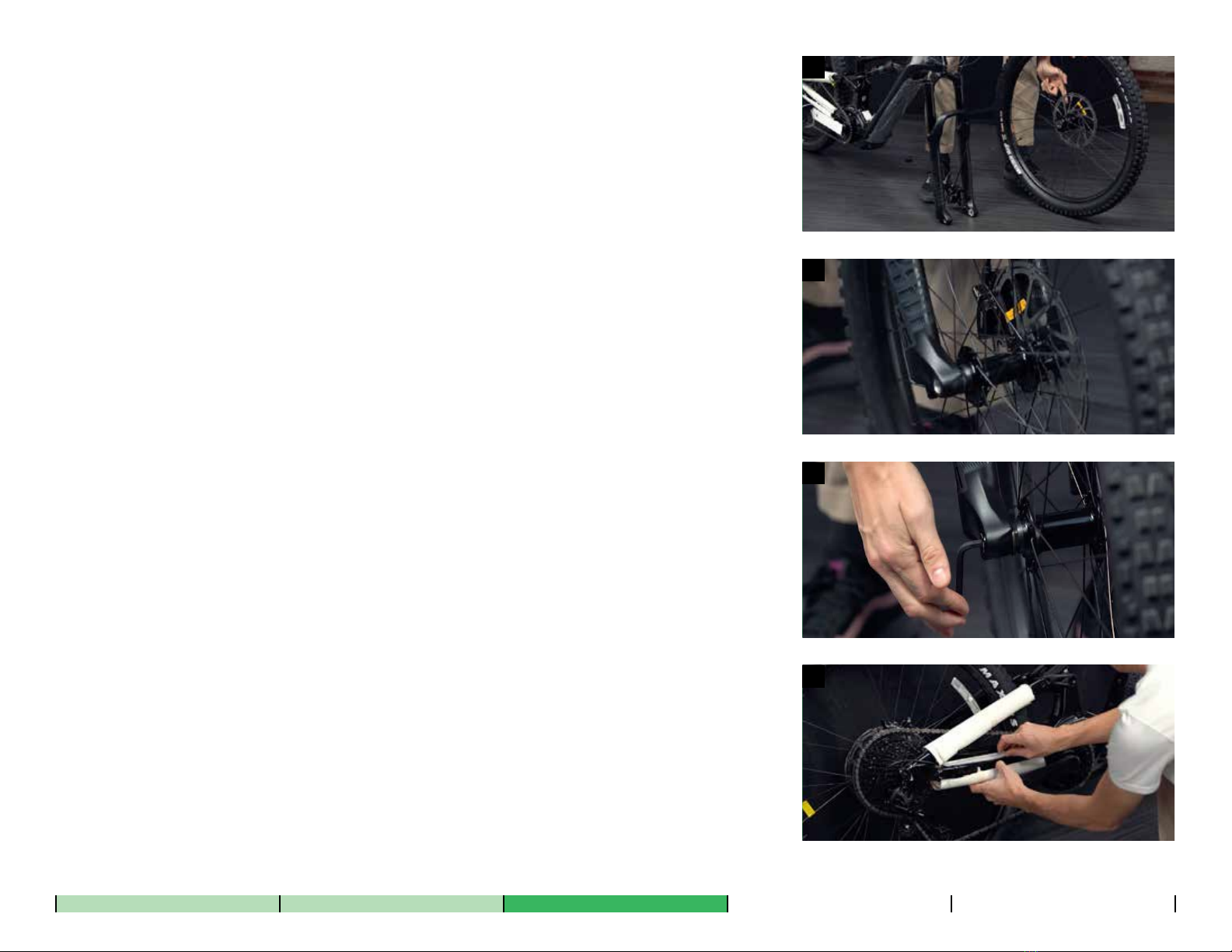

When installing the front wheel, ensure the brake rotor is on the same

side as the brake caliper on the fork.

Lift the front of the bike and roll the front wheel backward into the

fork dropouts, making sure the rotor goes in-between the brake pads.

Insert the thru-axle from the right/drivetrain side of the bike and

tighten with a 6mm hex wrench. The wrench should leave a mark on

your hand.

Remove any additional packaging from the rear of the bike.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK



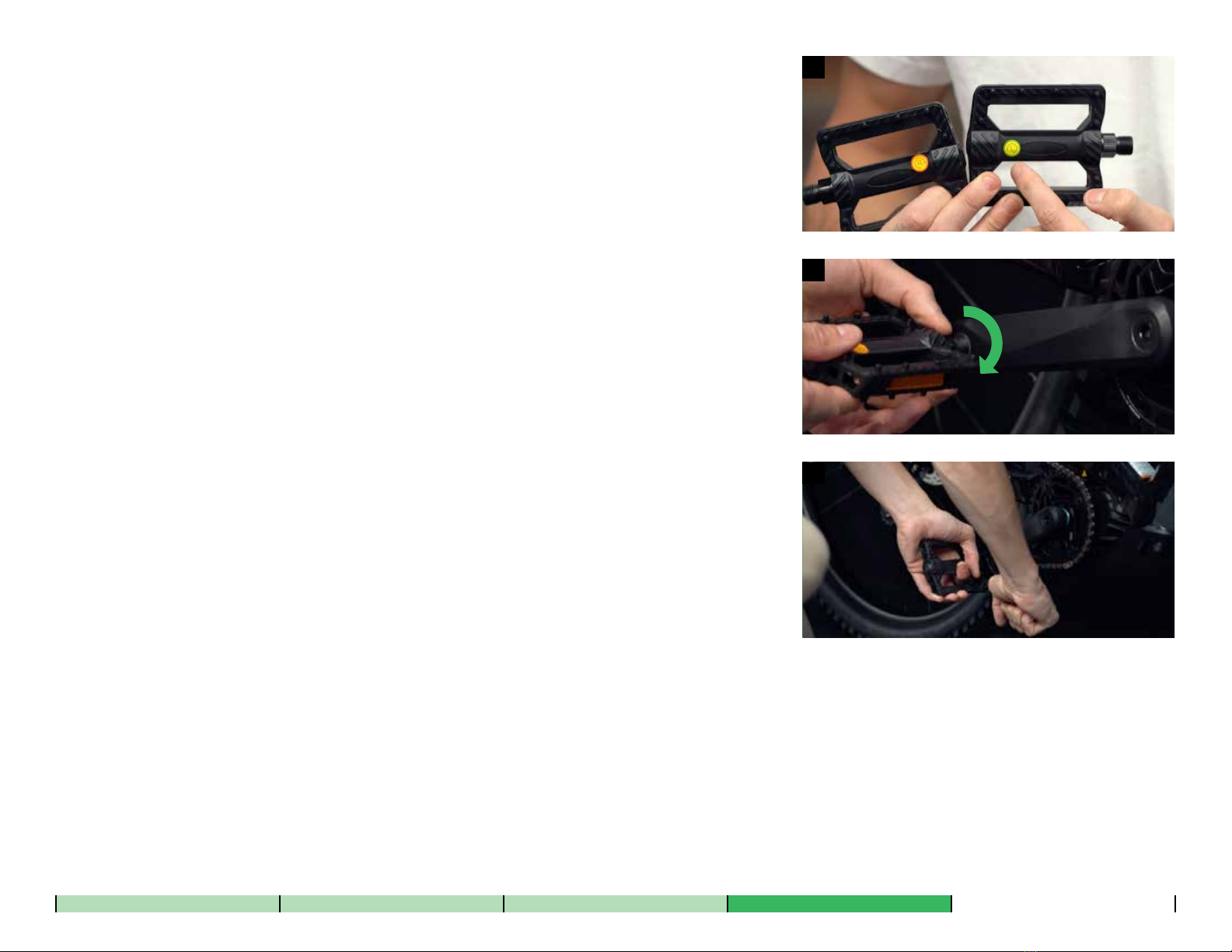

Pedals are left- and right-specic. Locate the left and right markings

on the pedals prior to installation.

Insert the right pedal (marked with R) into the right/drive side crank

arm and tighten with your ngers. Repeat with the left pedal (with an

L on it). Please note: Both pedals tighten in the direction of the front

wheel.

Use the provided pedal wrench to tighten both pedals down very

rmly.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK

 A

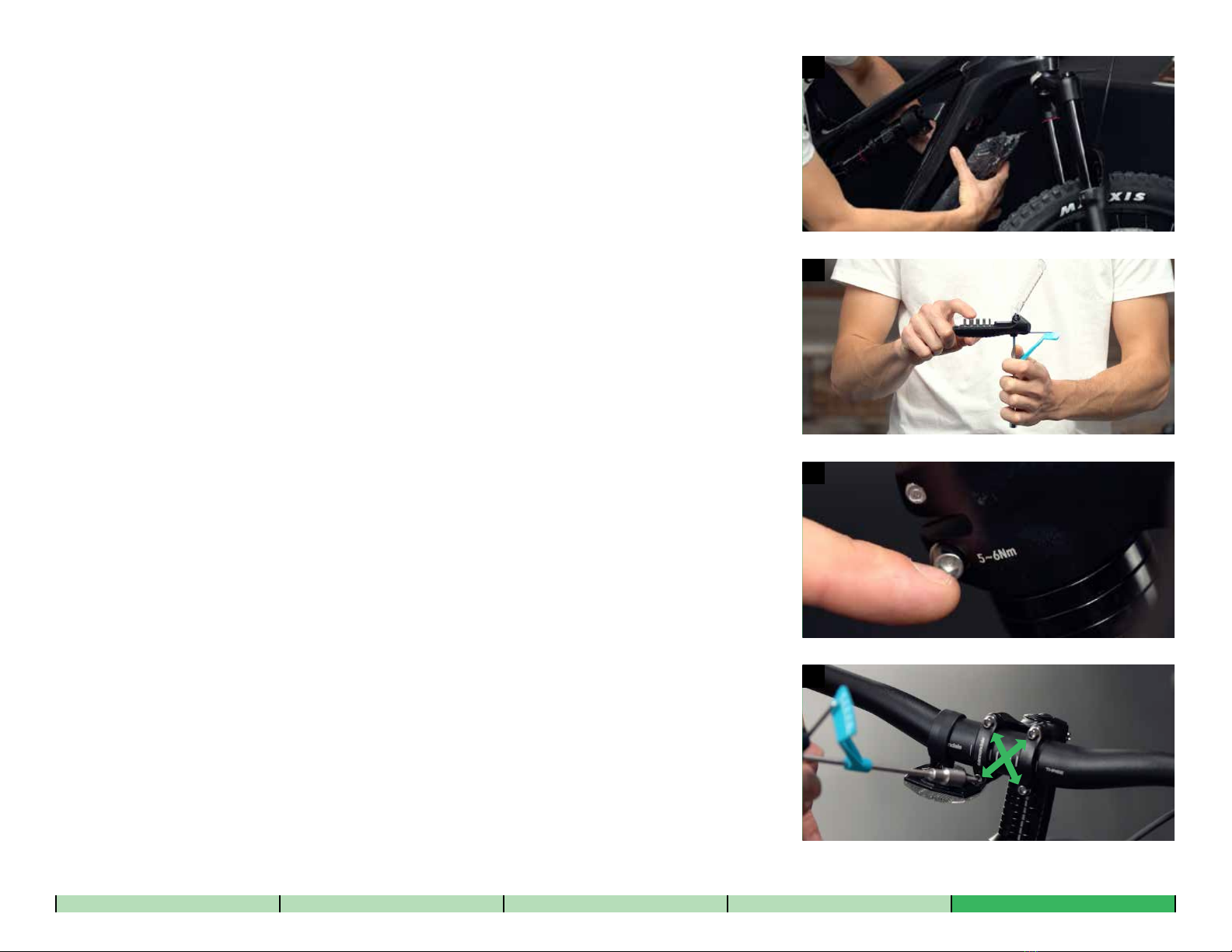

To remove the battery cover packaging, support the battery cover,

then turn the battery cover latch counterclockwise. Pull back the

packaging on the battery cover.

Once the packaging is removed, reinstall the battery cover by turning

the latch clockwise

Torque Bolts. Select the correct bit for the stem bolts and install it

into the torque wrench.

Look for the torque specication markings on the front and back

of the stem, as well as the seatpost. If these markings are absent,

torque all stem, seatpost and seat collar bolts to 7 Nm.

Tighten the stem bolts in an ‘X’ pattern and ensure the gap is even

between the stem and faceplate at all four bolts.

SET-UP STEP 2STEP 1 STEP 3 PRE-RIDE CHECK
