Canon CREATIVE PARK Bottlenose Dolphin Bedienungsanleitung

Assembly Instructions

Before gluing, crease the

paper along mountain fold

and valley fold lines and

make sure rounded sections

are nice and stiff.

Glue, scissors and other

tools may be dangerous to

young children so be sure to

keep them out of the reach

of young children.

Scissors, set square, glue

( such as woodwork glue),

metal rod, spatula, a used

pen, toothpicks, tweezers

(useful for handling small parts).

Tools and Materials Assembly tip Caution

Make a mountain fold.

Mountain fold line

(dotted line) Cut line (solid line)

Cut out.

Valley fold line

(dotted and dash line)

Make a valley fold.

3. Use scissors to cut

along the solid line.

4. The pale-colored

numbers on the glue

tabs indicate the number

of the part to be attached

there.Use a spatula for

the small glue tabs.

1. Use a set square or

ruler and a dried up pen

to score along the dotted

lines, and fold along

them to make creases.

2. Work curves into the

pieces using a metal

rod before beginning

assembly. For small

pieces,add curves before

cutting them out.

Cut out

Cut these areas out.

*Read the Assembly Instructions carefully in page order referring to the page numbers on the parts list.

Assembly Instructions : Three A4 sheets

*It is easy to get pieces mixed up if you cut them all out at once, so just cut the pieces as you need them.

Parts list (pattern) :Five A4 sheets

Bottlenose dolphins are the most well-known type of dolphins. They

live in seas all over the world except those around the Arctic and

Antarctic Circles. They are 2-4 meters long and weigh between 150

and 650 kilograms.

Although they are rather small among marine mammals, they are

outstanding jumpers with great braking force. These master swimmers

can swim approximately 45 kilometers per hour in short bursts.

They are friendly and curious creatures who are thought to

communicate among themselves by letting out various sounds or

through body expressions.

*Red numbers are numbers of each respective part. Gray numbers are numbers of parts to be attached to red parts.

PAGE01

Bottlenose Dolphin : Assembly Instructions

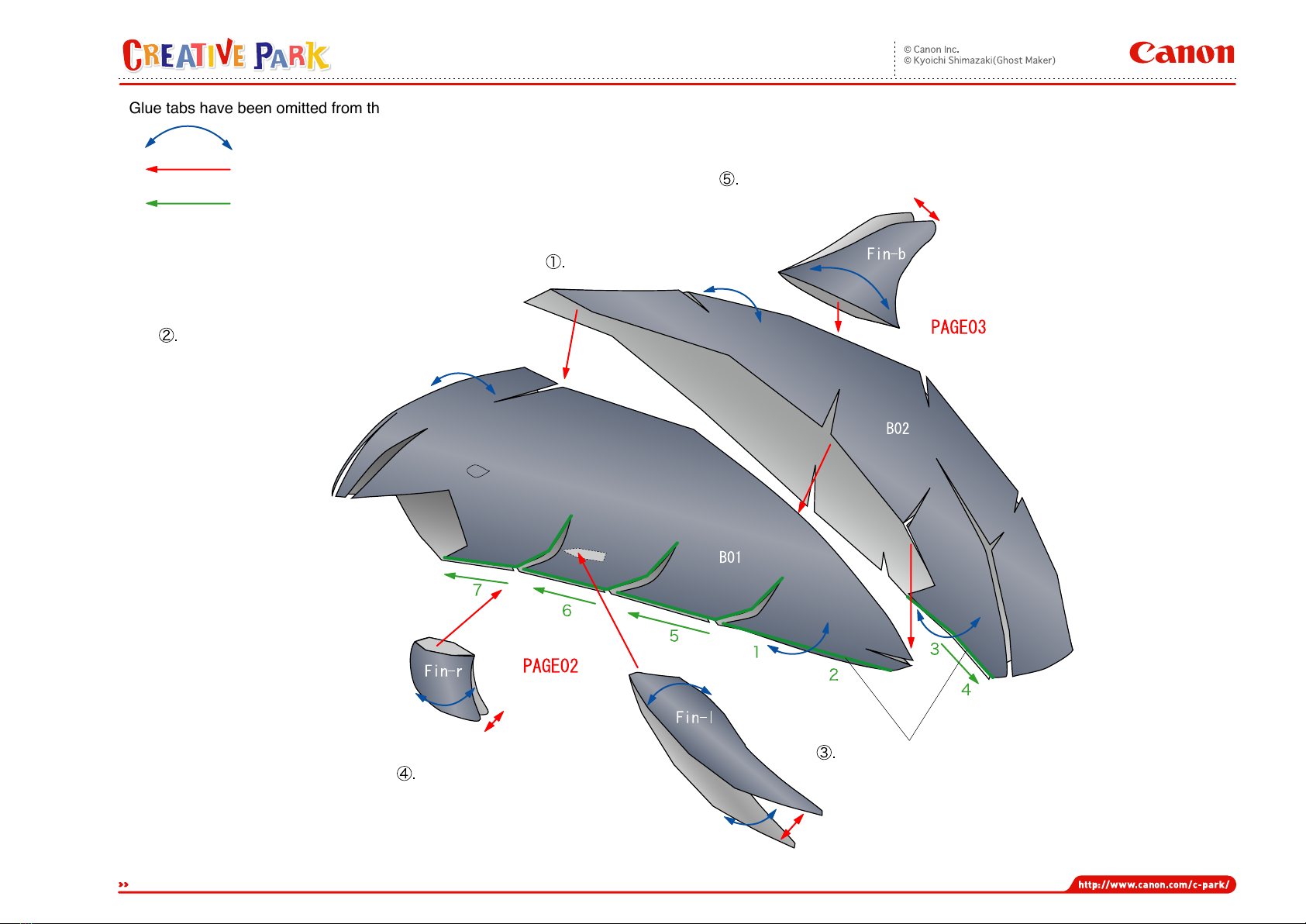

Assemble Fin-b, and attach it to B02.

Assemble Fin-l and Fin-r,

and attach them to B01.

After attaching B01 and B02, attach the parts marked

in the green lines on B01 and B02 to close the body.

Then, attach by following the correct order

(refer to the green numbers).

Use a stick for areas where you cannot use your fingers.

Attach and assemble everything

except for the part marked in the

green line on B01 and attach to B02.

Assemble B02.

*There is no specific order for attaching glue tabs

without green attachment order numbers. However,

only attach them one at a time from either end

and not all at once.

curl

Attachment order.

glue

Glue tabs have been omitted from the diagrams to make them easier to understand.

PAGE02

Bottlenose Dolphin : Assembly Instructions

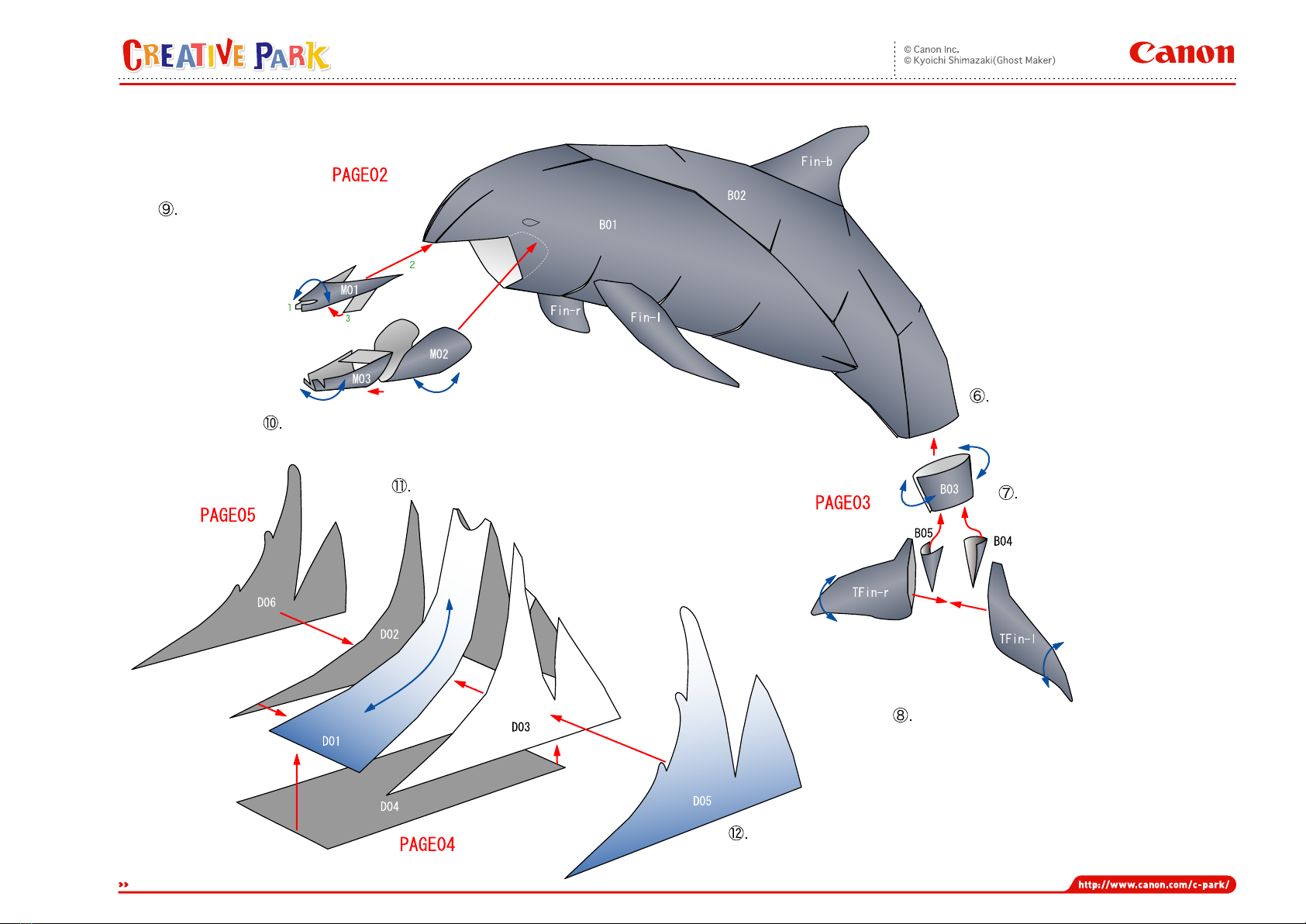

After assembling D01, D02, and D03, attach D04 on the bottom.

Then, attach D05 and D06 and place the completed dolphin on top.

Add and attach D02 and D03 to D01.

Assemble M02 and M03, and attach them to B01.

Add and attach M01 to B01.

Then, attach M01's glue tabs.

Assemble M01 and TFin-r,

and attach them to B04 and B05.

Curl B03 into a cylindrical

shape and attach to B02.

Curl B04 and B05 respectively

into a semi-conical shapes and

attach them to B03.

PAGE03

Bottlenose Dolphin : Assembly Instructions
