Canon Creative Park Elastic-powered Bus Kurzanleitung

Actual size illustration:

check the size of your rubber bands here.

How to assemble your model neatly

Scoring along the fold lines in advance with a dried

up pen or a ruler with slightly sharp corners will result

in a neater model.

*Be careful not to press too hard as the paper may tear.

Caution

Keep scissors and glue away from small children.

Be careful not to cut your fingers when using scissors.

Scissors line Mountain fold

Cut in line Valley fold

Glue spot

Notation Key

About 1.57 inches in diameter

1. Carefully cut out the parts.

2. Fold along the dotted lines, making mountain

or valley folds as indicated.

3. Attach the glue spots on each part together.

4. Glue the parts together, and you’re done!

*Please read the Assembly Instructions

carefully before you begin.

Tools

Scissors

Glue (We recommend quick-drying paper glue)

3 rubber bands (preferably brand new ones)

Assembly Instructions

Elastic-powered Bus : Assembly Instructions

Assemble the tires

Glue Glue

Back

Fold in half along the fold lines,

glue together at the back and make a ring.

Adding curves to the part first will make it

easier to form a ring.

After gluing parts M and N together back to back,

attach the ring you have made.

Follow the same process to assemble G, H and I.

Assemble the axle

Add curves by pressing and rolling it

against the corner of a table,

with the printed side face up.

Fold the edge to make a triangular prism,

and roll the piece up to form a stick

(about 4mm wide).

Wind part E around and glue it down.

Glue down the end after rolling.

Cut three, equally-spaced slots in both

ends of part D, up to the red valley fold line,

and bend them back.

*The fine strips of paper are thick and hard

so be careful of paper cuts.

Glue

Attach part L, enveloping

it around the parts you cut

and bent back.

Attach the other side too.

Attach part P to both ends.

Follow the same process to

assemble the other axle.

Diagram from above

Elastic-powered Bus : Assembly Instructions

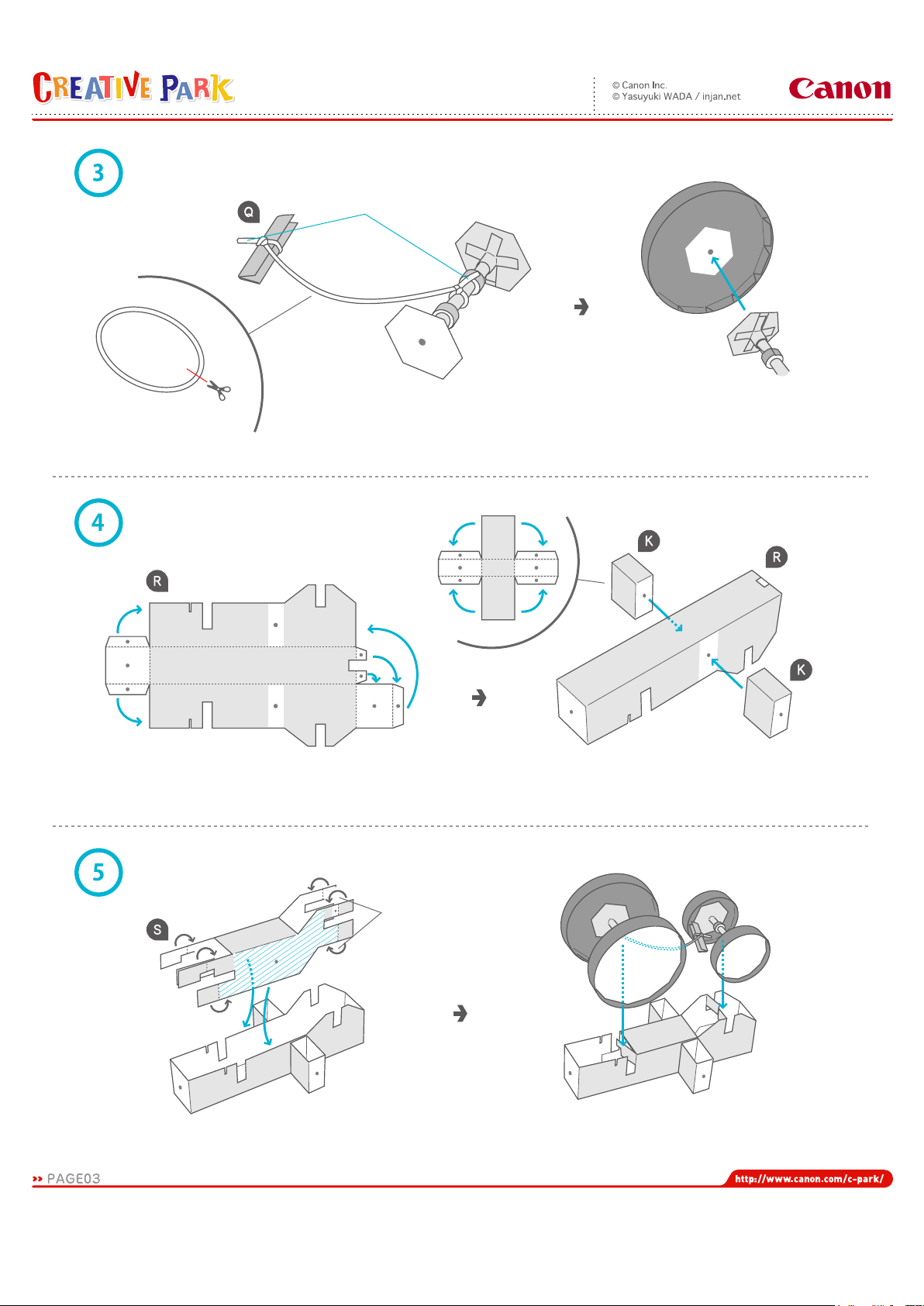

Assemble the front and back wheels

If necessary, cut off the ends.

Cut the rubber band

to make a string.

Tie one end of the band to the band stopper,

and the other end to the middle of the axle.

Assemble the body interior

Assemble as shown in the diagram. Attach part K to part R.

Attach the axles

Follow the fold line,

and glue together

at the back.

Assemble part S, and attach the area with

the diagonal lines to the inside of the body.

Fit the axles into the grooves of the body.

Check that the wheels spin smoothly.

Attach the tires to both ends of the axle.

Follow the same process to assemble

the back wheels.

*The axle of the back wheels does not

have an rubber band attached.

Elastic-powered Bus : Assembly Instructions

On the front wheel side, slot the

protruding parts into the slots.

Attach.

Pull the band stopper through the hole in part R.

Be careful that the band doesn't come undone.

The front wheels (with the bigger tires) can be

removed and changed.

Wind the rubber band around

the front wheels (with the bigger tires).

Assemble the body

Glue

Fold in half along the fold line,

and glue together at the back.

Assemble part J for the other side,

in the same way.

Glue the parts to connect

them together as shown.

Turn over the body, attach the assembled

body interior, and you're done!

Be careful that the gluing positions don't shift.Assemble as shown in the diagram.

Follow the fold line,

and glue together

at the back.

Follow the fold line,

and glue together

at the back.

Body (front)

Body (back)

Body (left)

Body (right)

Elastic-powered Bus : Assembly Instructions

How to play

Pull the car backwards along the ground, gently pushing down on the front wheels.

Point the car in the direction you want it to run, let it go and watch it take off!

Be careful not to wind the band too tightly as it may snap or come untied.

Play with it on a flat surface such as a table or the floor (wooden floorboards work better than carpet).

Glue

If your car doesn't run well, check the following points to repair it.

Are the axles or tires stuck against the body? Are the wheels or tires bent?

Has the band lost its elasticity? Is the band wound up too tightly?

Has the band come loose from the tire? Is the band tangled up around the axle?

Have a contest to see who can get

their bus closest to the bus stop.

Elastic-powered Bus : Assembly Instructions
