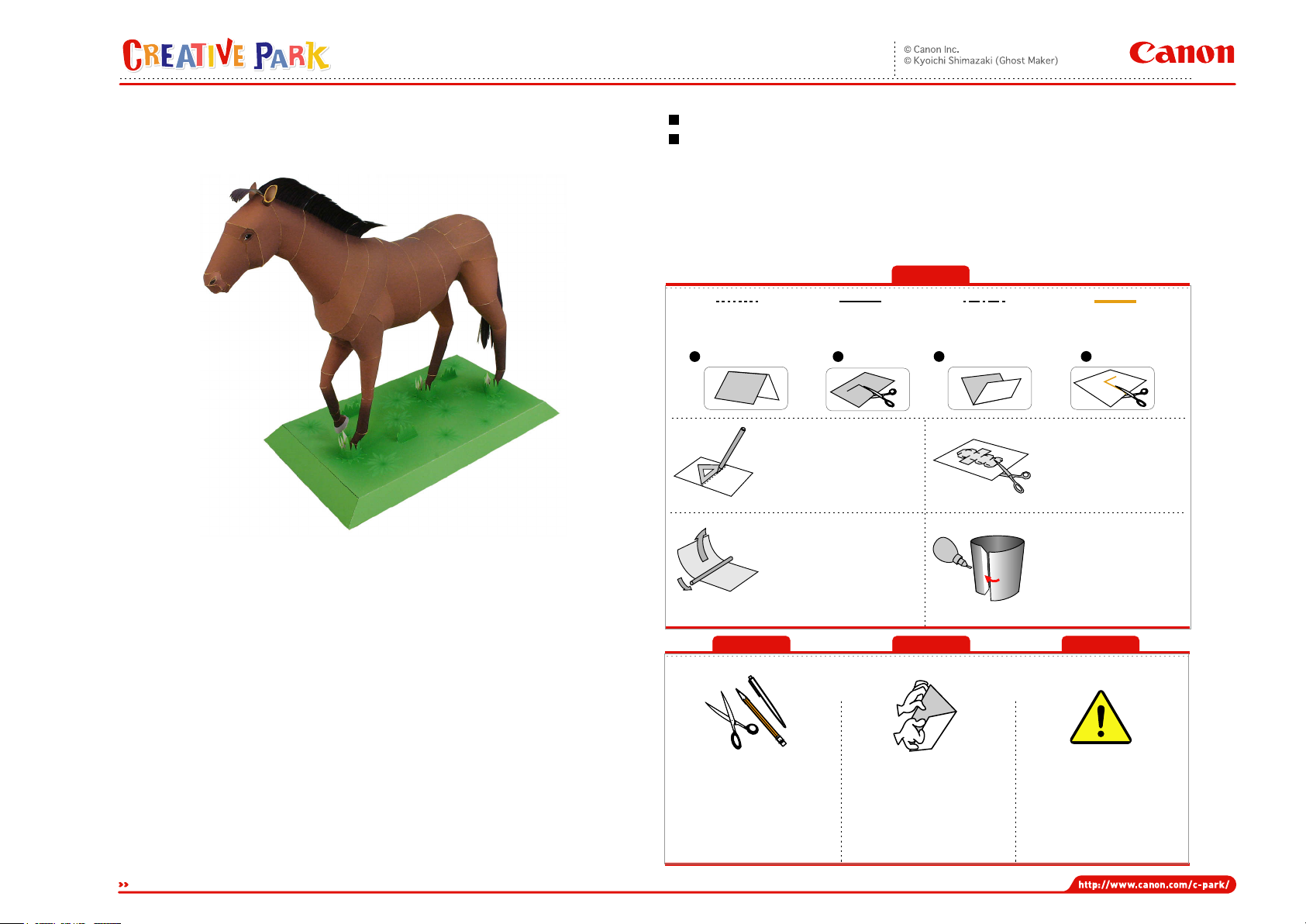

Assembly Instructions: Three A4 sheets

*Read the Assembly Instructions carefully in page order referring to the page numbers on the

parts list.

*It is easy to get pieces mixed up if you cut them all out at once, so just cut the pieces as you

need them.

*l indicates a part for the left side, and r is for the right. For example, Er01would be a part for

the right side, but E01 would mean that it can be used on either the right or the left side.

(dotted line)

Make a mountain fold.

(solid line)

Cut out.

(dotted and dash line)

Make a valley fold. Cut a slot.

Scissors, set square, glue (such

as wood work glue), metal rod,

spatula, a used pen, toothpicks,

tweezers (useful for handling small

parts).

Before gluing, crease the paper

along mounrain fold and valley fold

lines andmake sure rouned

sections are nice anr stiff.

This craft requires the use of glue,

scissors, tweezers, and other tools

which may be dangerous to

young children. Please keep them

out of reach of children while you

work.

Thoroughbred: Assembly Instructions

1. Use a set square or ruler

and a dried up pen to score

along the dotted lines, and

fold along them to make

creases.

2. Work curves into the pieces

using a metal rod before

beginning assembly.

For small pieces, add curves

before cutting them out.

3. Use scissors to cut along

the solid line.

4. The pale-colored numbers

on the glue tabs indicate the

number of the part to be

attached there.

Use a spatula for the small

glue tabs.

Parts list (pattern): Ten A4 sheets

Mountain fold line Cut line Valley fold line

(solid line)

Slot line

Tools and Materials Assembly tip Caution

Instructions

PAGE01

The Thoroughbred is a breed of horse first developed during the 17th and 18th

centuries in England, by crossbreeding Arabians with native horses to produce

superior racing horses.

The Thoroughbred has been called the ultimate work of art ever produced by man,

and has a height of around 160 to 170cm (to the shoulders), weighing between 450

and 500kg. Its well-developed chest and hindquarters make it a fast runner. It can

run at speeds of up to 60 or 70km/h for minutes on end, even with a 50kg rider on its

back.

However, its thin legs are prone to injuries.

In terms of temperament, it is a very delicate horse, sensitive to loud noises and

bright lights.

Thoroughbred: Assembly Instructions

B09

B10

B11

Fr01

Fr02

Fr03

Fr04

Fr05

Fl01

Fl02

Fl03

Fl04

Fl05

B05 B06 B07 B08

Lr01

Lr02

Lr03

Ll01

Ll02

Ll03

B01

B02

B03

B04

T04

T03

T02

T01

Cut the tip of the

tail so that it is

jagged, and slightly

curl the pieces

inwards.

Glue all the parts so that they become cylindrical,

and then glue them to each other, working in order from the lowest number.

Parts Required

Page4,5

Parts Required

Page2,3,8

Caution: Glue tabs have been omitted from the

diagrams to make them easier to understand.

When you have assembled the forelegs,

attach them to the body.

Glue between the forelegs.

Glue between the hind

legs.

PAGE02

Thoroughbred: Assembly Instructions

Ll04

Lr04

Fr06

Fl06

B12 B13

B14

H08

H07

H09

H06

H05

H04

H03

H02

H01

El01

Er01

H07

H06

El01

El02

Er01

Er02

344

H03

H02

H01

D07 D06

D05

D04

D03

D02

D01

Fold the D07 parts

in half and glue

them to D01.

Fold the D06 parts

into U shapes, and

glue them so that

they fit the hoof prints.

Adjust the Thoroughbred so that it is standing straight,

and attach the hooves to the legs.

Glue B14 and H08 together last.

After gluing the mane together,

cut along the jagged line and

add curves to whichever parts

you like.

Slightly curve the forelock H09

downwards.

Glue the ear part E01 so that

it becomes cylindrical.

Curve E02 and glue it inside E01,

and trim away any protruding parts.

How to attach the ears

Fold the glue tabs on H06 and H07

inwards, and insert the cylindrical-shaped

ears into the holes that form,

attaching them inside.

The holes may seem a little big,

but if you put the ears in the center

and tilt them slightly forward they

should fit neatly.

Adjust the angle of the ears to your liking.

Parts Required

Page6,7

Parts Required

Page2,5

Parts Required

Page7~10

PAGE03
