Glue spot

Assembly Instructions

Tools

Caution

Scissors, glue (We recommend a strong adhesive such as woodwork glue.)

Keep glue away from small children.

Be careful not to cut your fingers when using scissors.

Notation Key

Attach to the corner

with the same color.

Ikuo Anazawa

Chinese Phoenix

Known in Chinese as Fenghuang, the Chinese Phoenix is a mythological bird, that is said to reign over all other winged

creatures. The males are known as Feng and the females as Huang. They are said to be similar in appearance to a peacock,

but are about 130~170cm tall and colored in five vibrant shades. They sing a melody that spans five different notes. The

Fenghuang is said to drink from sacred springs and feed on bamboo seeds, and nest only in wu t'ung trees. In the Classic of

Rites, the Fenghuang is named as one of the four holy animals of Chinese mythology, along with the unicorn Qilin, the tortoise

Gui Xian, and the dragon Long.

With this papercraft you can create a bright, five-colored Fenghuang in flight position. The model measures approx. 65cm in

length and 60cm across.

Chinese Phoenix : Assembly Instructions

1) Carefully cut out the parts.

2) Make mountain folds and valley folds along the dotted lines,

as indicated by the directions.

3) Assemble the parts in the order shown by the numbers on the glue tabs.

(Read the assembly instruction for more information.)

4) Attach the parts in order.

(Read the assembly instruction for more information.)

5) Your Paper craft model is finished.

Scissors line

Valley fold

Mountain fold

Cut in line

Glue up to this line

Cut out

Fold this line,and glue

together before cutting out.

Completed head

- 2 -

Ikuo Anazawa

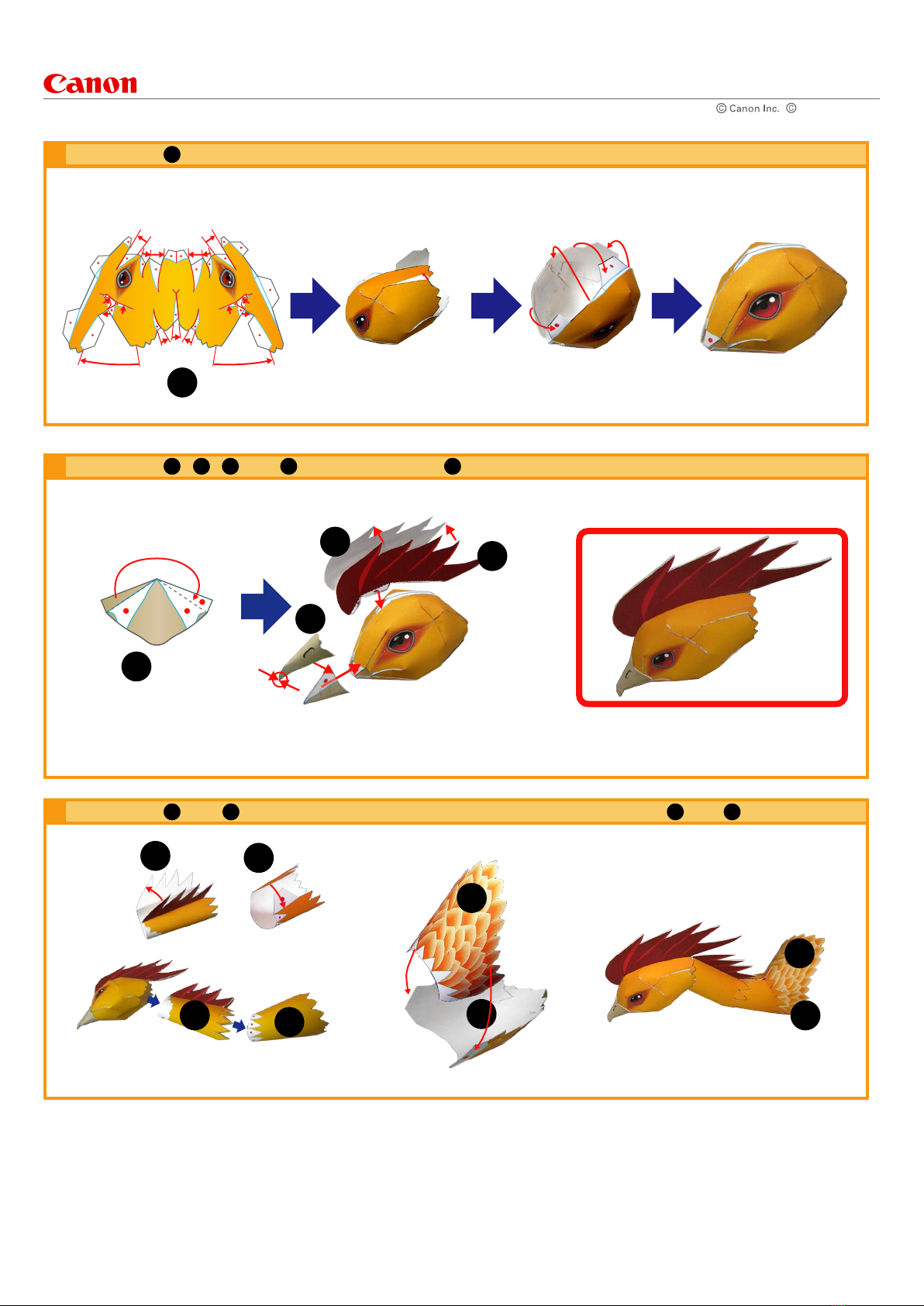

Assemble the head and neck

Assemble .

Assemble , , and , attach them to .

1 2 4 5 3

Assemble and , attach them to the head, assemble and attach and .

6 7 8 9

Align the tips

and glue together.

Chinese Phoenix : Assembly Instructions

Completed internal frame

141013

- 3 -

Ikuo Anazawa

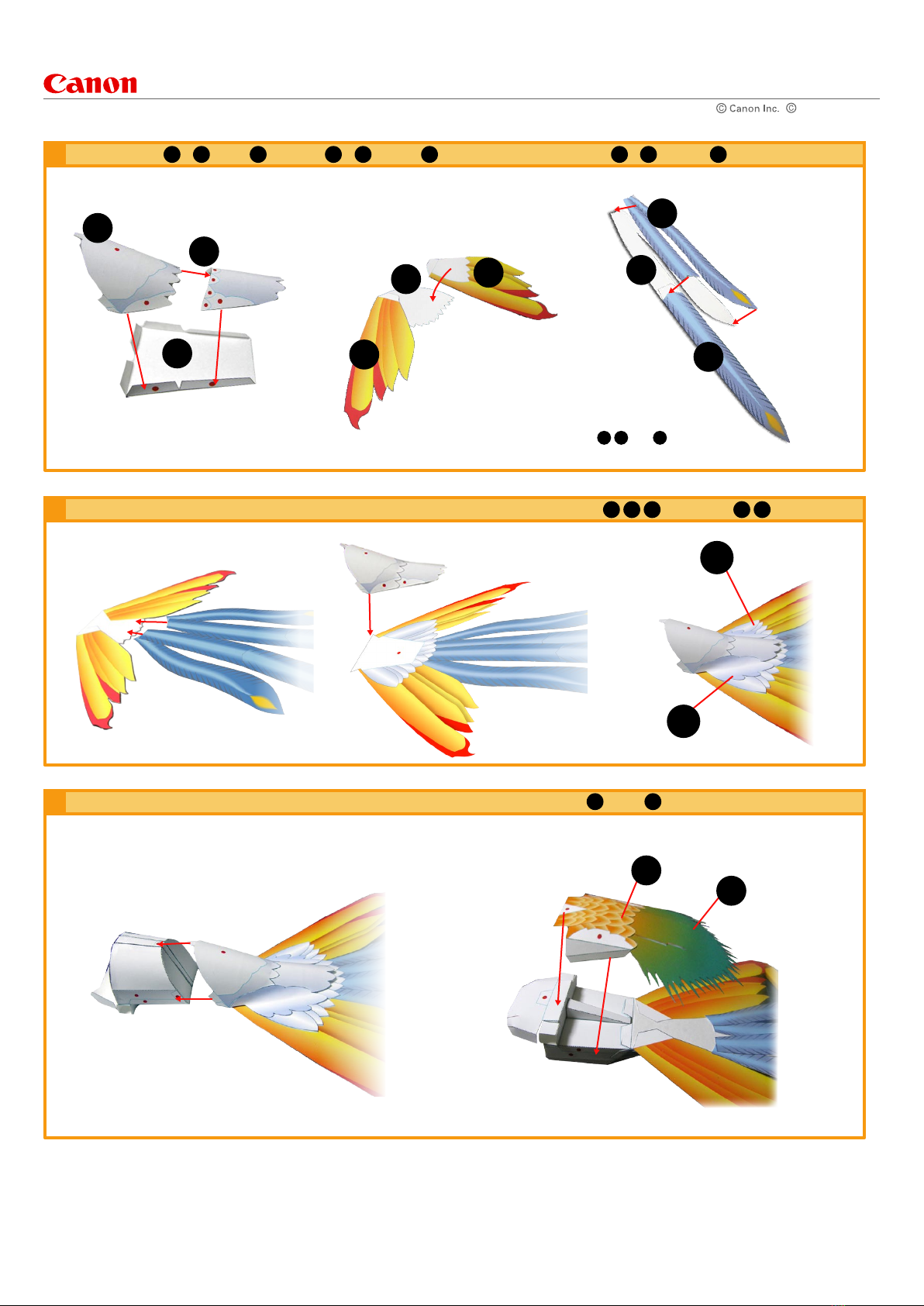

Assemble , and attach it to .

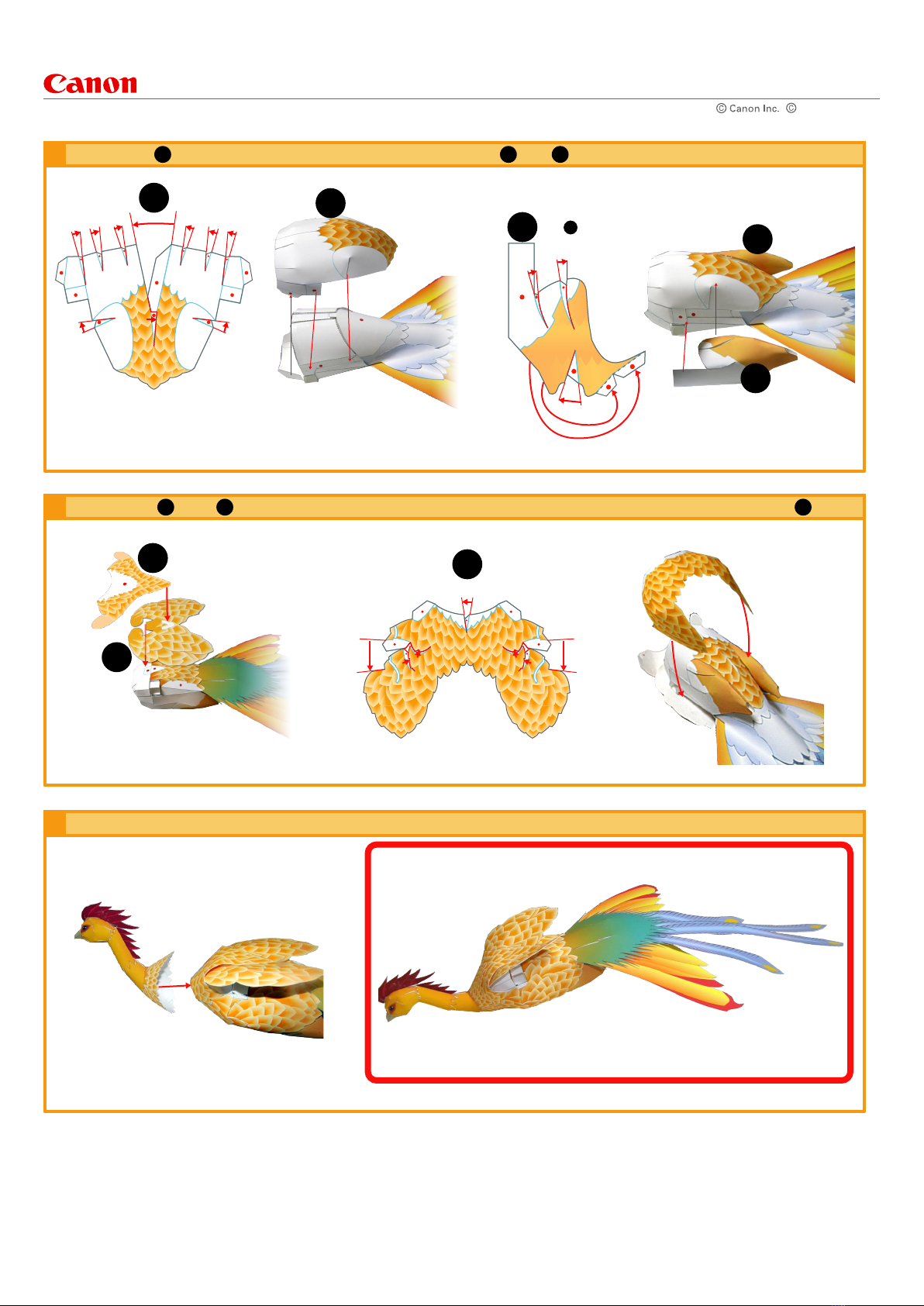

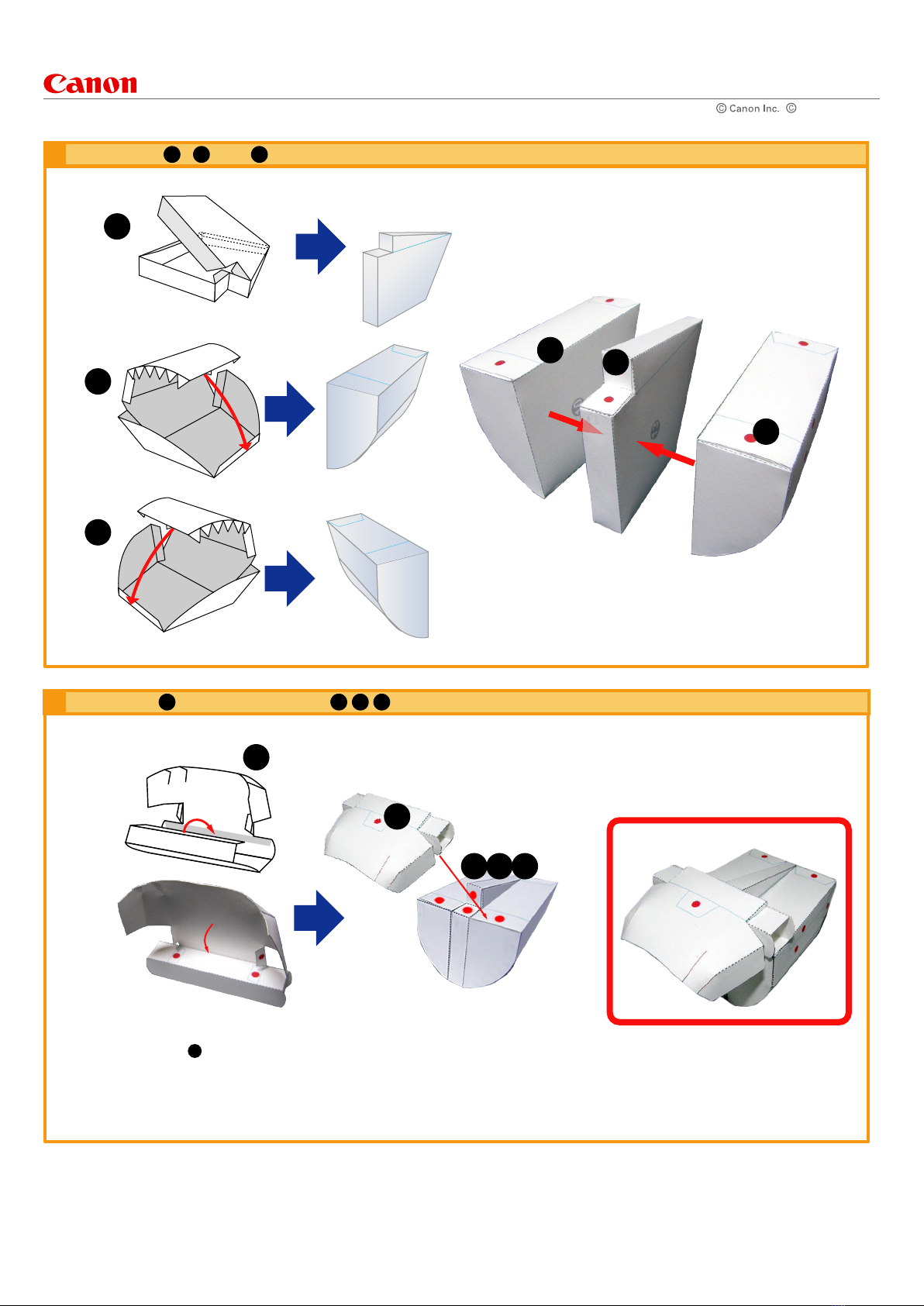

Assemble the body main frame

Chinese Phoenix : Assembly Instructions

Assemble , and , attach them.

11 10 13 14

13 14

The shape of is very complicated, so take extra care when assembling it,

following the assembly order shown in the above diagram.

14 10

Assemble , and in the same way

so that both parts are symmetrical.

31 34

Glue the tail feathers to the internal frame, and assemble and .

- 4 -

Ikuo Anazawa

Assemble the body's wings

Chinese Phoenix : Assembly Instructions

Assemble , and , glue , , and together, and glue , , and together.

12 15 16

24 28 29 32 33 35

12 15

21 22

17 1816

Glue the decorative feathers to the tail feathers, and attach . Attach .

- 5 -

Ikuo Anazawa

Assemble the body, legs, dorsal feathers, and chest

Chinese Phoenix : Assembly Instructions

Completed body

Attach the head and neck to the trunk to complete the body.

Assemble and , and attach it to the body after gluing it together. Then attach .

Assemble and attach it to the body, then assemble and and attach them to the body.

26 27

36 37

(Use for the other side)

64 78

67 81 68 82

63 77

62 76

61 75

60 74

56 57

Completed wing frame

Front

Back

After gluing ~ together, attach them to , and attach ~ to the wing frame.

Assemble and , and assemble the wing frame.

60 64 6565 68

Assemble and in the same way so that both parts are symmetrical.

Assemble ~ in the same way so that both parts are symmetrical.

56 58

57 59

56 58

57 59

- 6 -

Ikuo Anazawa

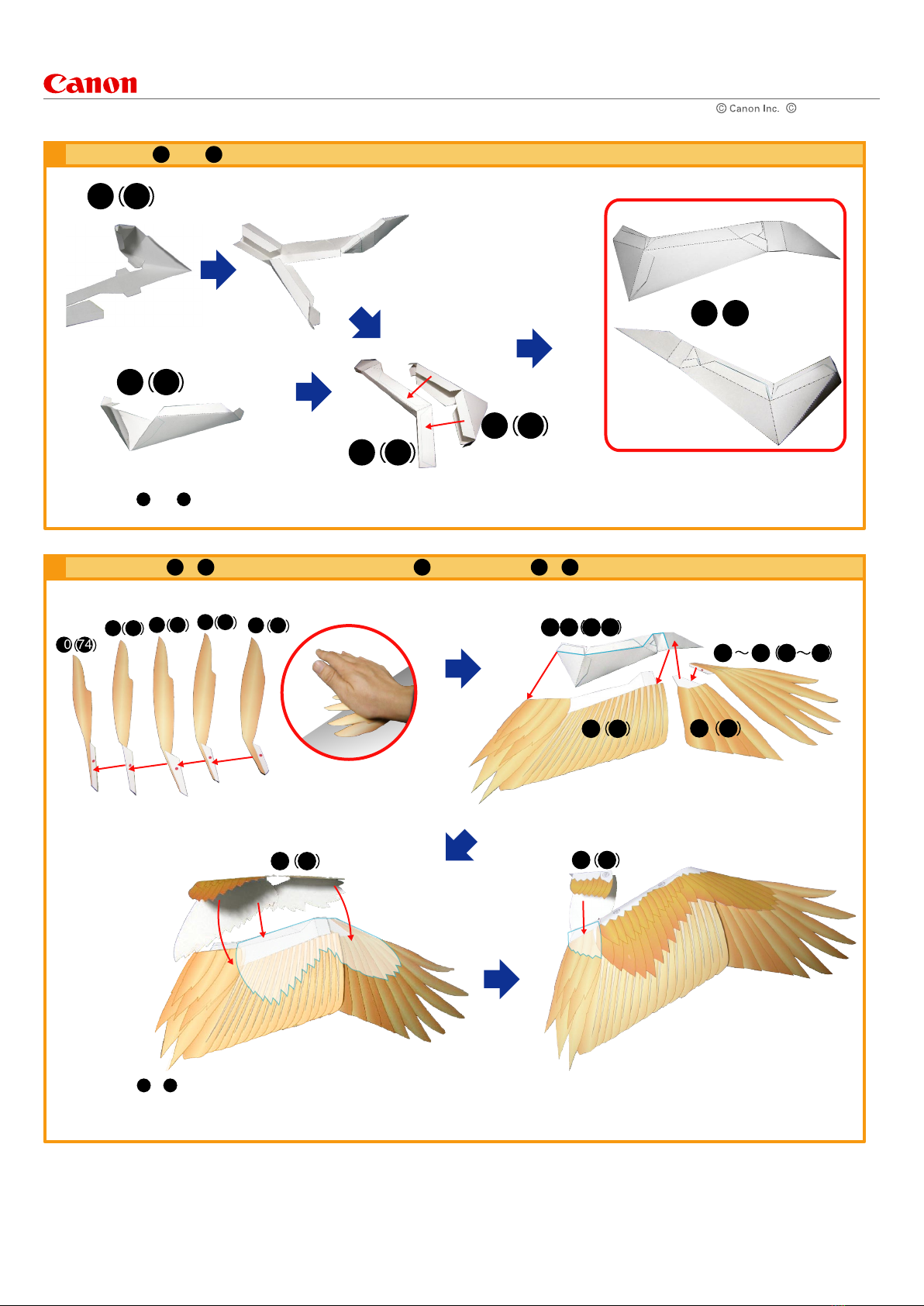

Assemble the wings

Chinese Phoenix : Assembly Instructions

66 80 65 79

60 64 74 78

56 57 58 59

38 47

40 49

39 48

46 55

42 52

41 50

Align the tips

and glue together. Completed legs

Assemble ~ in the same way so that both parts are symmetrical.

73 87

Glue and together first.

- 7 -

Completed wings

Assemble ~ in the same way so that both parts are symmetrical.

Ikuo Anazawa

Assemble the wings and legs

Chinese Phoenix : Assembly Instructions

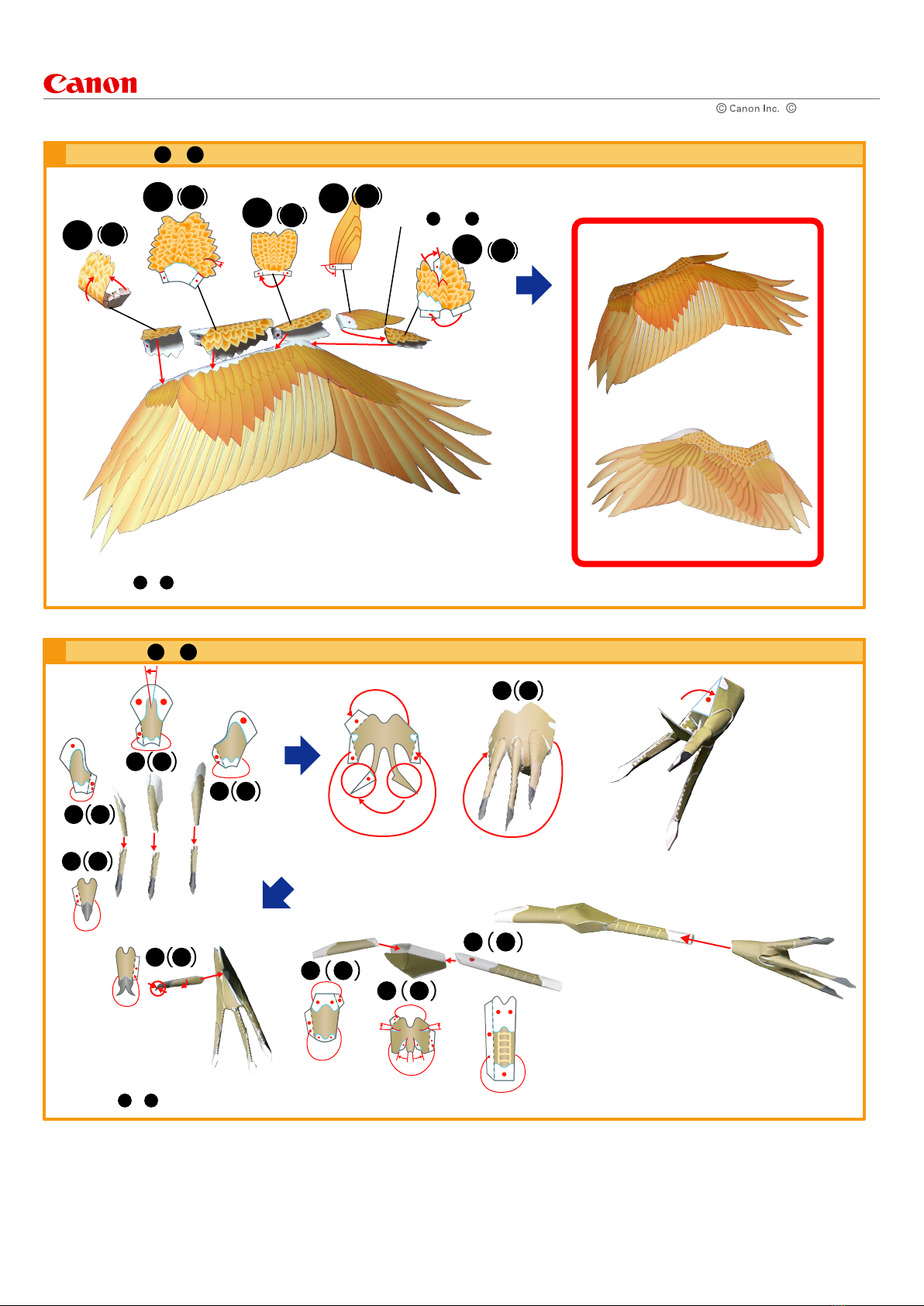

Assemble ~ , and the wings are complete.

69 73

Assemble ~ , and the legs are complete.

38 46

94 95

20 (Use for the other side)

Complete!

It will balance if you place it

so its chest is here.

Insert the other side in the same way.

Make the stand and place the Fenghuang on it, and you're done!

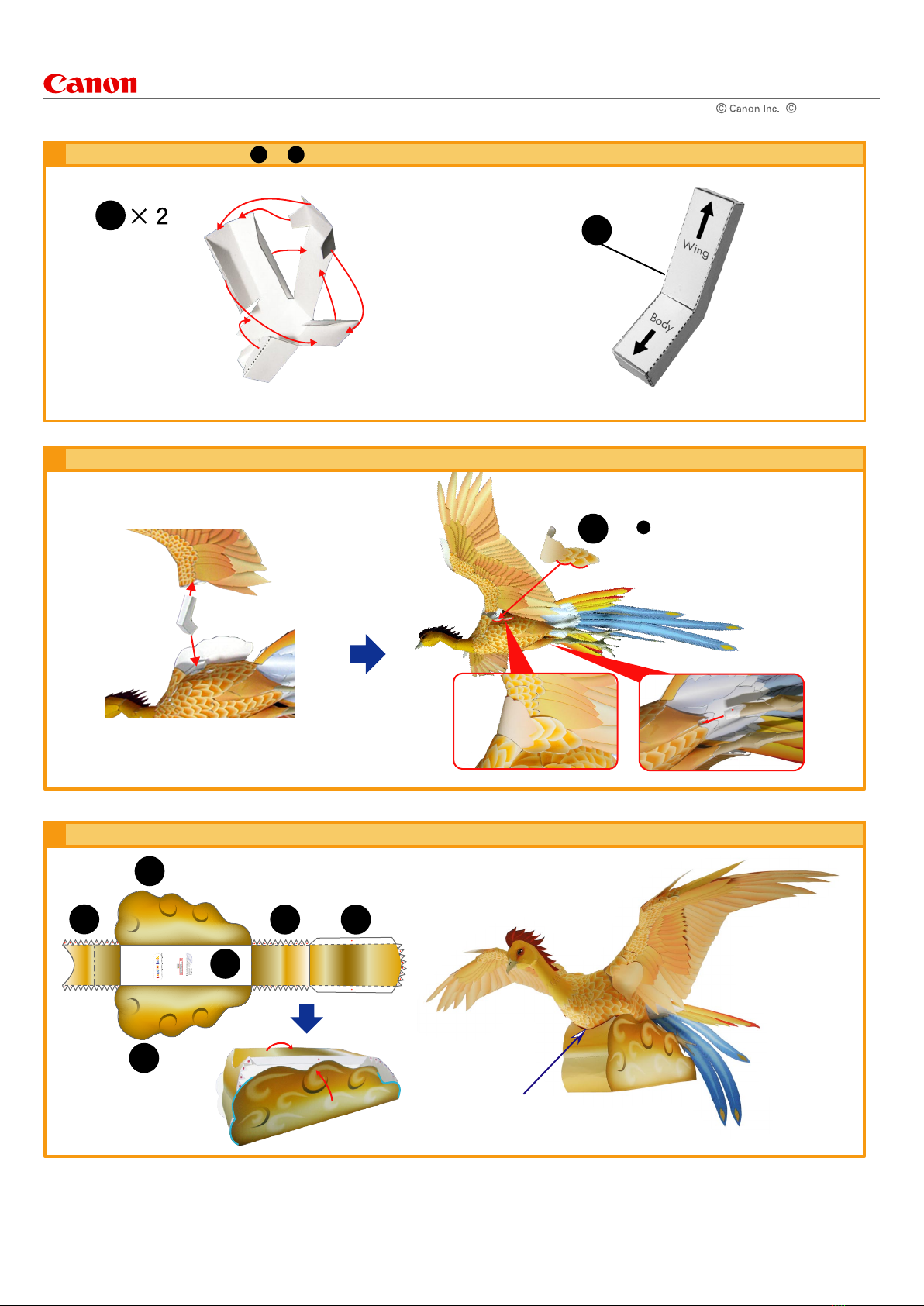

Attach the wings and legs to the body.

Attach the assembled to to make the connector part for the body and wings.

88 89

Attach it along the line

of the cloud.

- 8 -

Ikuo Anazawa

Attach the body, wings and legs to complete

Chinese Phoenix : Assembly Instructions
