Car-Interface R.LiNK CI-RL2-RLINK Bedienungsanleitung

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

r.LiNK Video-inserter

CI-RL2-RLINK

Compatible with

Dacia, Fiat, Smart and Renault vehicles

with RLink or MediaNav system

and Opel vehicles with Navi 50 or Navi 80

Video-inserter with 2 video inputs and rear-view camera input

Product features

Video-inserter for factory-infotainment systems

2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)

Rear-view camera video-input

Automatic switching to rear-view camera input on engagement of the reverse gear

Activatable parking guide lines for rear-view camera (not for all vehicles available)

Video-in-motion (ONLY for connected video-sources)

Video-inputs PAL / NTSC compatible

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the Interface compatibility of vehicle and accessories

1.3. Boxes and connectors

1.3.1. Video-interface

1.3.1.1. Dip-switch settings

1.3.1.2. Enabling the interface’s video inputs (dip 2-3)

1.3.1.3. Rear-view camera setting (dip 5)

1.3.1.4. Monitor Selection (dip 6-8)

1.3.2. CAN-box

2. Installation

2.1. Place of installation

2.1.1. Place of installation –Video interface and CAN-box

2.1.2. Place of installation –daughter PCB

2.2. Connection scheme

2.3. Connecting video-interface and CAN-box

2.4. Installation of ribbon cables into monitor panel

2.4.1. 50Pin-Version (MediaNav)

2.4.2. 60Pin-Version (RLink)

2.4.2.1. Warning notes, concerning the installation of ribbon cables

2.5. Connection to Head-Unit –Power / CAN

2.5.1. MediaNav with 50pin Ribbon cable

2.5.2. RLink with 60pin Ribbon cable

2.6. Connection of video sources

2.6.1. Audio-insertion

2.6.1.1. After-market rear-view camera

2.6.1.2. Case 1: CAN-box detects reverse gear

2.6.1.3. Case 2: CAN-box does not detect reverse gear

2.7. Connecting video-interface and keypad

2.8. Picture settings and parking guide lines

3. Interface operation

3.1. By VOL-Button

3.2. By external keypad

4. Specifications

5. Frequently asked questions

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labour cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation.

Technical knowledge is necessary for installation. The place of installation must be free of

moisture and away from heat sources.

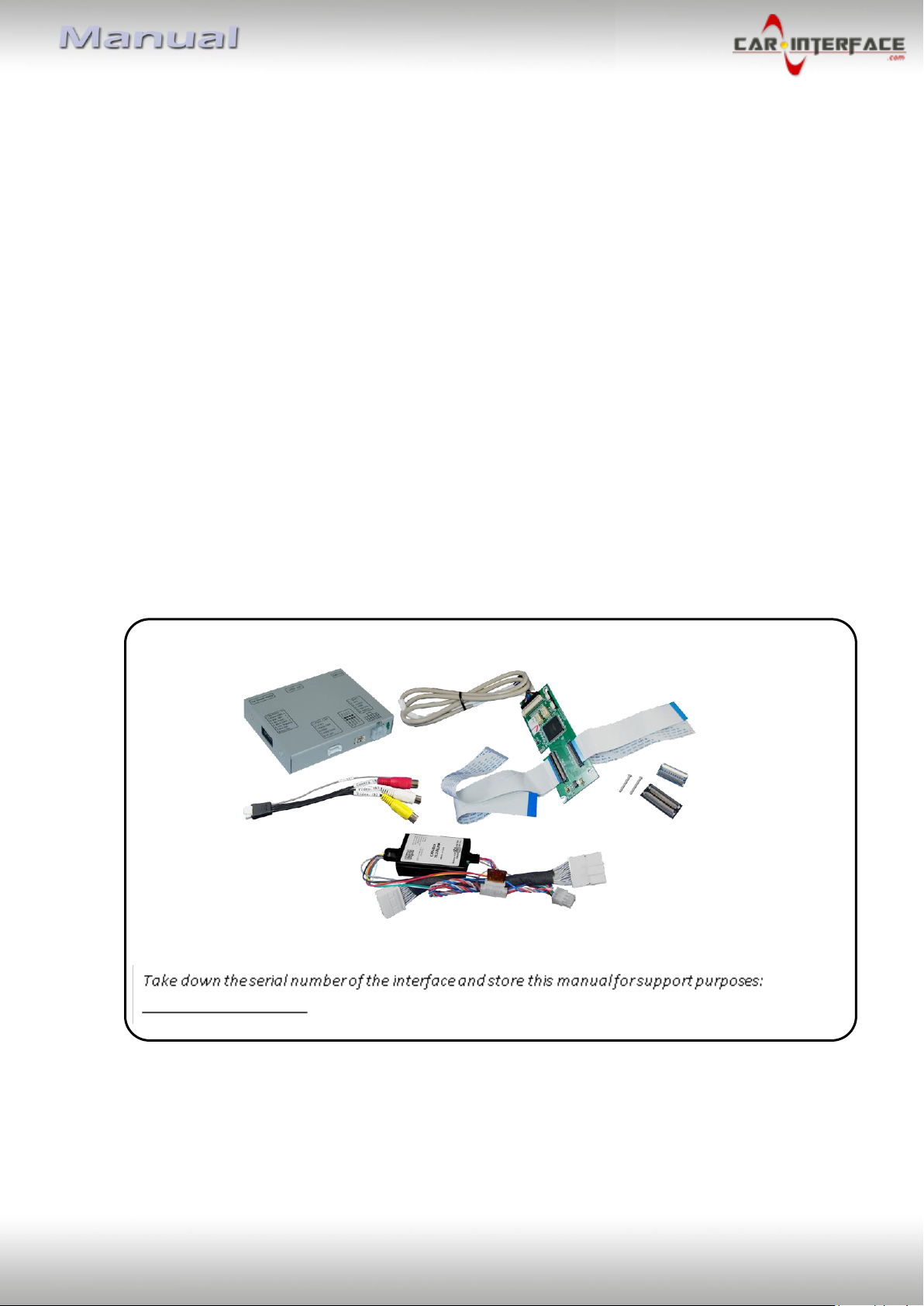

1.1. Delivery contents

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page4

Requirements

Brand

Compatible vehicles

Compatible systems

Dacia

Dokker since 2013-, Duster since 2014, Lodgy since

2012, Logan since 2013, Sandero since 2012

MediaNav

Fiat

Talento model year since 2016

MediaNav

Opel

Movano since about 2016, Vivaro since about 2016

Navi 50 (MediaNav),

Navi 80 IntelliLink (Rlink)

Renault

Captur model year since 2015, Clio model year

since 2014, Kangoo model year since 2014, Master

model year since 2015, Megane model year since

2013, Trafic model year since 2015, Twingo model

year since 2013 and other vehicles with

R-Link, MediaNav

Smart

ForTwo (C453/A453) since 09/2014, ForFour

(W453) since 08/2014, Brabus Versions since 2016

Smart Media System (R-Link)

Vehicles with MediaNav (50-Pin) only compatible until 09/2019!

(to be recognized by model no. LAN52xxWRx on the sticker)

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For audio insertion factory-audio-AUX-input or a FM-modulator is required.

Factory rear-view camera Automatic switch to factory rear-view camera only while reverse gear is

engaged. To delay the switch reset, additional electronics is required.

1.2. Checking the compatibility of vehicle and accessories

1.3. Boxes and connectors

1.3.1. Video-interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page5

1.3.1.1. Dip-switch settings

Some settings must be selected by the dip-switches on the

video-interface. Dip position down is ON and position up is OFF.

See following chapters for detailed information.

After each Dip-switch-change a power-reset has to be performed!

See the following chapters for detailed information.

1.3.1.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed by switching through the interface’s video

sources. It is recommended to enable only the required inputs, because the disabled inputs

will be skipped while switching through the video interfaces inputs.

1.3.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged

to display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

1.3.1.4. Monitor selection (dip6, 7-and 8)

Set to OFF

Note: Dip 1 and 4are out of function and have to be set to OFF.

Dip

Function

ON (down)

OFF (up)

No function

set to OFF

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

Monitor specific

adjustments

set to OFF

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page6

1.3.2. CAN-box

The CAN-box reads digital signals from the CAN-bus and converts them for the video-

interface.

2. Installation

Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent

12V source. If according to factory rules disconnecting the battery is to be avoided, it is

usually sufficient to put the vehicle to “Sleep-Mode”. In case it does not succeed,

disconnect the battery with a resistor lead.

If power source is not taken directly from the battery, the connection has to be checked

for being start-up proven and permanent.

2.1. Place of installation

2.1.1. Place of installation –video interface und CAN-Bus box

The interface boxes shall be installed behind the vehicle`s head-unit or the glove

department, depending on equipment and space.

2.1.2. Place of installation - daughter PCB

The interface’s daughter PCB is prepared to be installed between the head unit’s housing

and the monitor panel.

For this purpose the housing of head-unit have to be opened.

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page7

2.2. Connection Scheme

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page8

2.3. Connecting video-interface and CAN-Box

The CAN-box reads digital signals from the CAN-bus and converts them for the video-

interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A constant signal

(green of 6pin). Video-source switching (white of 6pin) as +12V impulse. The grey wire stays

unconnected.

Connect the white female 6pin connector of the 6pin to 8pin cable to the male 6pin

connector of the video-interface.

Connect the black female 8pin Micro-Fit connector of the 6pin to 8pin cable to the

male 8pin Micro-Fit connector of the CAN-box.

Note: Check LEDs on video-interface after reconnecting the battery, one must be on.

Connect the black female 4pin connector of the PNP Power 7 CAN cable to the 4pin

Micro-Fit connector of the CAN-box.

Note: Check LEDs on CAN-box after reconnecting the battery, two must be on.

Note: The CAN-box is not compatible to all vehicles. If the CAN-box does not deliver ACC to

pin2 of the video-interface or blocks the vehicle CAN, it is possible to install the system

without CAN-box. In this case, see also the note in chapter “after-market rear-view camera”,

how the interface is supposed to be connected without CAN-Box.

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page9

2.4. Installation of the Ribbon cables into the Monitor panel

Remove the factory monitor and open it`s housing. The external daughter PCB is built to be

installed into the optical lead between the monitor panel and mainboard of the vehicles

monitor. The daughter PCB is equipped with to different ribbon cable options to support two

different monitor systems. Both 50pin Ribbon cables and both 60pin Ribbon cables are easily

recognizable, as they differ in size. Depending on the system, the two unneeded ribbon

cables have to be removed by unclipping the Ribbon cable base.

Connect the female 20pin connector of the daughter PCB to the male20pin connector

of the picture signal cable and connect the second male 20pin connector opposite

the cable to the female 20pin connector of the interface. Take care for installing the

cable in the right direction as both connectors seem to be identical. (Take notice of

the wire`s caption “MONITOR SIDE” and “BOX SIDE”

Version 08.04.2021 HW CAM(V31)/(V22) CI-RL2-RLINK

Page10

2.4.1. Media Nav with 50pin Ribbon cable

Disconnect the optical leads housed between the monitor`s mainboard and the monitor-

panel. Connect the daughter PCB’s ribbon cable CAR-IN to the ribbon cable base of the

monitor`s mainboard. For this procedure you may either use the original ribbon cable or the

ribbon cable of the daughter PCB. Make sure that the connector pins of each pin connector

are faced to the platinum before clipping them.

Connect the ribbon cable PNL OUT of the daughter PCB to the ribbon cable base of the

monitor’s platinum (take care again for a platinum faced installation of the connector pins!)

Carefully fix the daughter PCB to the mainboard of the monitor by using the enclosed

spacers and screws

2.4.2.1. Warning notes, concerning the installation of ribbon cables:

1) The contacting ends of ribbon cables always have to be installed in a straight and precise

180° position to the connector. Each deviation from a perfect contact position will curse

faulty contact and even danger of short circuit

2) The ribbon cable’s contacting side always has to correspond to the contacting side of the

connector, concerning the mounting position.

Inhaltsverzeichnis

Andere Car-Interface Autozubehör Handbücher

Car-Interface

Car-Interface CI-DAB-MMI2G Installationsanleitung

Car-Interface

Car-Interface CI-RL3-MIB-TT-LA Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-UCON12 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-UCON8-CP Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-NAC12 Bedienungsanleitung

Car-Interface

Car-Interface v.LiNK CI-VL2-PC-HSD Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-C20 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MZD88 Bedienungsanleitung

Car-Interface

Car-Interface CI-V5-CIC-F-PNP Bedienungsanleitung

Car-Interface

Car-Interface CI-RL5-MIB-STD2 Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-CIC Bedienungsanleitung

Car-Interface

Car-Interface v.LOGiC V5-CIC-F-PNP Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-CCC Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG45 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-C25 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-MIB-TT Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-MMI3G Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG5 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-MBN45 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-NAC08 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-FSYNC54 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-PCM30 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-CIC Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-R40-E Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung

Car-Interface r.LiNK CI-RL2-RLINK Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken
