Car-Interface CI-RL5-MIB-STD2 Bedienungsanleitung
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Video-inserter
CI-RL5-MIB-STD2
Video-inserter with 1 video input and 1 rear-view camera input
Compatible with VW vehicles
with Composition Media or Discover Media system
Skoda vehicles with Amundsen or Bolero system
Seat vehicles with Media system plus
Product features
Video-inserter for factory-infotainment systems
1 CVBS video-input for after-market device (e.g. USB-Player, DVB-T2 tuner)
1 CVBS rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the Interface compatibility of vehicle and accessories
1.3. Connectors –Video interface (daughter PCB)
2. Installation
2.1. Place of installation
2.2. Connection scheme
2.3. Installation - Ribbon cables into the monitor panel
2.3.1. Warning notes, concerning the installation of ribbon cables
2.4. Cable connection - daughter PCB
2.5. After-market rear-view camera:
2.6. Connection –video inputs
2.7. Connection - keypad
3. Interface operation by external keypad
4. Picture settings
5. Specifications
6. Frequently asked questions
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labour cost for and other expenses
involved with the software-updates will not be refunded.
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page3
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page4
Compatibility
Vehicle
Compatible vehicles
Infotainment systems
VW
Amarok (2H) since model year 2017
Beetle (5C) since model year 2015
Caddy4 (SA) model year 2016-2020
Multivan T6 (SG) model year 2015-2019
Scirocco3 (13) model year 2016-2018
Sharan (7N) since model year 2016
MIB STD2 PQ /+NAV
Composition Media / Discover Media
1x SD vertical left or 2x SD vertical left + right
and disc drive above 6.33inch monitor
Skoda
Yeti (5L) model year 2015-2017
MIB STD2 PQ/+NAV - Amundsen/Bolero
1x SD-Slot vertikal left or 2x SD-Slot vertical
left + right beside the 6.33 Zoll monitor
Seat
Alhambra2 (7N) since model year 2016
MIB STD2 PQ/+NAV - Media System Plus 1x
SD vertical left or 2x SD vertical left + right
beside the 6.33inch monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For sound use the possibly existing factory audio-AUX-input or a FM-
modulator.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back, an additional electronic part is required.
1.2. Checking the compatibility of vehicle and accessories
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page5
1.3. Connectors - Video-interface (daughter PCB)
The video-interface (daughter PCBs) converts the video signals of connected after-market
sources in a factory monitor compatible picture signal which is inserted in the factory
monitor, by using separate trigger options.
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle to “Sleep-Mode”. In case it does not succeed,
disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place of installation
The daughter PCB shell be connected inside the factory head unit housing and installed by
using the delivered exchange metal frame
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page6
2.2. Connection Scheme
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page7
2.3. Installation - ribbon cables into the monitor panel
Remove the head-unit, disconnect and remove the DVD drive unit and further disconnect
and remove the frontpanel, which is fixed to the head-unit housing by 6 Torx screws (T9).
Replace the original front panel-retaining plate, which is fixed by 9 Torx screws,
against the enclosed exchange metal frame.
Disconnect the golden coloured 60pin ribbon cable at the front panel mainboard
60pin ribbon cable base and connect it to the 60pin ribbon cable base at the
daughter PCB’s bottom side (heed the following warning notes!).
Connect the daughter PCB’s pre-assembeled 60pin ribbon cable to the previously
become free 60pin ribbon cable base of the mainboard. (heed the following warning
notes!).
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page8
After the ribbon cable connection, fix the daughtger PCB at the front panel-retaining
plate by using the enclosed screws.
After the daughter PCB’s previously mounted 20pin LVDS cable is lead out from the
housing at a suitable location, reconnect the front panel with its 6 screws to the head
unit’s housing. Avoid cable contusion or cable injury caused by sharp-edged metal.
2.3.1. Warning notes, concerning the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and precise
180° position to the connector. Each deviation from a perfect contact position will curse
faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the
connector, concerning the mounting position.
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page9
2.4. Cable connection –daughter PCB
Connect the 8pin interface cable’s 8pin connector and the menu pushbutton cable’s
4pin connector to the 6pin and 4pin connectors of the daughter PCB.
Connect the 6pin interface cable’s single red colored wire to +12V terminal 30
(e.g. glove compartment illumination).
Connect the 6pin interface cable’s single green colored wire to +12V reverse signal
(see following chapter).
Connect the 6pin interface cable’s black wire to vehicle Ground.
Version 09.08.2021 HW (V31) CI-RL5-MIB-STD2
Page10

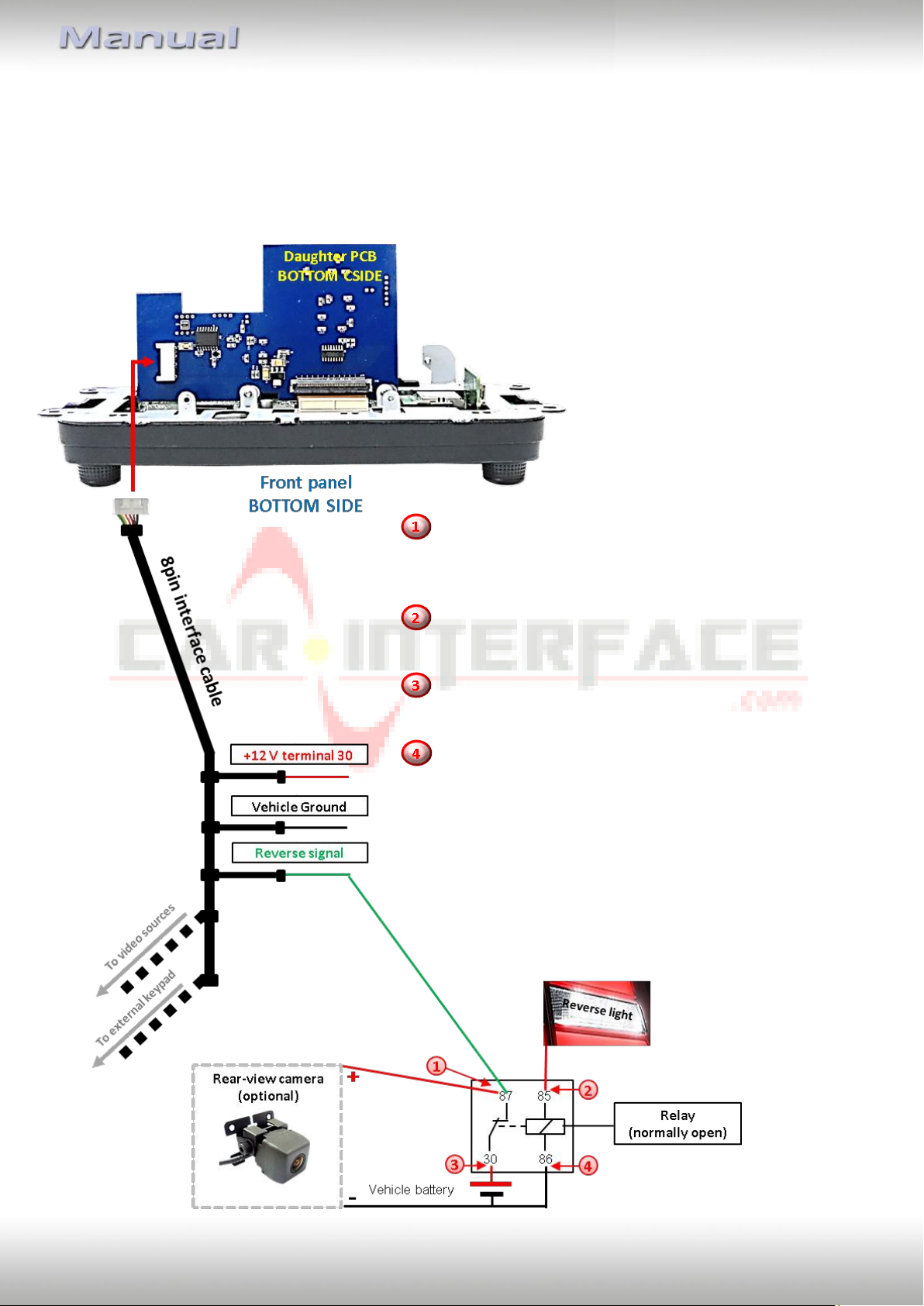

2.5. After-market rear-view camera:
To switch the interface’s rear-view camera input, an external switching signal from the
reverse gear light is required. As the reverse gear light signal contains electronic
interference, a traditional open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g. AC-
PNF-RVC) is required. Below schema shows the use of a relay (normally open).
Connect the single green colored wire and the
rear-view camera’s power both to the relay’s
terminal (87).
Connect the reverse light’s power to the relay’s
coil terminal (85).
Connect permanent power to the relay’s input
terminal (30).
Connect vehicle’s ground to the relay’s coil
terminal (86).
