MD-VW01

Page2

Contents:

Contents...................................................................................................................................... 2

Safety Instructions...................................................................................................................... 3

Service / Support........................................................................................................................ 4

Shipment..................................................................................................................................... 4

Product Description.................................................................................................................... 5

Installation of the harness with MULTI200............................................................................5-7

Function and control................................................................................................................8-9

Button assignment for MFD1 System........................................................................................ 9

Button assignment for AUDI Navi Plus System...................................................................... 10

Page3

Safety Instructions:

1. Read through mounting guidelines:

Please read through all safety instructions and handling directions intently before installation

and start up of the device.

2. Keep mounting guidelines:

Keep the instruction manual and safety instructions for potential further reference.

3. Caution advises:

Please follow all caution advises contained in the mounting guidelines.

4. Water and humidity:

The device should not be operated near water or near a humidity source.

5. Warmness / heat:

The device should not be set up in direct proximity of heat sources (e. g. power amplifier).

6. Connection / electric power supply:

Use the device only at a +12 volt vehicle electrical system. Make sure to have a proper

ground.

7. Intrusion of objects or liquids:

Please make sure that no objects or liquids can intrude the interior of the device! (Danger of

short circuit!)

8. Repairs:

You should call on qualified personnel, if:

a plug or a connector have been damaged

cables are damaged

objects have fallen into the device or liquids have intruded it

the product has been exposed to humidity

the device doesn't function normally or if

significant changes in the operating performance can be observed

the product/casing has been damaged.

9. Operation:

Start no operation that is likely to distract you for a prolonged time from road traffic or traffic

related events –RISK OF ACCIDENT!!!

10. Warranty:

The warranty will cease in case that:

you open the device or the casing

you carry out repairs single handed

you use the device improperly

the device shows damages caused by external forces or mischievous destructions.

We assume no liability for damages to the vehicle or to people.

Page4

Service & Support:

All our products are manufactured under strict quality control. Each device is being tested be-

fore shipment. If nevertheless do occur problems or if you have technical questions, contact

us directly under:

Caraudio-Systems Vertriebs GmbH

manufacturer/distribution

In den Fuchslöchern 3

D-67240 Bobenheim-Roxheim

email [email protected]

In addition to constant product update and development related changes the instruction manu-

als of the devices are constantly edited and kept up to date.

To enable us to provide you with the right information and support for the device you have

got at hand please add the following information to every inquiry:

Date of purchase, your name and address, item number and the type of your vehicle.

Shipment:

Harness MD-VW01

Manual

iPod® ist ein eingetragenes Markenzeichen der Apple Computer, Inc.

iPod® is a registered trademark of Apple Computer, Inc.

Page5

Product Description:

Article: MD-VW01

Features: Harness for Multimedia Interface “MULTI200”

For use with the following navigation systems:

VW and SKODA with MFD1:

Golf4, Bora, Passat, T4, Octavia I, Superb

AUDI with Navi Plus:

A2, A3, A4, A6, A8

Pin assignment of the harness:

Color/Connector:

Signal/Connection:

10pin connector:

To MFD I / NAVI Plus

18pin AMP connector:

To interface MULTI200

● Red:

+12V DC (Battery)

● Black:

Ground

● Yellow:

CAN-HIGH

● Blue:

CAN-LOW

● Pink:

Ignition +12V (output, max. 500mA)

● Green:

Power supply rear view camera +12V (max. 1A)

●White:

Reverse gear recognition (12V)

(1) 3 Pin AMP connector:

Remote control device 1

(2) 3 Pin AMP connector:

Remote control device 2

Installation of the harness with MULTI200:

Instructions for VW, Skoda with MFD1 and AUDI with Navi Plus:

Please remember to switch off the ignition prior to installing this interface.

1. Remove the navigation system from its mounting point

and pull it out gently from the dash.

Remove all its connectors.

MFD 1

Page6

2. Connect the 10pin plug of the harness to the navigation unit.

3. Connect the blue cable from the harness to pin 26 of the

26 pin connector of the navigation unit. Connect the yellow

cable to pin 13 of the 26 pin connector.

Connect the black cable to ground (power connector pin 8)

and the red cable to 12V battery (power connector pin 7).

Additionally you can use the pink cable (+12V) to switch

on the video sources.

4. Connect the according remote control cables to the

3pin AMP connectors (eg. „STA-AL25“ for Alpine DVD

devices). You can use additional Y-harnesses

„CABLE-415“ / „CABLE-416“ (sold separately) to

connect the infrared receivers of the video devices

in parallel to the interface.

5. Connect the Video / Audio rca cables (not included)

to the plugs (AV1 / AV2) at the interface

and the video sources.

6. Connect the 14pin Molex connector and

the 18pin AMP connector to the interface.

You can also connect an external monitor to the

"VIDEO OUT" plug at the interface.

Remote con-

trol AV1

Remote con-

trol AV2

Page7

7. To use the rear view camera function you have

to open the interface.

As seen on the right side you have to close the

connection with the middle jumper.

Connect the video signal of the aftermarket rear view

camera to the "R-CAM IN" plug.

The green cable of the harness can be used to supply

power (+12V) to the rear view camera.

8. Reconnect all original connectors and reassemble the system into the car.

Eine automatische Umschaltung des Rückfahrkamerabildes aus z.B. der Radio

Ebene ist mit manchen MFD1 / NAVI Plus System nicht möglich.

Rear view camera

function - On

Page8

Function and control:

Activation:

Pressing „Audio“ in a VW or Skoda respectively

“Radio/CD/TV“ in an Audi activates the TV/AV input.

Device assignment:

Due to the lack of a display connection to MDF1 and Navi+, the setup has to be done without

optical feedback.

Pressing the button „AS“ (MFD1) or „MODE“ (Navi+) for more than 3 seconds activates the

device assignment.

Turning the right knob clockwise sets up the device specific rc code.

When activated the first code is 01. (See below for details)

Pressing the right knob again activates the setup for the second device.

You can select the rc code like before.

When pressing the right knob again the settings are stored and the setup is left.

Devices RC codes:

Model

RC Code:

DVD USB, MP410, MP412, AD212U, DVP-1000M,

DVP-900HD

DVBT2007, Dietz 1491/V

AMPIRE DVB-T100

DVB2008, TRT400

DVDC CKO DVC10

DVD-Changer CKO- DVC 6M , YamakawaDVD-Changer

DVBT NL, SENERGY, C-KO DVBT-1080, Axion DVBT 500

DVD ADJQ-DVDRD, PYLE PLTD24, Veba,

Carmedien CM06

DVD 1/2 DIN (NO NAME)

DVD Alpine RUE –4201

DVD Alpine RUE - 4158;TUE-T150DV

DVBT Eastern SE863-T

iPod®Vlink

DVBT ZENEC ZE-DVBT25

V-HUB VPA-B222R Alpine Radio

V-HUB VPA-B222R Alpine DVD

DVD Necvox DVA-3206

Analog-TV Alpine TUE-T112P

Analog-TV TRT-003

BOA-DVD 85700 /AIV, C-KO 412

DVD Visteon VXM2200

DVBT Quantum QTM10

Model

RC Code:

DVD Elite ELT-900XU Novosonic

DVDC CkO MPC6

DVD-TIXXON (No Name)

HD-Player 3,5“ MVIX MV-5000U

DVD Axion VDV-402

DVD Bullit CDVD12

DVD ZENEC ZE-080

DVBT Ampire DVBT200

DVBT&DVD USB DigitaldynamicMultiplayer

iPod Alpine KCE-425I

A-TV TVT-765

Emperor Mini DVBT

DVBT Carmedien DVB423

DVBT M-DTV-201-0

DVDC Pioneer XDV-P6 (Reserviert)

DVD Phonocar VM 015 (USB/SD)

Hirschmann DVBT / Visteon DVBT

HD Microlab - Pocket X Div 25 (2,5 Zoll HD P. Tixxon)

DVB-T D80

DAS / Dietz 1492 DVB-T

DVBT Ampire DVBT50

Page9

Control:

The video sources can be controlled with the buttons at the navigation system.

You can switch between AV1 / AV2 by pressing the right turn knob more than 3 seconds.

See below for all buttons.

Button assignment for MFD I:

Button assignment part 1

Button assignment part 2

●─● MFD 1 ●─●

Modell

9 (3Sec)

DVD / DVDC

PLAY

PBC

TITLE

←

→

SETUP

TRACK-

TRACK+

RC CODE

DVB-T TUNER

PLAY/PAUSE

EPG

INFO

←

→

CH-

CH+

RC CODE

I-POD®CONTROL

PLAY/PAUSE

SHUFFLE

REP.

←

→

BULB

TRACK-

TRACK+

EJECT

RC CODE

ANALOG TUNER

SCAN

DISP

CH-

CH+

ADJUST

CH-

CH+

MODE

RC CODE

●─● MFD 1 ●─●

Modell

10 (3Sec)

11 (3sec)

14 (3sec)

DVD / DVDC

ZOOM/DISC

POWER

ENTER

SWITCH AV1/AV2

↑

↓

STOP

SETTINGS MENU

DVB-T TUNER

SCAN

POWER

SWITCH AV1/AV2

↑

↓

EXIT

SETTINGS MENU

I-POD®CONTROL

-----

POWER

ENTER

SWITCH AV1/AV2

↑

↓

PLAY

SETTINGS MENU

ANALOG TUNER

MODE

POWER

MODE

SWITCH AV1/AV2

VOL +

VOL -

MUTE

SETTINGS MENU

Page10

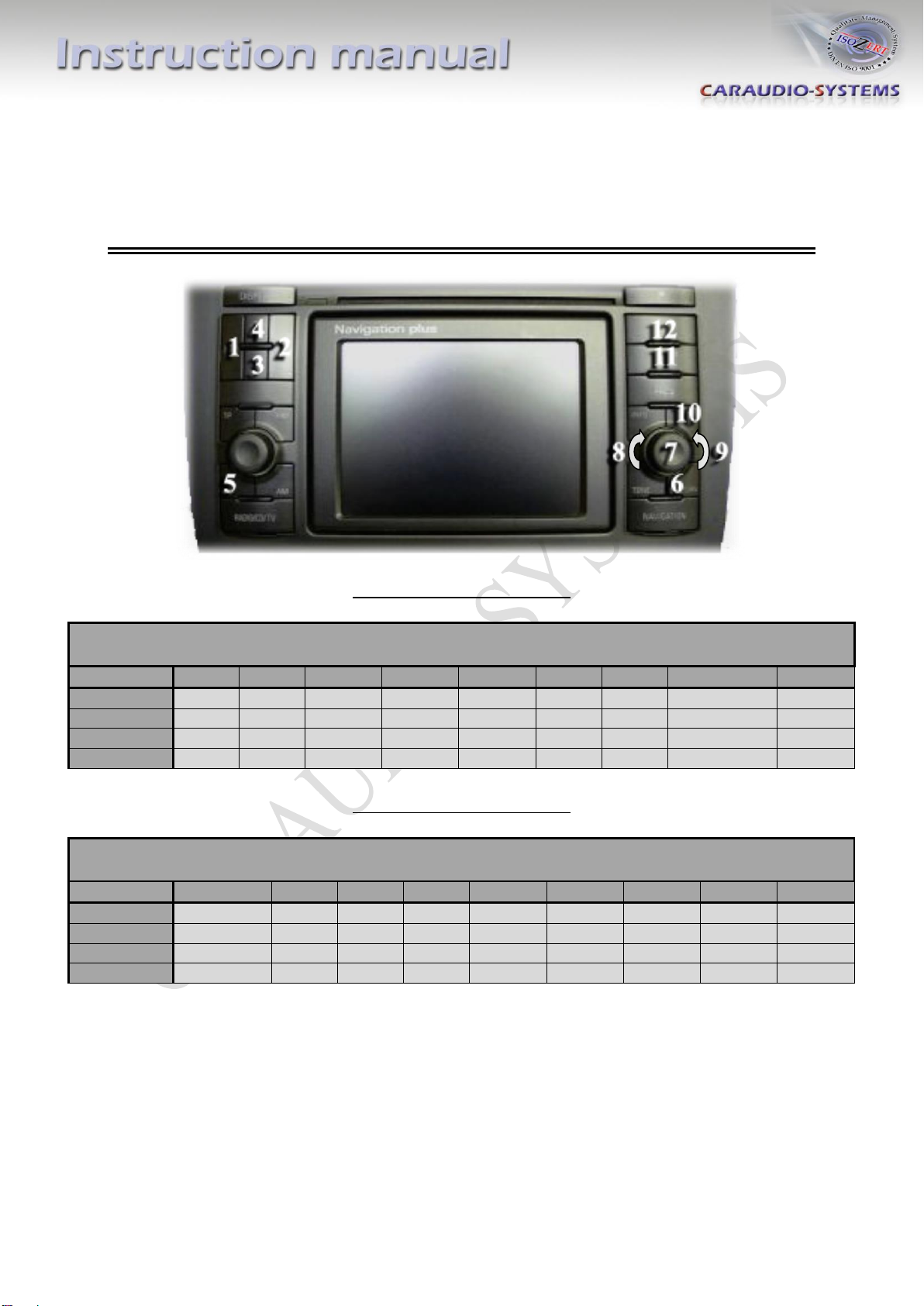

Button assignment for AUDI Navi Plus:

Button assignment part 1

Button assignment part 2

●─● AUDI Navi Plus ●─●

Modell

5 (3Sec)

6 (3Sec)

DVD / DVDC

TRACK-

TRACK+

←

→

POWER

STOP

SETTINGS MENU

ENTER

DVB-T TUNER

CH -

CH +

←

→

POWER

EXIT

SETTINGS MENU

I-POD®V-LINK

TRACK-

TRACK+

←

→

POWER

ESC

SETTINGS MENU

ENTER

ANALOG TUNER

CH -

CH +

CH -

CH +

MODE

POWER

MUTE

SETTINGS MENU

MODE

●─● AUDI Navi Plus ●─●

Modell

7 (3Sec)

10 (3Sec)

11 (3sec)

12 (3Sec)

DVD / DVDC

SWITCH DEVICE

↑

↓

SETUP

RC CODE

PBC

SUB

PLAY

TITLE / DISC

DVB-T TUNER

SWITCH DEVICE

↑

↓

RC CODE

EPG

LANG

SCAN

INFO

I-POD®V-LINK

SWITCH DEVICE

↑

↓

LIGHT

RC CODE

SHUFFLE

-----

PLAY/PAUSE

REPEAT

ANALOG TUNER

SWITCH DEVICE

VOL +

VOL -

ADJUST

RC CODE

MUTE

SCAN

DISPLAY

Inhaltsverzeichnis

Andere Caraudio-Systems Autozubehör Handbücher

Caraudio-Systems

Caraudio-Systems TV-Free TF-NTG5 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems usbLOGiC Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems OBD-CCC-CDC-01 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TF-U501 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems v.LOGiC Intelligent Solution V5-CCC Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems r.LiNK RL-PCM3-TF Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TV-Free TF-MFD2 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TF-NTG3 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems r.LiNK RL-FD79-TF Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems OBD-ASK-CDC Series Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems MD-VW03 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems C2-MK-CD Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TV-Free TF-FSYNC54 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems r.LiNK-Interface Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TV-Free TF-E65 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems USB-C25 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems usbLOGiC USB-E65-TV Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems TF-LR15 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems L3-LR17 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems CXR-CAN Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems z.LiNK ZL-MFD2 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems VL2-MBN2 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems usbLOGiC USB-NTG1 Bedienungsanleitung

Caraudio-Systems

Caraudio-Systems AC-AUX-FM Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
