CARLO GAVAZZI M18 Series Technische Daten

Specifications are subject to change without notice (06.08.2008) 1

Ultrasonic

Diffuse, Analo ue Output

Type M18 and M30

Product Description

Ultrasonic sensor

Housing style

Housing size

Housing material

Housing length

Detection principle

Sensing distance

Output type

Output configuration

Connection

Remote teach

Type Selection

Housing Connection Rated operating Outputs Ordering no.

dimensions dist. (Sn)

M18 x 93 mm Plug M12, 5 pin 60-500 mm 0-10 V UA18CLD05AKM1TR

M18 x 93 mm Cable 60-500 mm 0-10 V UA18CLD05AKTR

M18 x 93 mm Plug M12, 5 pin 60-500 mm 4-20 mA UA18CLD05AGM1TR

M18 x 93 mm Cable 60-500 mm 4-20 mA UA18CLD05AGTR

M18 x 93 mm Plug M12, 5 pin 100-800 mm 0-10 V UA18CLD08AKM1TR

M18 x 93 mm Cable 100-800 mm 0-10 V UA18CLD08AKTR

M18 x 93 mm Plug M12, 5 pin 100-800 mm 4-20 mA UA18CLD08AGM1TR

M18 x 93 mm Cable 100-800 mm 4-20 mA UA18CLD08AGTR

M18 x 93 mm Plug M12, 5 pin 200-2000 mm 0-10 V UA18CLD20AKM1TR

M18 x 93 mm Cable 200-2000 mm 0-10 V UA18CLD20AKTR

M18 x 93 mm Plug M12, 5 pin 200-2000 mm 4-20 mA UA18CLD20AGM1TR

M18 x 93 mm Cable 200-2000 mm 4-20 mA UA18CLD20AGTR

M30 x 125 mm Plug M12, 5 pin 300-3500 mm 0-10 V UA30CLD35AKM1TR

M30 x 123.5 mm Cable 300-3500 mm 0-10 V UA30CLD35AKTR

M30 x 125 mm Plug M12, 5 pin 300-3500 mm 4-20 mA UA30CLD35AGM1TR

M30 x 123.5 mm Cable 300-3500 mm 4-20 mA UA30CLD35AGTR

Orderin Key

UA18CLD20AKM1TR

A family of multi function dif-

fuse ultrasonic sensors with

a sensing range of 60 to

3500 mm. The analog output

is easily set up in 2 setpoints

(pos./neg. slope) and adjust-

ed by teach-in - makes it

ideal for level control tasks in

a wide variety of vessels. A

sturdy one-piece PBT

housing provides the perfect

packaging for the sofisticat-

ed microprocessor con-

trolled and digitally filtered

sensor electronics. Excellent

EMC performance and pre-

cision are typical features of

this sensor based on true

distance measurement.

Technical Data

Rated operational volt. (Ue) 15 to 30 VDC (ripple included)

Ripple ≤ 10%

No-load supply current (Io) ≤ 40 mA

rotection Short-circuit, transients and

reverse polarity

Rated insulation voltage > 1 kV

ower-on delay

UA18..D05/D08 60 ms

UA18..D20 90 ms

UA18..D35 220 ms

Output

UA..CLD..AK.. 0-10 VDC

UA..CLD..AG.. 4-20 mA

Output slope Positive or negative

Setup via teach-in

• M18 and M30 BT housing

• Sensing distance: 60 - 3500 mm

• Remote Teach by wire

• Outputs: Analog 0-10 V or 4-20 mA

• Setup of positive or negative slope

• ower supply: 15 to 30 VDC

• 8° beam angle

• rotection: Short-circuit, reverse polarity, transients

• rotection degree I 67

• M12 plug, 5 pin

2Specifications are subject to change without notice (06.08.2008)

1 BN

3 BU

4 BK

Teach-in

5 PK

(GY) 53

M18 and M30

Analo ue Output Adjustment

Echo P1 P2

Green Yellow Yellow

Teach in of 1 position

Teach in of 2 position

Teach-In for

8 sec

14 sec

Normal function:

The Echo LED is ON when the echo is received (this is the

alignment LED confirming that the target is properly aligned).

The LED P1 is ON, when the target is between the sensor

face and P1. The LED P2 is ON when Target is farther than

P2.

Wirin Di a ram

Teach-In for

14 sec

Linearity error < 0.5%

Repeat accuracy (R)

UA....D05/08 0.2%; 1 mm

UA....D20/35 0.2%: 2 mm

Rated operating distance/

Resolution

UA18CLD05 60-500 mm: 0.25 mm

UA18CLD08 100-800 mm: 0.25 mm

UA18CLD20 200-2000 mm: 1.0 mm

UA30CLD35 300-3500 mm: 1.0 mm

Load

4-20 mA max. 500 Ω

0-10 V min. 1 kΩ

Carrier frequency

UA....D05 330 K z

UA....D08 300 K z

UA....D20 180 K z

UA....D35 130 K z

Response time

UA18CLD05/08 100 ms

UA18CLD20 200 ms

UA30CLD35 400 ms

Technical Data (cont.)

Indication Set points, 2 LEDs yellow

Echo, 1 LED green

Rated operating distance 60 - 3500 mm

Temperature compensation Yes

Beam angle 8°

Ambient temperature

Operating and Storage -15° to +70°C (5° to +158°F)

Degree of protection IP 67 (Nema 1, 3, 4, 6, 13)

Housing material Polyester, PBTP

Connection

Cable 2 m, 5 x 0.25 mm2

Plug M12, 5-pin

Cables for plug (M1) CONM15 series

WeightWeight UA 18 ...A. 96 g

UA 18 ...A.M1 57 g

UA 30 ...A. 199 g

UA 30 ...A.M1 140 g

Tightening torque M18 2.6 Nm

M30 7.5 Nm

CE-marking Yes

Specifications are subject to change without notice (06.08.2008) 3

M18 and M30

Detection Ran e

060 500 mm

-150

+150

93±0.5

65±0.1

M18 x 1

Dimensions

93±0.5

65±0.1

M18 x 1

123.5±0.5

90±0.5

M30 x 1.5

125±0.5 11.2

90±0.5

M30 x 1.5

M18 cable M18 plug

M30 cable M30 plug

UA18CLD05

0100 800

-150

+150

UA18CLD08

0200 2000

+400

-400

UA18CLD20

0300 3500

-800

+800

UA30CLD35

Guaranteed detection of a target 100 x 100 mm Guaranteed detection of a target 100 x 100 mm

Possible detection of a large target Possible detection of a large target

4Specifications are subject to change without notice (06.08.2008)

0 200 2000 mm

0 100 800 mm

0 60 500 mm

0 300 3500 mm

Analogue output adjustment

P1 and P2 define the analogue output slope.

P1 determines the 4 mA position and P2 the 20 mA position.

Positive slope: P1 < P2

Negative slope: P2 < P1

Teach-In of 1 position (4 mA output)

old Teach-In for 8 seconds until P1 and Echo LED’s start

flashing 2 times per second.

The sensor is now in teach mode for P1:

P1 LED will now flash once per second and the Echo LED

returns to normal function (alignment LED).

The Teach-In function is now open for 1 minute to do the

programming of P1.

Place the target at the new position P1.

Activate Teach-in: P1 is now programmed.

Sensor returns to normal function with new value for P1.

Teach-In of 2 position (20 mA output)

old Teach-In for 14 seconds until the P2 and Echo LEDs

start flashing 2 times per second. After 8 seconds, the P1

and Echo LEDs will start flashing, but this must be ignored

and after an additional 5 seconds the P2 is reached.

The sensor is now in teach mode for P2:

P2 LED is flashing once per second. The Echo LED returns

to normal function (alignment LED).

Teach-mode is now open for 1 minute to do the program-

ming of P2.

Move the target to the new position P2.

Activate Teach-in: P2 is now programmed.

Sensor returns to normal function with new value for P2.

Teach-in procedure

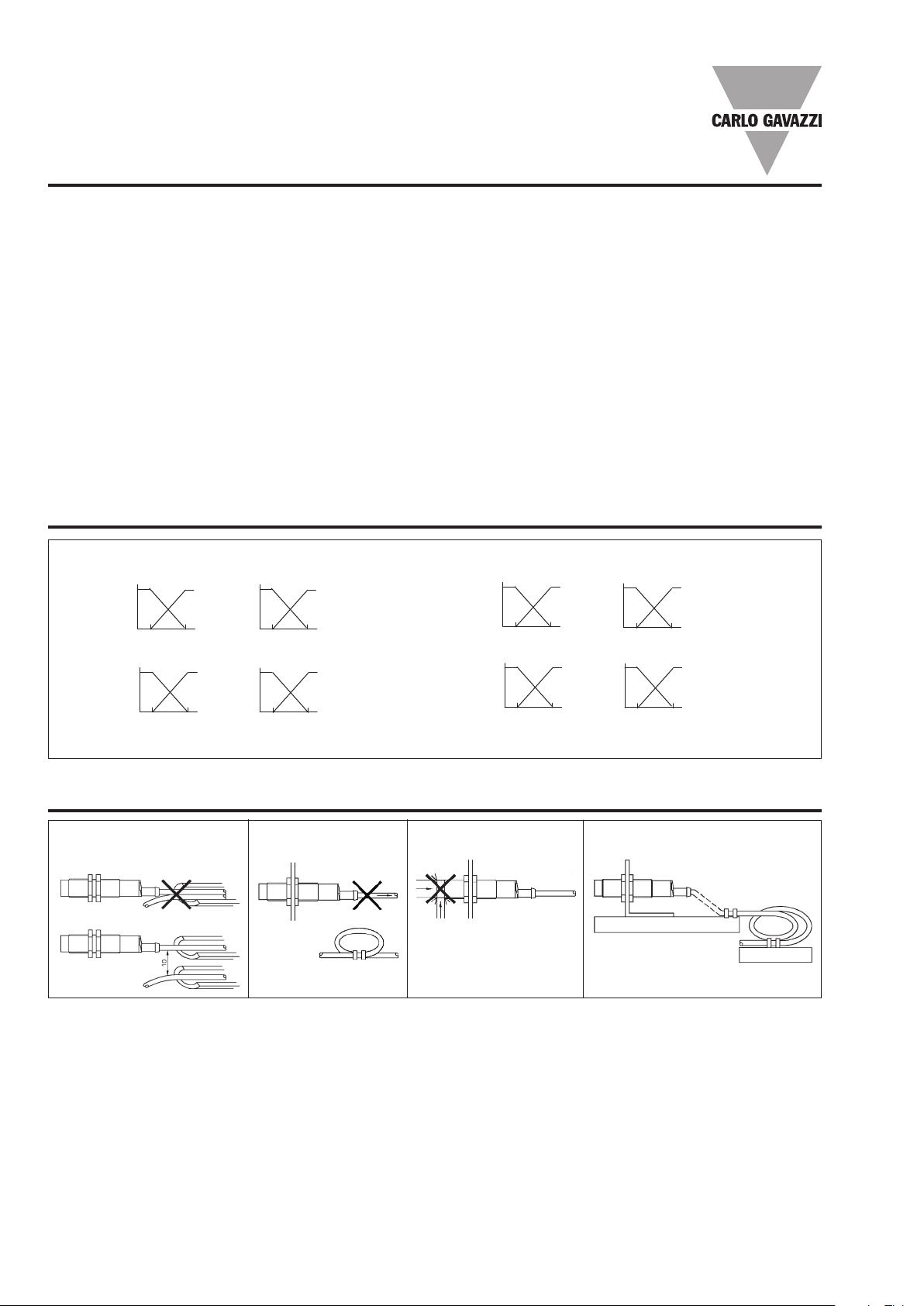

Installation Hints

Relief of cable strain Protection of the sensing face Switch mounted on mobile carrierTo avoid interference from inductive voltage/

current peaks, separate the prox. switch

power cables from any other power cables,

e.g. motor, contactor or solenoid cables Incorrect

Correct

The cable should not be pulled A proximity switch should not serve as

mechanical stop

Any repetitive flexing of the

cable should be avoided

M18 and M30

Output Functions

Voltage

Output

4 200 2000 mm

4 100 800 mm

4 300 3500 mm

4 60 500 mm

Current

Output
