SBPBASEA
1
Carlo Gavazzi Controls S.p.A.SBPBASEA ENG15/04/2019
Carpark base holder
Description
The SBPBASEA is part of the Dupline®Carpark
system.
It is a base holder for the SBPSUSxxx sensors and
SBPILED indicator.
The base holder contains the wiring terminals, the
chip with the SIN code and a RJ12 connector for
the sensor / indicator.
It is designed for cable tray and conduit/ pipe
mounting where the wires enter the base holder
from the top.
Benets
• Plug & Play installation
• One base holder suitable for the SBPSUSxxx sensors
and SBPILED indicator
• On board chip with the SIN code and detachable
connector for Dupline®3-wire
Applications
Parking Guidance Systems
Main functions
• Base holder for Dupline®carpark sensors and indicators.
2
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

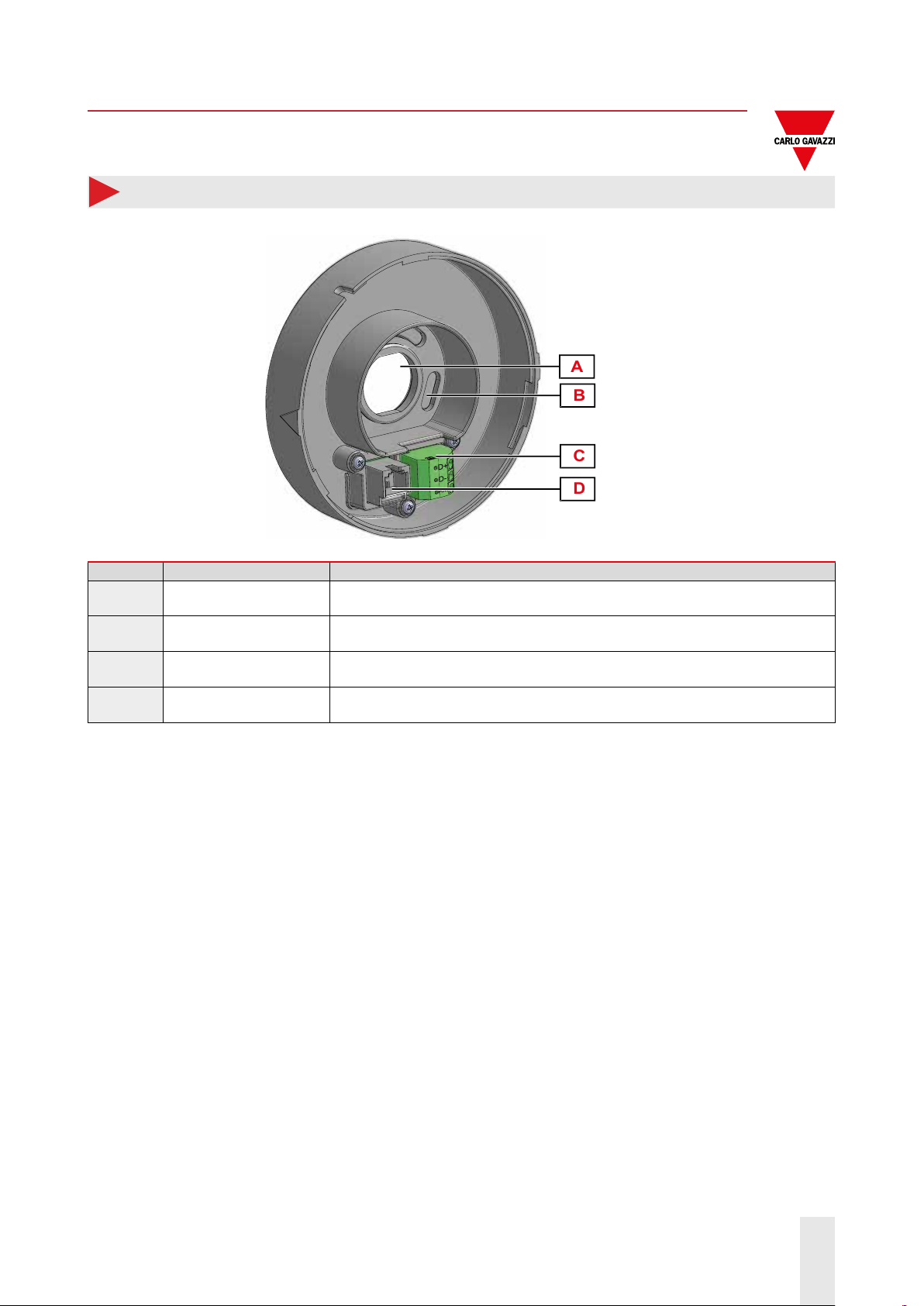

Structure
A
B
C
D
Element Component Function
AThe wires enter the base holder from the top
BPre-punched screw holes The base holder can be mounted by means of selftapping screws by using the
pre-punched screw holes
C2 x 3 PIN connector Wiring terminals (POW, D+, D-) for power supply and communication
(Smart Dupline®)
DRJ12 female connector It is used to connect the sensor (SBPSUxxx) or indicator (SBPILED) to the base
holder
3
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

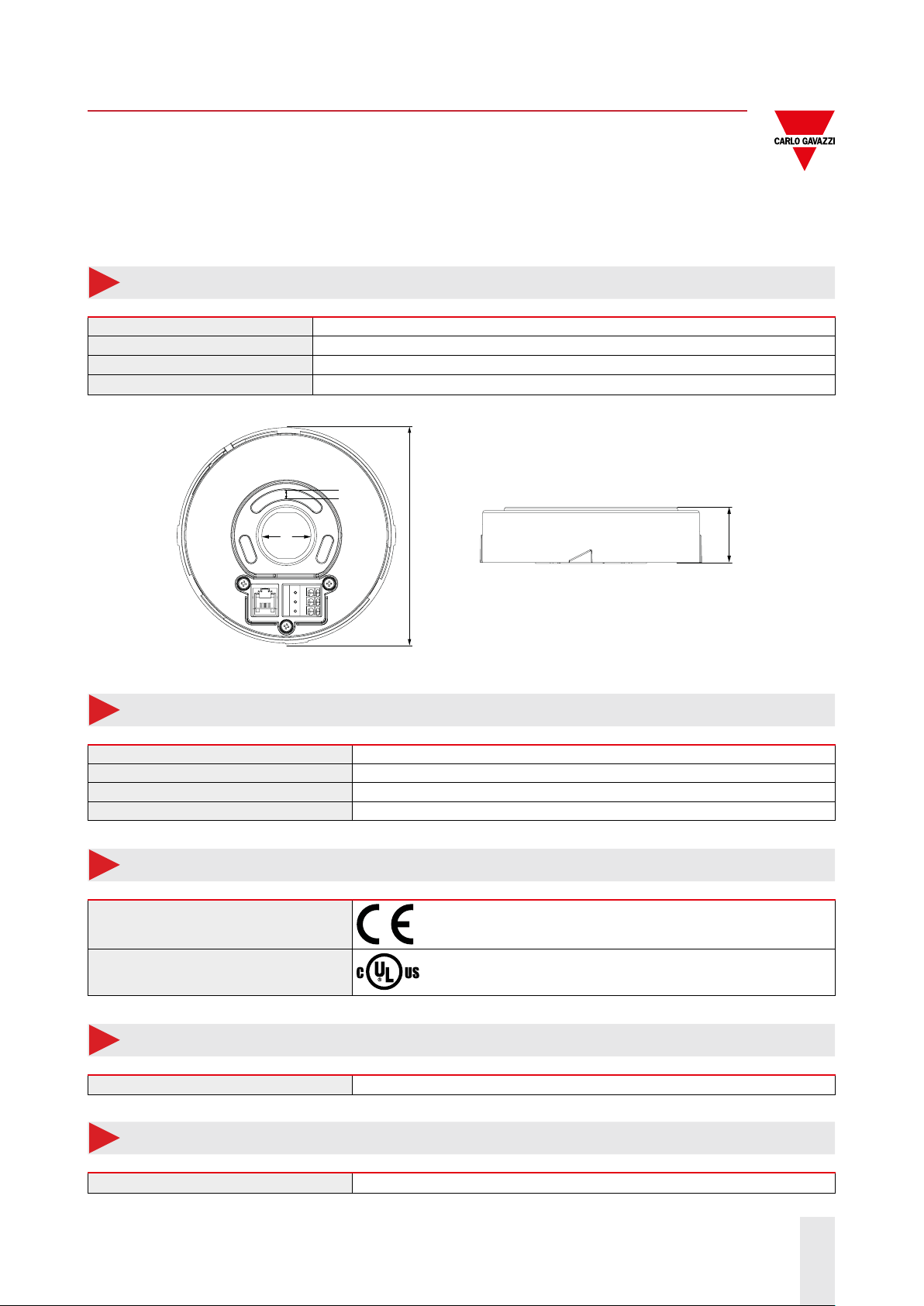

Features
General
Material ABS
Housing colour Light grey
Dimensions 26 x 116 mm
Weight 25 g
26
mm
mm6.11
26 mm
Ø
5 mm
Environmental
Operating temperature -40 to 70°C ( -40 to 158°F)
Storage temperature -40 to 80°C ( -40 to 176°F)
Humidity 5-98% Relative humidity
Pollution degree 3 (IEC60664)
Compatibility and conformity
CE-marking
Approvals
Power Supply
Power supply By the Dupline®bus via the RJ12 connector
Communication
Protocol Smart-Dupline®
4
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

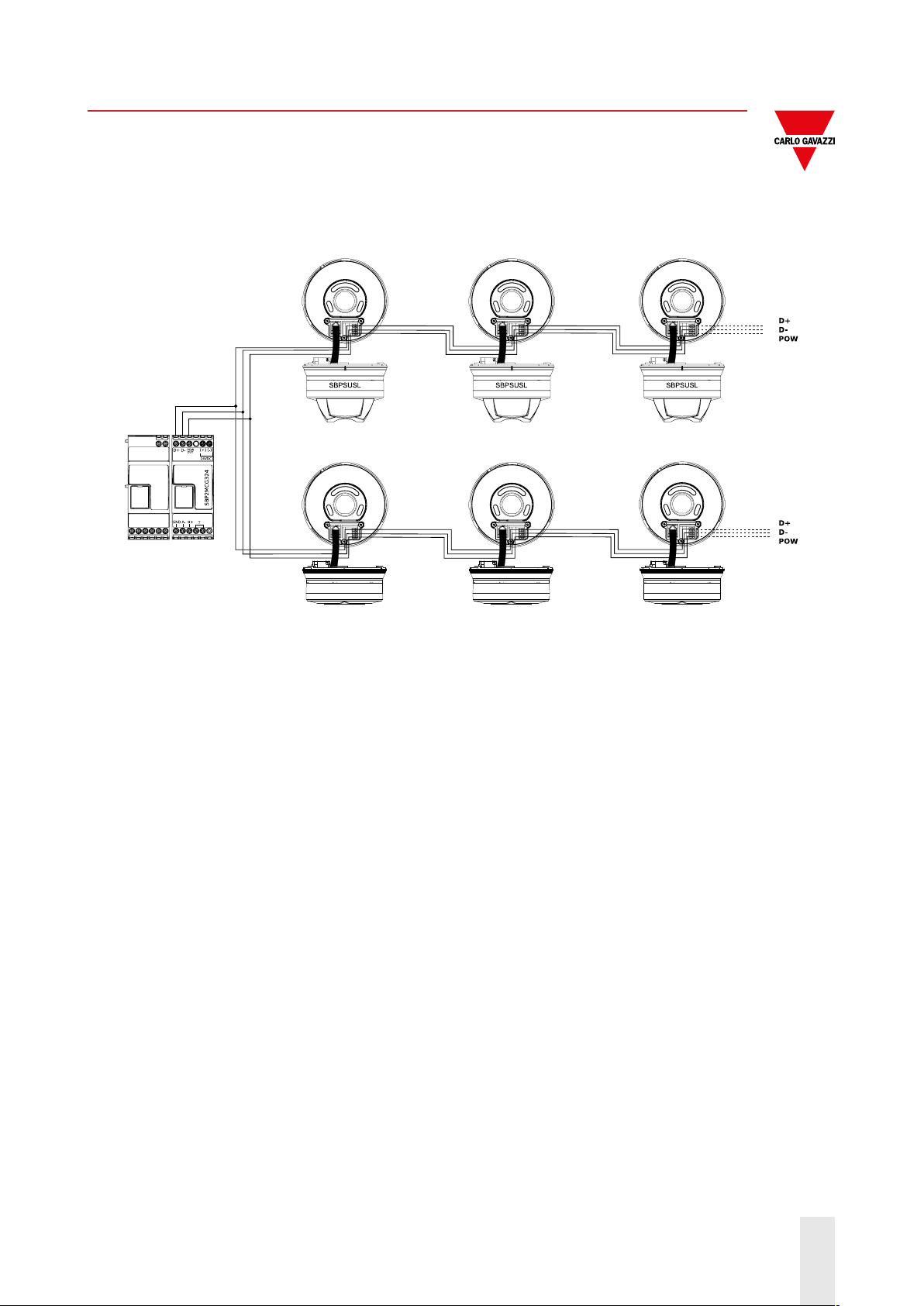

Connection Diagram
UWP 3.0
1 2 n
1 2 n
S
B
P
B
A
S
E
x
S
B
P
B
A
S
E
x
S
B
P
B
A
S
E
x
S
B
P
B
A
S
E
x
S
B
P
B
A
S
E
x
S
B
P
B
A
S
E
x
SBPILED SBPILED SBPILED
5
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019
Mode of operation
The following mounting suggestions are the standard ones; for any type of application other than
those shown below, please contact our technical assistance before installing the SBPBASEA and the
SBPSUSxxx sensors and SBPILED indicator.

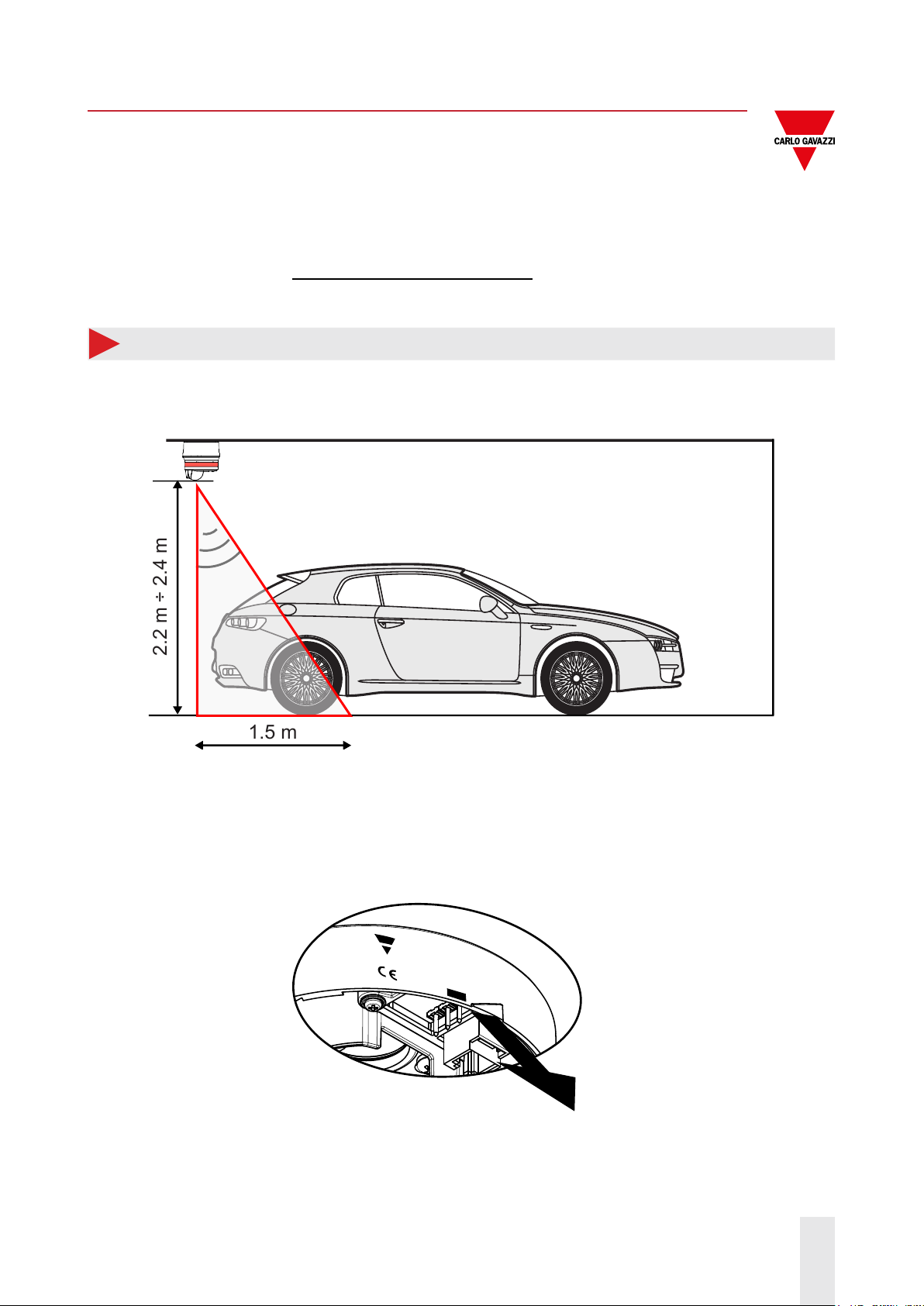

Installation of the SBPBASEA together with the SBPSUSL45
The SBPBASEA together with the SBPSUSL45 sensor should be placed at a height between 2.2 to 2.4m. The
depth of detection is 1.5 m.
1.5 m
2.2 m ÷ 2.4 m
Fig. 1 Sensor height and distance
The SIN indication and connectors must face the parking bay (see picture below):
Parking bay
SBPBASEA
CARPARK BASE HOLDER
MLXXXXXXXXXXXXX
UL evaluated accessory for Car Park sensor, E345706
Made in Italy
RoHS
6
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

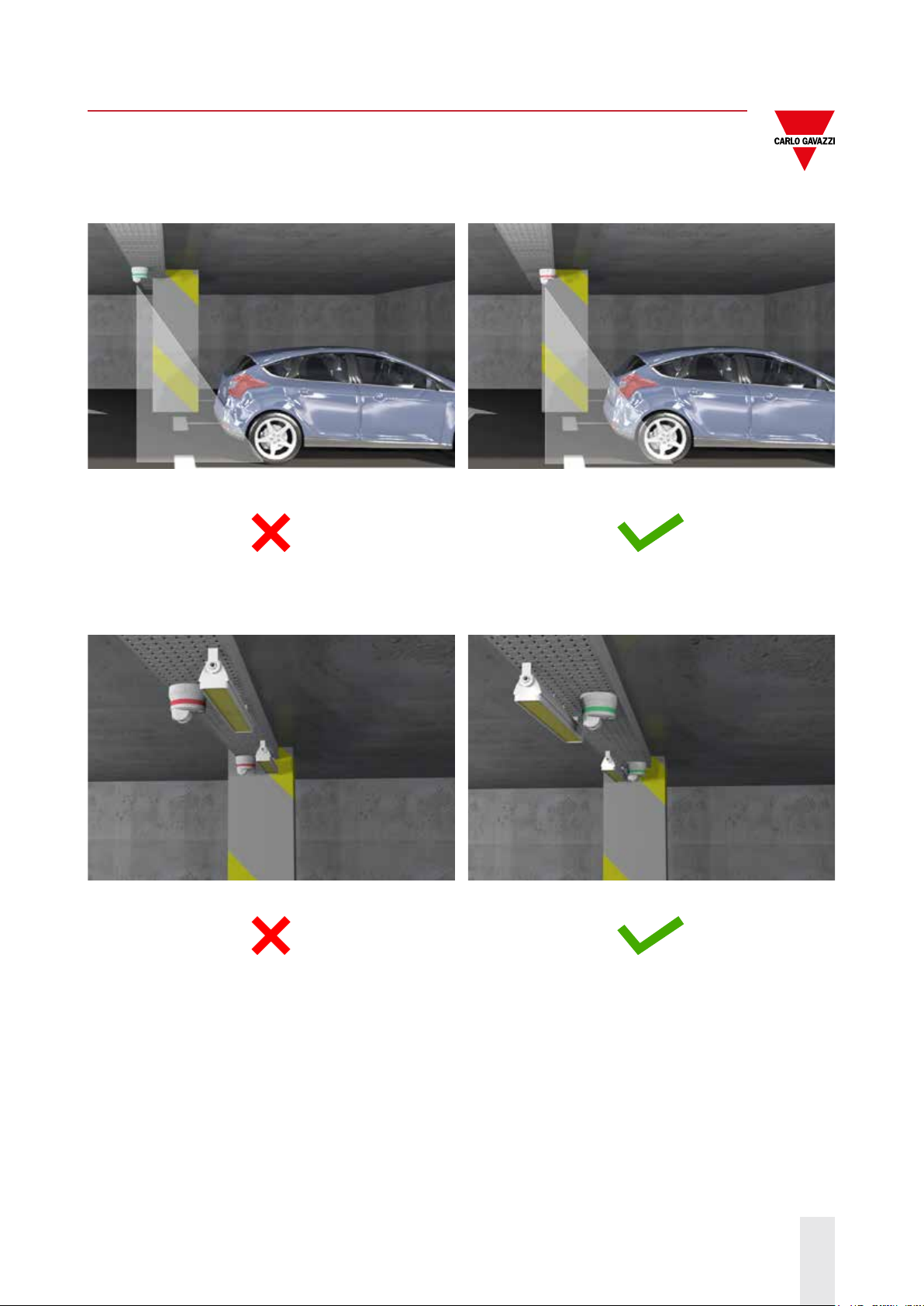

Example 1
In this example the SBPBASEA together with the sensor could have been installed closer to the parking bay.
The SBPBASEA is wrongly mounted on the left hand of the cable
tray Put the SBPBASEA on the right hand of the cable tray
Example 2
In this example the LED lamp is too close to the sensor and wrongly mounted in front of the sensor, obstructing
the visibility.
The LED lamp is wrongly mounted in front of the sensor Put the SBPBASEA together with the sensor
in front of the LED lamp
7
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

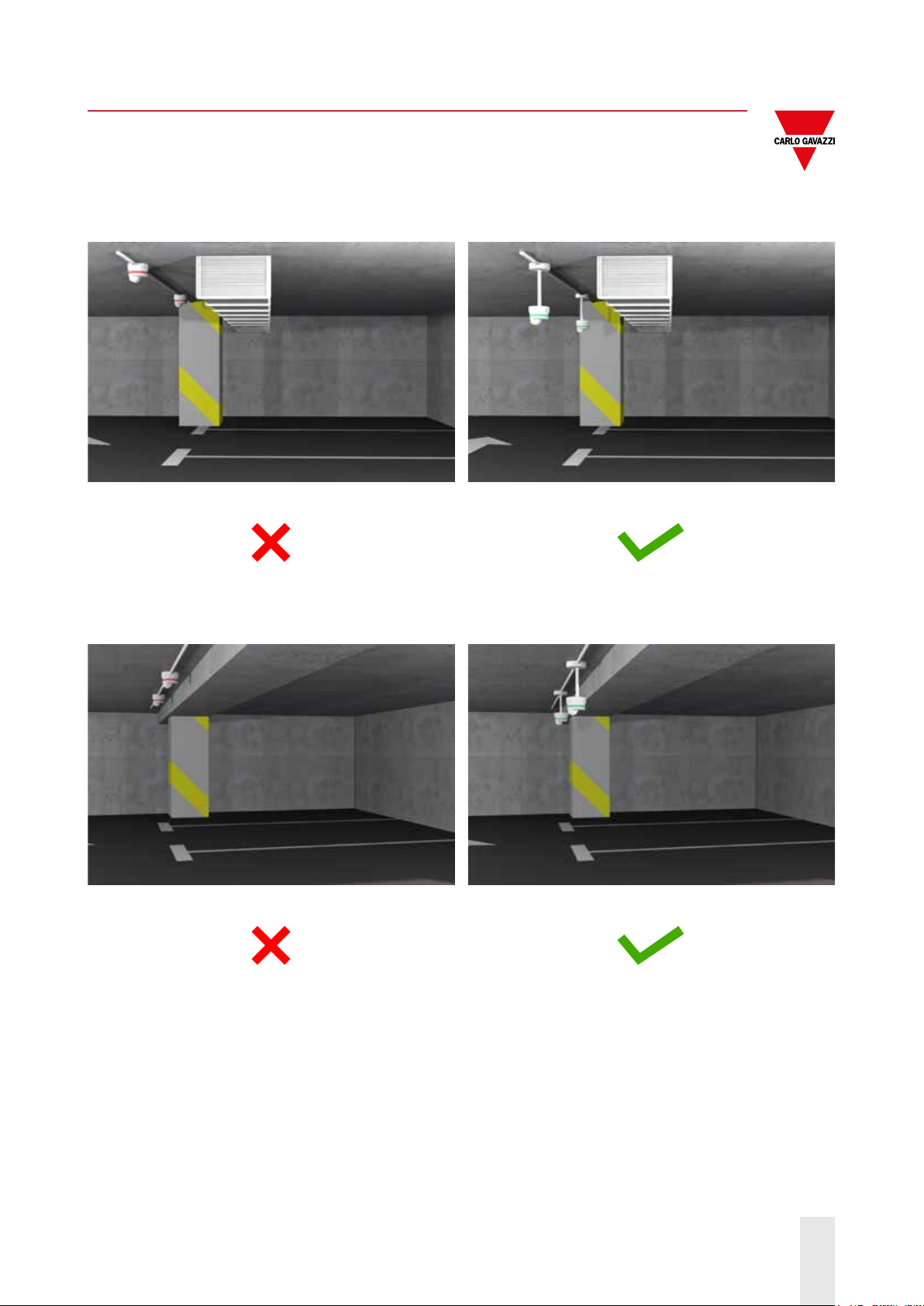

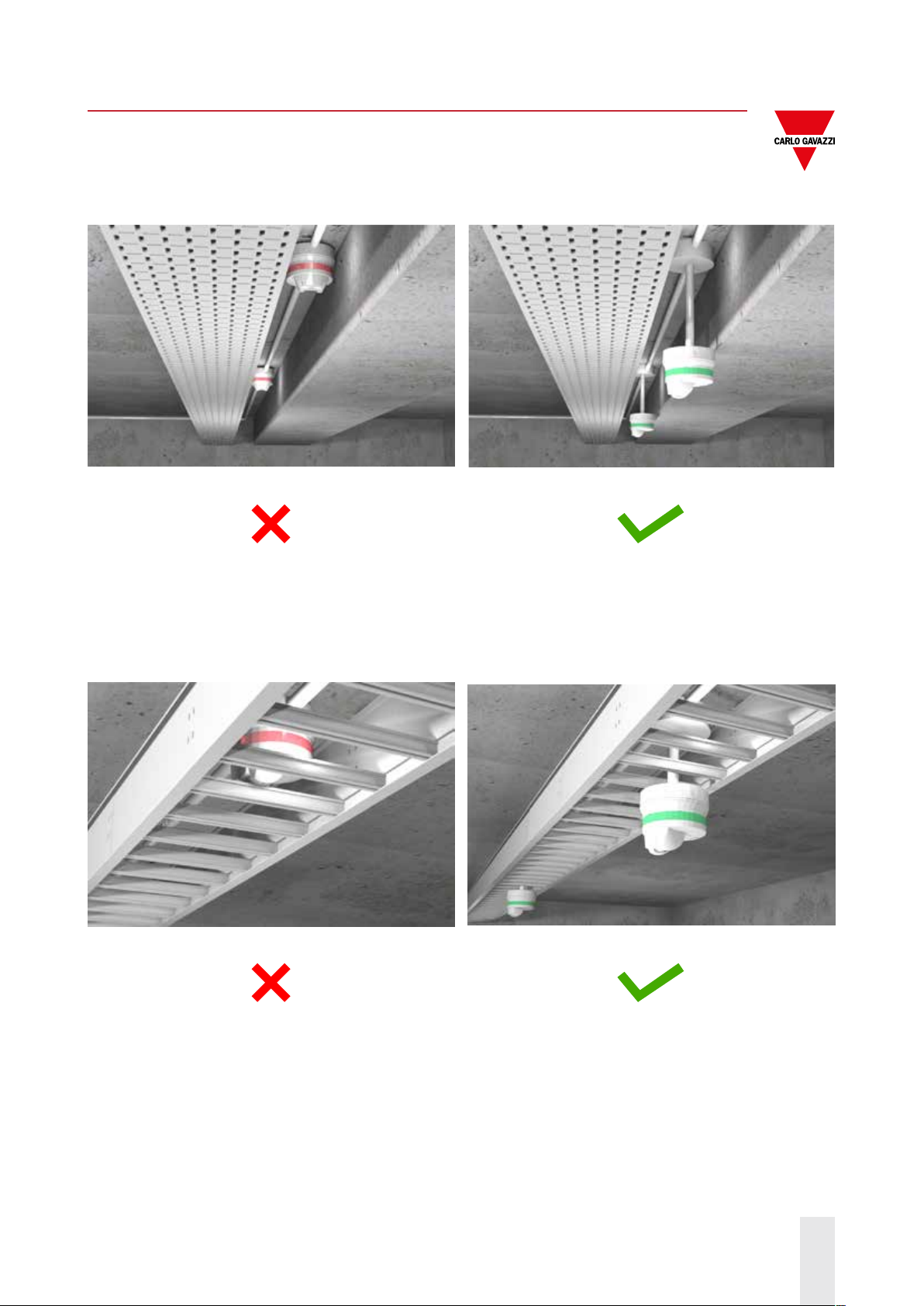

Example 3
If the distance between the obstacle and the sensor is less than 2.5 m, the base of the sensor must be installed
at least 5 cm below the obstacle.
The sensor is obstructed by the obstacle Put the SBPBASEA at least 5 cm below the obstacle
Example 4
In this example the obstacle (beam) is lower than the sensor and it is too close (< 2.5 m).
The sensor is obstructed by the obstacle Put the SBPBASEA at least 5 cm below the obstacle
8
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

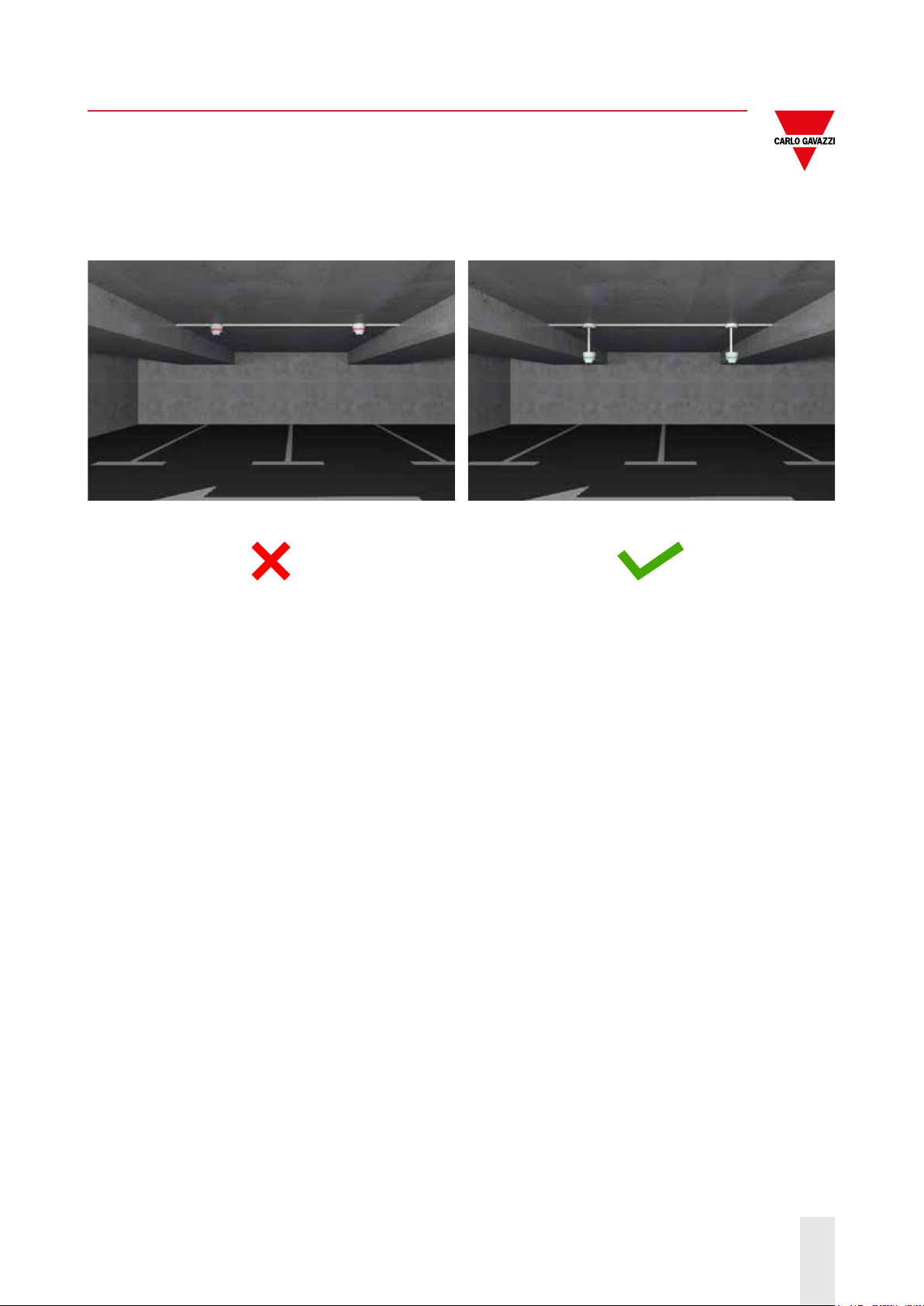

Example 5
In this example the obstacle is on the side part of the sensor and the distance between them is less than 1 m.
Moreover, the thickness of the obstacle is more than 30 cm. The SBPBASEA for conduit/pipe mounting has to
be installed to mount the sensor at least 5 cm below the obstacles.
The obstacle is too close to the sensors Put the SBPBASEA at least 5 cm below the obstacles
9
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019

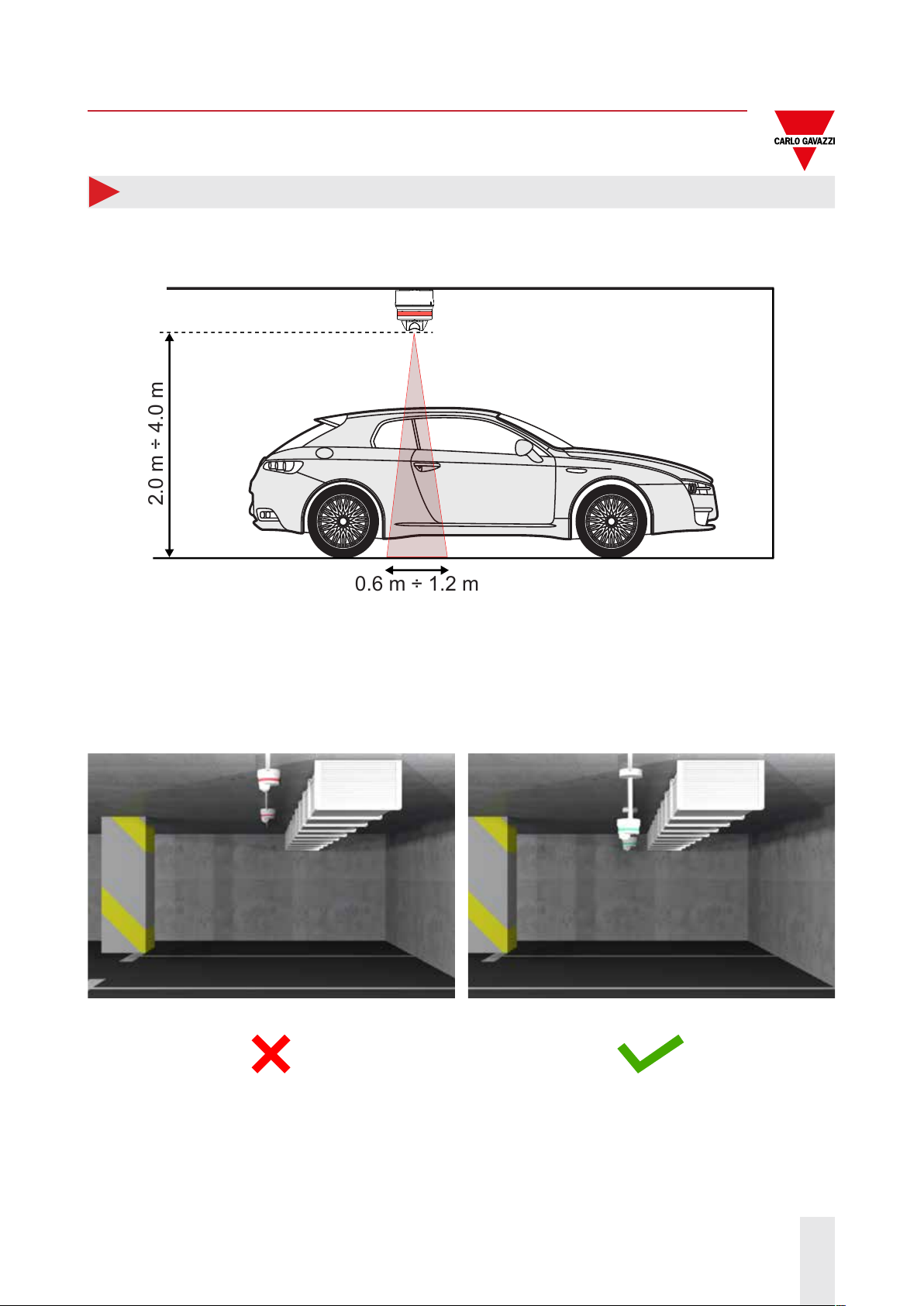

Installation of the SBPBASEA together with the SBPSUSL
The SBPBASEA together with the SBPSUSL sensor should be placed in the middle of the parking bay at a
height between 2.0 to 4.0 m.
2.0 m ÷ 4.0 m
0.6 m ÷ 1.2 m
Fig. 2 Sensor height and distance
Example 6
If the distance between the obstacle and the sensor is less than 20 cm, the base of the sensor must be
installed at least 5 cm below the obstacle.
The sensor is obstructed by the obstacle Put the SBPBASEA at least 5 cm below the obstacle
10
Carlo Gavazzi Controls S.p.A.
SBPBASEA
SBPBASEA ENG15/04/2019
Example 7
In this example the obstacles (beam and conduit) obstruct the sensor and they are too close (< 20 cm).
The sensor is obstructed by the lateral obstacles Put the SBPBASEA at least 5 cm below the obstacles
Example 8
If there is an obstacle hiding the sensor (which can not be removed) be sure to place the sensor at least 5 cm
below it, by using the SBPBASEA together with a pipe.
The sensor is completly obstructed by the obstacle The sensor is placed outside the obstacle by using the
SBPBASEA and a pipe
