INSTALLATION INSTRUCTIONS

Small Flat Panel

Height-Adjustable Single Swing Arm Wall Mount

(FWV-110)

BEFORE YOU BEGIN

• CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, thoroughly

study all instructions and illustrations before you begin to install the mount brackets. Pay particular

attention to the “Important Warnings and Precautions” on Page 2.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.

The FWV is a sleek design providing a broad range

of viewing for Small Flat Panel Displays.

The FWV single swing arm desk mount easily rotates

laterally. The lift arm has 13 inches of vertical travel,

6-1/2” up from center and 6-1/2” down from center.

On standard installations, the FWV is wall-mounted.

The mount will safely hold a display weighing up to

25 lbs (11kg) maximum. The display can be up to 30

inches wide.

The FWV accommodates all VESA® 75mm/100mm

compliant displays.

Instruction Manual FWV-110

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not

follow the corresponding instructions.

• WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment: if not, reinforce the mounting surface structural members before

installing the FWV.

• WARNING Be aware of the potential for personal injury or damage to the unit if it is not

adequately mounted.

• WARNING The installer is responsible for verifying that the mounting surface to which the FWV

is anchored will safely support the combined load of all attached components or

other equipment.

• WARNING The combined weight of the display placed on the FWV must not exceed 25 lbs.

(11.3kg), the maximum load capacity of the mount.

• WARNING Watch for pinch points. Do not put your fingers between movable parts.

• WARNING Make sure the mount is correctly oriented.

• CAUTION Check the unit for shipping damage before you begin the installation.

• CAUTION Over-tightening mounting screws may damage your display.

CONTENTS

TOOLS REQUIRED FOR INSTALLATION..................2

DRAWING ....................................................................3

Installation ....................................................................4

Flushed Mount or Recessed Mount .............................4

Flushed Mount..........................................................4

Recessed Mount.......................................................4

Cable Connection.........................................................5

Spherical, Arm, and Lateral Movement Tension

Adjustment ...................................................................5

Lift Arm Tension Adjustment ........................................5

TOOLS REQUIRED FOR

INSTALLATION

• Phillips screwdrivers, No. 1 and No. 2

• 3/16” Allen wrench

• Drill and drill bits

NOTE: Other tools may be required depending on your

method of installation.

Instruction Manual FWV-110

DRAWING

PART PART NAME QTY NOTES

10 SINGLE ARM WALL HEIGHT-ADJUSTABLE 1

20 SCREW, PHILLIPS PAN HEAD, M4 X 12MM 4 FLUSH MOUNT

30 SCREW, PHILLIPS PAN HEAD, M4 X 20MM (USE WITH 40) * 4

40 3/8” SPACER 4

50 SCREW, PHILLIPS PAN HEAD, M4 X 30MM (USE WITH 60) ** 4

60 3/4” SPACER 4

RECESSED

MOUNT

70 WASHER 2

80 SCREW, SELF-TAPPING 2

90 BRACKET, WALL 1

100 LIFT ARM PLATE, COVER, CABLE MANAGEMENT 1

110 SCREW, COVER, CABLE MANAGEMENT 2

120 SCREW, SET 1 NOT SHOWN

• *Use M4 x 20mm screws (30) with spacers (40) for recessed applications.

• **Use M4 x 30mm screws (50) with spacers (60) for recessed applications.

Lateral Tension

djustment Bolt

Spherical

Movement

djustment Scre

30 or 50 (optional)

40 or 60

(

tional

)

120

110

100

Instruction Manual FWV-110

Installation

A. Determine the exact mounting location prior to installation,

considering screen size as well as the mount swing and extension

radius.

B. Use the wall bracket (90) as a template and drill two 3/32” pilot

holes to a minimum depth of 1 1/2”.

C. Check wall bracket to ensure it is level and adjust to level if

necessary.

D. Use two self-tapping screws (80) and two #10 washers (70) to

secure the wall bracket (90).

Flushed Mount or Recessed Mount

NOTE: This manual contains two sets of Installation Instructions,

listed below. Choose the set of instructions that applies to the

type of installation you want.

• Flush Mount Applications do not use spacers. The monitor

is attached to the mount with four screws.

• Recessed Mount Applications use spacers. The monitor

is attached to the mount with four screws and four

spacers.

CAUTION: If monitor uses a screw size other than those included in the

kit, DO NOT use the screws provided. Using the wrong screws

could result in damage to your monitor.

Flushed Mount

A. Install two screws (20) in to the top mounting holes of your monitor.

B. Align the hole-pattern of your display with the screws installed on

the mount and hang the mount from the two screws.

C. Install two remaining screws (20) through the mount and into the

mounting holes of your display.

Recessed Mount

NOTE: Use one of the following screw and spacer combinations:

(30 with 40) or (50 with 60).

A. Select four screws (30 or 50) for the Recessed mount application.

B. Select the four spacers (40 or 60) for the Recessed mount

application.

C. Set four spacers (40 or 60) over the four mounting holes on your

monitor.

D. Install two screws (30 or 50) in to the top mounting holes of your

monitor.

E. Align the hole-pattern of your display with the screws installed on

the mount and hang the mount from the two screws.

F. Install two remaining screws (30 or 50) through the mount and into

the mounting holes of your display.

Step 1

Step 3

Step 2

Instruction Manual FWV-110

Cable Connection

1. Place the top of the mount on top of the wall bracket (90) and push the

bottom onto the wall bracket.

2. Secure your display to the wall by tightening the set-screw (120).

CAUTION: Make sure your cables do not run through a pinch point.

3. Connect and secure power/audio/video cables, making sure to leave

sufficient slack to allow for movement of the display. Secure cables

using cover plate (100) and screws (110).

Spherical, Arm, and Lateral Movement

Tension Adjustment

CAUTION: Over-tightening adjustment bolt will cause excessive wear and

may distort adjustment components.

To adjust the tension of the spherical movement, the arm movement, and

the lateral movement:

1. Slightly tighten or loosen the tension adjustment bolt indicated at the

right.

2. Check for desired tension.

3. Repeat as necessary.

Lift Arm Tension Adjustment

CAUTION: Over-tightening tension bolt will cause excessive wear and

may distort adjustment components.

To adjust the tension of the lift arm:

1. Raise or lower the lift arm until tension adjustment bolt appears in the

opening.

2. Adjust the tension adjustment bolt, using a 3/16” Allen wrench, as

follows:

a. To increase lift arm tension, turn the tension adjustment bolt one to

two turns counterclockwise.

b. To decrease lift arm tension, turn the tension adjustment bolt one to

two turns clockwise.

3. Raise or lower the lift arm to check for desired tension. Repeat step 2 as

needed.

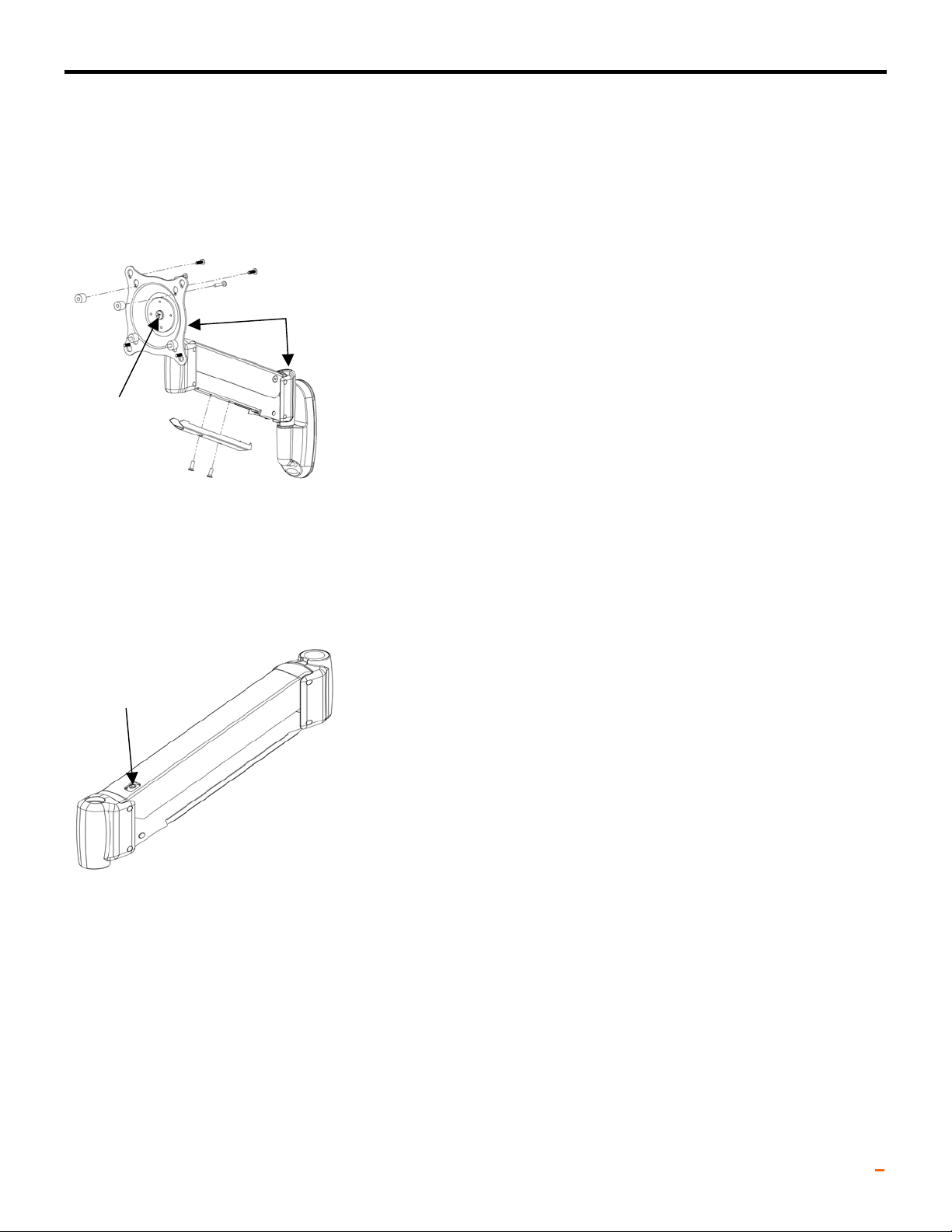

Lateral Tension

djustment Bolts

Spherical

Movement

Tension

djustment

Bolt

Lift Arm Tension

djustment Bolt
