Clarke DEVIL 4035 Installations- und Betriebshandbuch

FAN HEATER

OPERATING & MAINTENANCE

INSTRUCTIONS 0705

Models: DEVIL 4035 • 4055 • 4090 • 4115

FAN HEATER

PARTS & SERVICE TEL: 020 8988 7400

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

PARTS & SERVICE

Model Number Devil 4035 Devil 4055 Devil 4090 Devil 4115

Input 230V 50hz 1ph 400V 50hz 3ph 400V 50hz 3ph 400V 50hz 3ph

Output Rating 1.5 - 3kW 2.5 - 5kW 3, 6 & 9kW 7.5 - 15kW

Absorbed Power 3kW 5kW 9kW 15kW

Fuse Rating 13A 15A 15A 25A

Dimensions (mm) 250x250x420 250x250x420 380x330x590 440x350x600

Air Output 400m3/h 400m3/h 800m3/h 1300m3/h

Noise Level 50dBL

50dBL

52dBL

54dBL

Gross Weight 7.5kg 8.0kg 13.5kg 15.5kg

Part No. 6925140 6925145 6925150 6525155

SPECIFICATIONS

DECLARATION of CONFORMITY

We declare that this product complies with the following standards/directives:

•73/23/EEC

•98/336/EEC

Serial/Batch No: See Data Plate

signed

Waste electrical products should not be disposed of with household waste. Please

dispose of at your local recycling facility.

Thank you for purchasing this Clarke Ceramic Heater.

Before attempting to operate the unit please read this instruction leaflet and carefully

follow all directions given. By doing so you will ensure safe operation of the unit and you

can also look forward to it providing you with long and trouble free service.

GUARANTEE

This CLARKE product is guaranteed against faults in manufacture for 12 months

from purchase date. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product has been found to have been abused in

any way, or not used for the purpose for which it was intended, or to have been

tampered with in any way. The reason for return must be clearly stated.

This guarantee does not affect your statutory rights.

SAFETY PRECAUTIONS

• NEVER use electrical equipment in the presence of combustible gases.

• This heater is for INDOOR USE ONLY.

• ALWAYS disconnect from the mains supply before moving or performing any

maintenance tasks.

• ALWAYS use in an upright position ONLY.

• Inspect the mains cable regularly for signs of damage. DO NOT use if it is

damaged, and ALWAYS keep it away from the source of heat.

• NEVER switch ON the heater if the guard is removed.

• NEVER locate the heater near combustible materials such as curtains, furniture

etc. Allow at least 1 metre distance.

• DO NOT use this heater in a bathroom , shower room, in the vicinity of a

swimming pool, or any wet environment.

• DO NOT locate the heater close to an adjacent wall or ceiling...allow a

distance of at least 1 metre from a wall or ceiling.

• NEVER cover the heater, or block any of the vents.

• DO NOT use if the heater elements are damaged or broken.

• NEVER touch the heater for at least 15 minutes after it is switched off.

• DO NOT leave the heater unnattended.

• If children are present.....ALWAYS use with a fireguard.

• Do NOT use in a paint spray booth or any explosive environment.

• Take care to ensure that the fan grille cannot be blocked by curtains or the like.

ELECTRICAL CONNECTIONS

This model is provided with a 13 amp BS 1363 plug, fitted with a 13amp fuse and

MUST be connected to a standard, 230 Volt (50Hz) electrical supply, preferably

through an approved plug , or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with the

following code:

Green & Yellow ........................ Earth

Blue ............................................ Neutral

Brown ........................................ Live

As the colours of the flexible lead of this appliance may not correspond with the coloured

markings identifying terminals in your plug, or your mains supply, proceed as follows:

• Connect GREEN & YELLOW coloured cord to plug terminal marked with a letter “E” or

Earth symbol “ ” or coloured GREEN or GREEN & YELLOW.

• Connect BROWN cord to terminal marked with a letter “L” or coloured RED.

• Connect BLUE cord to terminal marked with a letter “N” or coloured BLACK.

Fuse Rating

The fuse in the plug must be replaced with one of the same rating (13 amps) and this re-

placement must be ASTA approved to BS1362.

This appliance is fitted with a plug which is moulded on to the electric cable (i.e. non-

rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a danger of

electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the correct

replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from most DIY or electrical stores.

Devil 4035

These machines MUST be connected to a 400 Volt, 3 PHASE 50Hz supply through a suitably

fused isolator switch. It cannot be operated from a single phase supply.

A trailing socket is provided and should be wired as follows:

Devils 4055, 4090 & 4115

• Connect the GREEN or GREEN & YELLOW coloured wire,

to the terminal marked with the letter “E” or Earth

symbol “ ”

• Connect the BLACK wire to the ‘N’ or Neutral terminal.

• Connect the Remaining wires to the terminals marked

`L1, L2 and L3.

OPERATION

With the heater suitably sited (ensure you comply with all safety precautions),

switch the heater ON to either half or full output. Model Devil 4090 has three settings

- 1/3, 2/3 and full power (see specification chart on page 2).

A temperature control (F) is also provided for fine control of heat output.

Should the unit overheat, a thermal cutout will operate, shutting down the unit.

Allow a period of time for the unit to cool (approx. 10 minutes) before pressing the

reset using a suitable tool, and restarting.

When switching the unit OFF, it is strongly recommended that the unit is run in the

FAN ONLY mode for approx. 10 minutes, in order to cool the elements, before

switching OFF completely and finally disconnecting from the mains supply.

The thermal cutout may also operate if the heater is shut down without allowing

to cool sufficiently. If, subsequently, the machine fails to start, press the reset using

a suitable tool and try again.

NOTE: Model 4090 is provided with 3 heat settings: 1/3, 2/3 and full power

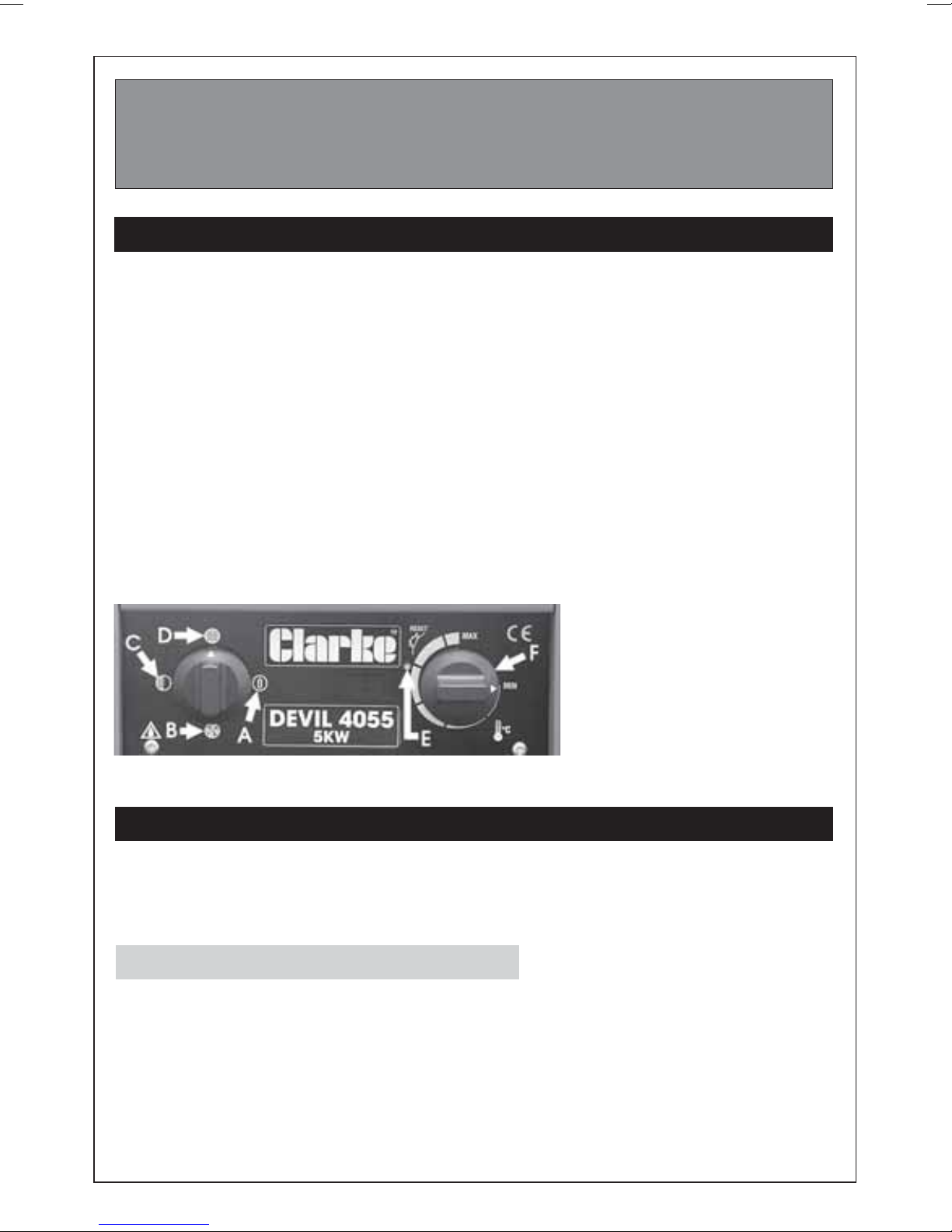

A. Off

B. Fan only

C. Half Power output*

D. Full power output*

E. Reset

F. Temperature Control

* with temperature control at MAX.

MAINTENANCE

Before performing any maintenance tasks, if the heater has been used, ALWAYS

allow it to cool down for at least 10 minutes (by switching the heater OFF, but

leave the fan running), then disconnect from the mains supply.

Periodically.

• Disconnect from the mains supply, and use compressed air to clean out the

unit. ALWAYS wear a dust mask to perform this operation.

If there is any serious build up of dirt, remove the front and rear grilles and

clean the fan and elements thoroughly with a damp cloth

• Inspect the mains cable for damage. Heat damage will cause the cable to

stiffen and crack. If this is found, have the cable replaced. Check cable routing

and ensure it is well away from the heat source.

WARNING!

IF YOU ARE IN ANY DOUBT ABOUT ELECTRICAL CONNECTIONS, CONSULT A

QUALIFIED ELECTRICIAN.

DO NOT ATTEMPT ELECTRICAL CONNECTIONS or REPAIRS YOURSELF.

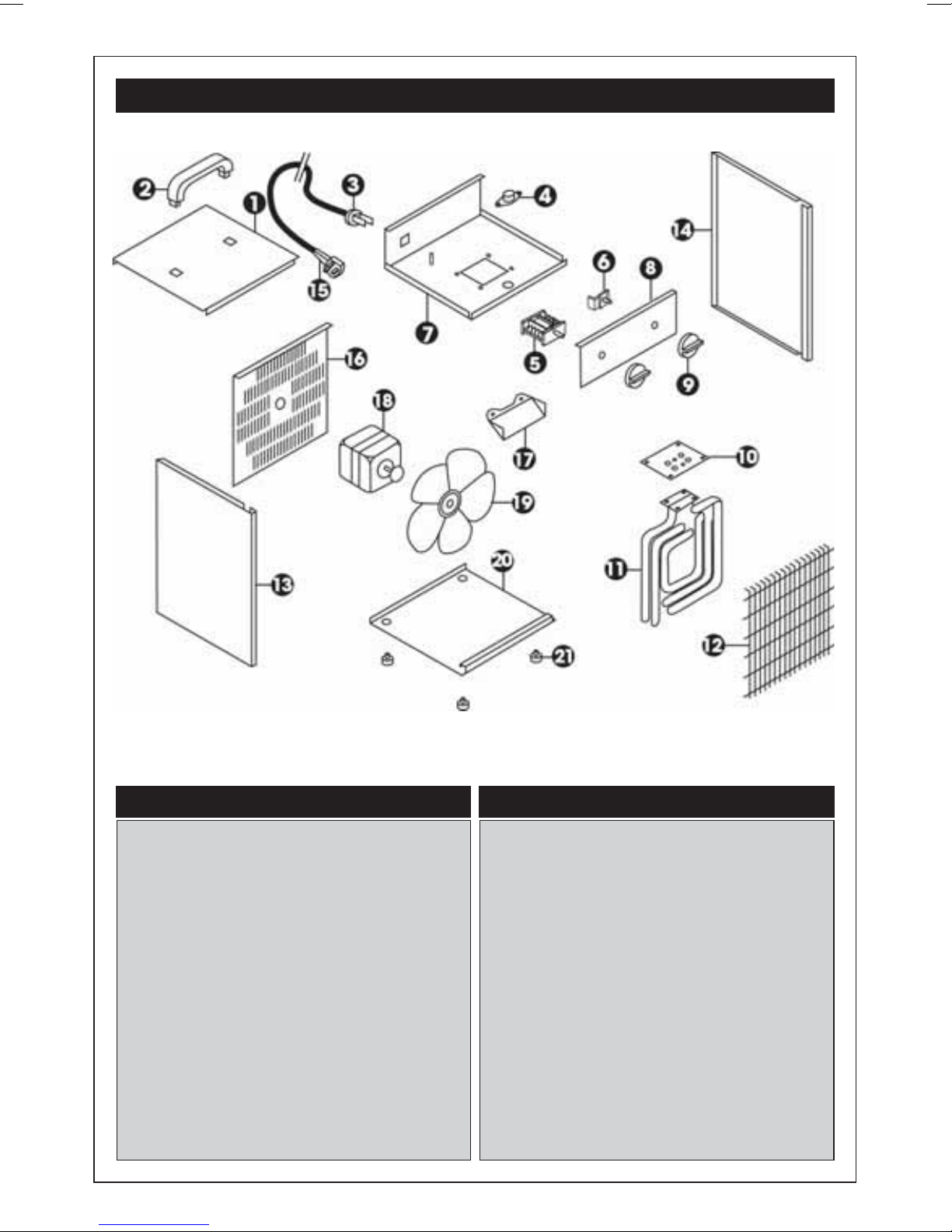

SPARE PARTS - DEVIL 4035 & 4055

1 Top Plate RP24113041

2 Handle RP45050009

3 Grommet Assy RP18480018

4 Thermal Cut-out RP17120201

5 Switch Unit RP17251108

6 Temp. Control RP17120100

7 Mounting Box RP21113002

8 Front Panel RP29430410

9 Knob RP18508008

10 Insulation Plate RP27450005

11 Heating Element RP17141003

No. Description Part No. No. Description Part No.

12 Front Grille RP23115060

13 Side Panel - L RP21115071

14 Side Panel - R RP21115070

15 Mains cable RP74250014

16 Rear Grille RP21113350

17 Heat Shield RP25112074

18 Motor RP17801000

19 Fan RP17802322

20 Base RP21115012

21 Foot RP45071021

SPARE PARTS - DEVIL 4055

1 Top Plate RP24115041

2 Handle RP45050009

3 Plug Assy 16A RP17110055

4 Mounting Box RP21115002

5 Switch Unit RP17251108

6 Temp. Control RP17120105

7 Front Panel RP29440410

8 Knob RP18508008

9 Side Panel - L RP21115071

10 Side Panel - R RP21115070

No. Description Part No. No. Description Part No.

11 Rear Grille RP21113350

12 Motor RP17801004

13 Fan RP17802526

14 Insulation Plate RP27450003

15 Heating Element RP17141003

16 Front Grille RP23115060

17 Heat Shield RP25112074

18 Base RP21115012

19 Foot RP45071021

- Trailing Socket RP17110053

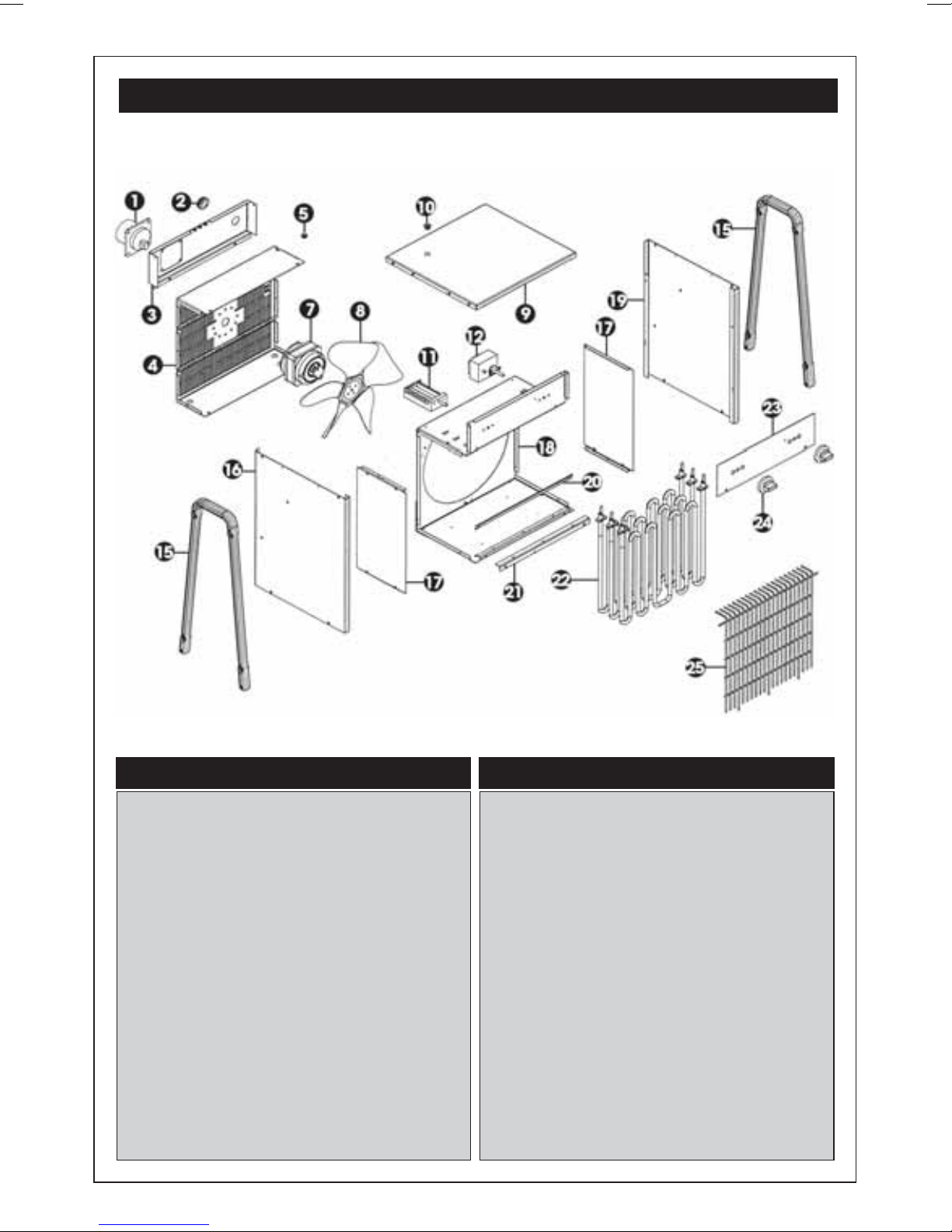

SPARE PARTS - DEVIL 4090

1 Plug Assy 16A RP17110055

2 Grommet RP44470020

3 Mounting Plate RP21221090

4 Rear Grille RP21220280

5 Grommet RP44470029

7 Motor RP17801017

8 Fan RP17802626

9 Top Panel RP24221232

10 Plug RP44610012

11 Switch Unit RP17251111

12 Temp. Control RP17120105

15 Handle RP45220260

No. Description Part No. No. Description Part No.

16 Side Panel - L RP21221253

17 Heat Shield Bkt RP21221100

18 Mounting Box RP21221002

19 Side Panel - R RP21221252

20 Retainer Bkt RP21220120

21 Grille Fittings RP21221162

22 Heating Element RP17141022

23 Front Panel RP29893410

24 Knob RP18508008

25 Front Grille RP23221150

- Trailing Socket RP17110053

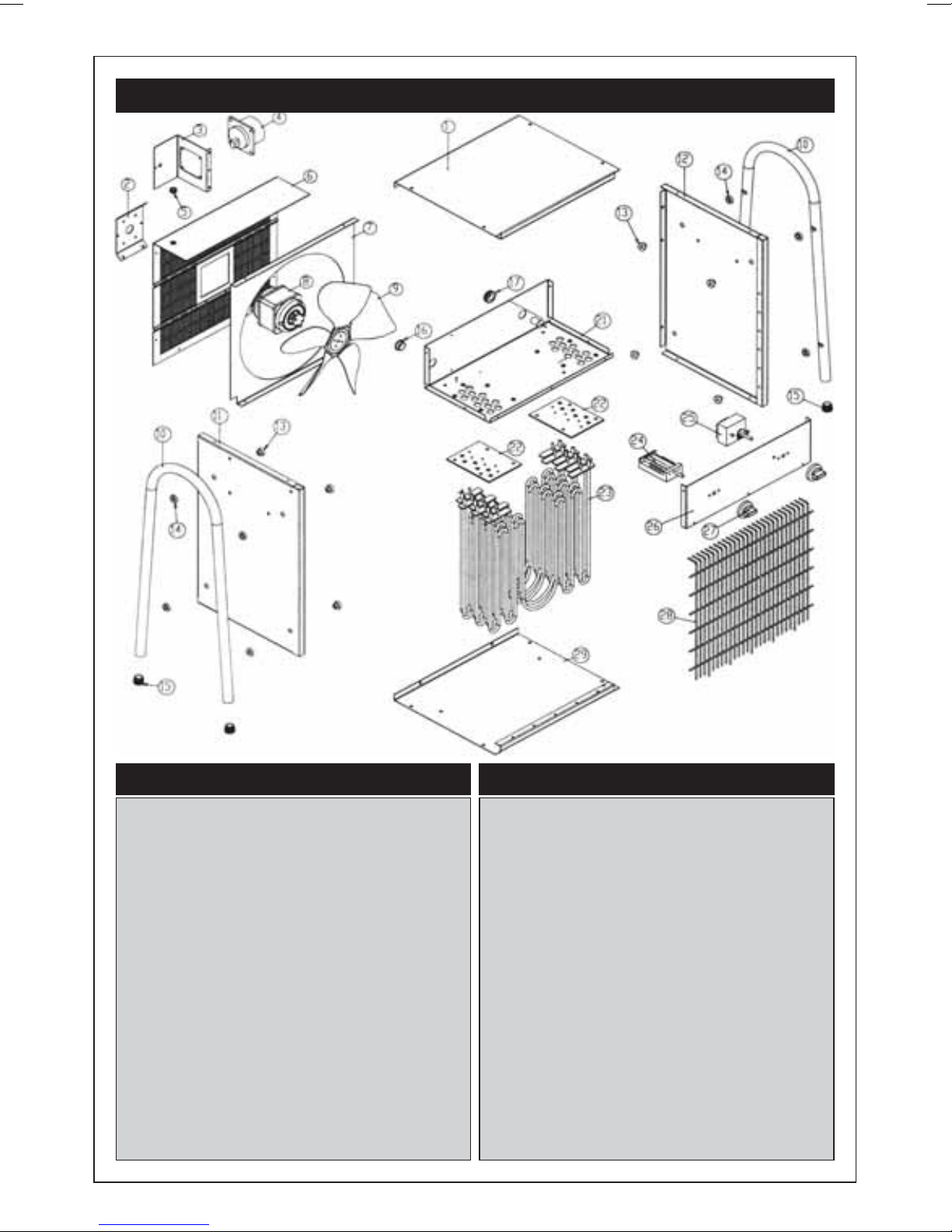

SPARE PARTS - DEVIL 4115

1 Top Plate RP24119602

2 Motor Fittings RP22119172

3 Mounting Bkt RP22119015

4 Appliance Inlet 32A RP17110056

5 Grommet RP44470015

6 Rear Grille RP21119157

7 Fan Cowl RP22201015

8 Motor RP17801002

9 Fan RP17802934

10 Pipe Holder RP25119083

11 Side Plate Left RP23119632

12 Side Plate Right RP23119622

13 Insulation Bush Male Vb RP44550009

14 Insulation Bush Male Vb RP44550010

15 Foot RP44610004

No. Description Part No. No. Description Part No.

16 Rubber Grommet RP18480022

17 Grommet RP44470020

18 Fuse RP17172041

19 Fuse Holder RP17160011

20 Grommet RP44470008

21 Mounting Box RP21119601

22 Insulation Sheet RP27450006

23 Heat Element RP17141000

24 Switch Assy RP17251103

25 Temp. Regulator RP17120105

26 Front Panel RP29505410

27 Knob RP18508008

28 Front Grille RP23119166

29 Base RP23119612

- Trailing Socket 32A RP17110052

WIRING DIAGRAMS

Devil 4035

Devil 4055

Andere Handbücher für DEVIL 4035

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Clarke Heizung Handbücher

Clarke

Clarke IQ2000S Stücklistenhandbuch

Clarke

Clarke DEVIL 370PD Installations- und Betriebshandbuch

Clarke

Clarke IQ2000 Bedienungsanleitung

Clarke

Clarke DEVIL 370SPD Installations- und Betriebshandbuch

Clarke

Clarke BR9/200 Bedienungsanleitung

Clarke

Clarke XR75 Installations- und Betriebshandbuch

Clarke

Clarke DEVIL 5000PTC Bedienungsanleitung

Clarke

Clarke XR60 Installations- und Betriebshandbuch

Clarke

Clarke CONTRACTOR DEVIL371PD Installations- und Betriebshandbuch

Clarke

Clarke OFR 5/50 Bedienungsanleitung

Clarke

Clarke DEVIL 2800PTC Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

Clarke

Clarke DEVIL 9000PTC Bedienungsanleitung

Clarke

Clarke DEVIL 350C Installations- und Betriebshandbuch

Clarke

Clarke Devil 370B Series Installations- und Betriebshandbuch

Clarke

Clarke DEVIL 7003 Bedienungsanleitung

Clarke

Clarke Devil 370P Installations- und Betriebshandbuch

Clarke

Clarke DEVIL 6025 Bedienungsanleitung

Clarke

Clarke DEVIL 7030 Bedienungsanleitung

Clarke

Clarke DEVIL 2800PTC-B Bedienungsanleitung

Clarke

Clarke Devil 355MD Betriebsanleitung

Clarke

Clarke Devil 6003 Handbuch

Clarke

Clarke GH1 Bedienungsanleitung

Clarke

Clarke CONTRACTOR GSH15 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung

iLO

iLO IHP2424 Betriebsanleitung
