Clarke KING150B Bedienungsanleitung

WARNING: Do not use the hot washer without reading this manual

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS LS0720-ISS 1

HOT WASHER

MODEL NO: KING150B

PART NO: 7320178

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE hot washer.

The hot washer has been designed to use hot or cold water to clean any

surfaces which can stand the force of the high pressure water jet and the

action of the detergents used.

The hot washer must only be used for the purpose for which it was designed.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

LIST OF CONTENTS

The following items should be supplied in the carton. If any parts are missing or

damaged, please see your CLARKE dealer where you purchased the hot

washer

1 x Hot Washer 1 x Cable / Hose Storage Bracket

1 x Gun Assembly 1 x Bottle for Detergent (Chemical)

1 x Lance Assembly 1 x Parts Pack

1 x High Pressure Hose Assembly 1 x Hose Adaptor

1 x Main Handle 1 x Nozzle Clearing Pin

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY WARNINGS

1. This hot washer is for outdoors

use.

2. Do not cover the exhaust during

operation.

3. Always put on protective

clothing, safety shoes and safety

glasses. Loose particles & other

unwanted material can be

propelled at high speed by the

water jet.

4. Always disconnect the power

and water supplies at the end of

each job.

5. High pressure jets can be

dangerous if misused.

6. Do not point the jet at personnel,

animals, live electrical equipment

or the hot washer.

7. Do not operate the hot washer if

the cover has been removed.

8. Do not use the hot washer if a

power cable or important parts of

the hot washer are damaged,

e.g. safety devices, high pressure

hoses, trigger, gun.

9. Do not point the nozzle toward

parts that contain grease, the

grease can spread on to the

adjacent ground.

10. Only use hoses, fittings and

couplings recommended by

Clarke International

11. Vehicle tyres/tyre valves must be

cleaned at a minimum distance

of 30 cm, the high-pressure jet

can cause damage. The first

indication of this is a discoloration

of the tyre.

12. Do not keep the hot washer in

standby for more than 5 minutes.

13. Turn hot washer off when it is left

unattended.

14. Do not spray flammable liquids

because of the risk of explosion.

15. Do not damage the power

cable. If the power cable is

damaged, it must be replaced

by Clarke International service

department.

16. Hold of the spray gun firmly and

be prepared for kickback when

you pull the trigger.

17. Do not use the hot washer in a

closed space.

18. Do not let children or

untrained personnel use this

hot washer.

19. This hot washer is not intended to

be operated by persons

(including children) with

decreased physical, sensory or

mental function.

WARNING: READ ALL SAFETY WARNINGS BEFORE YOU USE THE HOT

WASHER.

WARNING: DISCONNECT THE HOT WASHER FROM THE POWER SUPPLY

DURING MAINTENANCE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

20. Do not start the hot washer

without fully unwinding the high-

pressure hose.

21. Before unwinding or rewinding

the hose, switch the hot washer

off and release the pressure in the

hose by pulling the trigger.

22. If an extension cable is used, the

plug and socket must be of

watertight construction.

23. Do not use the hot washer

during thunderstorms or when it is

raining.

24. Do not attempt any electrical or

mechanical repairs to this hot

washer. Always refer to your

Clarke dealer.

25. Do not supply liquid other than

water to the water inlet.

26. Do not yank the power cable to

disconnect the plug from the

socket.

27. Only use chemical cleaning

agents (detergents), that are

approved for the hot washers. We

recommend Clarke Traffic Film

Remover or Clarke Wash and

Wax (available from your Clarke

dealer).

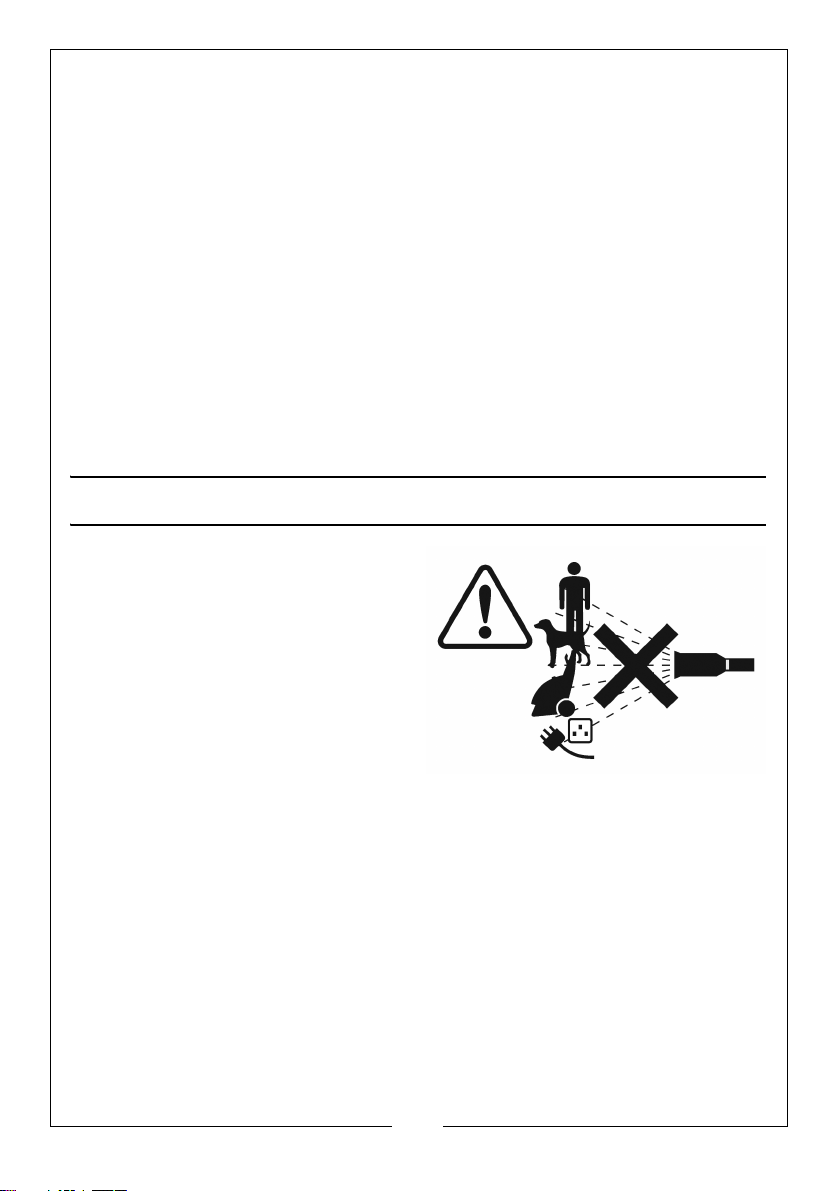

SAFETY SYMBOL

Do not spray personnel / animals or

the hot washer.

Do not point the spray at electrical

devices or power outlets.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

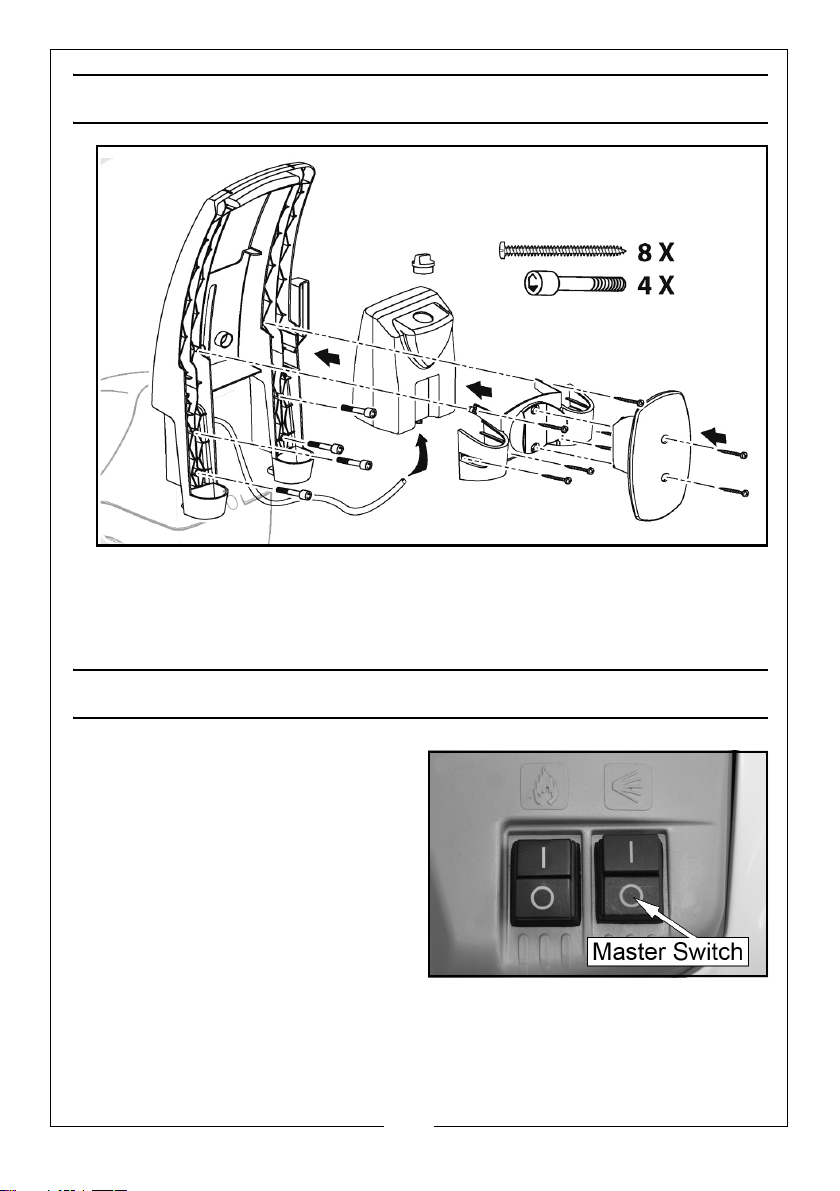

ASSEMBLY INSTRUCTIONS

1. Fit the handle first then the detergent tank, followed by the tool holder and

finally the hose hook to the hot washer as shown above using the 4 bolts

(for the handle) and screws (for the tool holder, hose hook) supplied.

SETUP

1. Press ‘O’ on the master switch to

make sure that the hot washer is

turned off.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

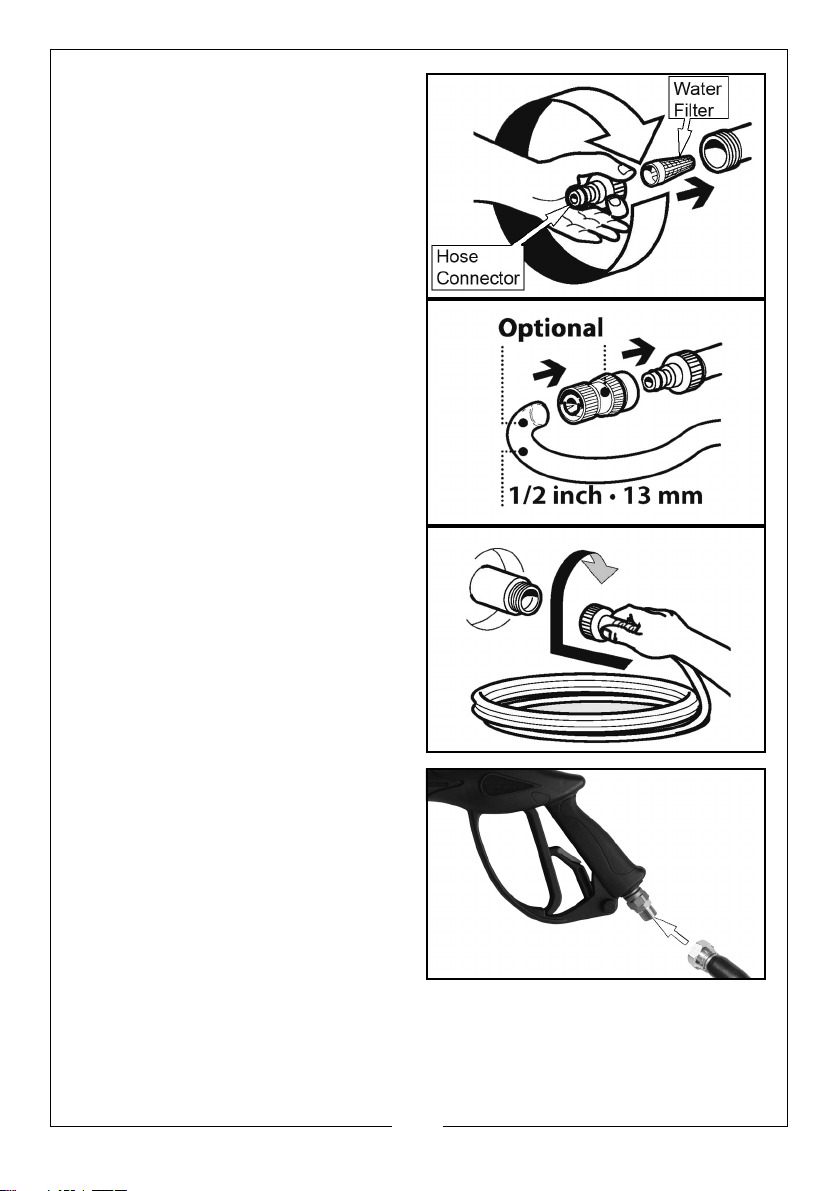

2. Check that the water filter is fitted

into the pump's inlet pipe.

3. Screw the hose connector into

place by hand, without the aid of

tools until ‘hand tight’.

4. Connect the water supply hose to

the hose connector. The hose

must have an inside diameter of

at least 13 mm (1/2”).

• The optional quick connector

may be fitted.

• Place the cleaner as close to

the water supply as possible.

5. Connect the high pressure hose to

the hot washer outlet pipe.

• Press the high pressure hose

coupling fully down and then

screw into place by hand.

• Tighten the connector hand

tight only;- do not use any tools.

• Make sure the connections are

secure.

6. Screw the high pressure hose onto

the gun assembly.

• Use a spanner to tighten the

connector.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

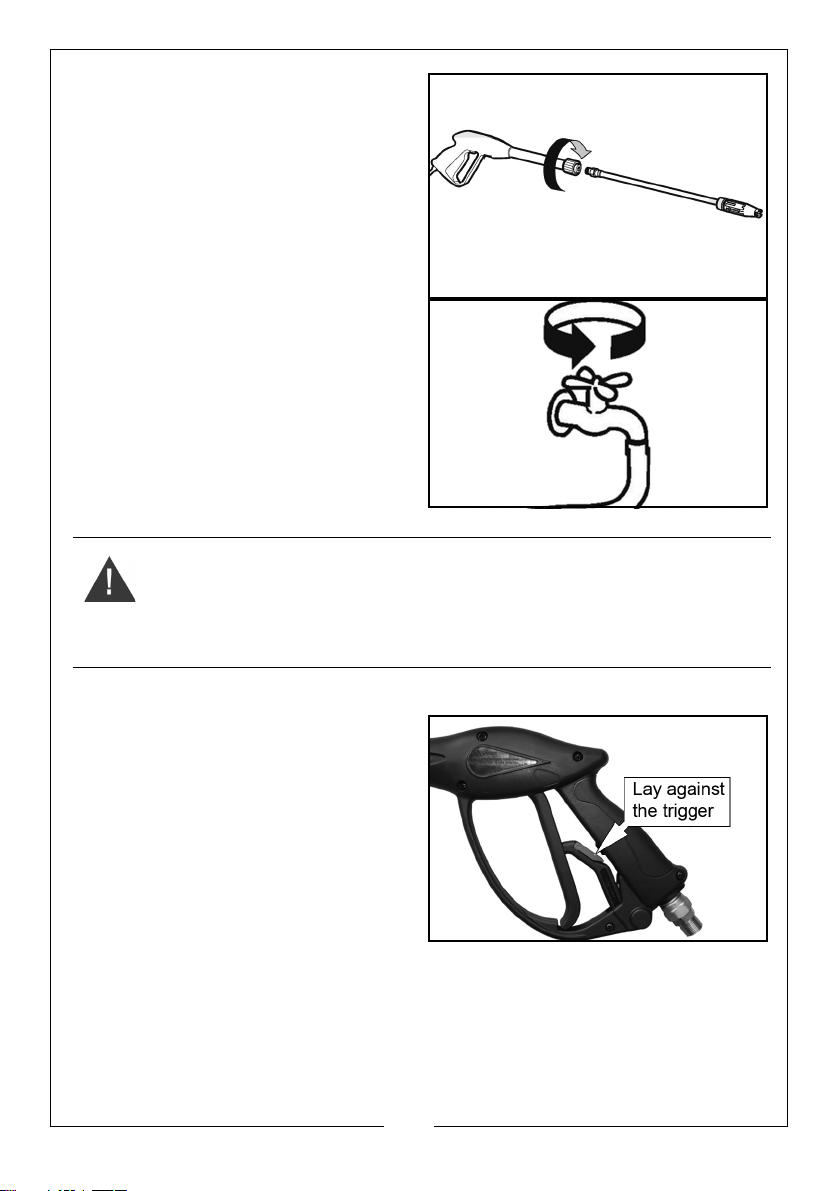

7. Connect the spray lance to the

gun assembly and tighten

securely by turning the locking

ring.

8. Turn the local water tap fully on.

• Minimum delivery rate: 15 l/min.

• Maximum supply water

temperature: 40°C.

• Maximum supply water

pressure: 1MPa.

9. Release the trigger lock and keep

the trigger pressed, allowing the

water to flow until all the air has

been expelled.

• At this point the water will only

be at low pressure.

WARNING: THE HOT WASHER CAN ONLY BE CONNECTED TO THE WATER

MAINS IF SEPARATED BY A BACKFLOW PREVENTER. MAKE SURE THAT THE

HOSE IS AT LEAST 13MM-1/2 INCH IN DIAMETER AND IS REINFORCED.

WARNING: WATER THAT HAS PASSED THROUGH A BACKFLOW PREVENTER

IS CONSIDERED TO BE NON-DRINKABLE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

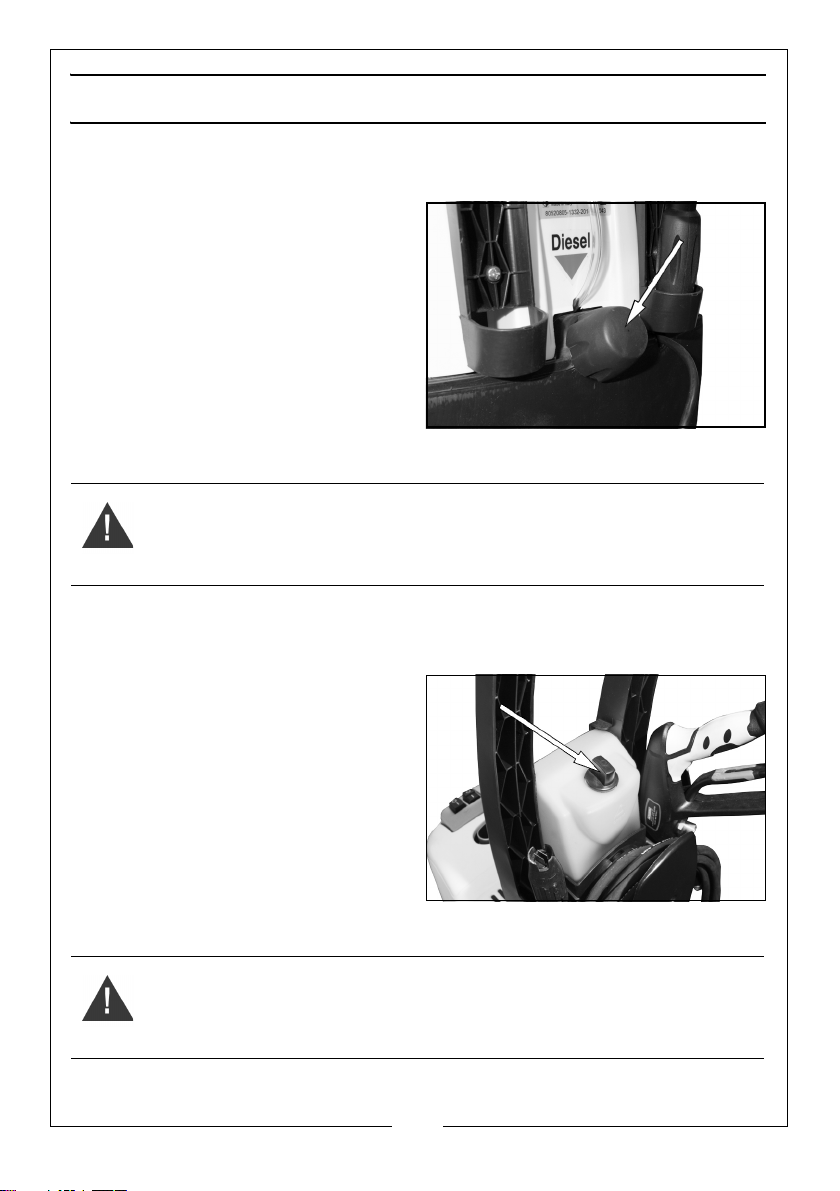

ADDING FUEL (FOR HOT WASHING)

• Refuel in a well-ventilated area.

• Do not leave fuel within the

reach of children.

• Refuel carefully to avoid

spillages.

1. Remove the diesel filler cap and

fill the tank with diesel fuel.

• Maximum 3 litres.

2. Replace the diesel filler cap

securely.

FILLING WITH DETERGENT

If you intend to use the detergent facility:

1. Unscrew the detergent filler cap

and fill the container with

detergent.

• Only use detergents

recommended for use with the

hot washers, such as CLARKE

Traffic Film Remover which is a

powerful ‘low foaming’ agent

for car cleaning, patio cleaning

etc., or CLARKE Wash & Wax,

both available from your

CLARKE dealer.

WARNING: INCORRECT FUELS MUST NOT BE USED AS THEY CAN BE

HAZARDOUS.

WARNING: THE USE OF UNSUITABLE CLEANING AGENTS MAY ADVERSELY

AFFECT THE SAFETY OF THE HOT WASHER. DO NOT EXCEED THE CORRECT

OPERATING TEMPERATURE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE PRESSURE WASHER

AUTOMATIC STOP SYSTEM

The Automatic Stop System stops the hot washer during the bypass phase.

Once the hot washer is switched on, the ‘Automatic Stop System’ will start and

stop the hot washer automatically whenever the trigger is pulled / released.

Sometimes the hot washer may start without pressing the gun trigger, this is

normally due to air bubbles in the water or other similar phenomena which do

not imply the existence of any defects in the hot washer.

Do not leave the hot washer unattended during the bypass phase for more

than 5 minutes. If you need to leave the hot washer for longer than this, switch

it off first, and operate the trigger to release the pressure.

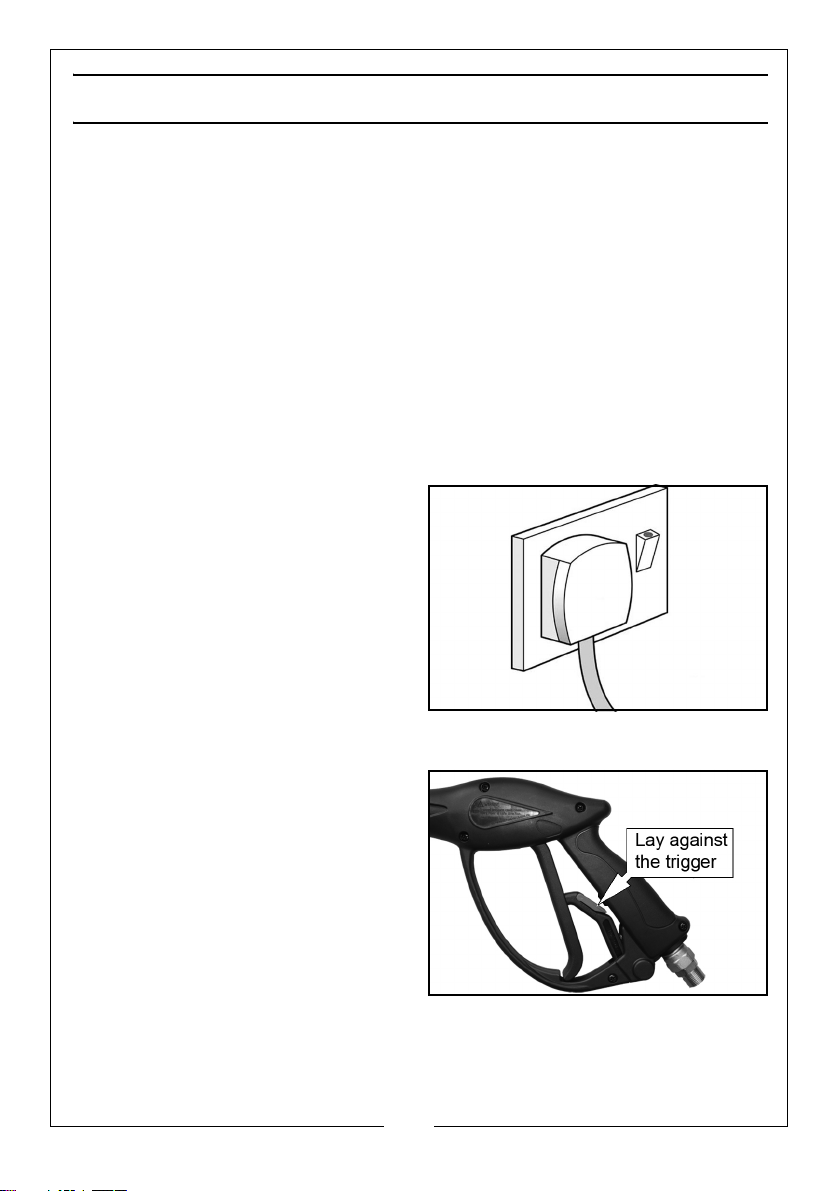

STARTING UP

1. Connect the plug to the power

socket.

RELEASE THE TRIGGER LOCK

1. To release the trigger lock, lift the

lock upwards and lay it against

the trigger as shown.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

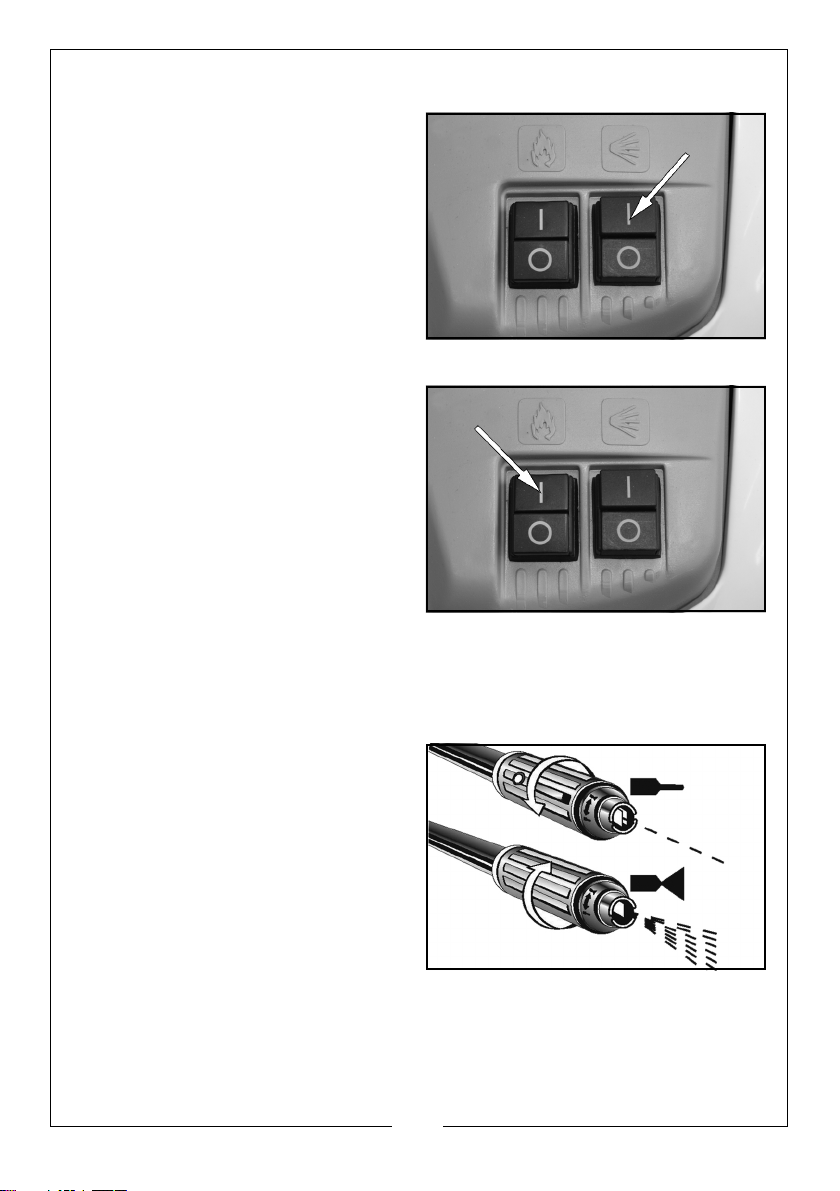

SWITCHING ON

TO WASH WITH COLD WATER

1. To start the pressure washer,

squeeze and hold the gun trigger

while you press ‘1’ on the master

switch.

TO WASH WITH HOT WATER:

1. To start the pressure washer,

squeeze and hold the gun trigger

while you press ‘1’ on the master

switch.

2. Press (I) ON on the burner switch

• The water will reach a

maximum temperature of

90oC.

• The burner will cycle on/off as required.

ADJUSTING THE SPRAY

To adjust the water delivery from a

narrow jet of water to a wide spray.

proceed as follows:

1. With the nozzle pointing away

from you and anyone else, hold

the shaft of the lance in one

hand.

2. Twist the nozzle with the other

hand.

3. The spray varies between narrow

and wide as you turn the nozzle.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Clarke Hochdruckreiniger Handbücher

Clarke

Clarke Power Wash EHD130 Installations- und Betriebshandbuch

Clarke

Clarke JETSTAR 1600 Installations- und Betriebshandbuch

Clarke

Clarke Power Wash PLS190 Bedienungsanleitung

Clarke

Clarke PLS195B Bedienungsanleitung

Clarke

Clarke Tiger 3000B Bedienungsanleitung

Clarke

Clarke Tiger 1800B Bedienungsanleitung

Clarke

Clarke JET 8000 Bedienungsanleitung

Clarke

Clarke Power Wash PLS265B Bedienungsanleitung

Clarke

Clarke JET 9000 Bedienungsanleitung

Clarke

Clarke PLS130AH Installations- und Betriebshandbuch

Clarke

Clarke HLS160 Bedienungsanleitung

Clarke

Clarke JET 9500B Bedienungsanleitung

Clarke

Clarke JET 8000B Bedienungsanleitung

Clarke

Clarke PLV100LT Installations- und Betriebshandbuch

Clarke

Clarke PLV100LB Installations- und Betriebshandbuch

Clarke

Clarke JET 7500 Bedienungsanleitung

Clarke

Clarke Power Wash ELS145 Installations- und Betriebshandbuch

Clarke

Clarke Power Wash KING 135 Installations- und Betriebshandbuch

Clarke

Clarke KING150 Bedienungsanleitung

Clarke

Clarke ELS140 Installations- und Betriebshandbuch

Clarke

Clarke JETSTAR 1800 Installations- und Betriebshandbuch

Clarke

Clarke TIGER1700 Bedienungsanleitung

Clarke

Clarke Tiger1550 Installations- und Betriebshandbuch

Clarke

Clarke TIGER 2600A Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung
