INSTALLATION and OPERATING MANUAL

FOR

[email protected]

http://www.colortrac.com

Colortrac

Flatbed 24120

Revised Jan 2004

PAS119

Colortrac Flatbed Operator Manual.

Kings Hall

St Ives Business Park

St Ives

Huntingdon

Cambridgeshire

United Kingdom

PE27 4WY

T: +44 (0)1480 464618

F: +44 (0)1480 464620

17301 West Colfax Avenue,

Suite 165 Golden,

CO 80401 USA

T: +1 800 533 0165

F: +1 303 973 7092

Room 4-B1B, Building #7

Section 3, Century City

HaiDian District

Beijing 100089

China

T:+86(0)1051 988928

F:+86(0)1051 988927

Note: The entire risk of the use or the result of the use of this hardware, software or

documentation remains with the user. No part of this documentation may be reproduced or

transmitted in any means, electronic or mechanical, for any purpose, except with the

express prior written permission Colortrac Ltd.

Colortrac Ltd makes no warranty claims with respect to this documentation and disclaims

any implied warranties of merchantability or fitness for a particular purpose. The

information contained in this document is subject to change without notice. Colortrac Ltd

assumes no responsibility for errors or omissions that may appear in this documentation

REVISION 2.0

This document should not be copied without prior permission from:

Colortrac Ltd.

Kings Hall

St. Ives Business Park

St. Ives

Huntingdon

Cambridgeshire

PE27 4WY

United Kingdom

Tel: +44 (0) 1480 464618

Fax: +44 (0) 1480 464620

Colortrac Ltd makes no warranty with respect to this documentation and disclaims any

implied warranties of merchantability or fitness for a particular purpose. Information in this

document is subject to change without notice. Colortrac Ltd assumes no responsibility for

errors that may appear in this document.

www.colortrac.com

[email protected]

Colortrac Flatbed Operator Manual.

Table of Contents

1INTRODUCTION................................................................................3

2SAFETY...............................................................................................4

2.1 EMC CLASS A................................................................................4

3INSTALLATION.................................................................................5

3.1 UNPACKING AND INSTALLATION......................................................5

3.2 SCANNER CABLING AND SET-UP ......................................................5

3.2.1 Installation using IEEE 1394/Firewire ....................................5

3.2.2 Installation using ultra wide SCSI...........................................5

4OPERATION OF SCANNER..............................................................6

4.1 INITIAL START-UP...........................................................................6

4.2 DOCUMENT INSERTION....................................................................6

4.3 START SCANNING............................................................................6

4.4 CONTROL PANEL.............................................................................7

5MAINTENANCE.................................................................................8

5.1 LEFT/ RIGHT AND FRONT/ BACK STITCH..........................................8

6COLOUR CALIBRATION.................................................................9

7SERVICE REQUIREMENTS ON TUBES AND LUBRICATION....9

8TROUBLE SHOOTING....................................................................10

9SPECIFICATION..............................................................................11

10 DECLARATION OF CONFORMITY..........................................12

Colortrac Flatbed Operator Manual.

1INTRODUCTION

Thank you for choosing Colortrac Ltd for your flatbed colour scanning needs.

This manual covers the installation, operation and maintenance of the Colortrac A1

Flatbed 24120 scanner.

All Colortrac scanners (sheet-feed as well as flatbed) require a host computer running a

Windows operating system and the ScanWorks PC software. The operation of

ScanWorks is described using 'Hot Tips' within the software.

The Colortrac Flatbed scanner must NOT be installed by an end user. The flatbed will

almost always need re-aligning after shipment and this can only be done an Colortrac

engineer or one of it's approved distributors/ resellers who have been suitably trained on

this product by Colortrac.

In order to achieve the best results from your scanner, we recommend that you spend a

few minutes reading the Operation and Maintenance sections of this manual.

We hope that you will have years of productive trouble-free flatbed scanning.

Colortrac Flatbed Operator Manual.

2SAFETY

Electrical Safety

Do not remove any of the cover panels without first

disconnecting the power and waiting for the recommended time

General Safety Warning

Do NOT place any heavy objects, which including standing, on

scanner. The glass will not take the weight of a human body or

similar heavy object and can cause serious damage to the

scanner.

Colortrac Ltd cannot accept responsibility for damage to the

flatbed scanner if there is reasonable doubt that these warnings

have been disregarded.

Weight Warning

The scanner weighs approx. 120 Kg and will require a minimum of two people to lift it.

No attempt should be made by a single person to lift it as serious back damage is likely.

Colortrac Ltd recommend that in the interests of safety four adults should be used to

move the scanner once unpacked.

Environmental Warning

This equipment is not intended for operation while exposed to the following: extremes of

temperature; excessive dust, moisture, or vibration; flammable gases; corrosive or

explosive atmospheres; any ingress of water.

2.1 EMC Class A

This is a class A product. In a domestic environment this product may cause radio

interference. In such cases the user may be required to take adequate measures. The

“domestic environment” is an environment where the use of broadcast radio and

television receivers may be expected within a distance of 10 metres of the apparatus.

Colortrac Flatbed Operator Manual.

3INSTALLATION

3.1 Unpacking and Installation

This is to be carried out by a Colortrac engineer or approved distributor/ reseller. Any

attempt to install this scanner by the user will invalidate the warranty. If the scanner needs

to moved to a different then a Colortrac engineer will need to be contacted to arrange for

movement.

3.2 Scanner Cabling and Set-up

Bfore connecting the scanner to the power supply, please ensure that the local supply is

within the voltage and frequency range specified on the voltage rating plate on the back of

the scanner.

The scanner automatically senses the local power supply and requires no operator

setting.

The scanner may be connected to the host computer via the Ultra Wide SCSI connector

or the IEEE1394 FireWire connector. Colortrac Ltd recommends the use of the FireWire

connector if you are running Windows 2000/XP on the host computer.

3.2.1 Installation using IEEE 1394/Firewire

To connect your scanner using FireWire, simply plug in the supplied FireWire connector

to your host computer. If you are running Windows 2000/XP the computer will

automatically detect the scanner and ask for a driver. This is supplied on the

accompanying software CD.

Note: If a Firewire cable is plugged into the scanner the SCSI connector will be disabled.

Do not try and run the scanner from both ports at the same time.

3.2.2 Installation using ultra wide SCSI

The host computer and the scanner should be powered off and an appropriate SCSI

cable used to connect the scanner to the computer. By default the scanner is set to SCSI

ID 5. If your PC is not compatible with this setting please contact your distributor who will

be able to provide assistance.

FireWire

SCSI

Mains

Switch

Colortrac Flatbed Operator Manual.

4OPERATION OF SCANNER

4.1 Initial Start-Up

On power up the internal scanner lights will turn on and the main display will show a

rotating symbol on top of image of scanner, for approximately 15 seconds after which the

display will just show image of scanner. The scanner is now ready for use. As the scanner

has multiple cameras, on initial installation Colortrac Ltd recommends that the operator

runs an auto-stitch and re-calibrated, for details on how to do this see section 6.

4.2 Document insertion

When the display shows ready, the scanner is available for use. Lift the cover on top of

scanner, and lay the document onto glass, face down and lined up with the narrow black

edge of glass. Replace the cover ready for scanning. It is recommend that documents are

removed from scanner so as not to cause light damage to valuable originals.

WARNING - Documents that are sensitive to light

should not be left in the scanner

COLORTRAC LTD ACCEPTS NO LIABILITY FOR DAMAGE TO ANY DOCUMENT

DURING THE LOADING PROCESS OR ACCEPTS NO LIABILITY FOR DAMAGE TO

ANY DOCUMENT FADED BY LIGHT.

4.3 Start Scanning

The host software initiates the scan. Please refer to the software 'Tool Tip' built into

ScanWorks for further information.

Lift cover and insert document so

that bottom of document is at

edge nearest display panel.

NOTE: Cover illustrated may differ from actual product

Colortrac Flatbed Operator Manual.

4.4 Control Panel

The display on the bottom right hand corner of scanner indicates its status. The Forward

and Reverse buttons allow the scan head to be moved along the length of the scan path.

Forward Button Advances the scan head through the scanner

Reverse Button Moves the scan head in the reverse direction

Indicates an error condition. Contact your supplier

for help and assistance.

(constantly rotating image) Indicates that the scanner is warming up /

normalising

(Image not moving) Indicates that the scanner is ready

(Moving bar) Indicates that the scanner is scanning

ALT Allows display brightness/contrast to be adjusted

Advance Button

Reverse Button

Colortrac Flatbed Operator Manual.

5MAINTENANCE

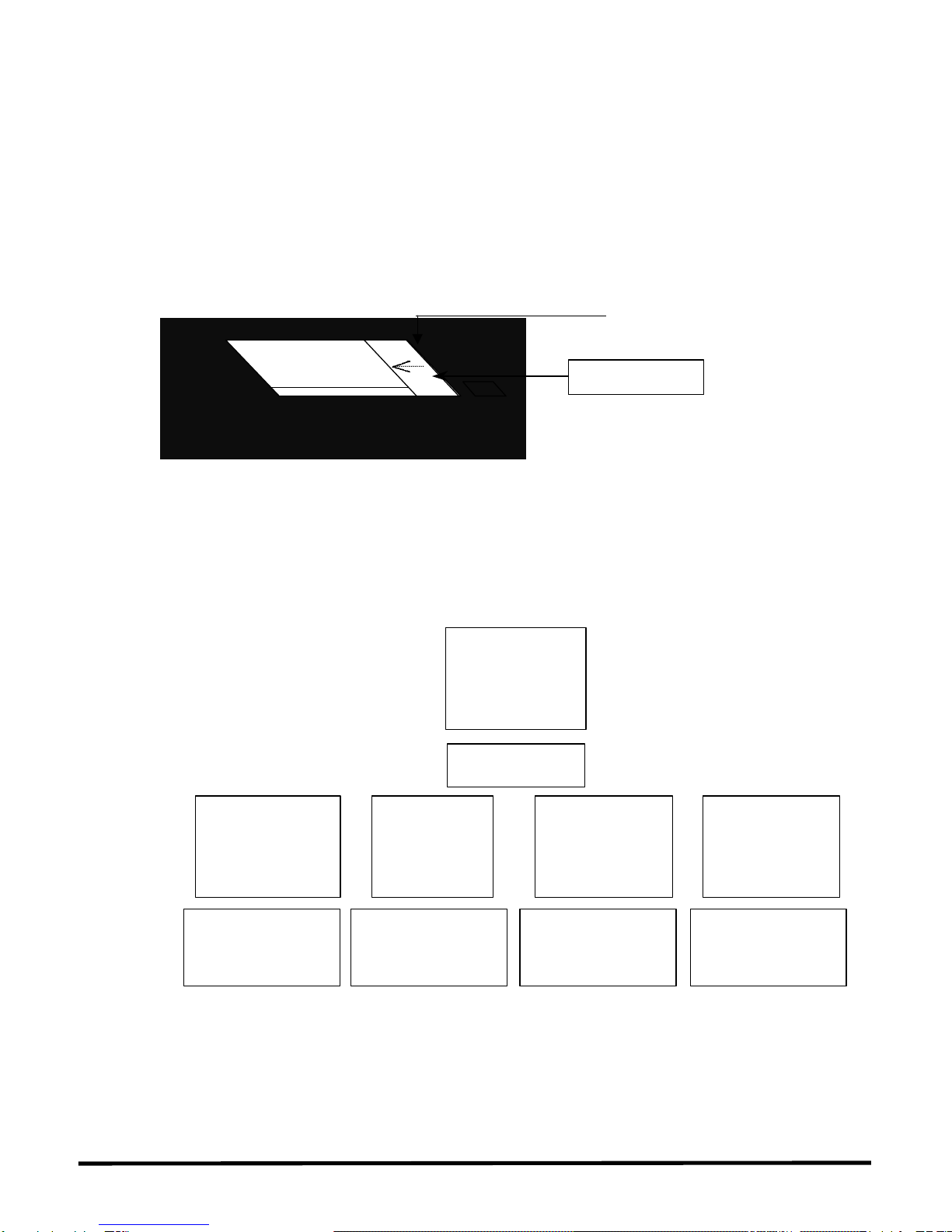

5.1 Left/ Right and Front/ Back Stitch

Unlike the previous Colortrac models, the Flatbed 24120 doesn't have an auto-stitch.

Therefore a manual stitch procedure is required. Place stitch target on scanner face down

with bottom edge of target nearest narrow black strip of glass.

Using ScanWorks, under the 'Data Control' tab, run the manual stitch. Pressing the 'Scan'

button will automatically scan the target, displaying the image in ScanWorks. Zoom into

the centre triangle by holding left click down while drawing box around the required area.

Look at the stitch points between the two cameras. If a discrepancy is see adjust the

values by moving the slider in either direction, remembering to adjust Front/ Back stitch

values first. Then re-scan to see what difference has been made.

Stitch target.

Decrease Cam1

Or increase

Cam2 FB value

Good Stitch.

Increase Cam1

Or decrease

Cam2 FB value

Increase Cam1

Or decrease

Cam2 LR value

Decrease Cam1

Or increase

Cam2 LR value

Colortrac Flatbed Operator Manual.

6COLOUR CALIBRATION

The scanner will need to be colour calibrated after 30 minutes of being switched on. This

ensures that the scanner produces the correct colours across the scan. This can be

carried out automatically by positioning the Calibration Target over the scan head making

sure that the tubes are in the centre of the target (see below). Select the option in

ScanWorks (Data Controls) to carry out a re-calibration/ white balance.

In order to achieve the best colour response from the scanner, it should be left on

continuously.

7Service Requirements on Tubes and Lubrication

The scanner will require a yearly service to ensure that it gives the best performance. The

details of this service can be obtained from your distributor.

THE SCAN HEAD RUNNER WILL NEED TO BE LUBRICATED 2 OR 3 TIMES A YEAR

USING A SMALL AMOUNT OF LUBRICATION OIL TO MAINTAIN SMOOTH

OPERATION.

Calibration

Target

Tubes in centre of

target.

Inhaltsverzeichnis

Andere Colortrac Scanner Handbücher

Colortrac

Colortrac SMARTLF SCAN Bedienungsanleitung

Colortrac

Colortrac SmartLF Gx25m Bedienungsanleitung

Colortrac

Colortrac SmartLF SG Bedienungsanleitung

Colortrac

Colortrac 3 Series Bedienungsanleitung

Colortrac

Colortrac SmartLF Cx40m Bedienungsanleitung

Colortrac

Colortrac SmartLF Ci24m Bedienungsanleitung

Colortrac

Colortrac SMARTLF SCAN Bedienungsanleitung

Colortrac

Colortrac SmartLF SG Series Bedienungsanleitung

Colortrac

Colortrac SmartLF Ci24m Bedienungsanleitung

Colortrac

Colortrac M25e Bedienungsanleitung

Colortrac

Colortrac Z Series Bedienungsanleitung

Colortrac

Colortrac L24e Bedienungsanleitung

Colortrac

Colortrac L24 Bedienungsanleitung

Colortrac

Colortrac UC56T Bedienungsanleitung

Colortrac

Colortrac SmartLF Gx 54 Handbuch

Colortrac

Colortrac T25 Bedienungsanleitung

Colortrac

Colortrac SmartLF Scan! 24 Bedienungsanleitung

Colortrac

Colortrac SmartLF SC25m Bedienungsanleitung

Colortrac

Colortrac SmartLF 4080E Handbuch

Colortrac

Colortrac SmartLF Ci 40E Montageanleitung

Colortrac

Colortrac T Series Bedienungsanleitung

Colortrac

Colortrac SmartLF Ci 40 Bedienungsanleitung

Colortrac

Colortrac SmartLF SGi 36 Bedienungsanleitung

Colortrac

Colortrac SmartLF SG Series Bedienungsanleitung

Beliebte Scanner Handbücher anderer Marken

Plustek

Plustek Scanner Bedienungsanleitung

Z/I Imaging

Z/I Imaging PhotoScan 2001 Bedienungsanleitung

Renkforce

Renkforce DS100-5M Bedienungsanleitung

Image Access

Image Access WideTEK A2 Bedienungsanleitung

Canon

Canon imageFORMULA CR-120N Bedienungsanleitung

Fujitsu

Fujitsu FI-4860C2 Bedienungsanleitung

GeoSlam

GeoSlam ZEB Horizon Montageanleitung

Kodak

Kodak i5800 Scanner Bedienungsanleitung

Kodak

Kodak i7300 Bedienungsanleitung

Revopoint

Revopoint POP Bedienungsanleitung

Fujitsu

Fujitsu fi-4860C Bedienungsanleitung

Eddyfi Technologies

Eddyfi Technologies Floormap X Bedienungsanleitung

Faselase

Faselase F6 Bedienungsanleitung

Fujitsu

Fujitsu CardMinder Bedienungsanleitung

Uniden

Uniden BC340CRS Bedienungsanleitung

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Bedienungsanleitung

Mustek

Mustek PageExpress 4800 Pro Bedienungsanleitung

Optex

Optex 750830 Bedienungsanleitung
