Colortrac SmartLF SC25m Bedienungsanleitung

SCIM-002

Colortrac Ltd

Page 1 of 7

Issue 2

SC Instruction Manual

Date: 12/02/14

This is a confidential controlled document and is the property of Colortrac Ltd.

It is not to be copied or reproduced in part or whole.

SC Scanners Scanner Service Manual

Page 2 of 7

SC Scanners

SC25m, SC25c & SC25e

SC36m, SC36c & SC36e

SC42m, SC42c & SC42e

Instruction Manual

Issue 2

©Colortrac Ltd 2014

The product and the contents of this publication may be changed without prior notification.

Colortrac Ltd makes every effort to ensure this publication is free from error. Misprints, errors

or quality observations should be reported to Technical Support, Colortrac Ltd.

Colortrac Ltd shall not be liable for any damages, errors, issues or events that result from the

use of the equipment or this manual.

No part of this product or publication may be reproduced,

copied or transmitted in any form or by any means without

permission from:

Colortrac Ltd.

Units 3 –5 Brunel Court.

Burrel Road.

St Ives,

Huntingdon,

Cambridgeshire,

PE27 3LW.

United Kingdom.

Tel: +44 (0)1480 464618

Fax: +44 (0)1480 464620

www.colortrac.com

SC Scanners Scanner Service Manual

Page 3 of 7

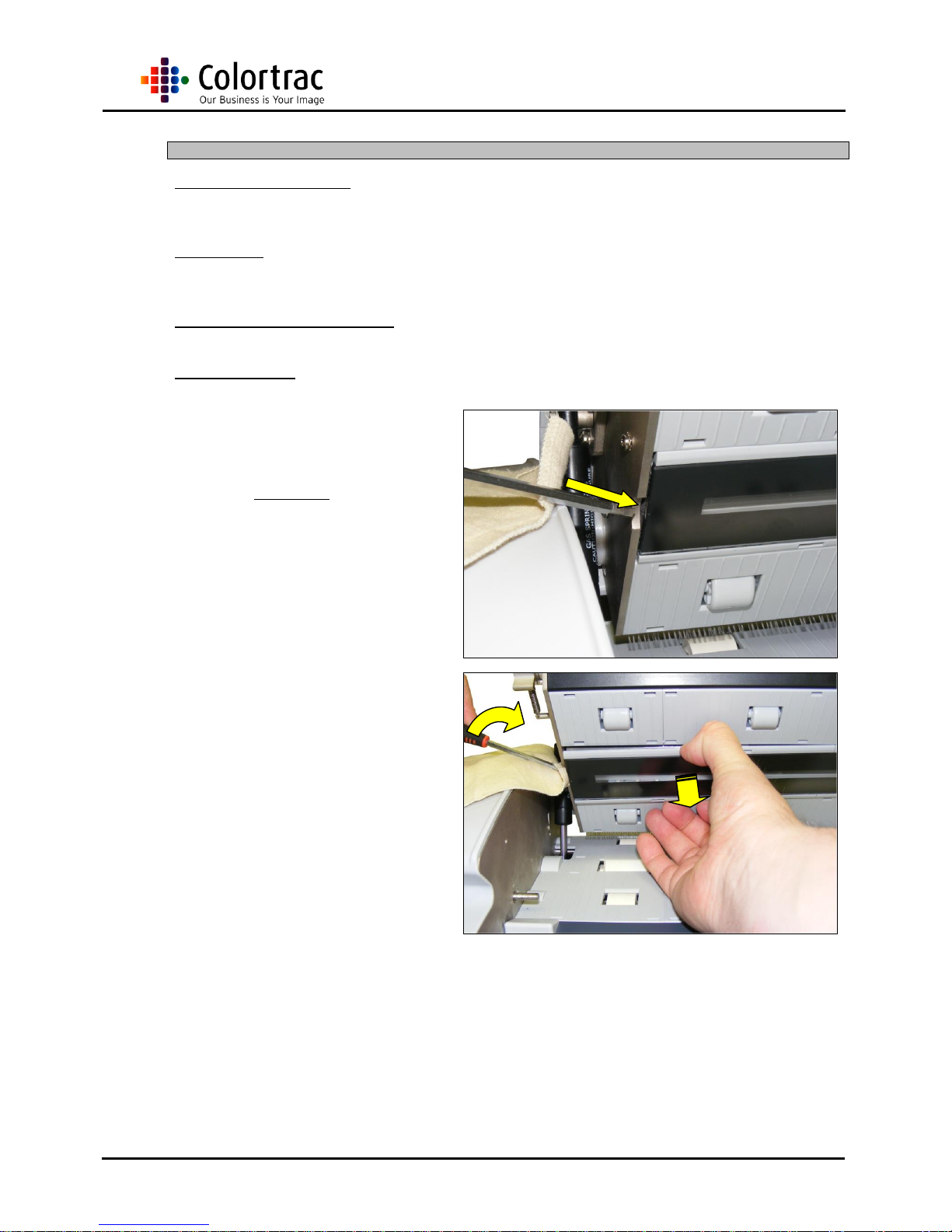

1.1 SingleSensor Glass Sub-Assy

1.1.1 Safety Precautions

Ensure that the power and USB cables are completely disconnected from the scanner unit.

Ensure the scanner is positioned on a stable maintenance platform.

1.1.2 Tools

Medium Flat Screwdriver

Soft Cloth

1.1.3 Associated Part Numbers

10H014 : SingleSensor Glass Sub-Assy

1.1.4 Procedure

1. To Remove, Open the Error!

Reference source not

found. and using a Medium

Flat Screwdriver and a clean

cloth, insert the screwdriver

into the recess at the left end.

2. Gentle lever back the

screwdriver to prise the

SingleSensor Glass Sub-

Assy away from the Error!

Reference source not

found..

SC Scanners Scanner Service Manual

Page 4 of 7

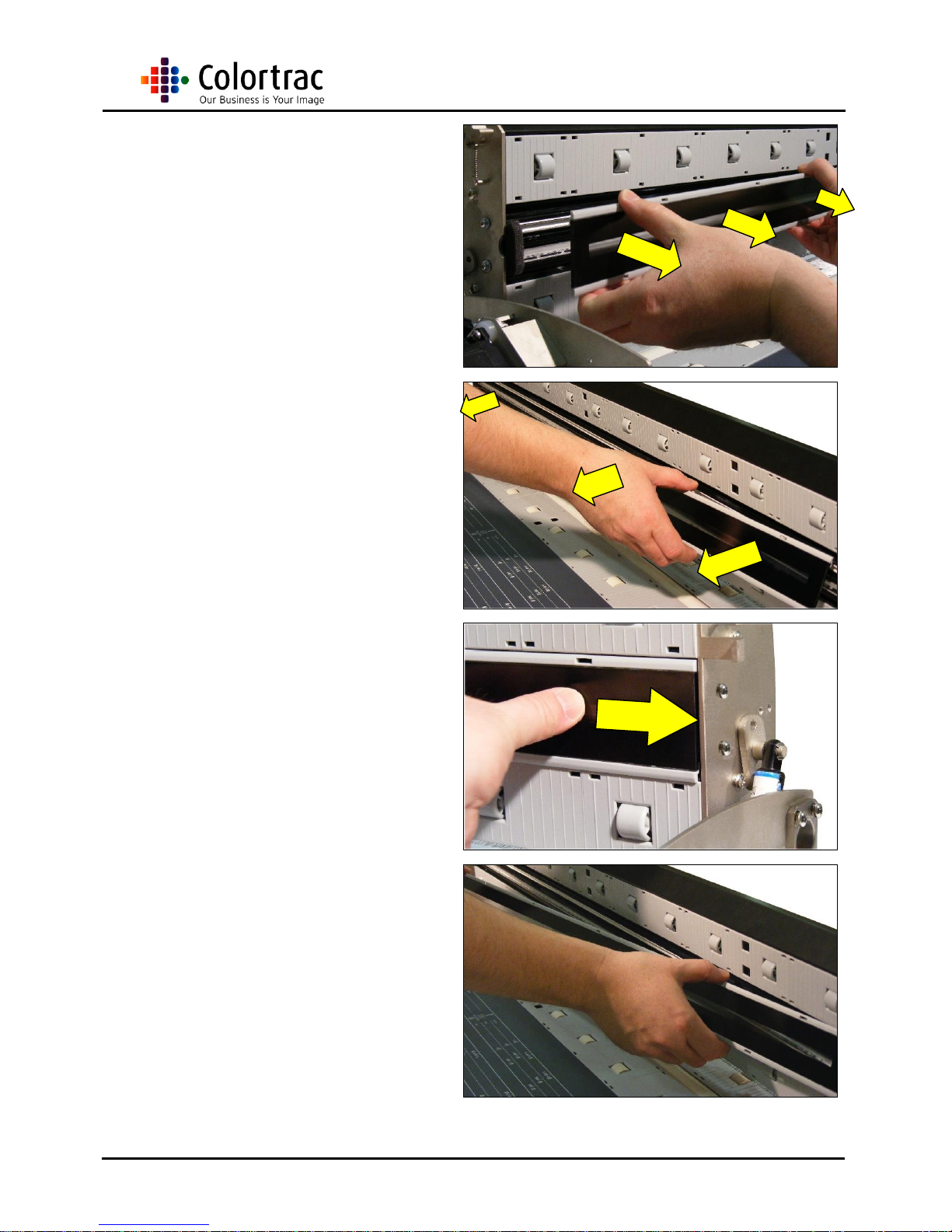

3. Continue to gently pull the

whole SingleSensor Glass

Sub-Assy away from the

Error! Reference source

not found..

4. Remove the SingleSensor

Glass Sub-Assy

5. When refitting the

SingleSensor Glass Sub-

Assy, make sure the right

end is against the End Plate.

6. Position the SingleSensor

Glass Sub-Assy over the

Error! Reference source

not found. and make sure it

is central all the way along.

NOTE: Before fitting the SingleSensor Glass

Sub-Assy, clean both sides with a lint free

cloth to remove any dust, dirt or fingerprints.

SC Scanners Scanner Service Manual

Page 5 of 7

7. Press firmly all along the

SingleSensor Glass Sub-

Assy until all the latches are

locked in place.

8. Close the Error! Reference

source not found..

9. Reconnect the Power and USB cables to the Scanner and power up the scanner and

Utilities Program.

10. Run the

1.2 Calibration

11. , see below.

12. Re-cycle the scanner and software.

SC Scanners Scanner Service Manual

Page 6 of 7

1.3 Calibration

1.3.1 Associated Part Numbers

10H028 :

1.4 Calibration

and Error! Reference source not found. Target

1. Open the Error! Reference

source not found. and

clean the SingleSensor

Glass Sub-Assy with a soft

cloth. Close the Lid

Assembley.

2. Insert the Calibration Target

so that the black part

section is inserted first, face

up.

NOTE: It is necessary to remove the

Magnetic Paper Guide so the target can fit

centrally in scanner.

3. Double click the SmartLF

SC Utilities icon.

4. On the front page, click the

‘Calibrate’ button.

SC Scanners Scanner Service Manual

Page 7 of 7

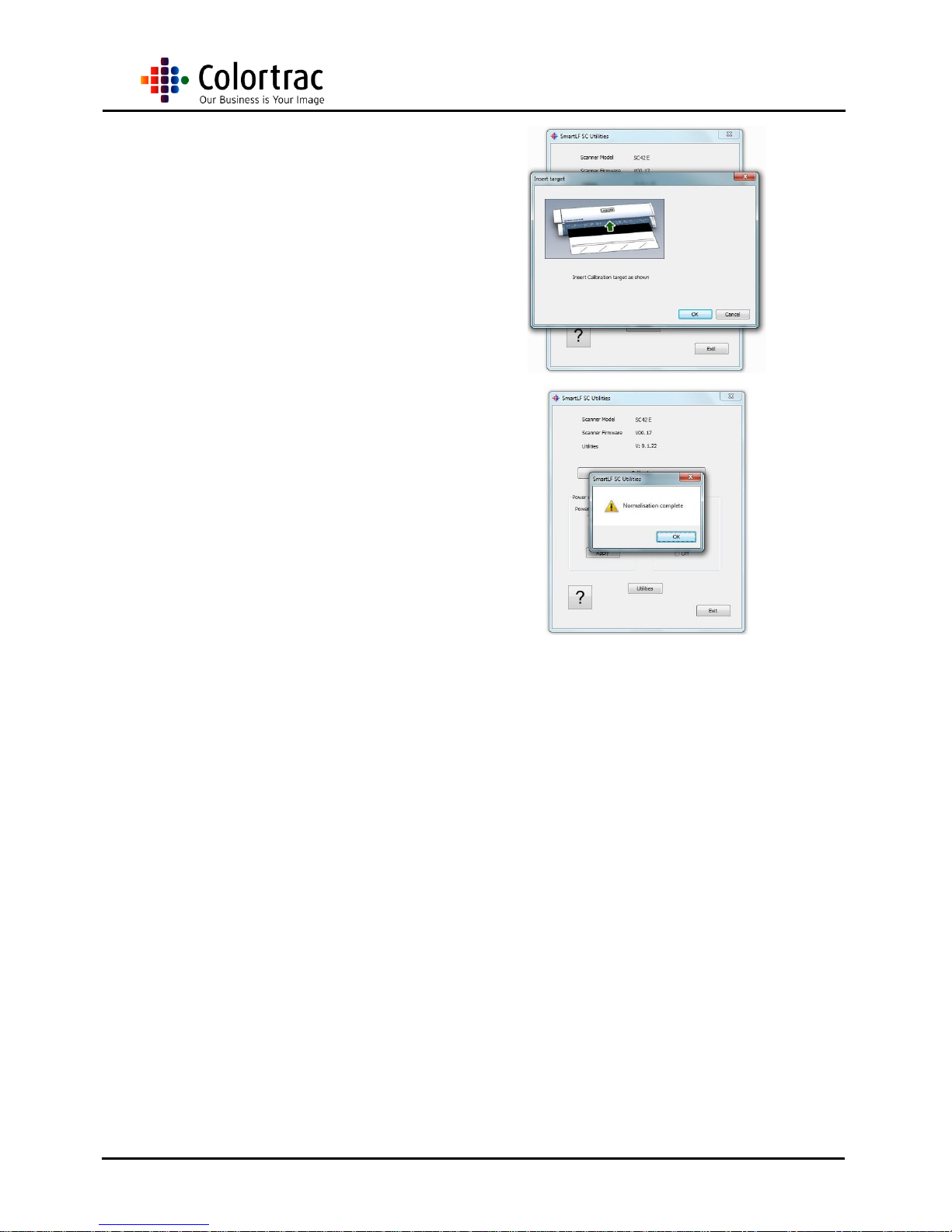

5. Click ‘OK’ to except the

message.

6. After approx. 4 minutes, the

‘Calibration’ (or

Normalisation) is complete.

During calibration , the

target will move through the

scanner in stages several

times.
